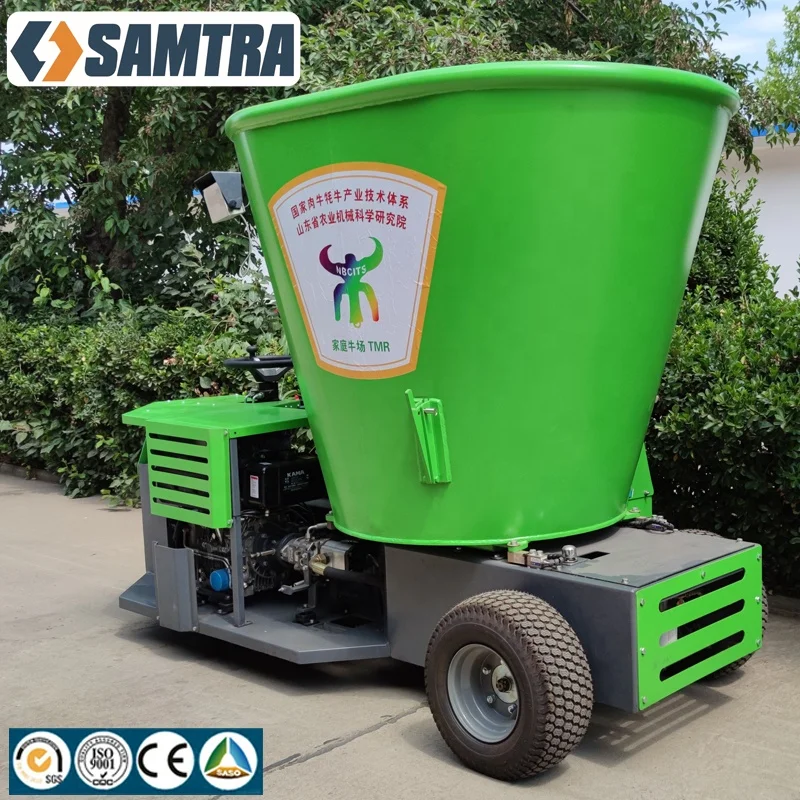

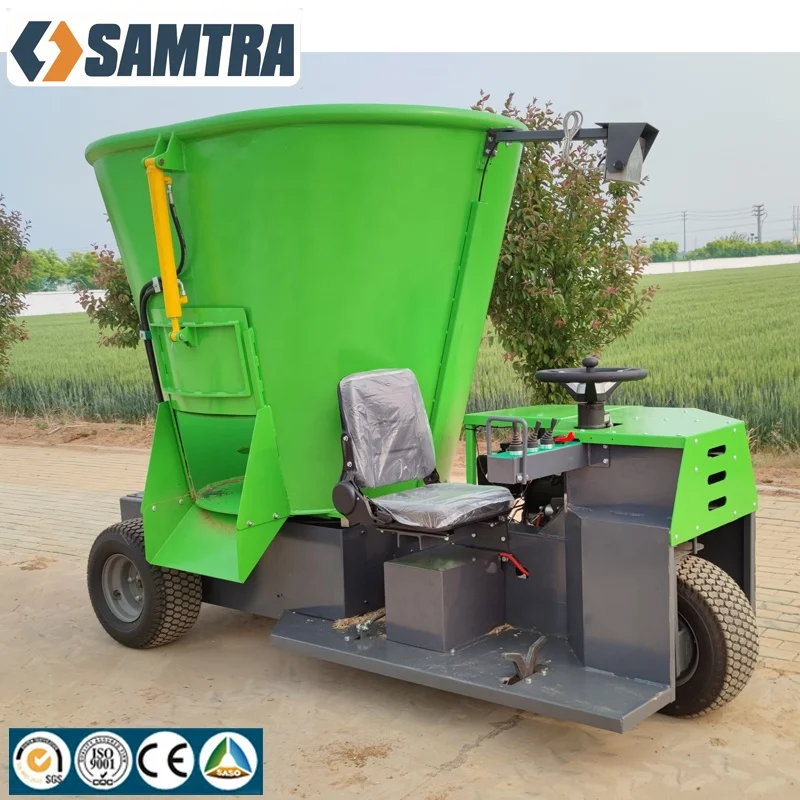

Self propelled Vertical Cattle Feed TMR Mixer
- Category: >>>
- Supplier: Shandong Sunco Aet Co. Ltd.
Share on (1601159194097):
Product Overview
Description
SAMTRA TMR MIXER FEEDER
SAMTRA TMR Mixer Feeder has the features of:
1. Full hydraulically drive, easy to operate, stable operation;
2. Compact structure, small turning radius;
3. Dual-speed control, high-speed transfer and low-speed operation;
4. Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ration;
5. Mixing and spreading in one time, simple operation and low operating cost;
6. Forward and backward driving, easy to observe and control the spreading situation;
7. The auger can rotate in both directions, complete unloading and less residue;
8. Suitable for farms with 20 to 100 cattle or 50 to 300 sheep.
1. Full hydraulically drive, easy to operate, stable operation;
2. Compact structure, small turning radius;
3. Dual-speed control, high-speed transfer and low-speed operation;
4. Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ration;
5. Mixing and spreading in one time, simple operation and low operating cost;
6. Forward and backward driving, easy to observe and control the spreading situation;
7. The auger can rotate in both directions, complete unloading and less residue;
8. Suitable for farms with 20 to 100 cattle or 50 to 300 sheep.
Model | TMR15YZ | |
Engine Power | 14KW, Diesel | |
Mixer Volume | 1.6 m³ | |
Weighing System | Standard | |
Rotation Speed of Auger | 30~45 rpm | |
Transportation Speed | 6.1 kmh | |
Min. Turning Radius | 220 cm | |
Tire Model | 20x8-10 | |
Number of Wheels | 3 | |
Net Weight | 1050 kgs | |
Overall Dimensions (L x W x H) | 280*132*195 cm | |
Remarks: technical specifications and engineering designs are subject to change without further notice! | ||

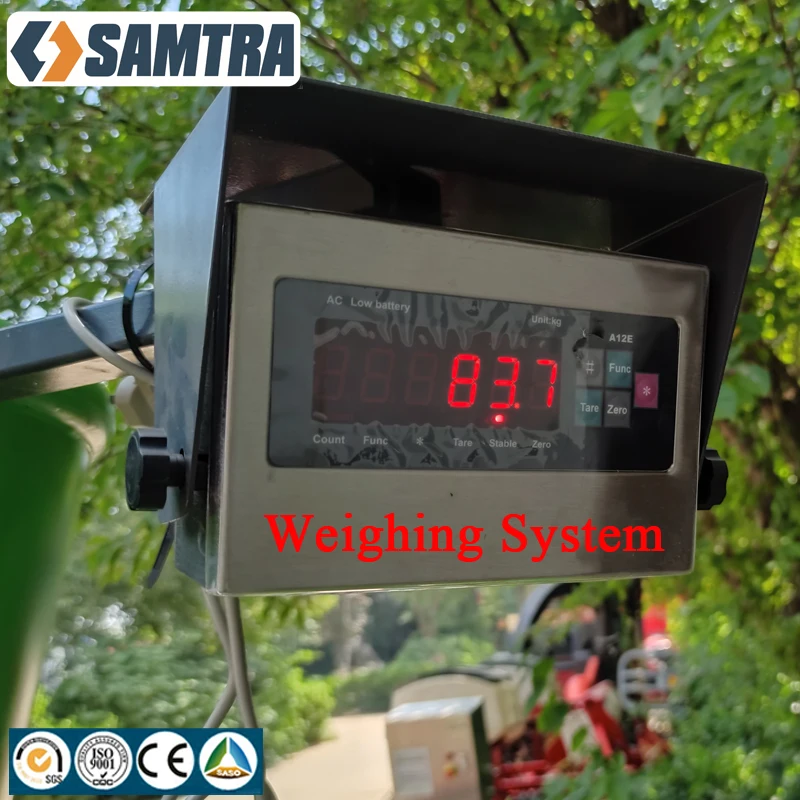

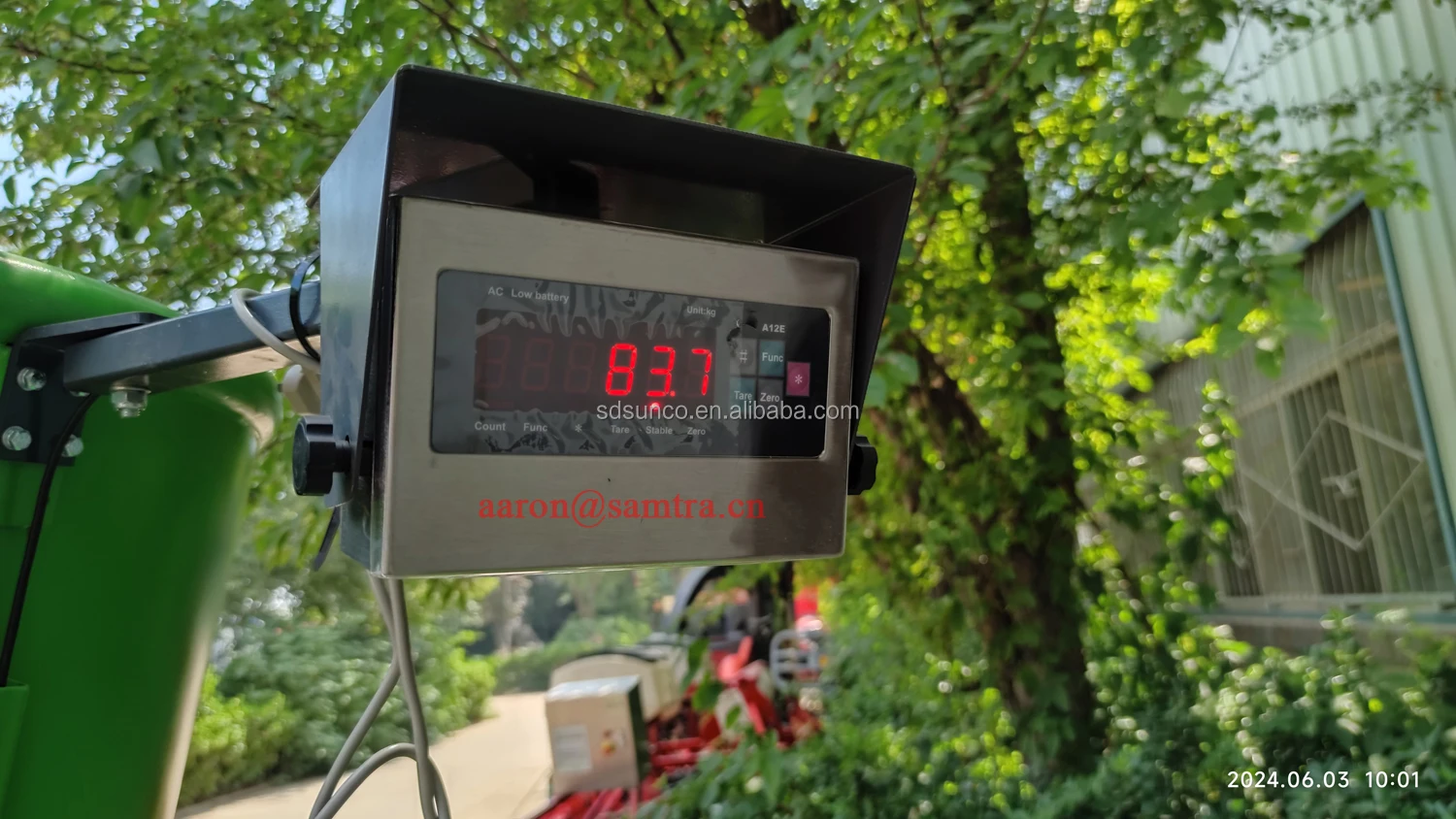

Weighing System Equipped
Real-time display of material mixing weight, convenient for mixing and proportioning of total mixed ration;

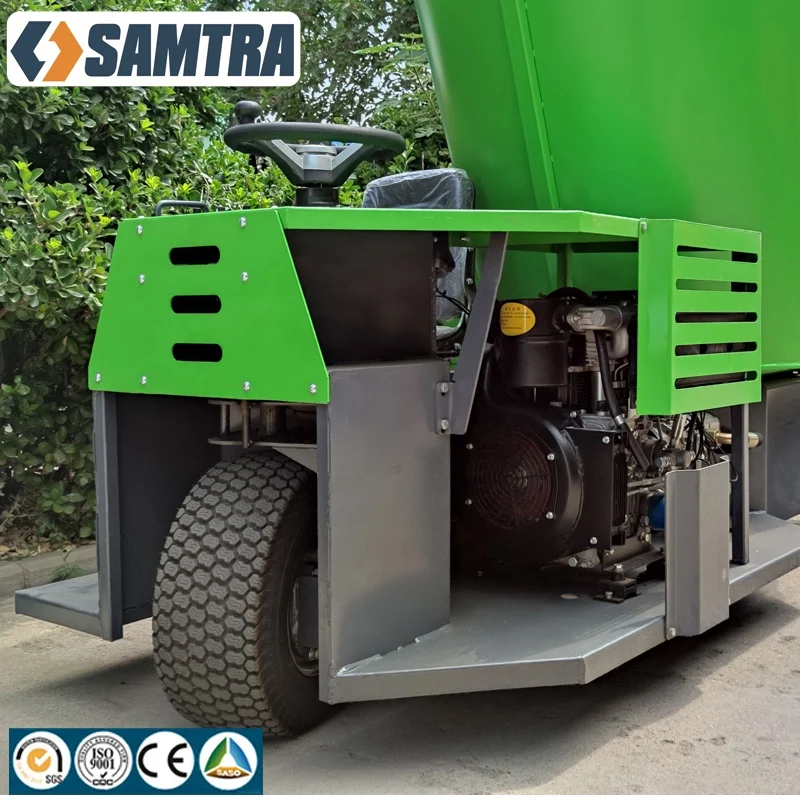

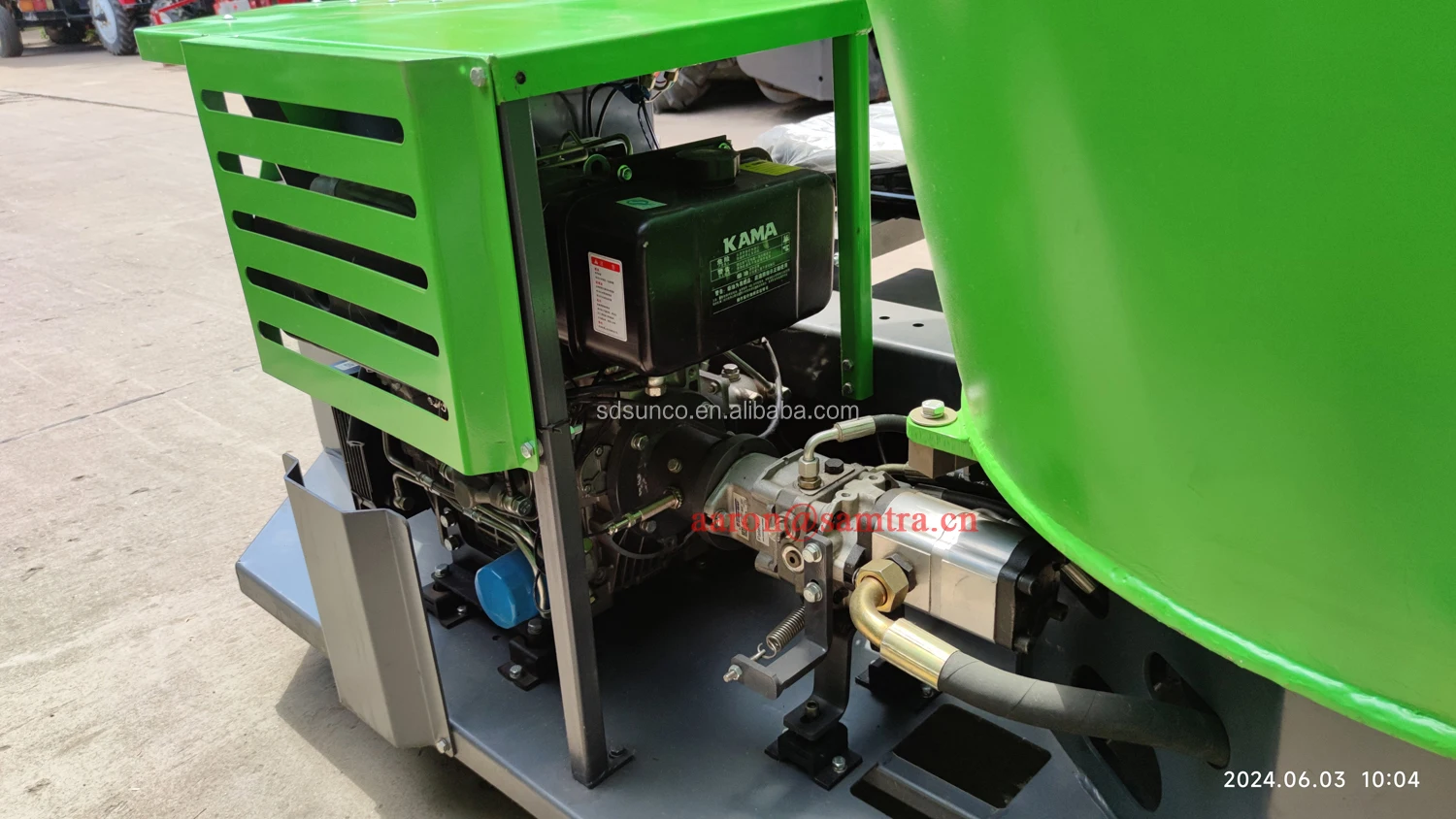

Diesel Engine Drive Hydraulic System
1. 14kw KAMA Diesel Engine, strong power supply
2. the hydraulic pump is imported from USA, stable hydraulic power support

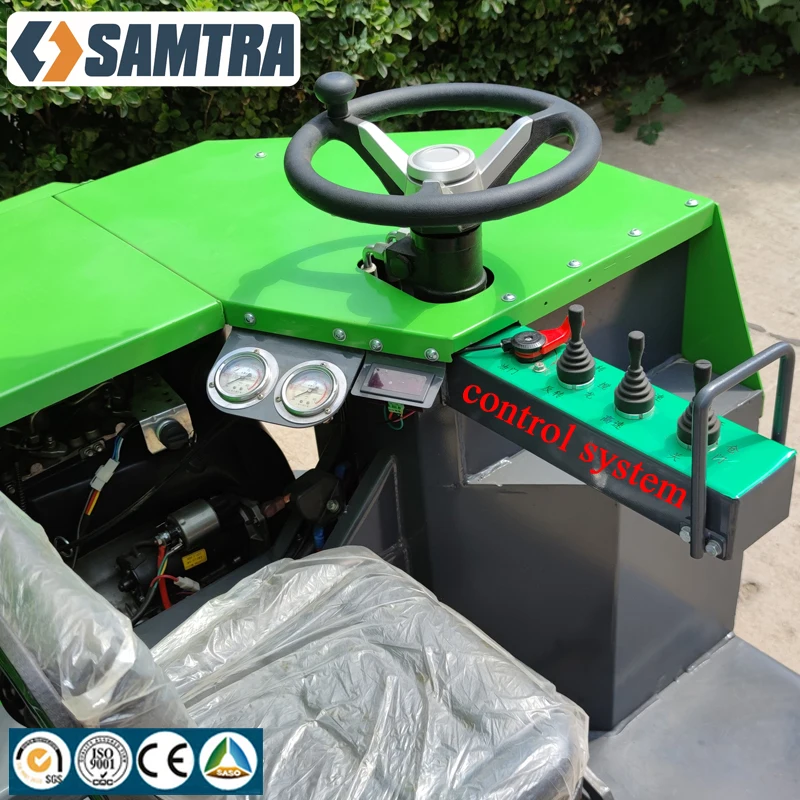

Compact&Convenient Control System
Bidirectional Mixing Auger
