Invisiblee Advertising Led Crystal Film Screen Trans Crystal Screen Display Screens Panel Transparent Led Film
- Category: >>>
- Supplier: Kensence (shenzhen) Technology Development Co. Ltd.
Share on (1601159199023):
Product Overview
Description
Product Description
Product Applications

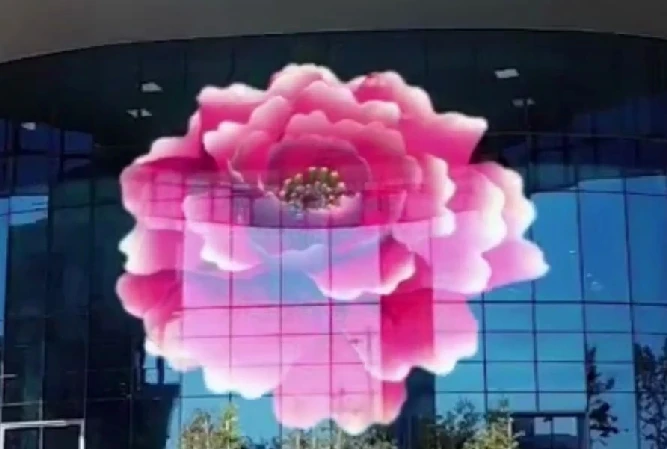

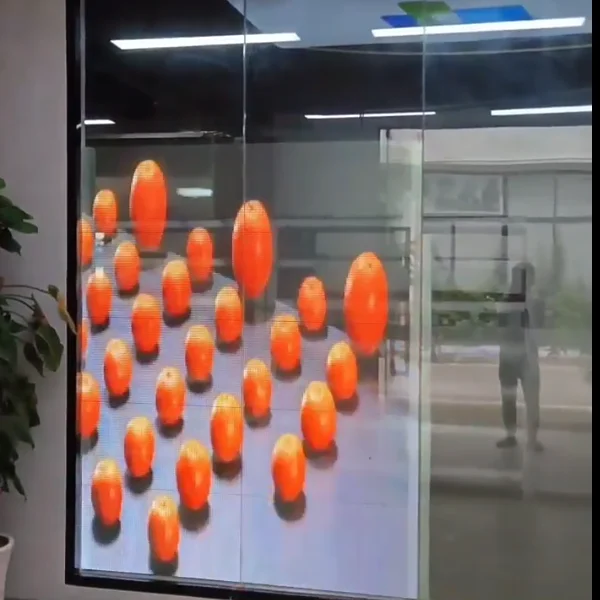

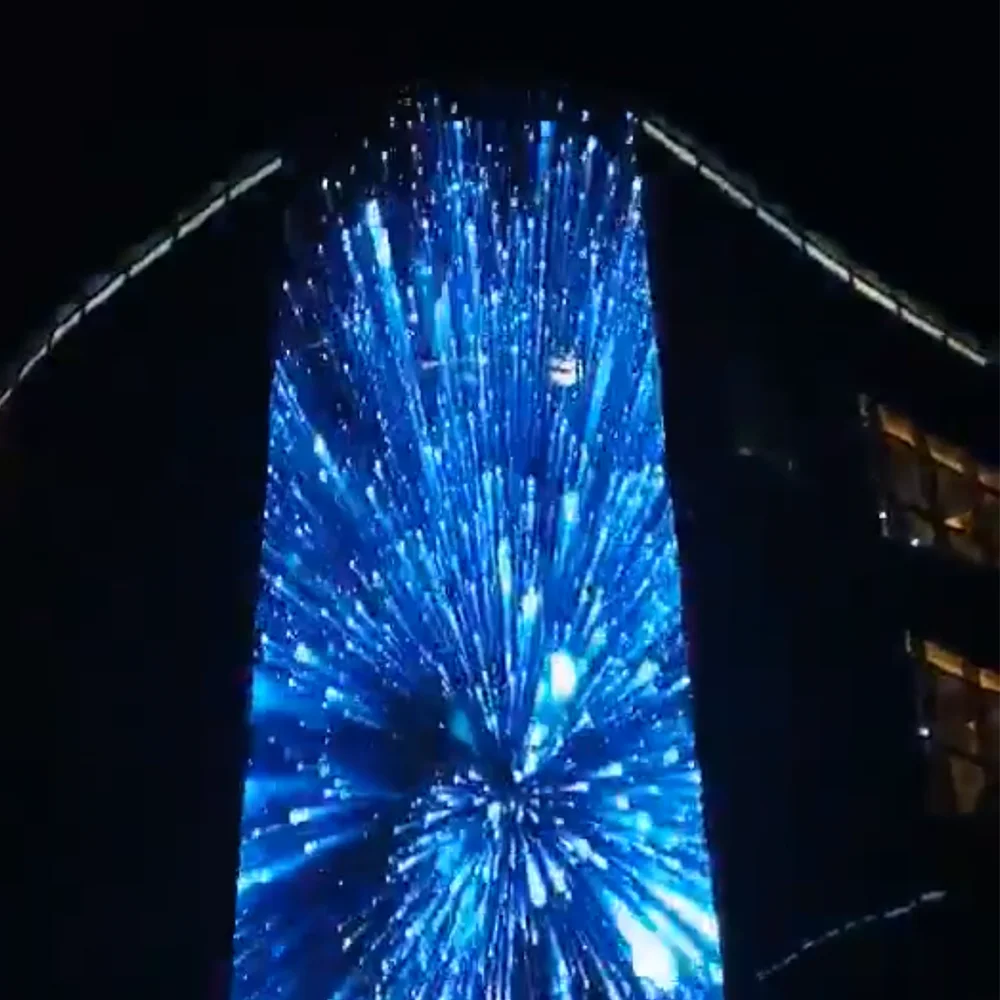

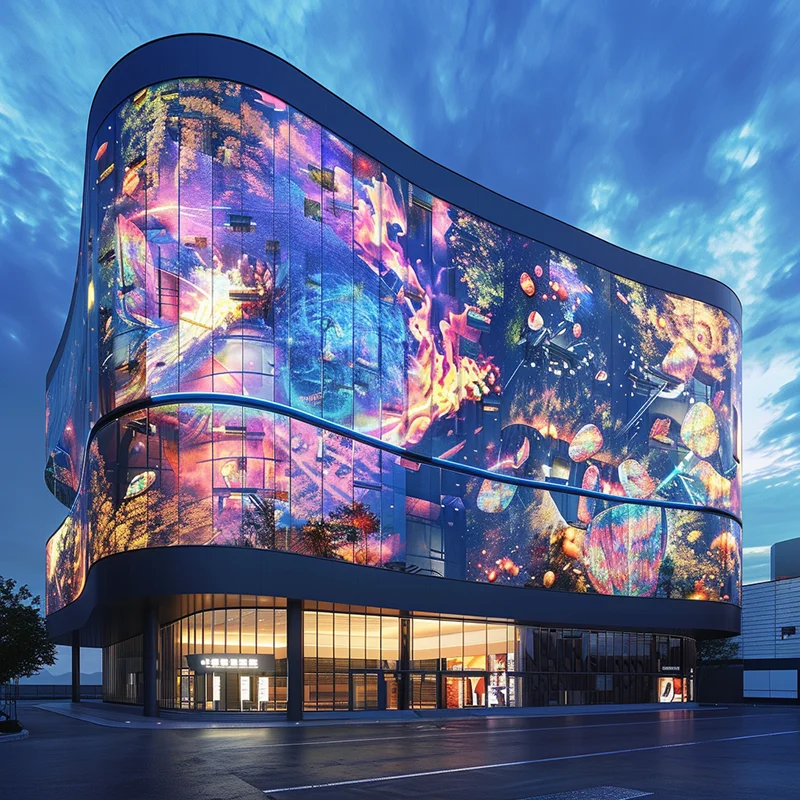

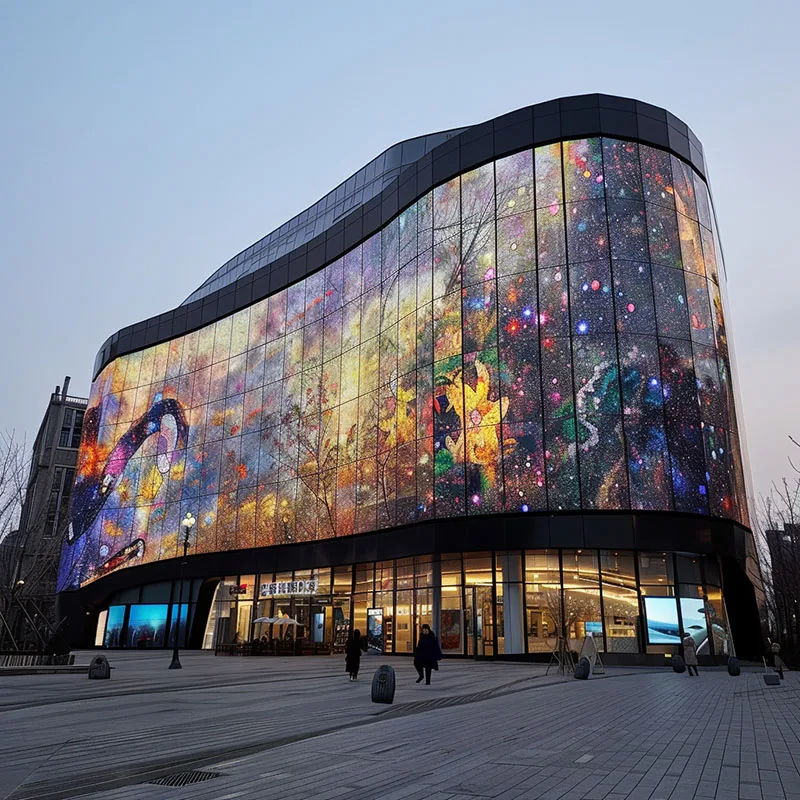

Transparent LED display is a new display technology with high transparency, bright colors and high brightness. In the store, the transparent LED display can be applied to the store glass window to attract the attention of customers and improve the brand image of the store. We propose the application scheme of transparent LED display in shop glass windows.
At present, flexible LED transparent screen products, thin and light, the best visual effect of a product

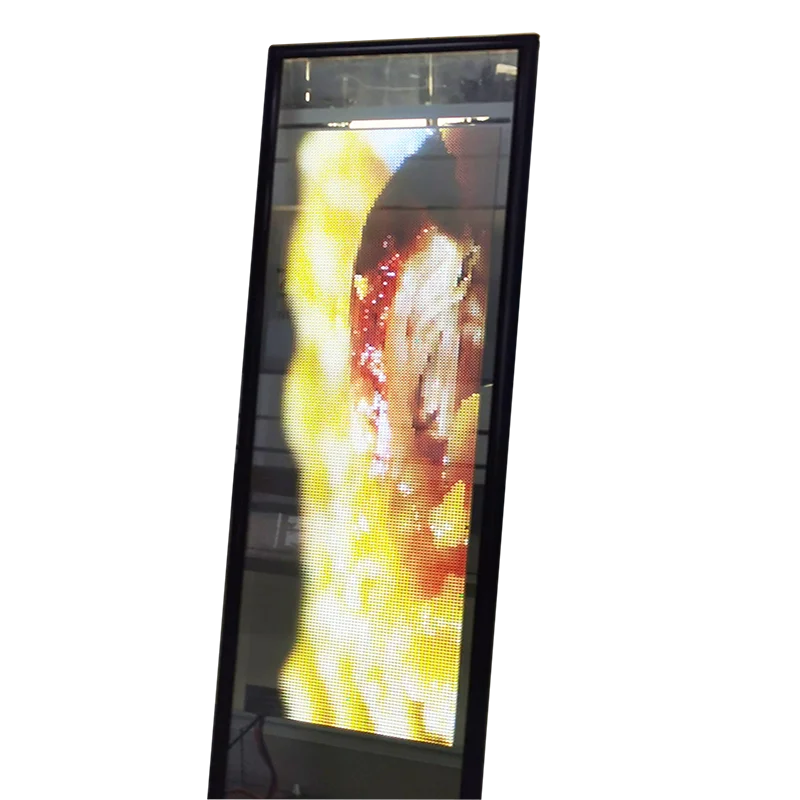

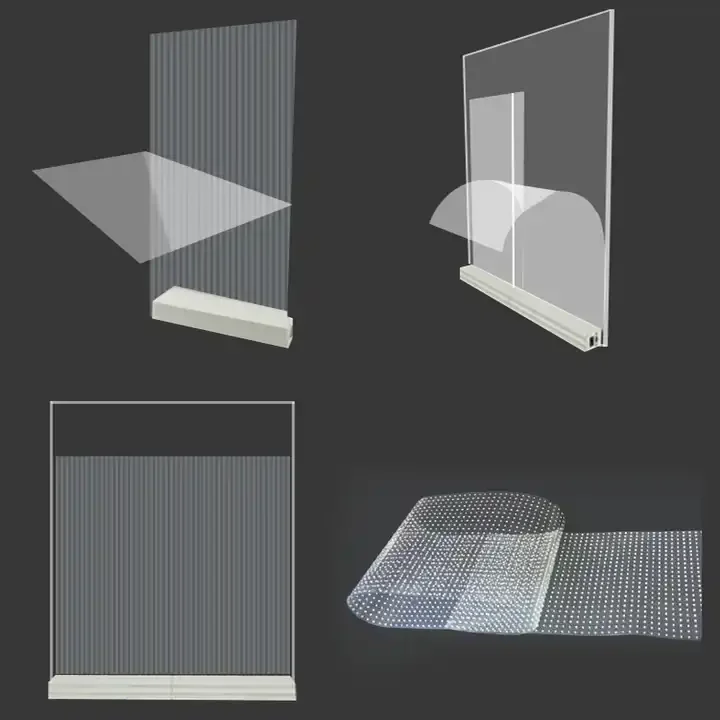

The product is LED crystal film screen, also called soft film screen, film screen or soft crystal screen. It has the ability to be arbitrarily Cutting, curved surface display, high light transmittance (up to 95% or more), ultra-light and ultra-thin, structure
Traditional LED transparent screen pain points
The product is LED crystal film screen, also called soft film screen, film screen or soft crystal screen. It has the ability to be arbitrarily Cutting, curved surface display, high light transmittance (up to 95% or more), ultra-light and ultra-thin, structure
Traditional LED transparent screen pain points
Industry pain points | Sources and explanations of pain points |
size and weight | The conventional technical solutions are all overweight, overthick, and difficult to install,etc. |
Appearance design | Opaque solution: Hardboard structure and background are black and single. It can only rely solely on the mechanism to realize the folding - curved surfaces - shaped demand Transparent solution: There is no effective solutions of both high-transparency and high-brightness high-resolution ,and the problem of electrode line visibility.(visible metal line and liquid metal >200um line width) |
Electrical temperature | Poor conductivity of transparent electrodes and poor design of the control chip: power consumption, hot and flexible materials has some flaws, such serious temperature difference between the rise and fall, the splicing module is not delicate and so on. |
Environmental reliability | The transparent solution lacks effective water and gas barrier design, and has poor resistance to high temperatures and humidity,etc. |
Our flexible LED transparent screen Product Features
2.Flexible material screen: fully laminated spherical mounting or 1:1 laminated according to the board size.
3.High Definition Display: Built-in chip full-colour light beads, ultra-high definition picture, high grey level.
4.Cleaning characteristics: the surface of the screen body is covered with AR self-cleaning paint, no need for frequent manual cleaning.
5.Convenient uphold just replace it.
6.Own material patent, easy to stick and tear, any fit on all surfaces; transmittance >90%, anti-yellowing, and can pass double 85 reliability test.Passes double 85 reliability test
Easy Installation
Simply stick the film screen gently, and then connect the signal and power supply. Effectively save Reduce the cost of installation and uphold.
Specification
Technical Parameters | item | P5 | P6.25 | P8 | P10 |
Pixel pitch (mm) | 5 | 6.25 | 8 | 10 | |
Lamp beads | 1515 | 1515 | 1515 | 1515 | |
Pixel structure | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Pixel density | 40000 | 25600 | 15625 | 10000 | |
Unit resolution (W×H) | 192*48 | 160*64 | 125*50 | 100*40 | |
Unit size (W×H) | 960mm*240mm | 1000mm*400mm | 1000mm*400mm | 1000mm*400mm | |
Core Material | New optical materials | New optical materials | New optical materials | New optical materials | |
Scanning method | Static | Static | Static | Static | |
Transmission rate | 85% | 90% | 90% | 95% | |
Grayscale | 65536(16bit) | 65536(16bit) | 65536(16bit) | 65536(16bit) | |
Protection level (Lighting side/back side) | IP68 | IP68 | IP68 | IP68 | |
Maintenance method | Post- maintenance | Post- maintenance | Post- maintenance | Post- maintenance | |
Optical properties | Brightness (CD) | ≥2000CD | ≥2000CD | ≥2000CD | ≥2000CD |
Color Temperature | 6000-12000K adjustable | 6000-12000K adjustable | 6000-12000K adjustable | 6000-12000K adjustable | |
Horizontal/vertical viewing angle | ≥180° | ≥180° | ≥180° | ≥180° | |
Environmental Characteristics | Maximum power (W/m²) | 400W/m² | 400W/m² | 400W/m² | 400W/m² |
Average power (W/m²) | 200W/m² | 180W/m² | 120W/m² | 100W/m² | |
Supply voltage | AC 110-240V50/ 60Hz | AC 110-240V50/ 60Hz | AC 110-240V50/ 60Hz | AC 110-240V50/ 60Hz | |
working environment | Temperature -20~55 Humidity 10-90% | Temperature -20~55 Humidity 10-90% | Temperature -20~55 Humidity 10-90% | Temperature -20~55 Humidity 10-90% | |
Unit weight | ≈1.3KG | ≈1.3KG | ≈1.3KG | ≈1.3KG | |
Thickness | ≈2.5mm | ≈2.5mm | ≈2.5mm | ≈2.5mm | |
Control System | Kensence | Kensence | Kensence | Kensence |
Packing & Delivery
OEM

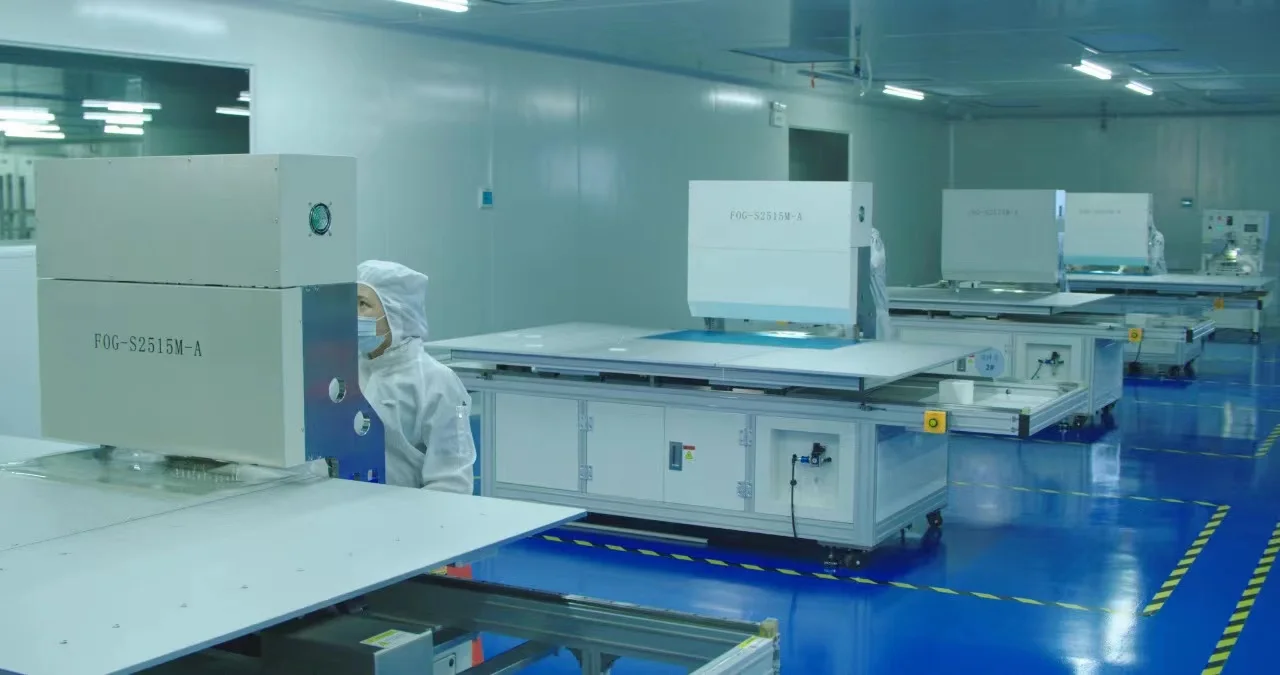

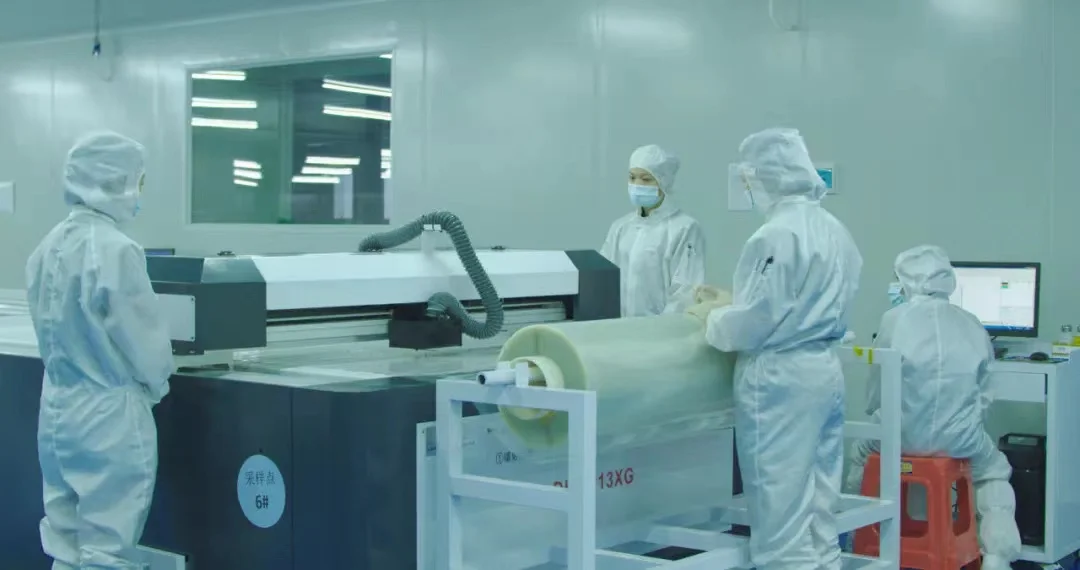

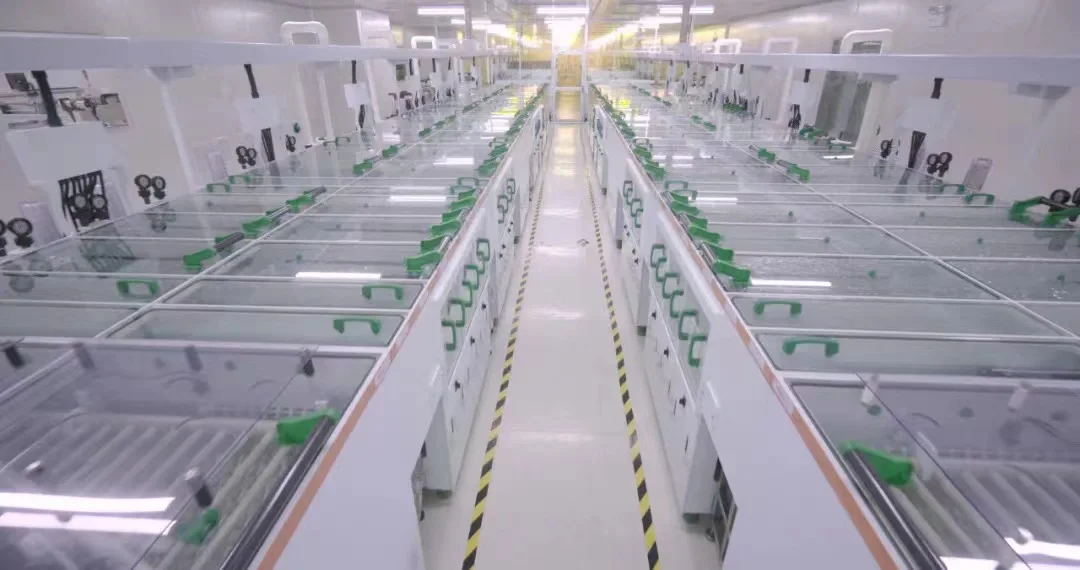

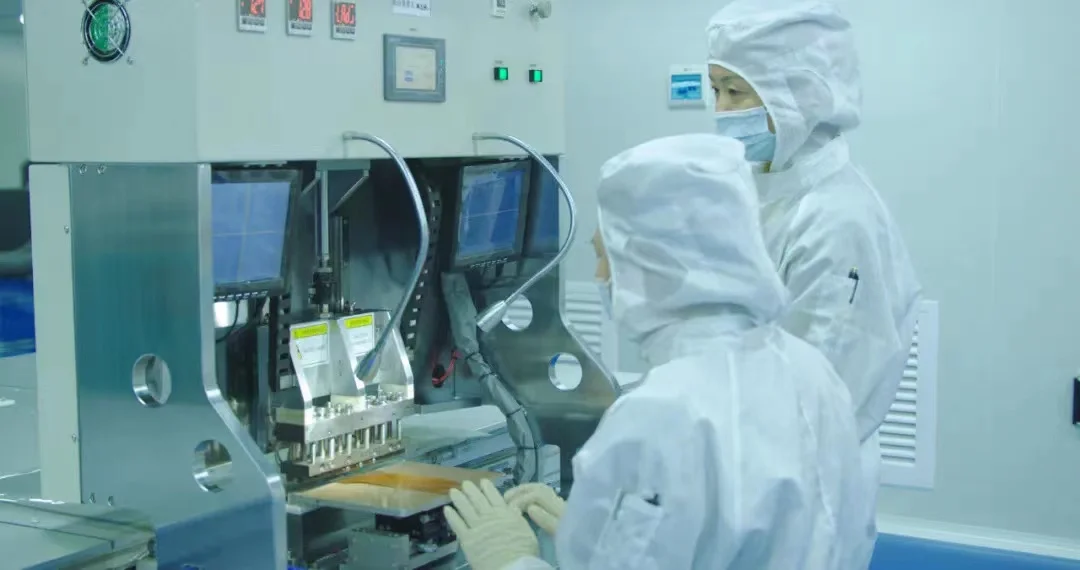

Company Profile
Kensence Technology Development Co., Ltd. is a high-tech enterprise specializing in independent research and development, manufacturing, sales and service in the field of network multimedia technology and multimedia audio-visual technology. Kensence has a research and development center in Shenzhen and has more than 10 offices across the country and global overseas offices that radiate in Asia, Europe and the Americas. As a signal processing expert, Kensence has been focusing on independent research and development, manufacturing and service of audio and video matrix products since its inception. At present, Kensence has four product lines of network type hybrid matrix, card type hybrid matrix, fiber type hybrid matrix and analog matrix, and the most advanced transmission conversion equipment. Since its inception, Kensence has always been committed to customer satisfaction and has consistently partnered with world-leading companies including system integrators, distributors and audio and video equipment manufacturers. At present, Kensence's products have been widely used in government, business, finance, education and medical industries, and have been recognized by hundreds of customers. Kensence is relying on strong R&D capabilities and existing marketing channels to expand the global market.
Certifications
Exhibition
FAQ
Q:Are you factory or trade company?
A.We are professional manufacture, we have our own factory with productionlines..
Q:What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Paypal and alibaba credit assurance order.
Q:How can you guarantee quality?
A:We welcome customer to place an sample order to test and check the quality before mass order. Our professional QC will finish final Inspection before shipment.
Q:How long does product take to deliver?
A:We often send the product by express. If you order regular products in stock, it usually takes 1-3 days to deliver. If you order the customized products,it needs 7-10 days.
Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within2~4 weeks.
Q:I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an
extraservice,so a little bit extra service fee is needed.
A.We are professional manufacture, we have our own factory with productionlines..
Q:What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T, Paypal and alibaba credit assurance order.
Q:How can you guarantee quality?
A:We welcome customer to place an sample order to test and check the quality before mass order. Our professional QC will finish final Inspection before shipment.
Q:How long does product take to deliver?
A:We often send the product by express. If you order regular products in stock, it usually takes 1-3 days to deliver. If you order the customized products,it needs 7-10 days.
Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity and the season you place the order. Generally speaking, production lead time is within2~4 weeks.
Q:I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an
extraservice,so a little bit extra service fee is needed.
