AC 110V 50/60HZ 3.3V 6V 9V 15V 24V 1A 2A constant current LED driver transformator 12v to 220v DC switch 12 volt power supply
- Category: >>>
- Supplier: Shenzhen Gofern Electronic Co. Ltd.
Share on (1601159449914):
Product Overview
Description

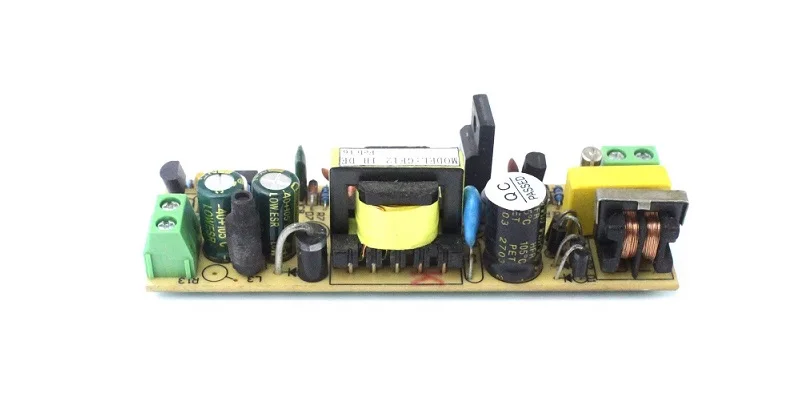

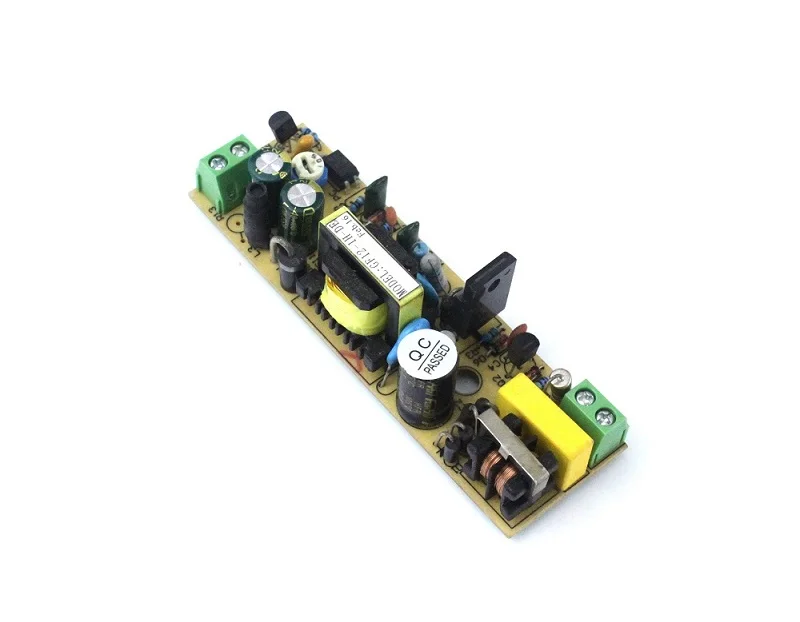

AC 110V 50/60HZ 3.3V 6V 9V 15V 24V 1A 2A constant current LED driver transformator 12v to 220v DC switch 12 volt power supply
Product Description
Fatures:
* Low power consumption, high reliability
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection
* 100% full loading burn-in test
* 2 years warranty
* AC 86-264V input
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 9V | 12V | 15V |
| OUTPUT POWER | 10W | 10W | 10W | 10W | 10W | |
| CURRENT RANGE | 3A | 2A | 1.1A | 0.8A | 0.6A | |
| RIPPLE & NOISE(max.) | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | ±10% | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| SETUP,RISE TIME | 800ms, 50ms at full load | |||||
| HOLD UP TIME | 60ms | |||||
| INPUT | VOLTAGE RANGE | 86 ~ 264VAC | ||||
| AC CURRENT(Typ.) | 0.35A/ 116VAC 0.18A/ 240VAC | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 78% | 78% | 80% | 82% | 82% | |
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <0.5mA/240VAC | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated output voltage | ||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/℃ | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFTY & EMC | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||||
| SAFTY STANDARDS | Refer to CE EN60950-1 | |||||
| EMC STANDARDS | Refer to EN55022,EN55024,EN61000 | |||||
| OTHERS | DIMENSION | L92*W27*H35MM | ||||
| WEIGHT | 200PCS/Carton/18KG | |||||
| SHELL MATERIAL | NONE | |||||
