Meat Pump Manufacturer Stainless Steel Sanitary Food Grade Seasonings/beer/molasses/sauce/honey/syrup Rotor Rotary Lobe Pump
- Category: >>>
- Supplier: Shandong Raystone Chemical And Industry Co. Ltd.
Share on (1601159487697):
Product Overview
Description
Products Description
Rotray Lobe Pump
●The pump can transport viscosity of 1 million cp, as well as containing solid particles of the medium, also applies to the
transport process is easy to foam the medium, the pump transported by the medium to maintain the original quality unchanged, will
not play any physical and chemical reaction
●Pump body are 304/316 stainless steel round steel CNC machining and become, the seal adopts the external rotation, static ring
mechanical seal, can be washed, wear-resistant and non-leakage, the sealing ring are using food-grade silica gel ring.
●The pump is precision machined by CNC, unique design, rotor and pump cavity to maintain a certain gap between the various
components, complementary contact, not easy to wear and tear, low noise, good reliability, long service life.
●Applicable temperature: -50 °C -250 °C.
●Material：304/316 Stainless Steel.
●Seal type：Mechanical Seal and Packing Seal.
●The pump can transport viscosity of 1 million cp, as well as containing solid particles of the medium, also applies to the
transport process is easy to foam the medium, the pump transported by the medium to maintain the original quality unchanged, will
not play any physical and chemical reaction
●Pump body are 304/316 stainless steel round steel CNC machining and become, the seal adopts the external rotation, static ring
mechanical seal, can be washed, wear-resistant and non-leakage, the sealing ring are using food-grade silica gel ring.
●The pump is precision machined by CNC, unique design, rotor and pump cavity to maintain a certain gap between the various
components, complementary contact, not easy to wear and tear, low noise, good reliability, long service life.
●Applicable temperature: -50 °C -250 °C.
●Material：304/316 Stainless Steel.
●Seal type：Mechanical Seal and Packing Seal.

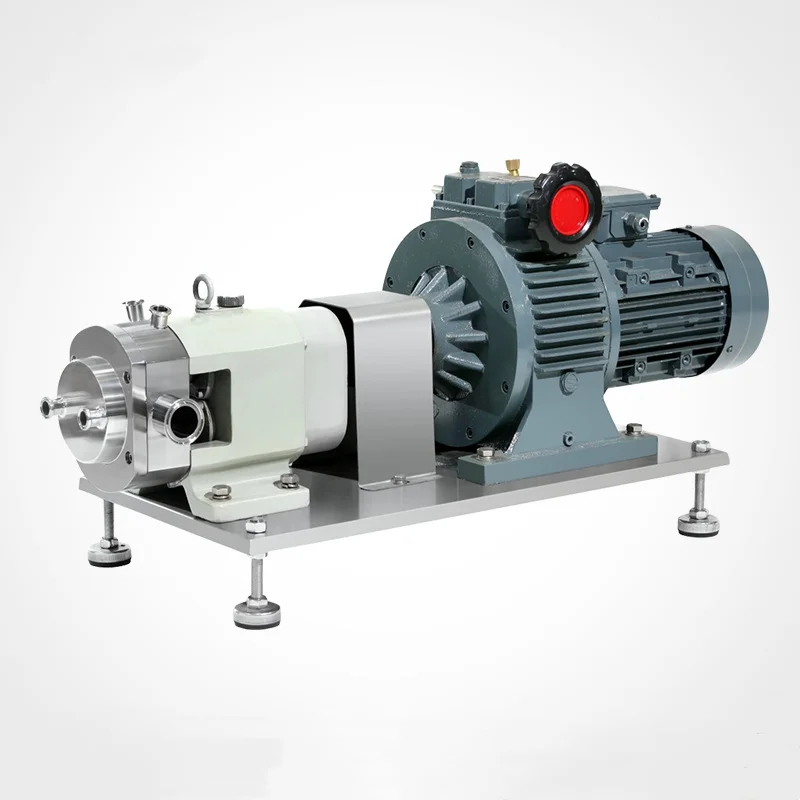

with variable frequency motor
with trolly

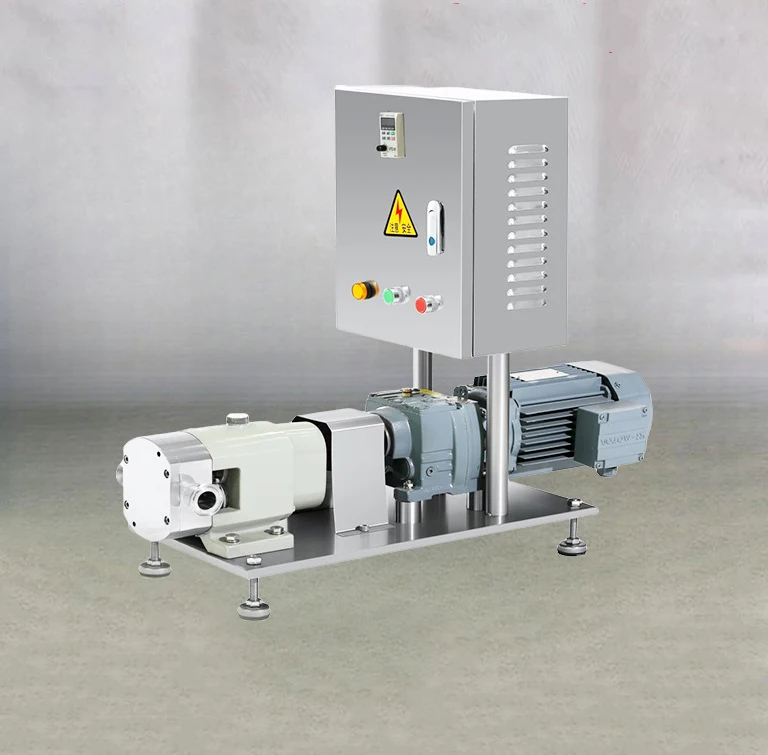

with controller

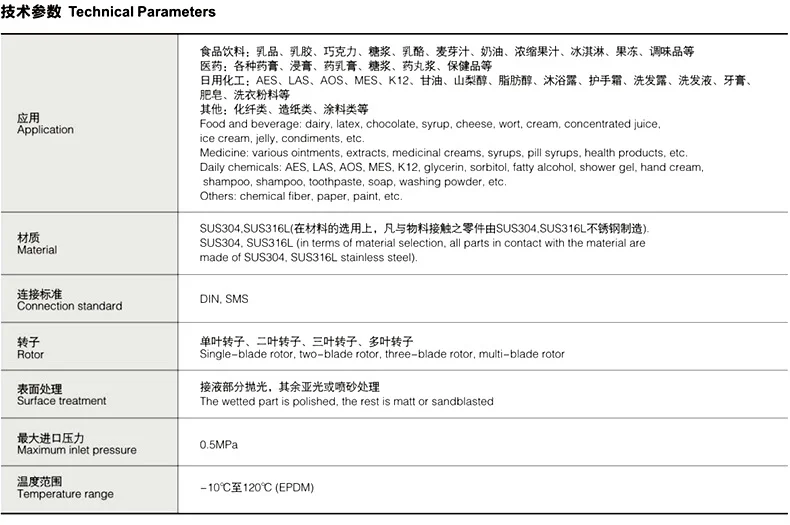

Product Paramenters
Model | Theoretical Flow （m³/h） | Flow per turn (L/r) | Flow rate per 100 rpm (L/100r) | Theoretical speed (r/min) | Pressure (Mpa) | Power (KW) | Calibre (mm) |
B3 | 3 | 0.125 | 12.5 | 400 | 0.4Mpa | 1.1/1.5 | 38-50.5 |
B5 | 5 | 0.2 | 20 | 1.5/2.2 | 38/45-64 | ||
B10 | 11.3 | 0.47 | 47 | 4/5.5 | 51-64 | ||
B14 | 14 | 0.58 | 58 | 5.5/7.5 | 63-77.5 | ||
B20 | 20 | 0.83 | 83 | 11 | DN80 | ||
B30 | 30 | 1.25 | 125 | 15 | DN100 |
Details Images

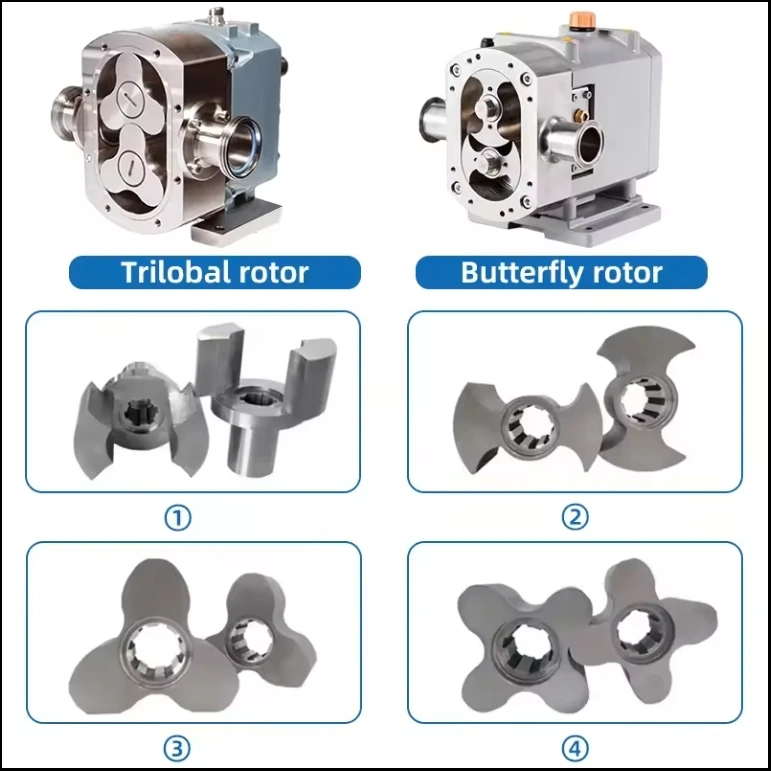

Customised rotors
①Single-Lobe Rotor：Suitable for conveying materials containing large solid particles.②Butterfly Rotor：Typically used for conveying fillings or conveying viscous materials containing solids.
③Three-Lobed Rotor：Wide range of applications, tried in a variety of industries, all kinds of viscous materials conveying
④ Multi-Lobe Rotor：Conveying material qualification is relatively improved, but easy to break the material.
③Three-Lobed Rotor：Wide range of applications, tried in a variety of industries, all kinds of viscous materials conveying
④ Multi-Lobe Rotor：Conveying material qualification is relatively improved, but easy to break the material.

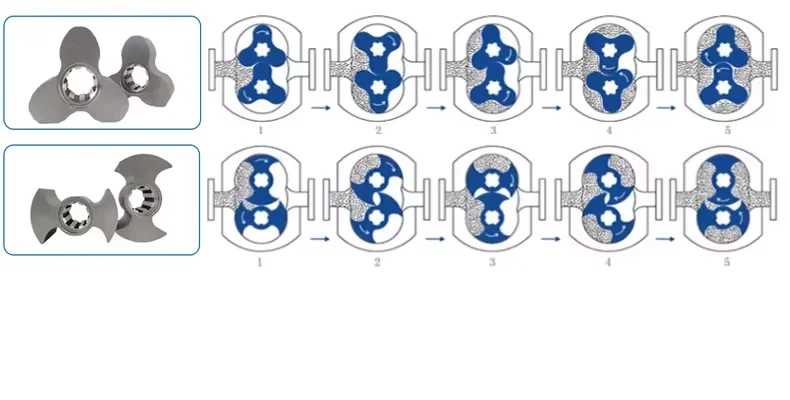

Lobe rotor pumps rely on two synchronised counter-rotor rotors to generate suction (vacuum) at the inlet during rotation to draw in the material to be conveyed. The two rotors separate the rotor chamber into several small spaces and operate in sequence.Operation to 1 position, only the inlet is filled with media, to 2 position, 2 chamber closed part of the media leadership to position 3, 1 chamber is also closed part of the media, to position 5, in the outlet connected to the media that is transported to the outlet!
Liquid conveying
Foodstuffs: hotpot base, honey, jelly, juice, yoghurt, milk, cream, ice-cream, eight-pole congee, ketchup, sesame paste, pasta sauce, maltose, mincemeat, mustard paste, mashed potatoes, soya bean paste, salad dressings, chocolate, yeast, butter, animal fats and oils, wines, olive oils, liquors.Daily chemicals:shampoo, shampoo, shower gel, bath salts, bath milk, soap, hand cream, hand sanitiser, perfume, sunscreen, gel,nail polish, lotion, essence oil, toothpaste, facial cleanser, windex, silicone, rubbing mud treasure, detergent, laundry detergent, bleach.
Other categories: poultry feed, pet rations, petroleum jelly, cough syrup, industrial glue, white latex, dextrose, gelatin,dacron, saline, paint, waterproof glue.
Other categories: poultry feed, pet rations, petroleum jelly, cough syrup, industrial glue, white latex, dextrose, gelatin,dacron, saline, paint, waterproof glue.

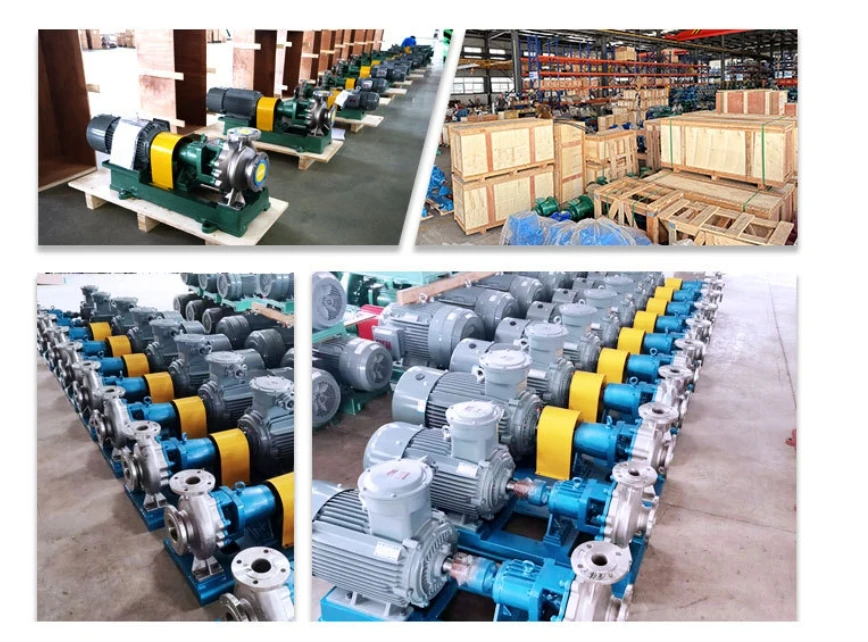

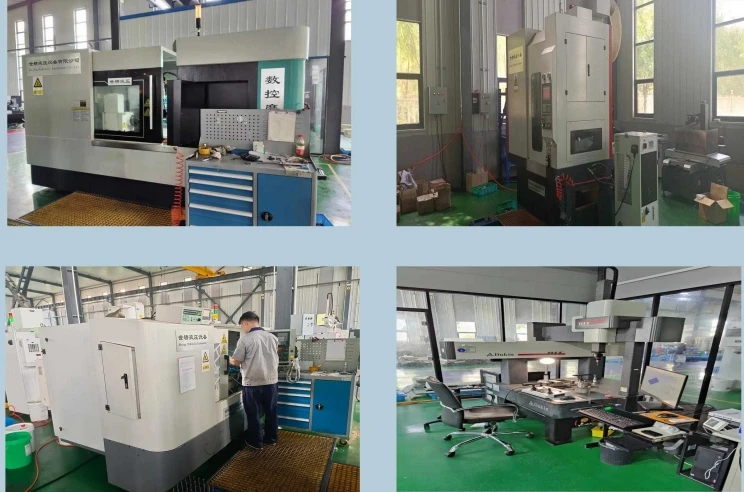

Factory Show
