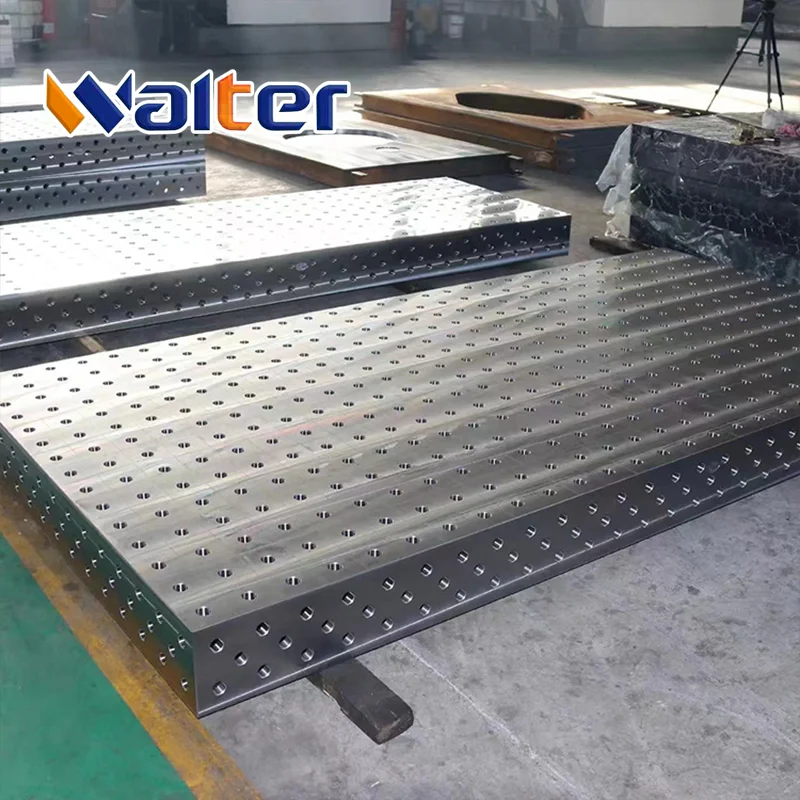

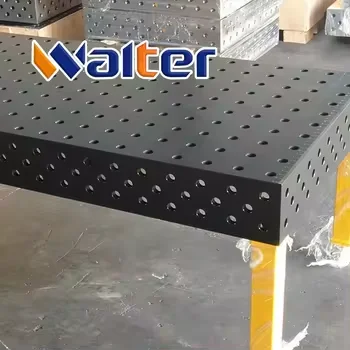

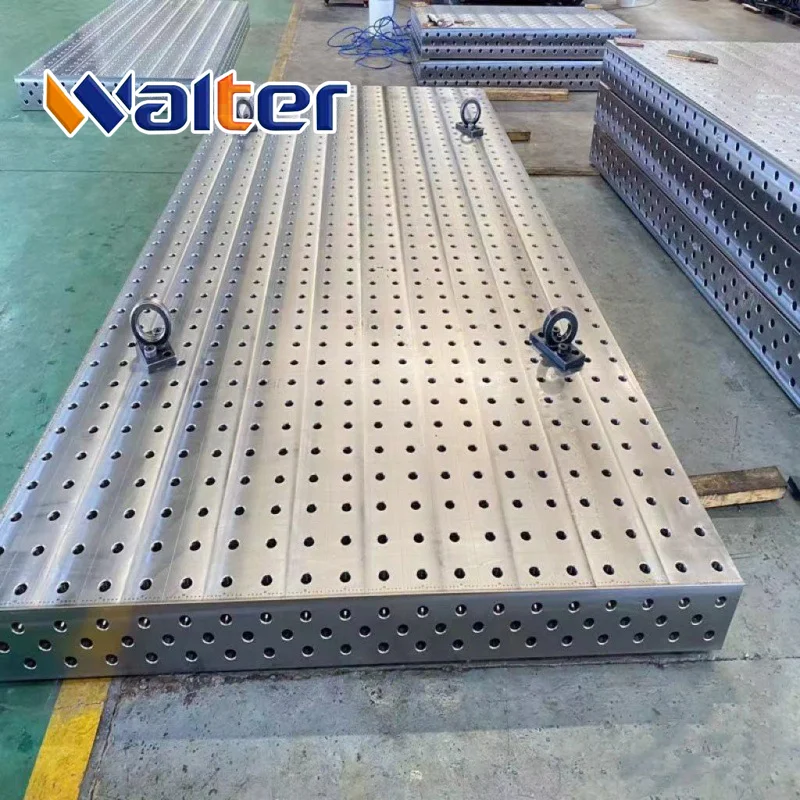

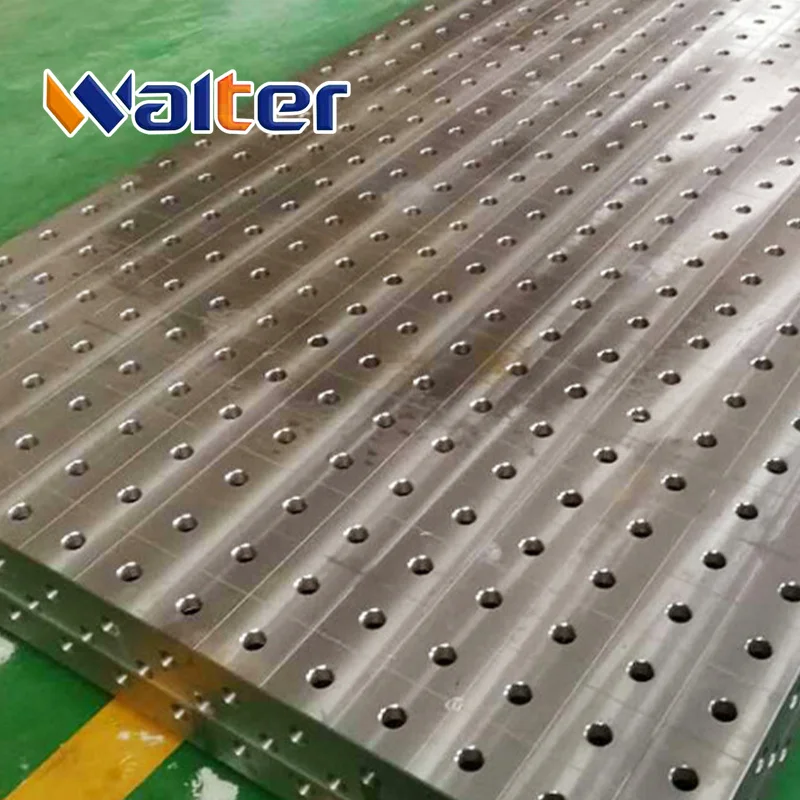

Plasma Nitrided Grey Iron or Steel 3D Welding Table AccuWeld Elite Fusion Station Size Customized OEM D28 D16 Equipment OEM
- Category: >>>
- Supplier: Hebei Walter Intelligent Equipment Co. Ltd.Hebei Ltd.
Share on (1601159512894):
Product Overview
Description
Product Overview
Hebei Walter Intelligent Equipment Co., Ltd.
●The Walter, China-Engineered Tables are unbelievably rigid and have the flattest surface, with a 5-Sided Top which can be used
with or without optional heavily constructed legs. ●The Plasma Nitrided finish protects the welding tables against rust and weld
spatter to make sure that the welders surface is kept extremely clean and accurate for fixturing.
spatter to make sure that the welders surface is kept extremely clean and accurate for fixturing.

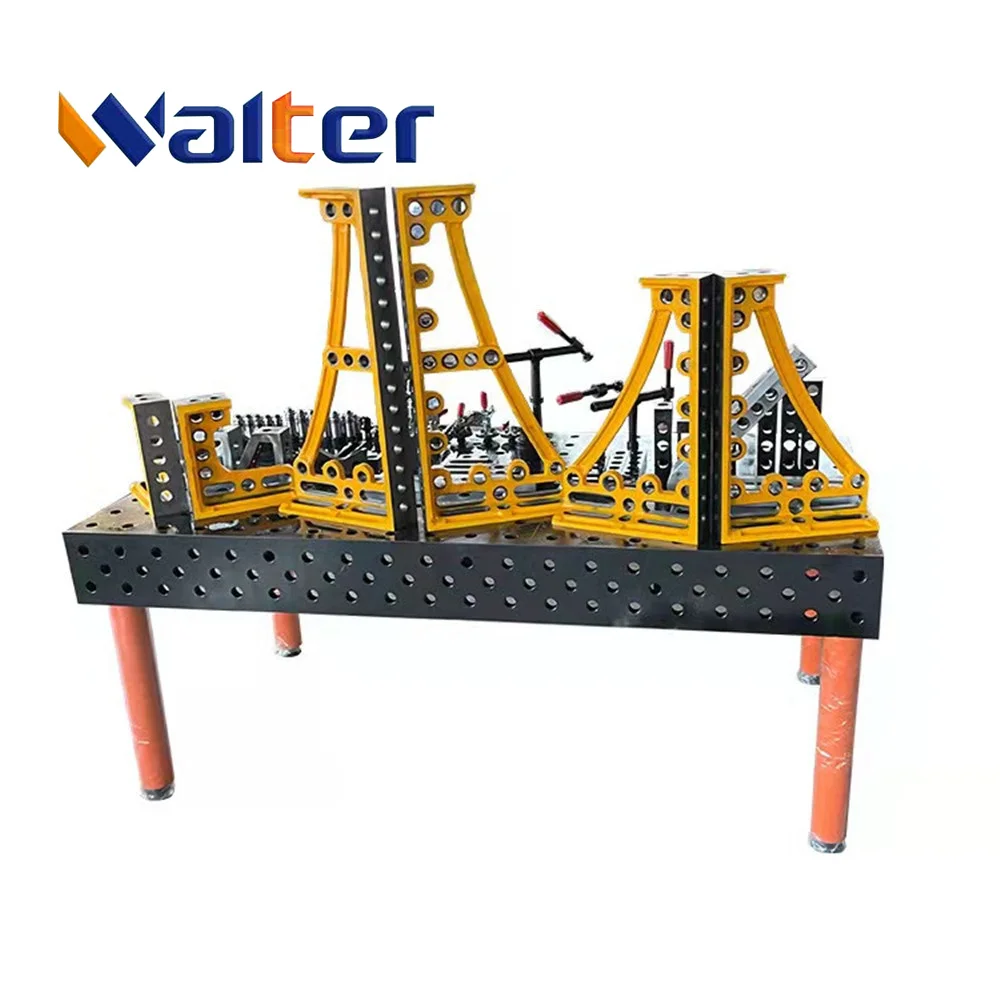

●Walter 3D welding tables are
designed for heavy-duty welding work with complete accessories, truly built to last a lifetime and far beyond.
designed for heavy-duty welding work with complete accessories, truly built to last a lifetime and far beyond.
Features
Series
D28 3D welding table
● Made by cast iron HT300 &steel Q355

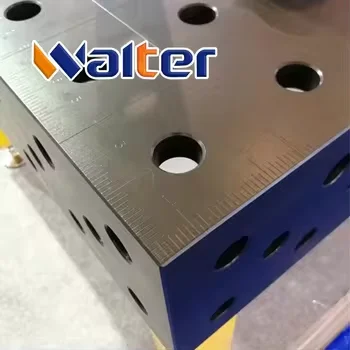

● 5 precision machined working surfaces
● Hole diameter: 28mm
● Grid lines: 100mm*100mm
● Hole pitch: 100mm
● Material thickness:approx.25mm
● Side surfaces height: 200mm
SIZE
Regular size | Hole diameter | Dimension | Material | |||
(Other size customized) | ||||||
1000*1000mm | D28/D16 | 3D/2D | Q355 steel & HT300 cast iron | |||
1200*1000mm | ||||||
1500*1000mm | ||||||
1200*1200mm | ||||||
1500*1500mm | ||||||
2000*1000mm | ||||||
2400*1200mm | ||||||
2000*1500mm | ||||||
3000*1500mm | ||||||
3000*2000mm | ||||||
DETAIL PICTURES
PACKING AND DELIVERY

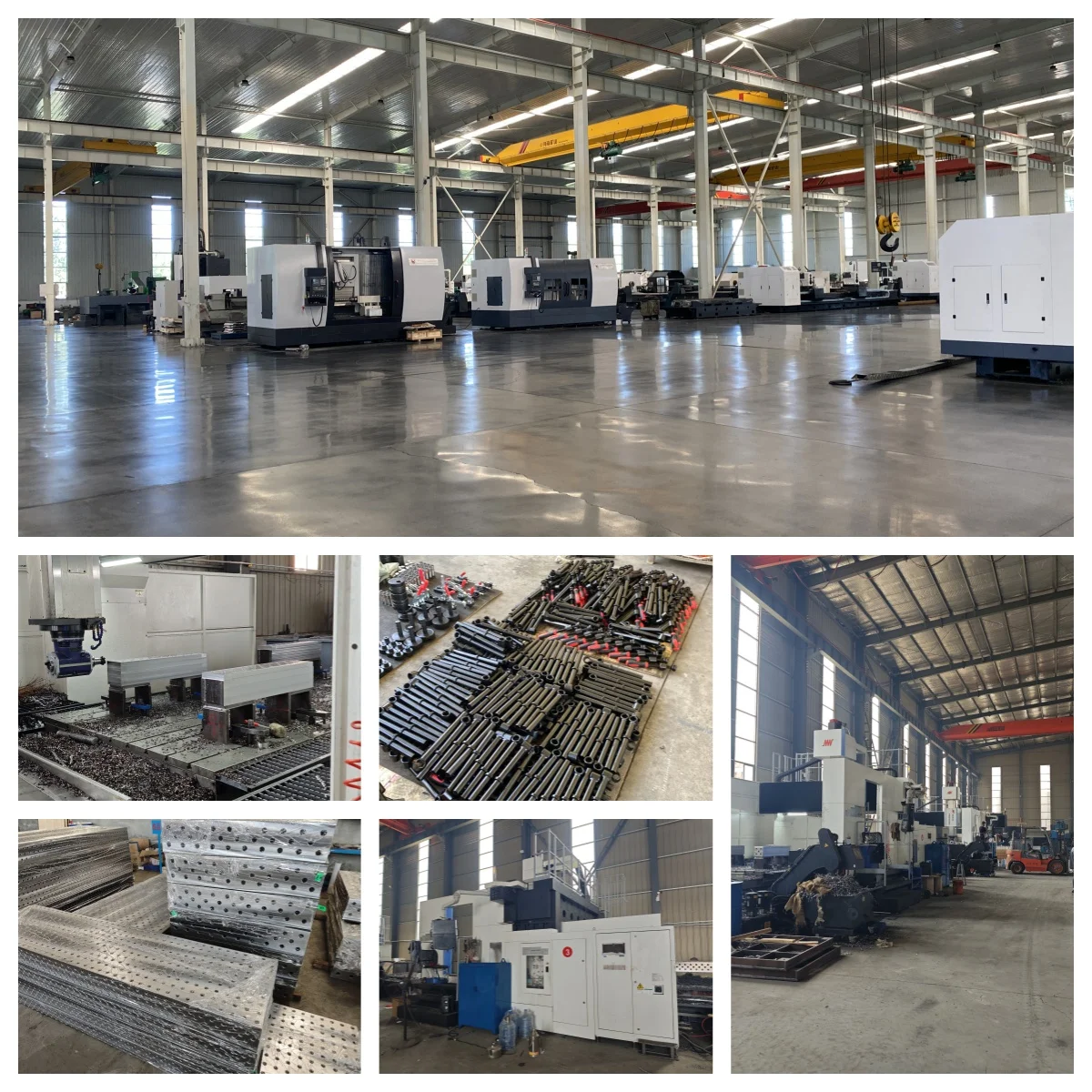

FACTORY
