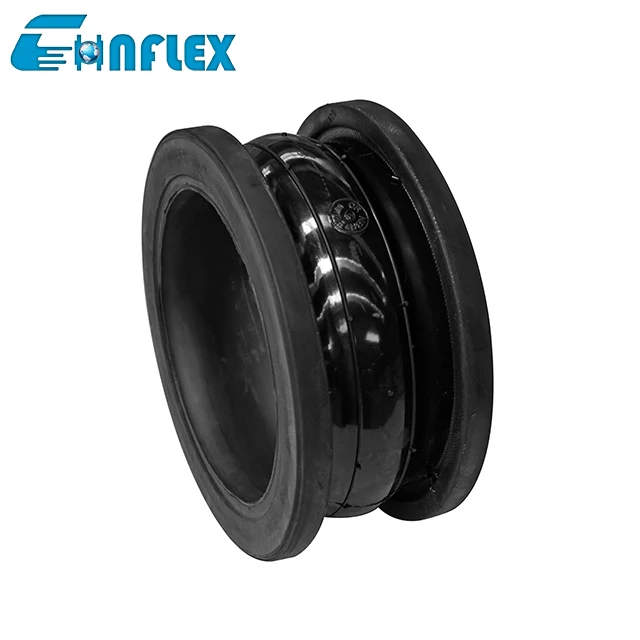

Customizable large size ductile iron flange connection vulcanization expansion rubber joint
Customizable large-size ductile iron flange connection vulcanization expansion rubber joint
Customizable large-size ductile iron flange connection vulcanization expansion rubber joint

Customizable large size ductile iron flange connection vulcanization expansion rubber joint

Share on (1601159608292):


Price:$15.00

Quantity:


Product Overview

Description





Product Description


EPDM expansion joint is a pipe joint with high elasticity, high airtightness, moderate resistance, and weather resistance. The ternary rubber expansion joint is usually made of an inner rubber layer, which can reduce pipeline vibration and noise, and compensate for thermal expansion and contraction caused by temperature changes.





Functions


1. Small size, light weight, good elasticity, and convenient installation and maintenance.


2. Absorb lateral, axial, and angular displacement caused by pipeline vibration, without being limited by non concentric pipelines and non parallel flanges.


3. Reduce the noise generated by pipeline water pump vibration and have strong vibration absorption ability.


4. Prevent corrosive media from corroding the inner wall of rubber joints in high-temperature, acid and alkali resistant, and oil resistant pipelines, and improve their service life.





































                   GENERAL CHARACTRISTICS



Nominal Diameter



DN32-DN1600



Working Pressure



PN6-PN25



Working Temperature



-20℃-130℃



Working Medium



Water,Oil,Acid,Alkali,Etc










Technology















































































































































































Main data of flange connection joint




Nominal diameter(DN)





Length





Axial displacement(mm)





Horizontal displacement





Deflexion angle





mm





inch





mm





Extension





Compression





mm





(a1+a2)°





32





1 1/4





95





6





9





9





15°





40





1 1/2





95





6





10





9





15°





50





2





105





7





10





10





15°





65





2 1/2





115





7





13





11





15°





80





3





135





8





15





12





15°





100





4





150





10





19





13





15°





125





5





165





12





19





13





15°





150





6





180





12





20





14





15°





200





8





210





16





25





22





15°





250





10





230





16





25





22





15°





300





12





245





16





25





22





15°





350





14





255





16





25





22





15°





400





16





255





16





25





22





15°





450





18





255





16





25





22





15°





500





20





255





16





25





22





15°





600





24





260





16





25





22





15°




Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device.

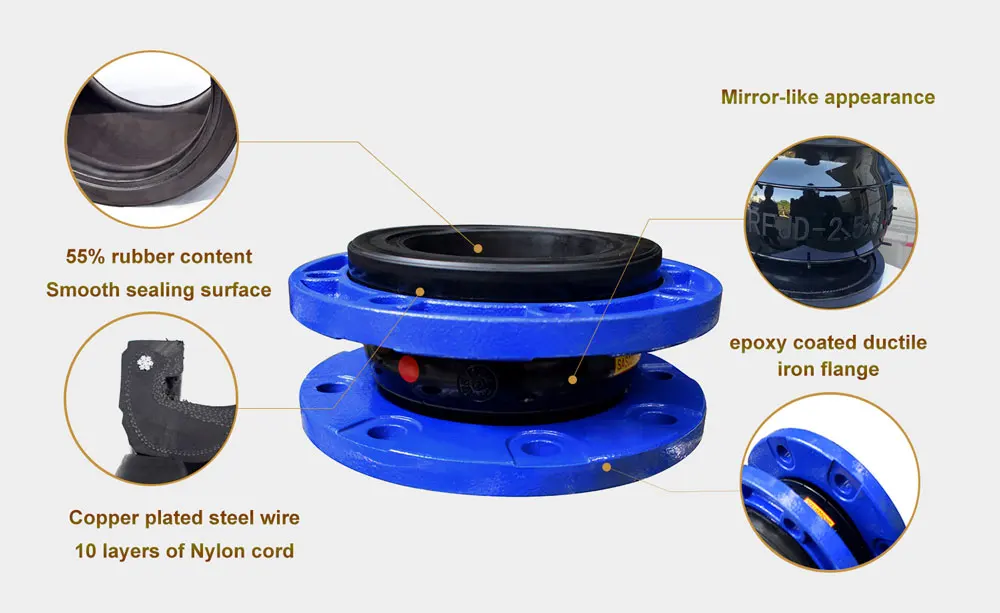

Detailed Images








Production Flow


.jpg







Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.


It is very important to select the appropriate flexible rubber expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges.


                            Hot products


.jpg



Advantages


1.Factory price


2.20 years of manufacturing experience,8 years of export experience


3.Strict quality inspection, the quality far exceeds the industry standard.


4.Mold a variety of specifications, support customization, OEM


5.Provide free samples


6.Large inventory





Product Uses


Because of its good comprehensive performance,flexible rubber expansion joint is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.







Certifications



.jpg











                                                            FAQ





Q1:What`s the rubber material ?


A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.





Q2: Is the flange galvaized ?


A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.





Q3: Can I get a sample?


A3: Of cause. We could delivery by Express,by air or by sea.





Q4: What is the MOQ?


A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
