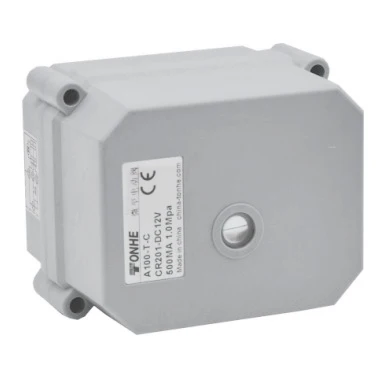

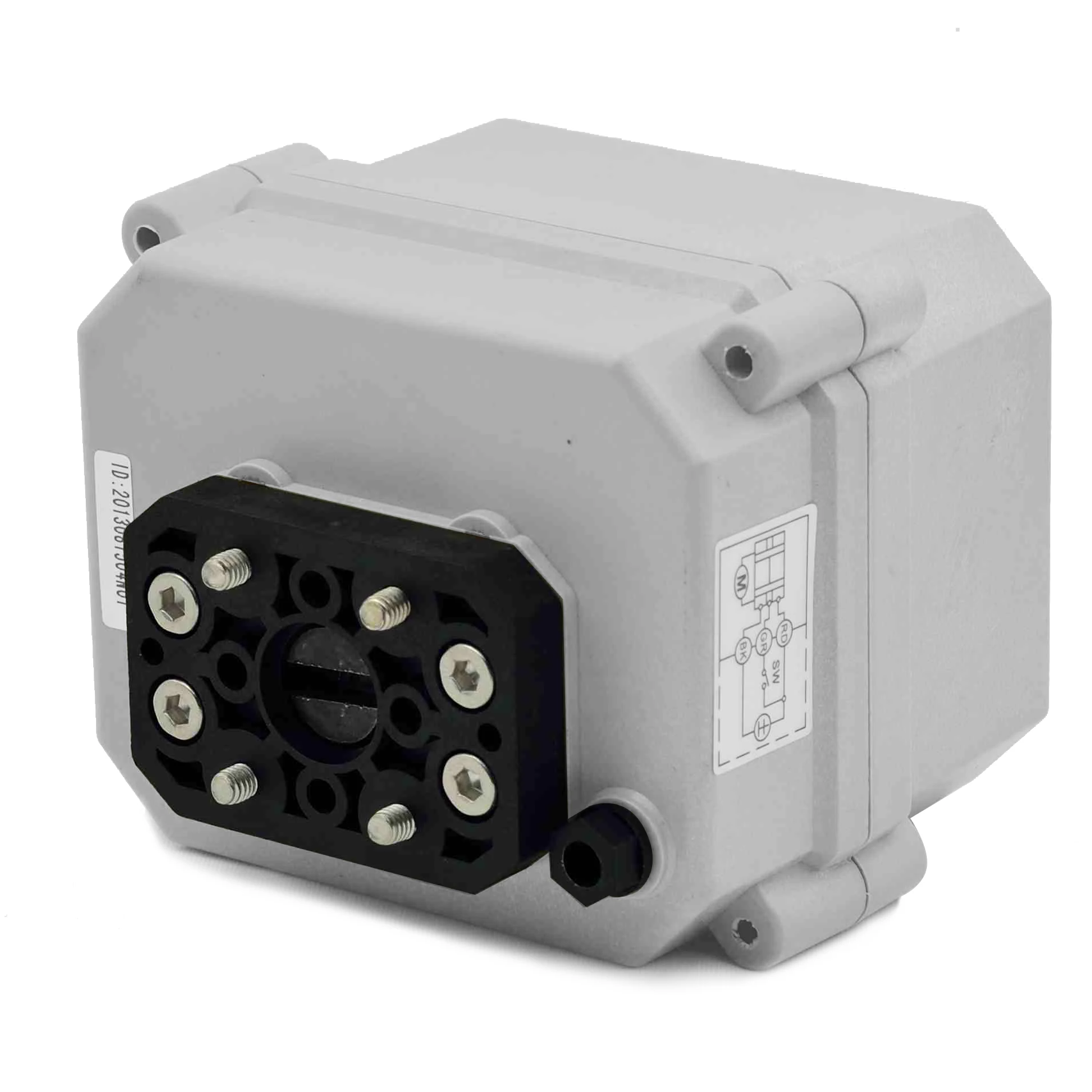

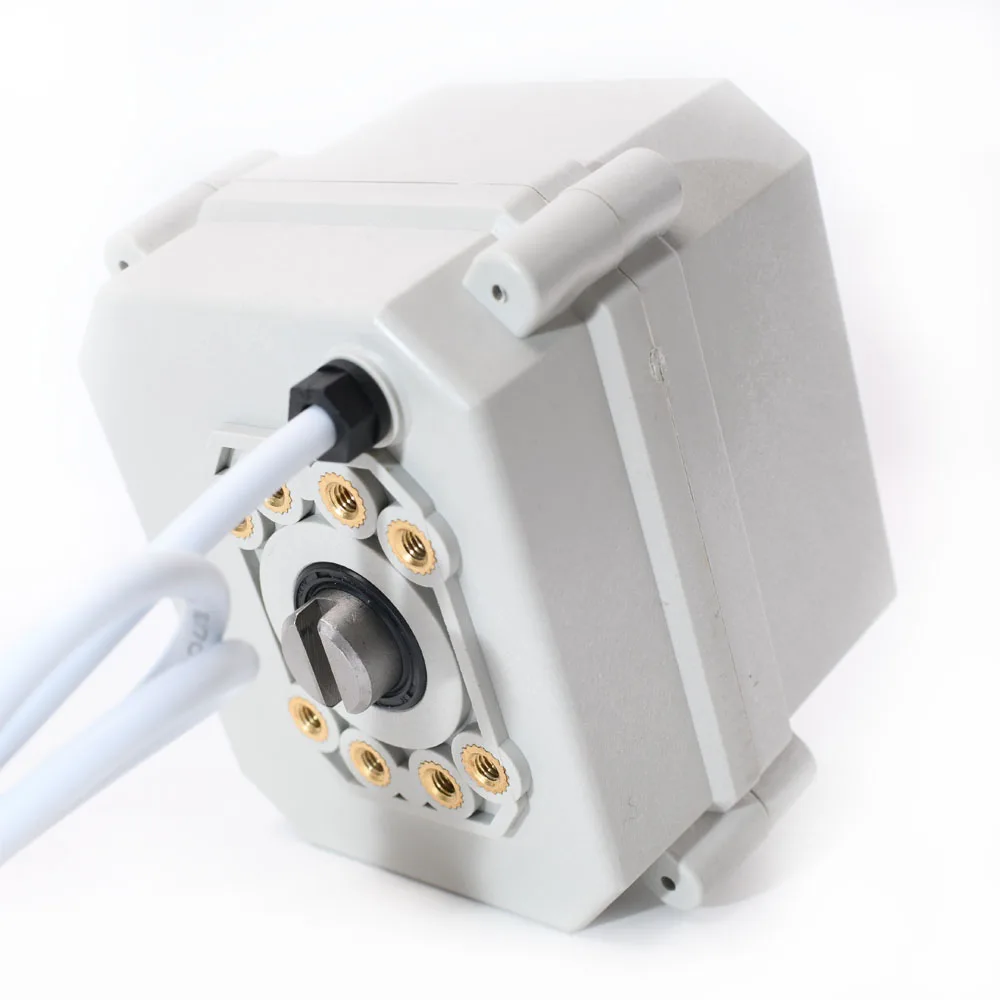

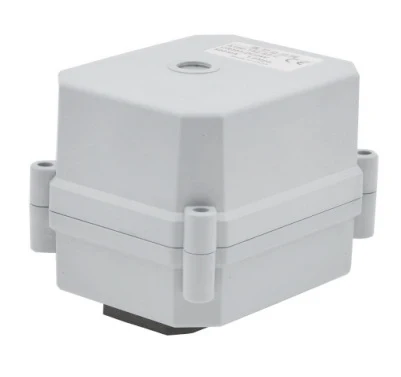

Tonhe A100 actuator 12v or 24v dc CR201 Electric valve actuator
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1601159667374):
Product Overview
Description
Product Description
Description of 24v dc Electric actuator valve without manual override CR201 A100-T-C
Detailed information
Technical Parameters:
Maximum working pressure | 1.0 MPa |
Circulation medium | Fluid, air |
Rated voltage | DC12V DC24V |

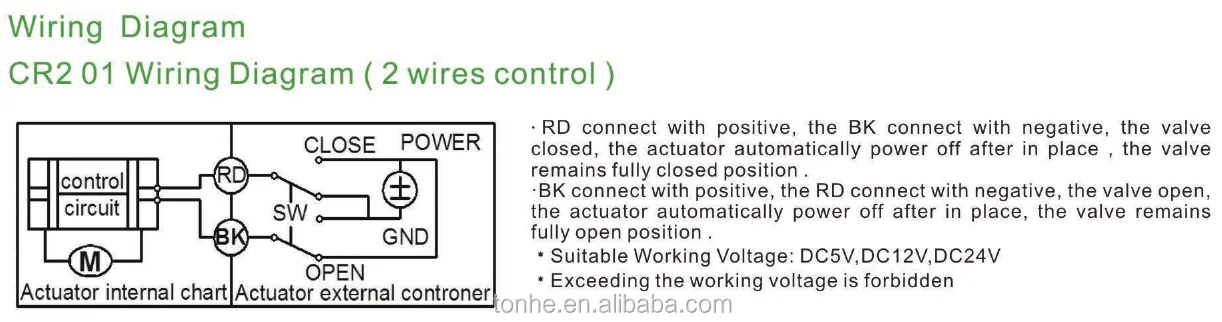

Wiring control methods | CR2-01 |
Working current | ≤1A |
Open/close time | ≤15S |
Life time | 70000 times |
Valve Body material | 304 Stainless steel |
Actuator material | Engineering Plastics |
Sealing material | FKM & PTFE |
Actuator rotation | 90° |
Max. torque force | 10N.M |
Cable Length | 0.5m |
Environment temperature | -15℃~50℃ |
Liquid temperature | 2℃~120℃ |
Manual override | No |
Indicator | Yes |
Protection class | IP67 |
Certificate | CE(LVD EMC), ROHS, NSF61-G |
Company passed | ISO9001:2015 |

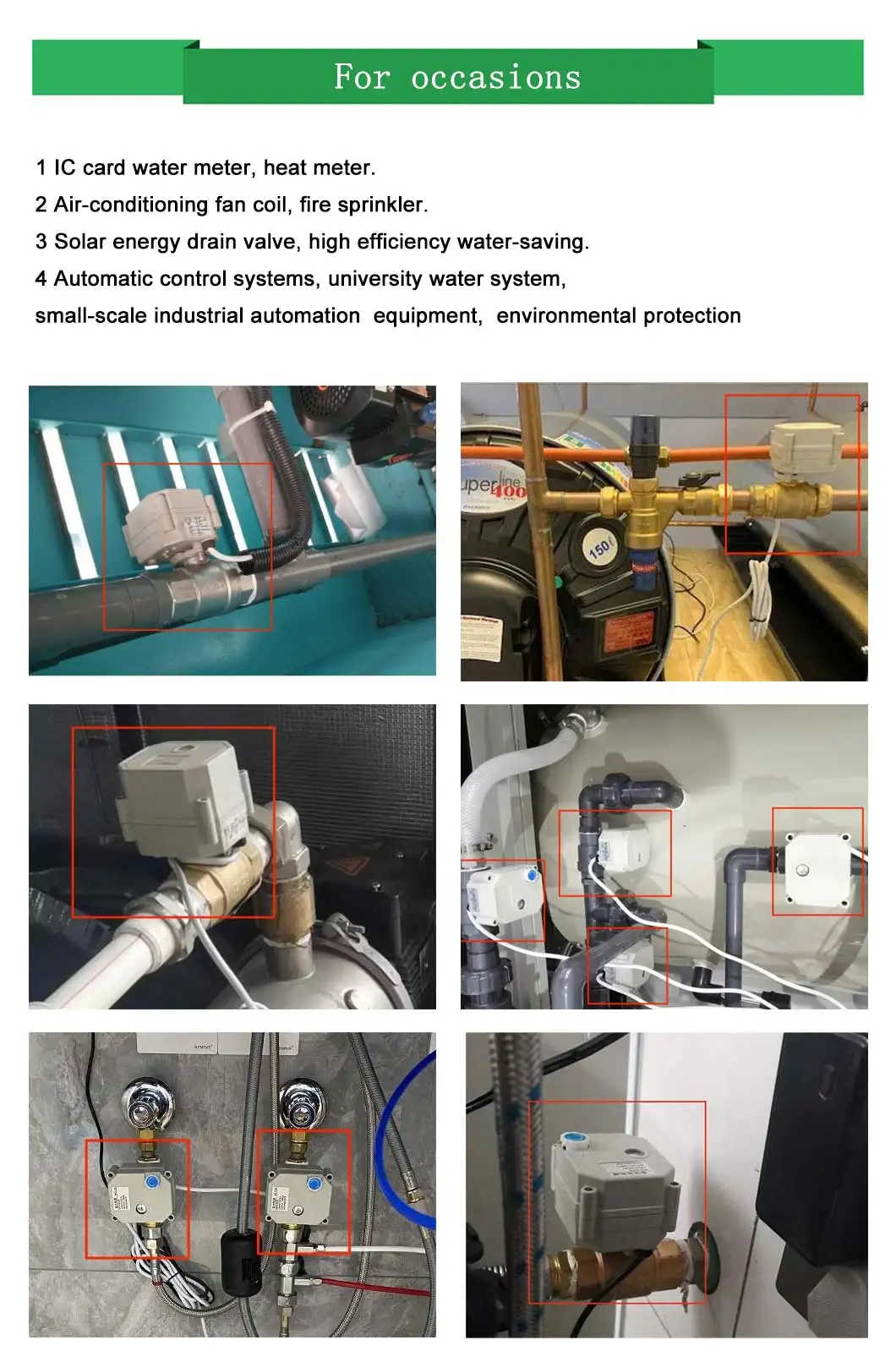

Application
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
