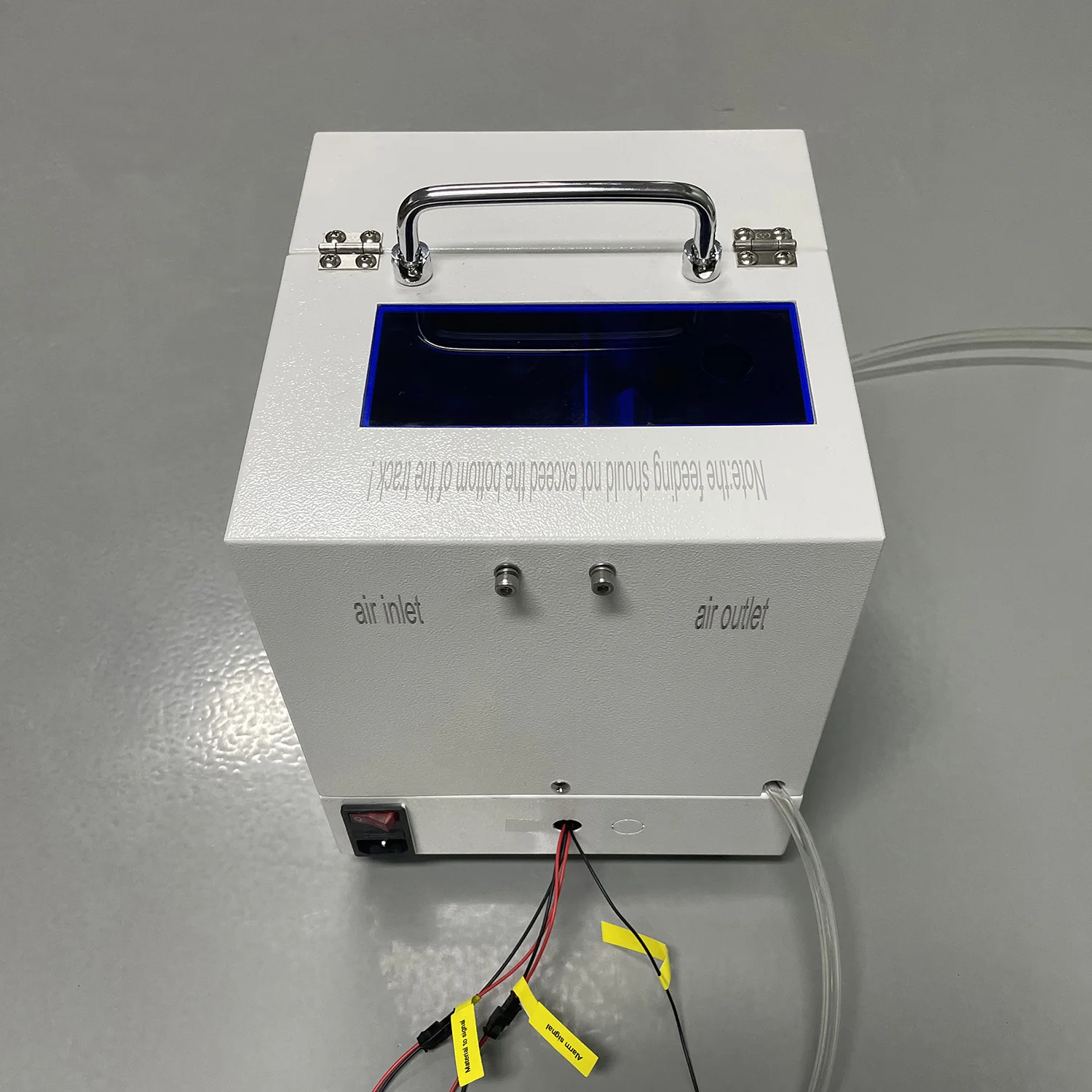

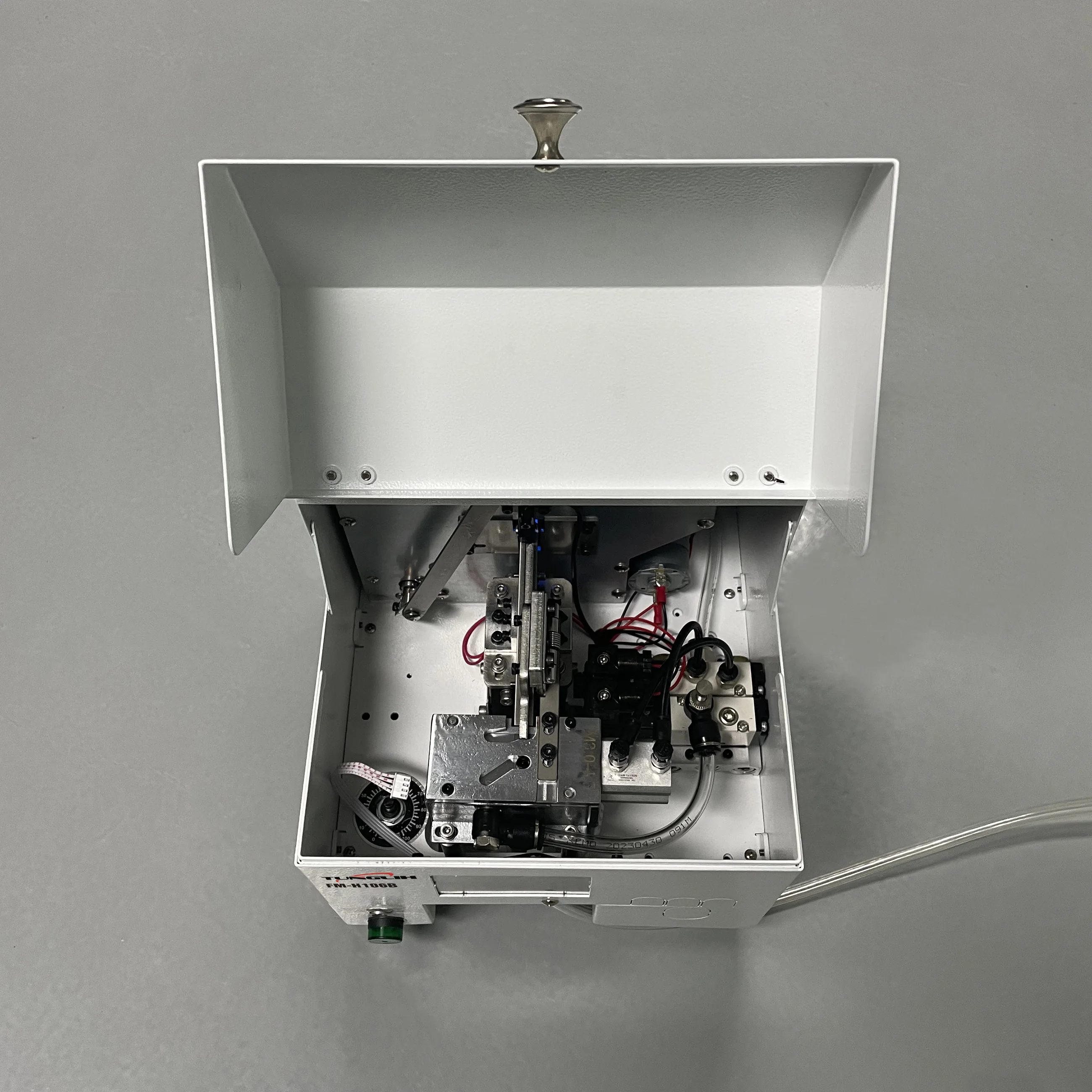

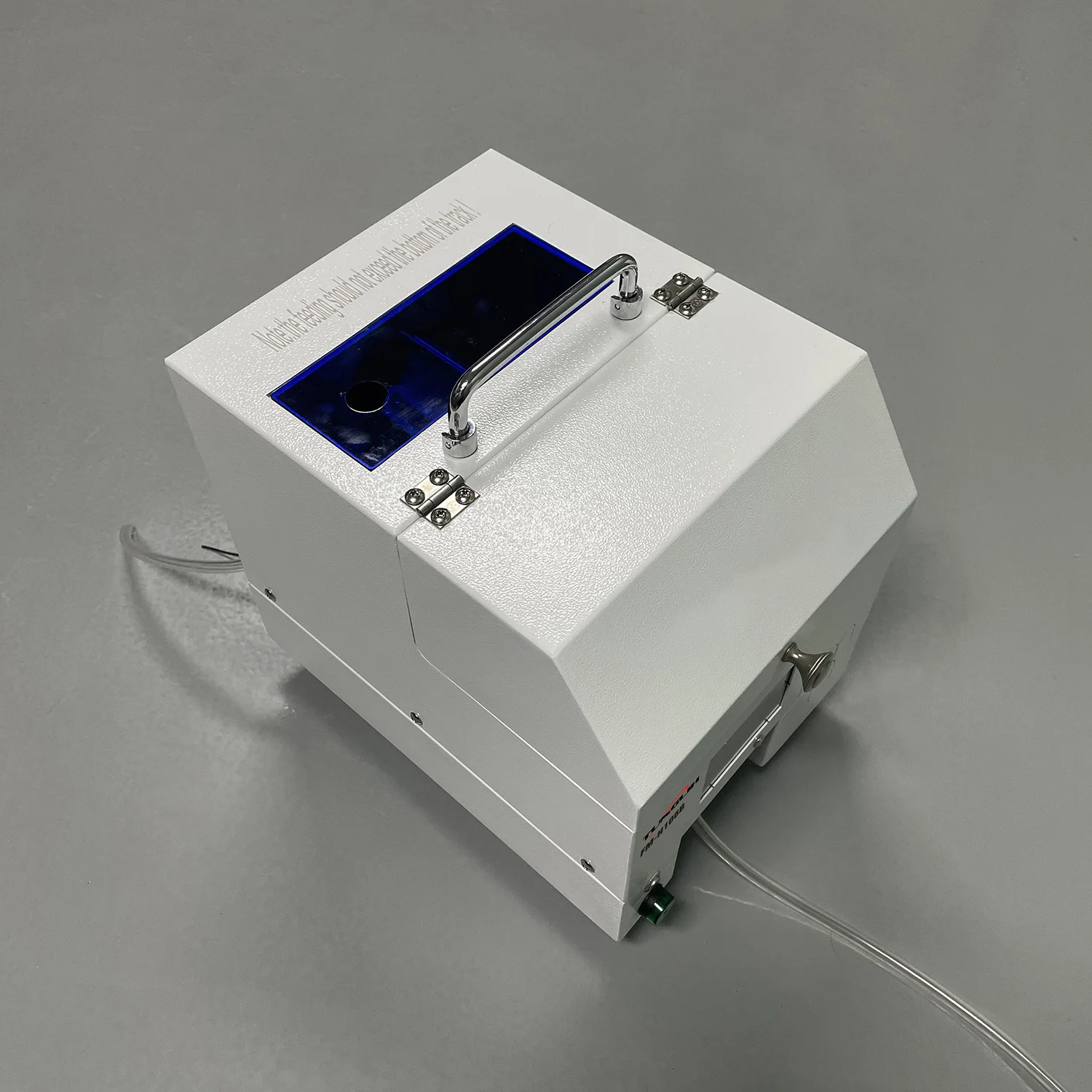

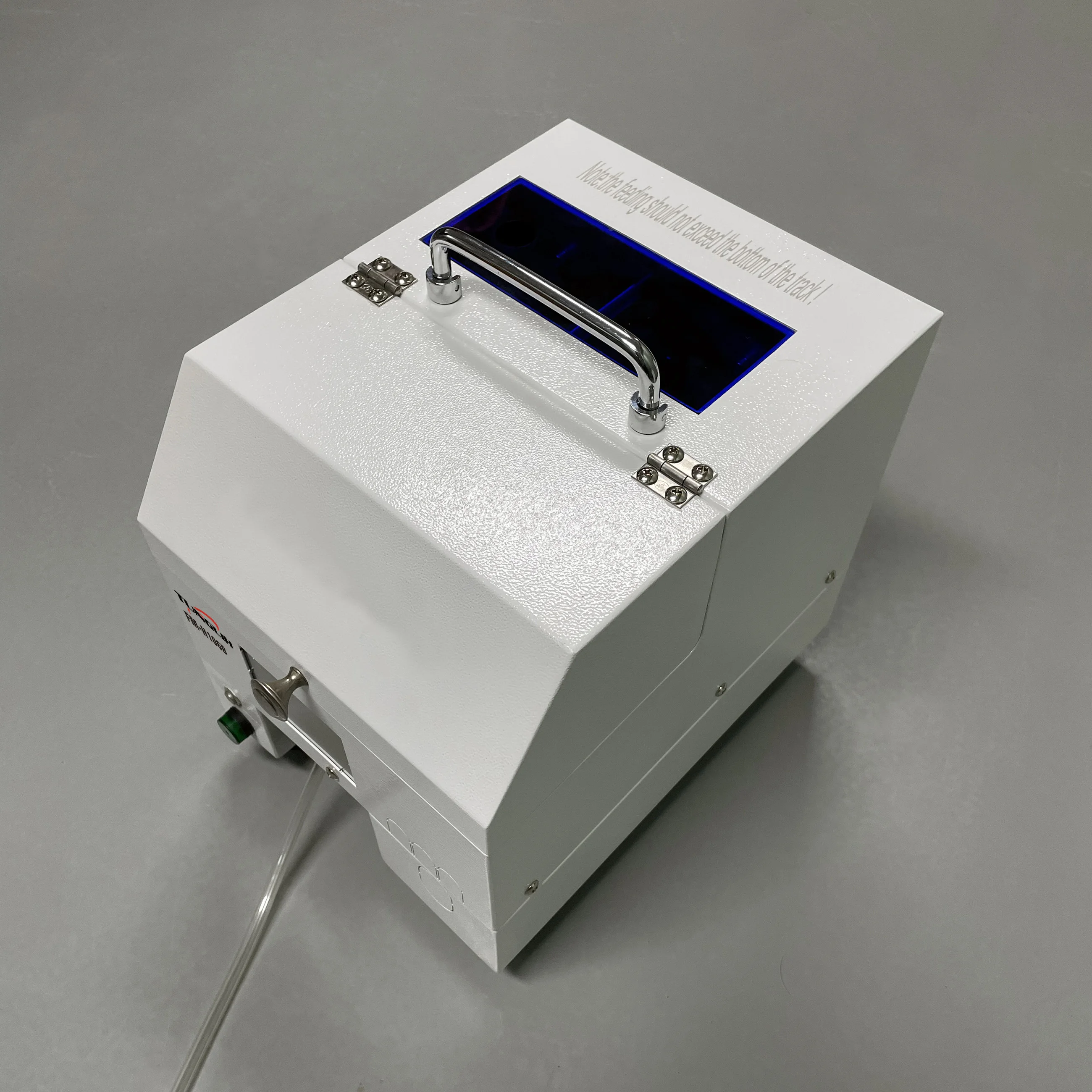

Blowing type automatic screw feeder conveyor machine FM H106B for electric screwdriver
- Category: >>>
- Supplier: Dongli Industrial Equipment (shenzhen) Co. Ltd.
Share on (1601159672237):
Product Overview
Description
Product Description
Screw feeder machine
The hand-held automatic locking screw machine needs an external air pipe, through the feeding system, dispatching system, screw
locking system.
The three parts of the system are completed with screw locking. All actions are controlled by the program of the device itself.
All system components need to be in accordance with the actual screw specifications, the angle and size of the position to be
locked, etc.
The situation is customized, and they are all non-standardized parts.
locking system.
The three parts of the system are completed with screw locking. All actions are controlled by the program of the device itself.
All system components need to be in accordance with the actual screw specifications, the angle and size of the position to be
locked, etc.
The situation is customized, and they are all non-standardized parts.
Feature
1. Automatic screw feeding, sorting and fastening for various shapes screws.One-hand operation.
2. Torsion precision and convenient adjustment, ensure the quality of screw fastening
3. Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws.(Acousto-optic alarm)
5. High efficiency,Do not need to pick up screw, move screw and put screw,just need to align the hole to fasten the screw
6. Sensor controls screws feeding one by one to avoid feeding repetition.
2. Torsion precision and convenient adjustment, ensure the quality of screw fastening
3. Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws.(Acousto-optic alarm)
5. High efficiency,Do not need to pick up screw, move screw and put screw,just need to align the hole to fasten the screw
6. Sensor controls screws feeding one by one to avoid feeding repetition.
Specification
Grade | Industrial |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | Guangdong, China |
Brand Name | Tunglih |
Model Number | FM-H106B |
Rated Voltage | 220V |
Dimensions | 30.2x23.2x28.2cm |
Weight | 12kg |
Power Source | Electric |
Type | Blowing type |
Screw size | M1-M6 |
Screw Length | Within 25MM |
Feature | high efficiency working, safe operation |
Application | assembly line etc |
Packaging size | 49x33x42cm |
Packaging weight | about 14kgs |
Usage | with electric screwdriver/pneumatic screwdriver |
Packing & Delivery
Company Profile
Dongli Industrial Equipment (Shenzhen)Co., LTD was established in December 2006, dedicated to the research and development, production and sales of industrial-grade pneumatic tools and power tools. Its TUNGLIH series products are well received by users at home and abroad. Brushless electric screwdrivers, pneumatic screwdrivers, pneumatic rivet guns, pneumatic scissors, etc. have passed a number of international certifications and domestic patents.development path:
In December 2006, Dongguan Liqiang Electronic Tools was established (agent sales and maintenance of electric screwdrivers, pneumatic screwdrivers, pneumatic riveting guns, etc.)
In May 2008, the TUNGLIH brand was established and put into production of pneumatic nail guns.November 2011 Developed pneumatic screwdrivers and pneumatic scissors products, and provided a large number of OEM services.
In May 2013, Shenzhen Youlisu Electronic Technology Co., Ltd. was established to develop brushless electric screwdrivers and provide parts processing services for other industries.
In December 2015, a factory was established in Dongguan (Xingdongli Hardware Manufacturing), mainly engaged in OEM pneumatic tools
In May 2020, it was renamed Dongli Intelligent Technology (Dongguan) Co., Ltd. and launched the TUNGLIH series of brushless electric screwdrivers andpneumatic screwdrivers. The products have passed CE.ROHS certification.
In 2023: Launch the TUNGLIH brand series of Nutrunner and Angle wrench.
In 2023: Launch the TUNGLIH brand series of Nutrunner and Angle wrench.
