Factory Direct Filtration Swimming Pool Filter System Fiberglass Pool Filtyer Side Mount Swimming Pool Commercial Sand Filter

Share on (1601159724133):


Price:$138.76 - $153.75

Quantity:


Product Overview

Description





Guess You Like






Product Information











Performance Data
Item Number
Diameter
(mm)
Flow
(m³/h)
Filtration
area(㎡)
Inlet/Outlet
(inch)
Working pre.(kPa)
Sand Weight(kg)
N.W.(kg)
G.W.(kg)
SS450
450mm
10
0.16



1.5''








350
50
8.8
11.8
SS525
525mm
12
0.19


65
15.3
18.3
SS600
600mm
14
0.22


115
17.2
22.5
SS650
650mm
17
0.32


145
20.0
24.0
SS700
700mm
19
0.35


180
23.0
27.8
SS750
750mm
21
0.40



2''

225
26.1
32.0
SS800
800mm
24
0.50


275
30.0
36.2
SS900
900mm
30
0.64


390
36.0
41.5
SS1050
1050mm
38
0.88


615
57.0
65.3
SS1200
1200mm
42
1.13


920
69.5
77.0
SS1200
1200mm
42
1.13
3''

920
69.5
77.0

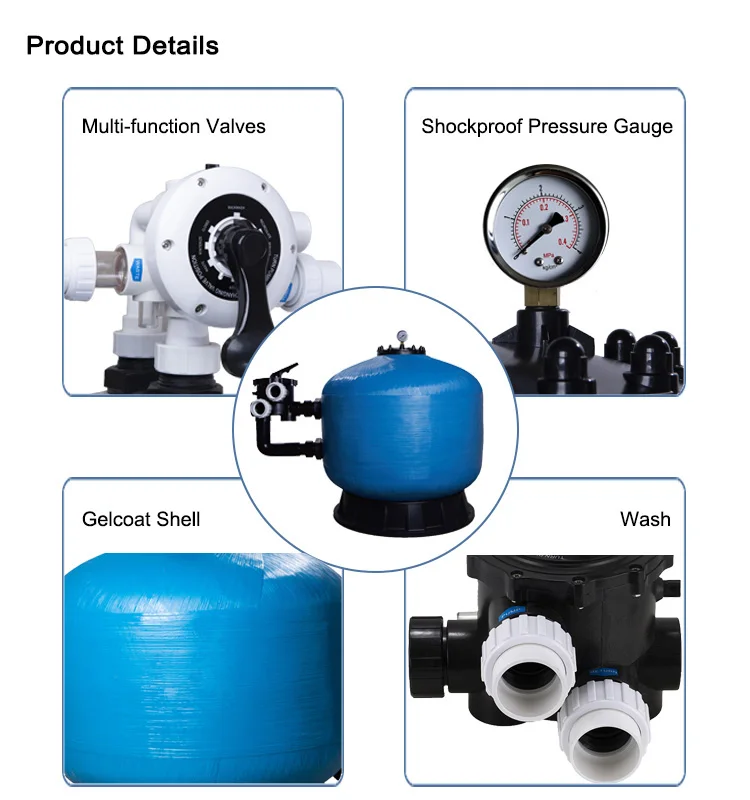

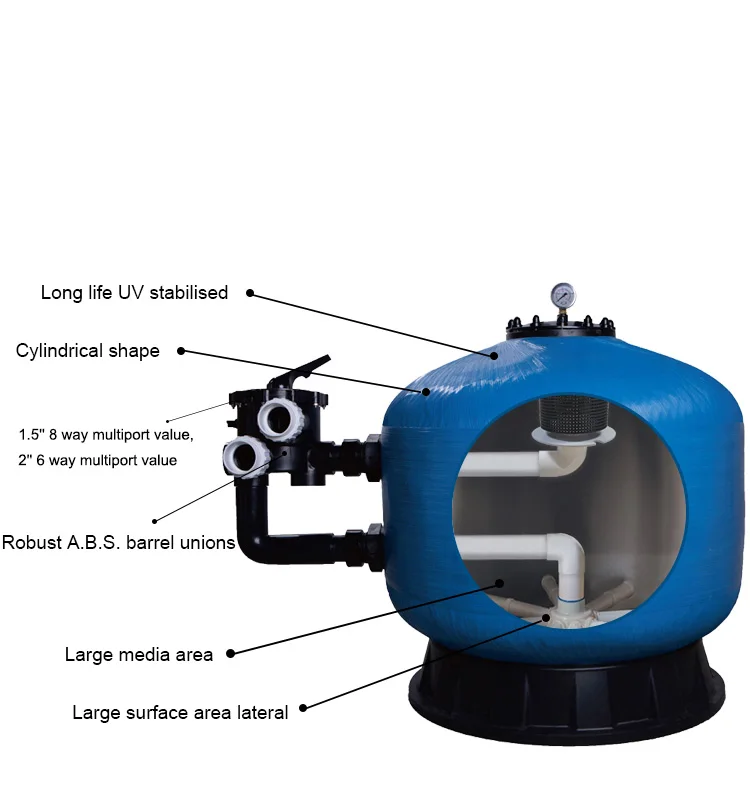

Product Details

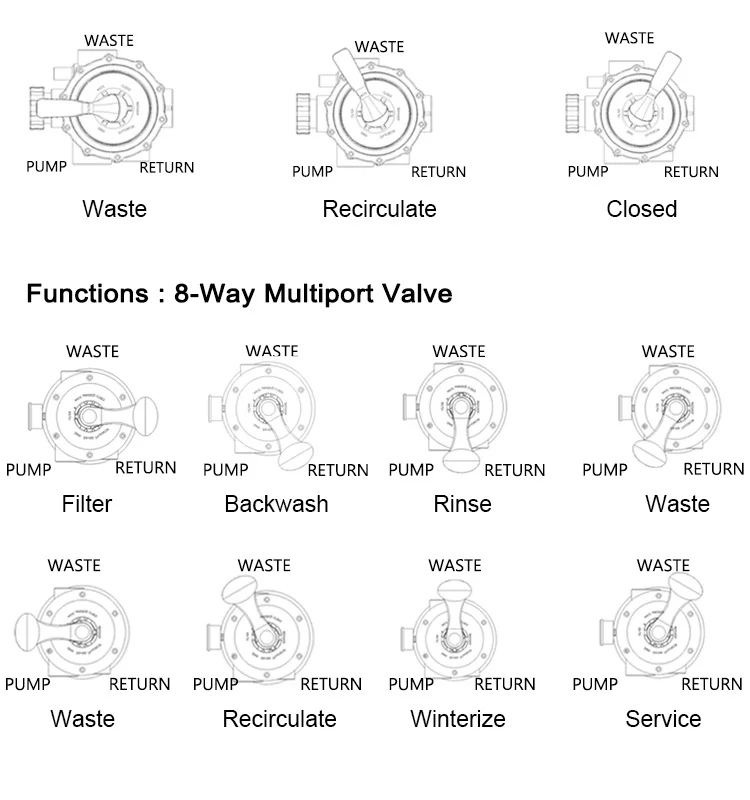

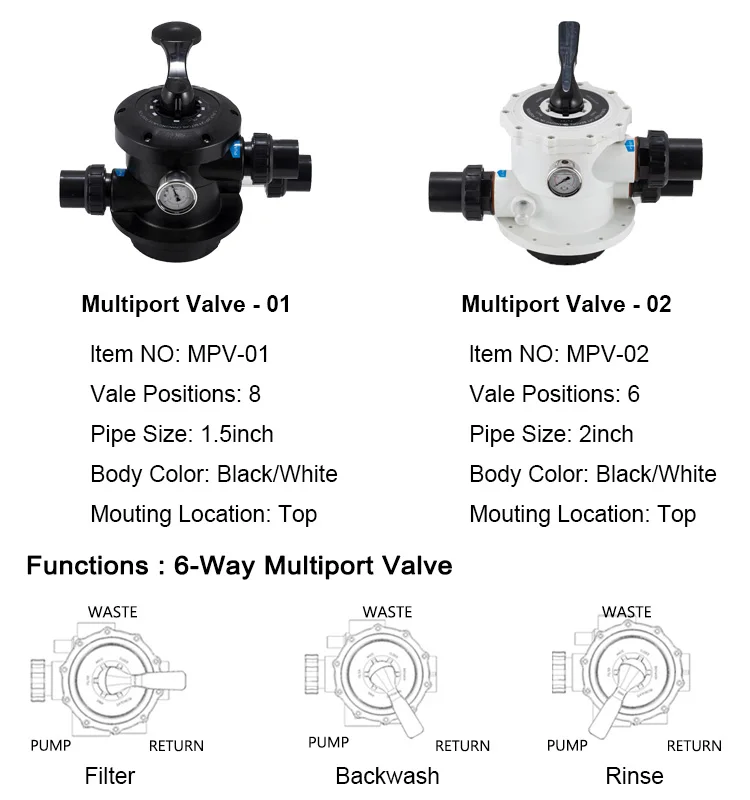

Multiport Valve - 03
ltem NO: MPV-03
Vale Positions: 8
Pipe Size: 1.5inch
Body Color: Black/White
Mouting Location: Side
Multiport Valve - 04
ltem NO: MPV-04
Vale Positions: 6
Pipe Size: 2inch
Body Color: Black/White
Mouting Location: Side

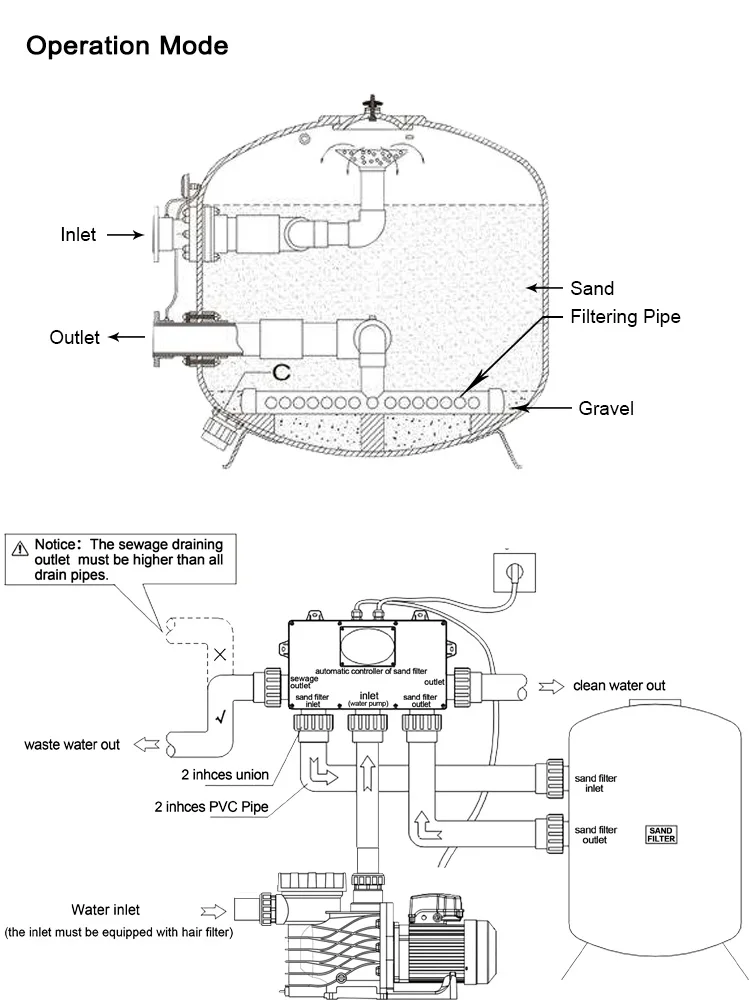

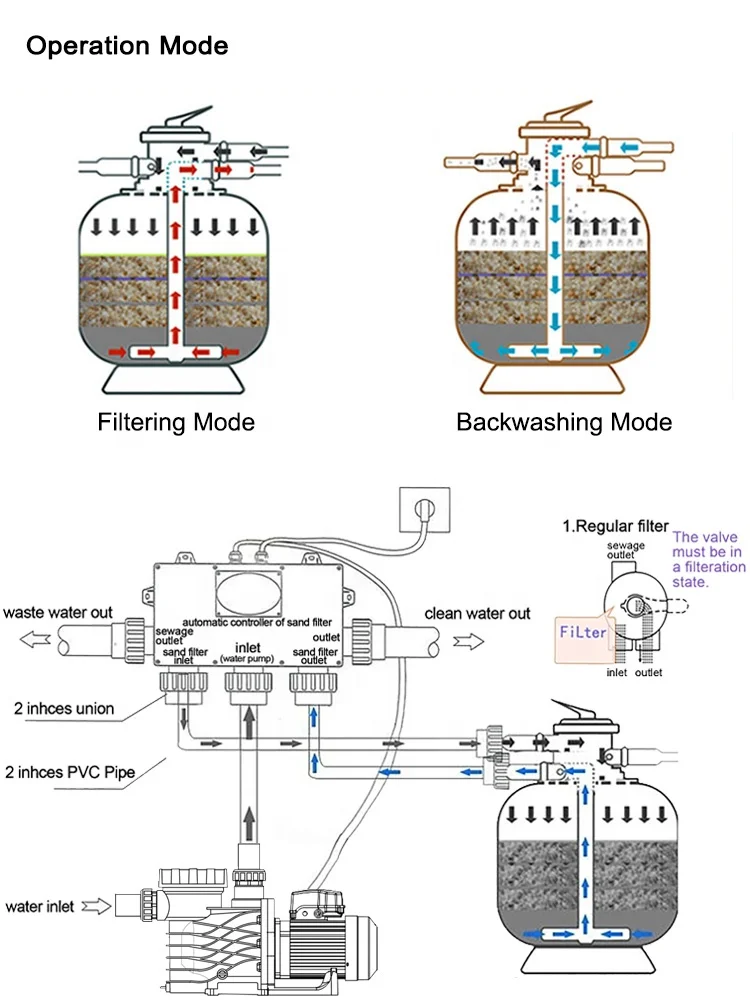

Operation Mode

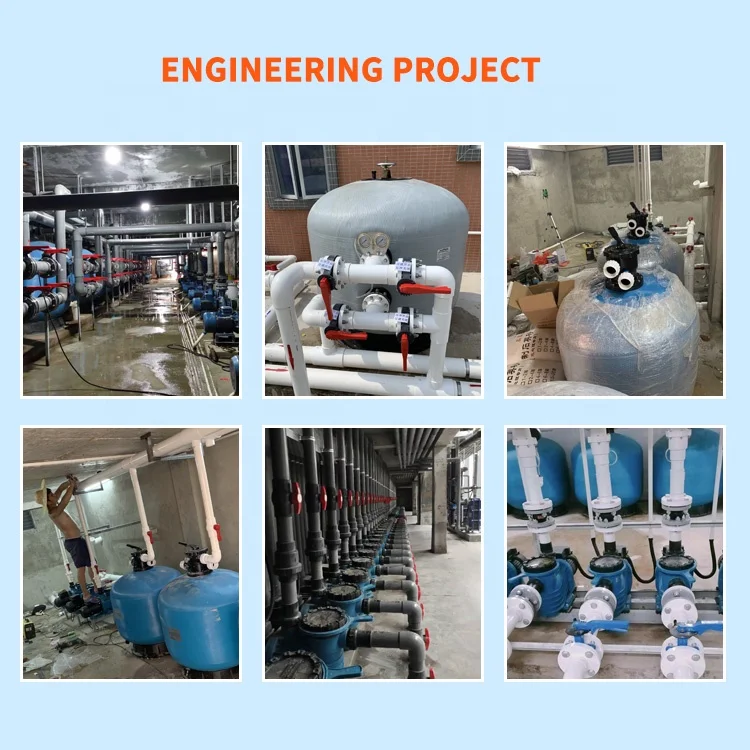

Product Application


Sand filters are suitable for scenarios where water needs to be filtered and purified.
         Whether it is swimming pools, spas in daily life, or waste water treatment in
         industrial production, our products may be chosen.



FAQs




Product Packaging & Shipping

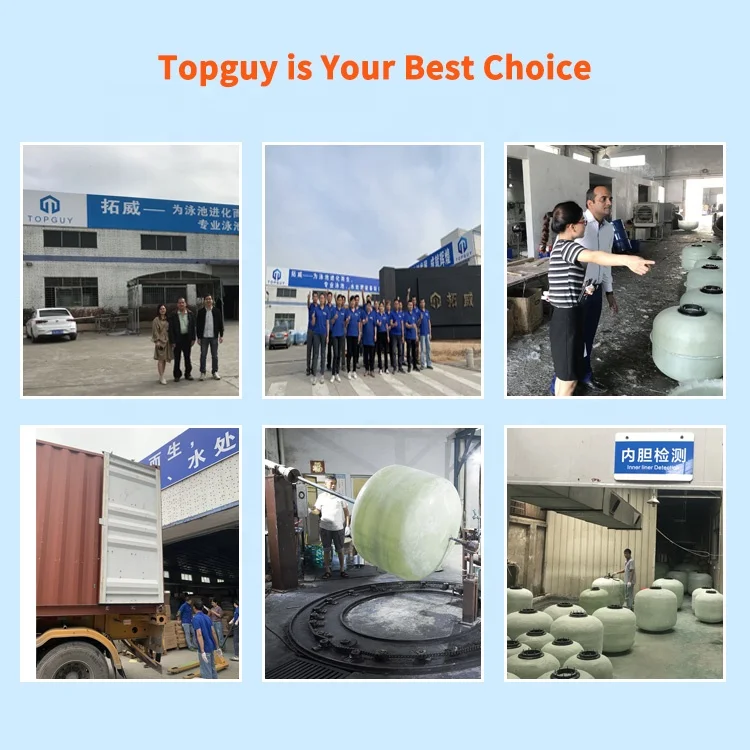

Factory Profile
