High performance JZM50 mobile Concrete Batching Plant portable mixing plant .
Mobile concrete mixing plant is a mobile concrete production equipment integrating batching, weighing, conveying, mixing,discharging and automatic control system. Its production process and operation method are the same as that of stationary concrete mixing plant, but it has the advantages of flexible movement and easy disassembly. When moving the construction site, except for screw conveyor and cement silo, other parts need not be disassembled.
Product Paramenters
Model | JZM25-2 | JZM35-2 | JZM50-2 | JZM60-2 |
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 60m³/h |
Discharging height | 1600mm | 1600mm | 1600mm | 1600mm |
Total power | 44kw | 50kw | 58.9kw | 66.9kw |
Dimension(L * W * H) | 8*2.2m*3.8m | 8m*2.2m*3.8m | 10m*2.3m*4.2m | 12m*2.3m*4.2m |
Model of Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 |
Mixing motor | 2*5.5kw | 2*7.5kw | 2*11kw | 2*15kw |
Discharging volume | 500L | 750L | 1000L | 1500L |
Model of Batcher | PLD800-2 | PLD1200-2 | PLD1200-2 | PLD1600-2 |
Aggregate bin volume | 5m³x2 | 6m³x2 | 7m³x2 | 8m³x2 |
Max. Aggregate Dia | 60/80mm | 60/80mm | 60/80mm | 60/80mm |
Cement weighing hopper | 500KG | 500KG | 560KG | 900KG |
Water weighing support | 220KG | 220KG | 220KG | 330KG |
Additive weighing support | 30KG | 30KG | 30KG | 40KG |
Trailer Speed | 40-60Km/h | 40-60Km/h | 40-60Km/h | 40-60Km/h |
Optional cement silo | 50/100T | 50/100T | 50/100T | 50/100T |
Related Suggestion

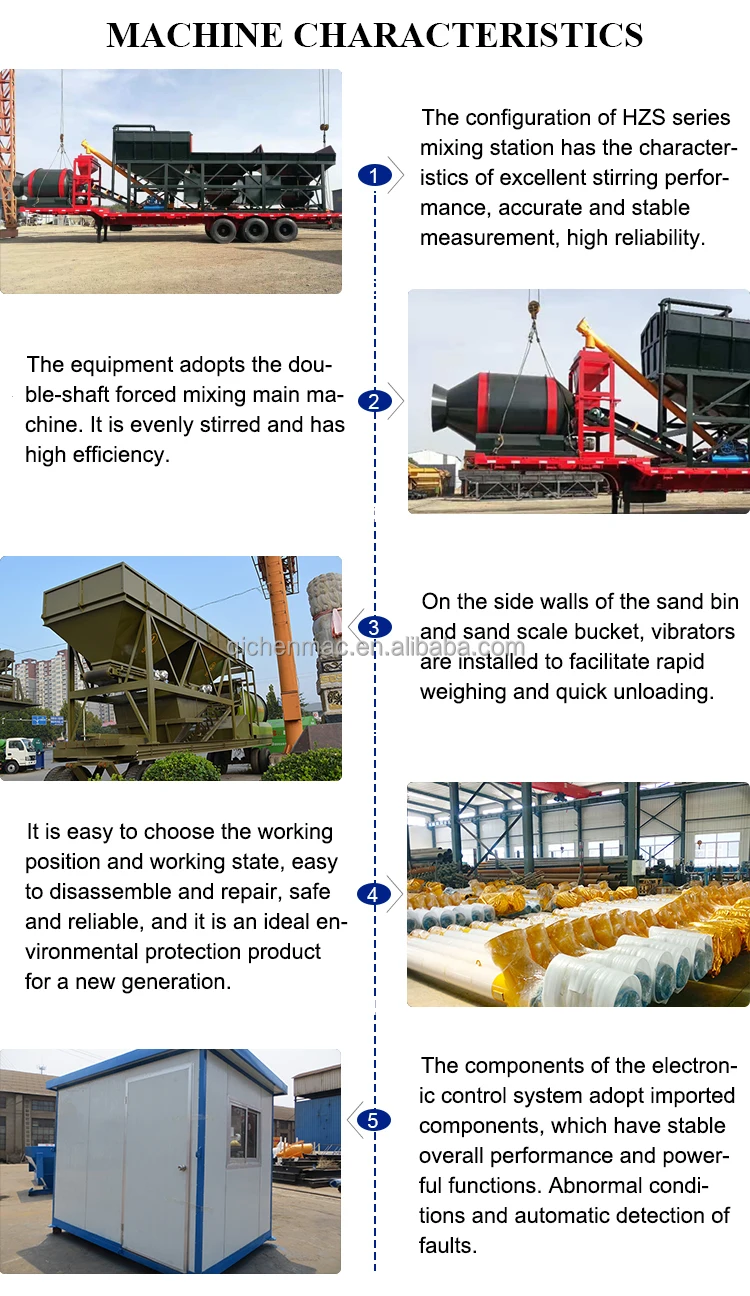

Features
1. JZM series mixer
2. Aggregate, powder storage, weighing and conveying system
3. Water supply, weighing and drainage system
4. Additive storage, supply and weighing system
5. Mixed dust collecting system
6. Main tower structure
7. Pneumatic system
8. Automatic control system
2. Aggregate, powder storage, weighing and conveying system
3. Water supply, weighing and drainage system
4. Additive storage, supply and weighing system
5. Mixed dust collecting system
6. Main tower structure
7. Pneumatic system
8. Automatic control system

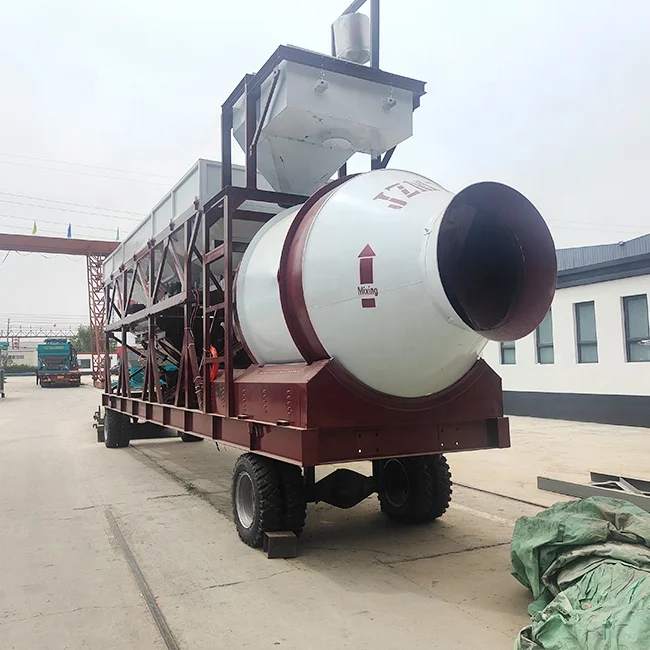

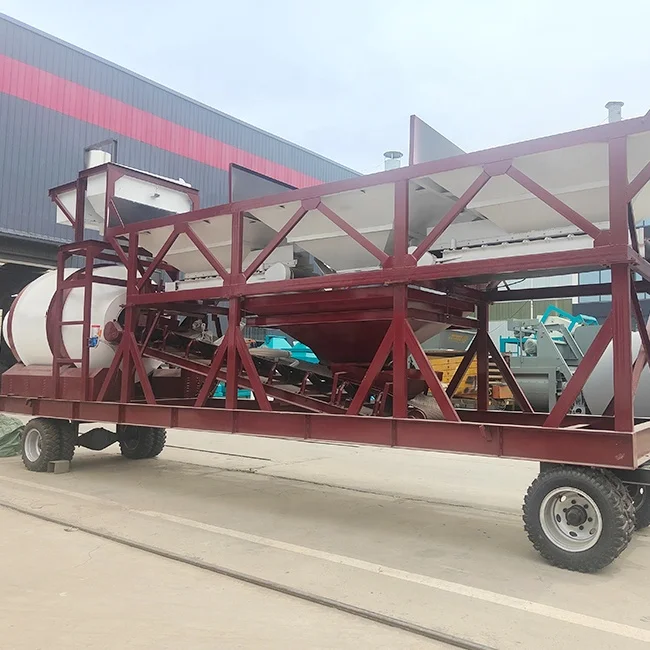

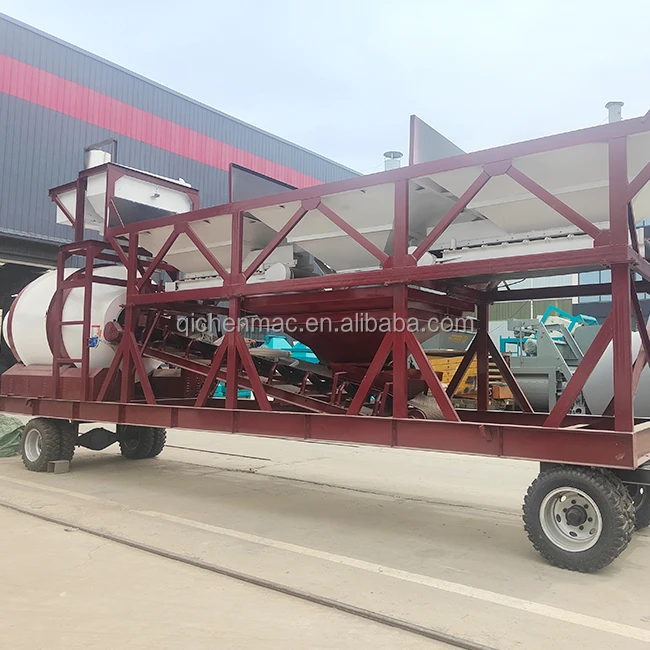

Details Images
