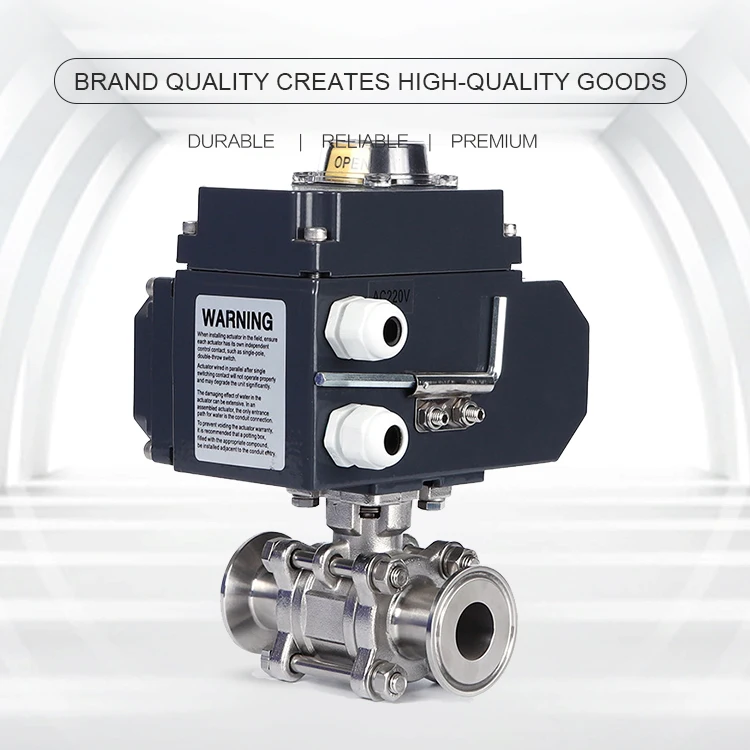

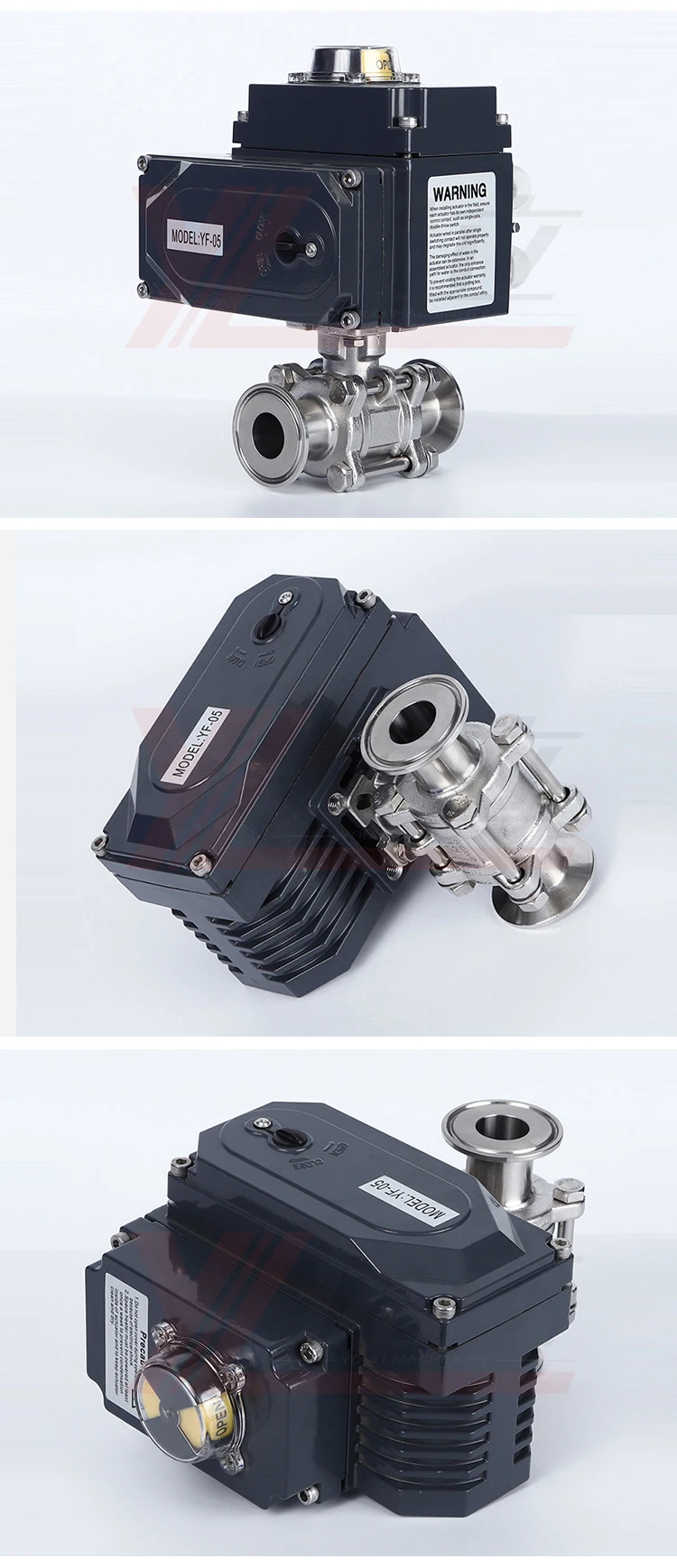

YOULI Hygienic food grade Sanitary stainless steel 304 316L milk drink motorized AC220V electric 3 piece TC Clamped Ball Valve
- Category: >>>
- Supplier: Wenzhou Youli Machinery Co. Ltd.
Share on (1601160202237):
Product Overview
Description
Product Description
Body material | SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc. |
Full port | 1/4"-4"(DN8-DN100),Φ19-Φ219 |
Working pressure | PN16,1.6Mpa,16Bar |
Medium temperature | - 20 ℃ ~ + 140°C,Optional(- 20℃ ~ + 250°C) |
Sterilization temperature | 150°C(max.20min) |
Connection type | Weld, Thread,Socket,Clamped,Flanged |
Connection Standard | BSPT,Optional(NPT, BSP, BSPP) |
Welding connection | DlN 11850-2 with 11850-1/SMS/3A/IS0 Series etc |
Sealing | PTFE,RPTFE,PPL ETC |
Surface treatment | Ra0.4-0.8μm |
Inside surface treatment | Ra0.4-0.8μm |
ISO 5211 Direct mounting pad | Yes |
Investment casting | Yes |
Blow-out proof stem | Yes |
Anti-static device | option |
Locking device handle | option |

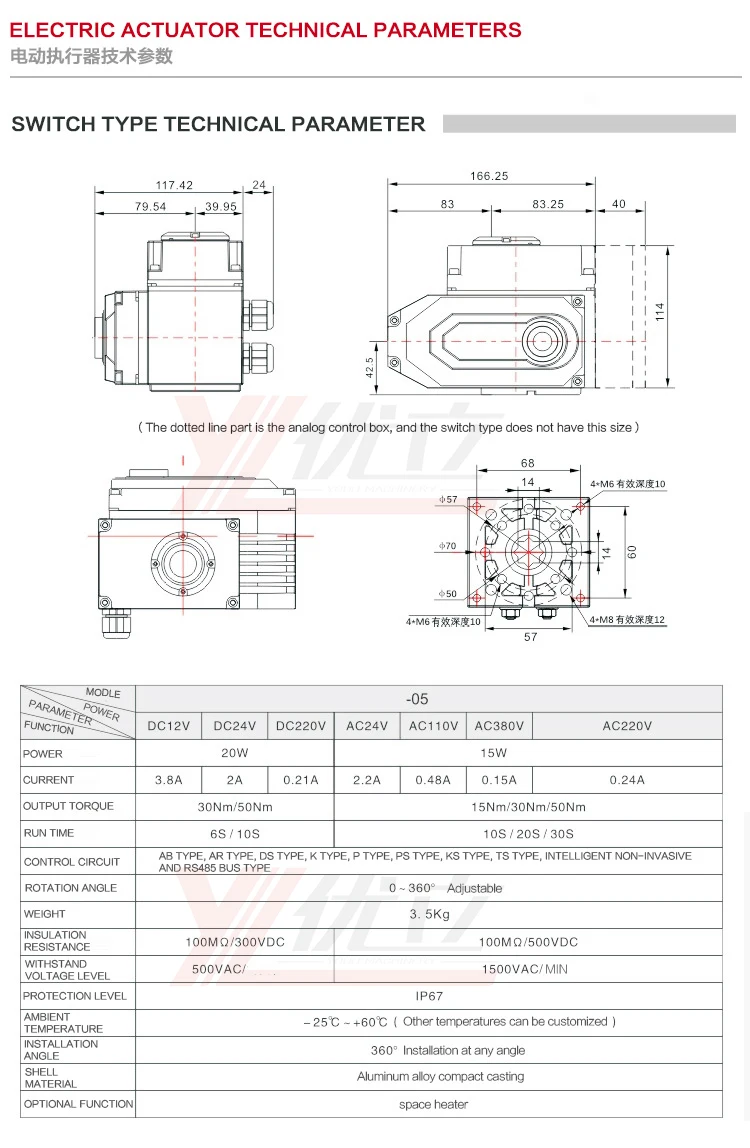

Electric actuator | 03-Type,05-Type,10-Type,20-Type,200-Type |
Voltage | DC24V,DC220V,AC24V,AC110V,AC220V,AC380V |

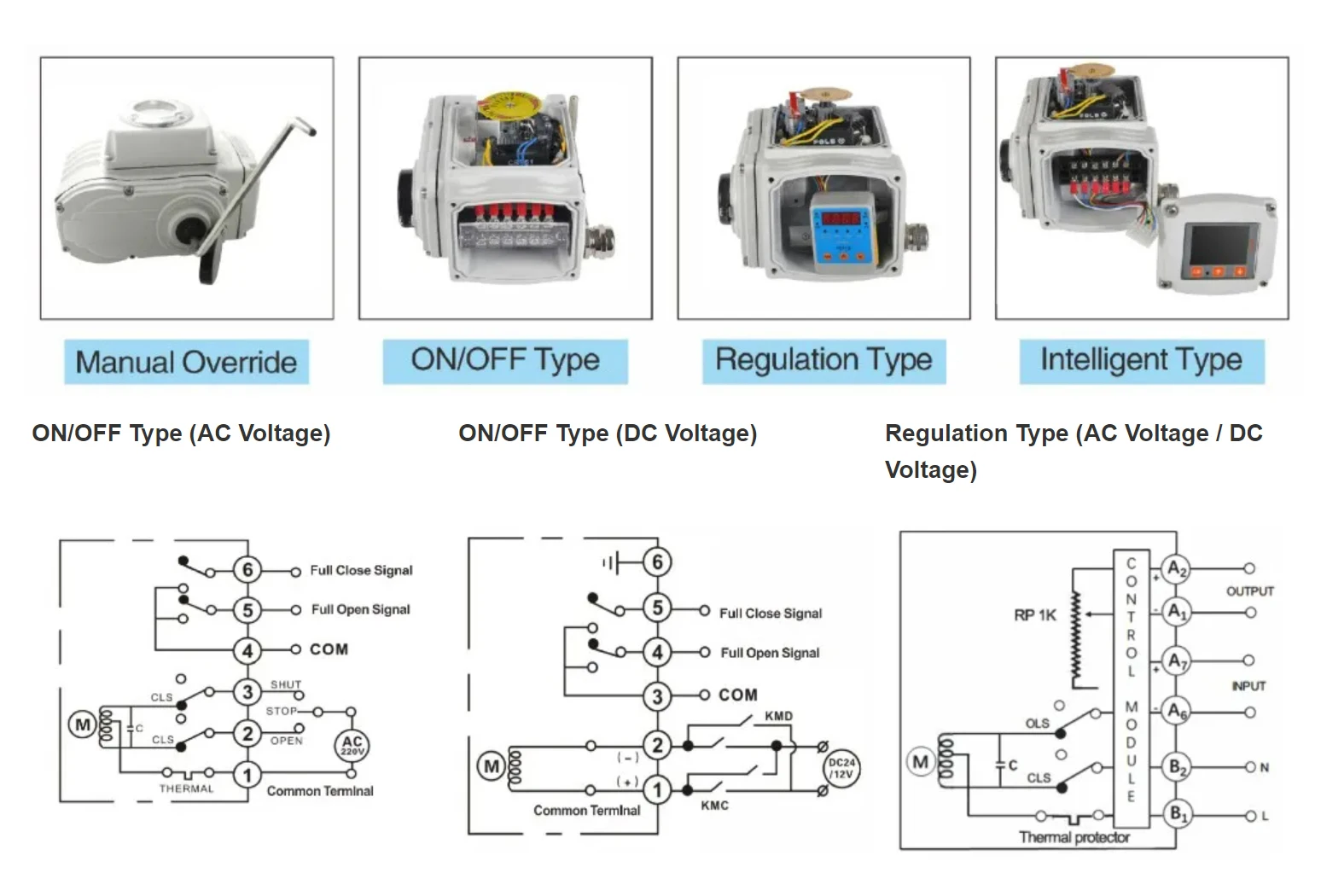

No/Off type | Yes |
Run time | 30s,option(5s/8s/15s/50s/100s) |
Waterproof level | IP-67,option(IP-68) |
Rotation angle | 0-90℃,option(0-270℃) |
Regulation type | option(4-20ma,0-10V,RS485) |
Explosion proof | option(Ex db lC T4/T6 Gb:Ex tb HC T130℃/T80'℃ Db) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
A ball valve is a form of quarter-turn valve which uses a hollow, perforated, and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status. The shut position 1/4 turn could be in either CW or CCW direction.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc

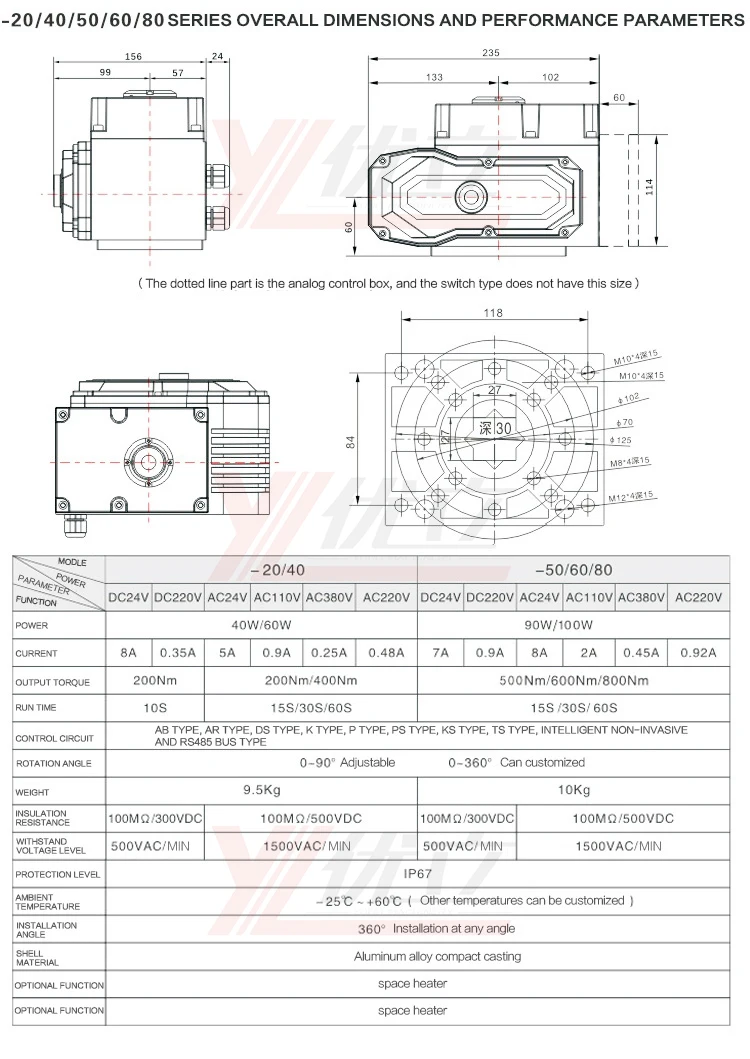

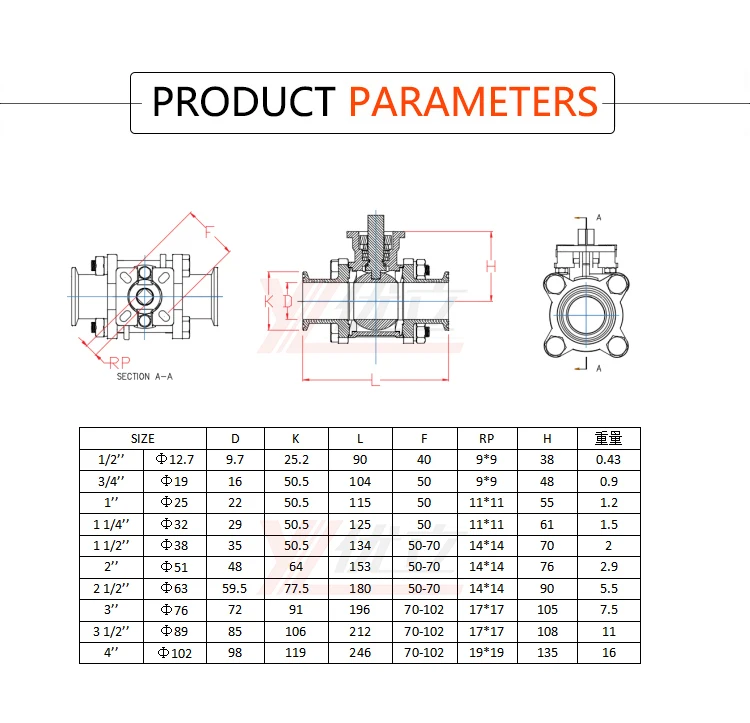

Product Paramenters
Related Products
Details Images

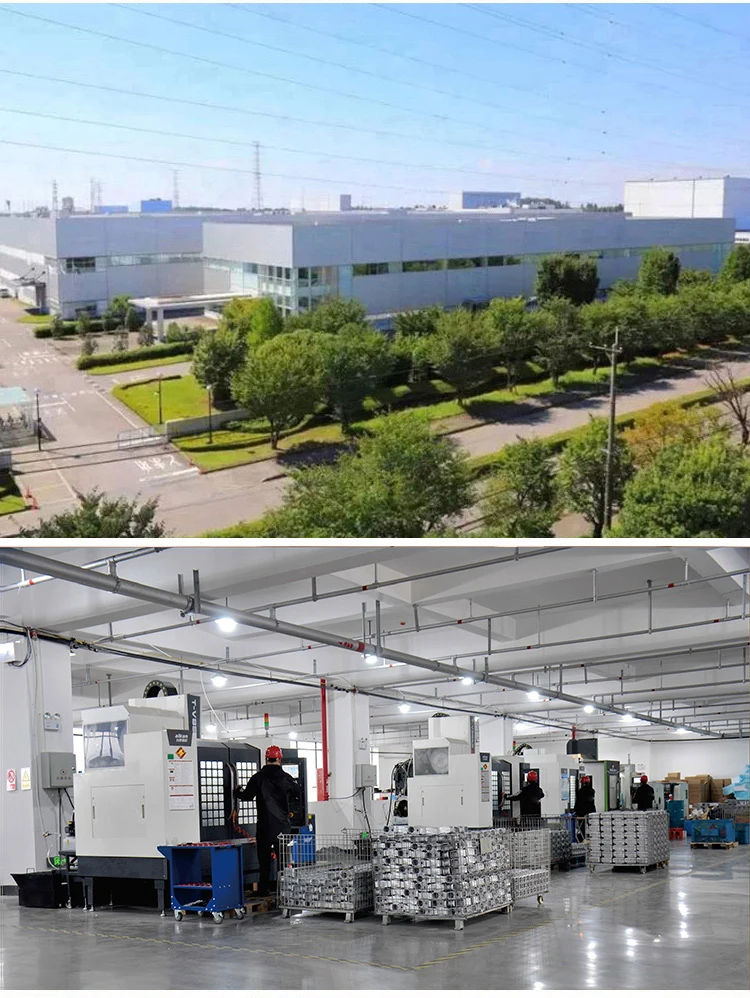

Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
