Huansheng Automatic High Profit High Quality 1Tph Big Gold Ball Mill 2 3T/H Gold Ore Ball Mill Machine
- Category: >>>
- Supplier: Henan Huansheng Mechanical Equipment Co. Ltd.
Share on (1601160211629):
Product Overview
Description
Products Description
Huansheng Automatic High Profit High Quality 1Tph Big Gold Ball Mill 2-3T/H Gold Ore Ball Mill Machine
Product Application:
Ball mill is the essential equipment for grinding after the crushing process, which is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal, and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Main Features:
1) This Ball mill machine changes the intrinsic grinding mill structure.
2) Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.
3) Use double tiered roller axletree with the centripetal spherical surface as the support of the host axletree can reduce energy costs by 30%.
4) The intrinsic grille pattern forcing evacuation is instead controlled by the over-fall design. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

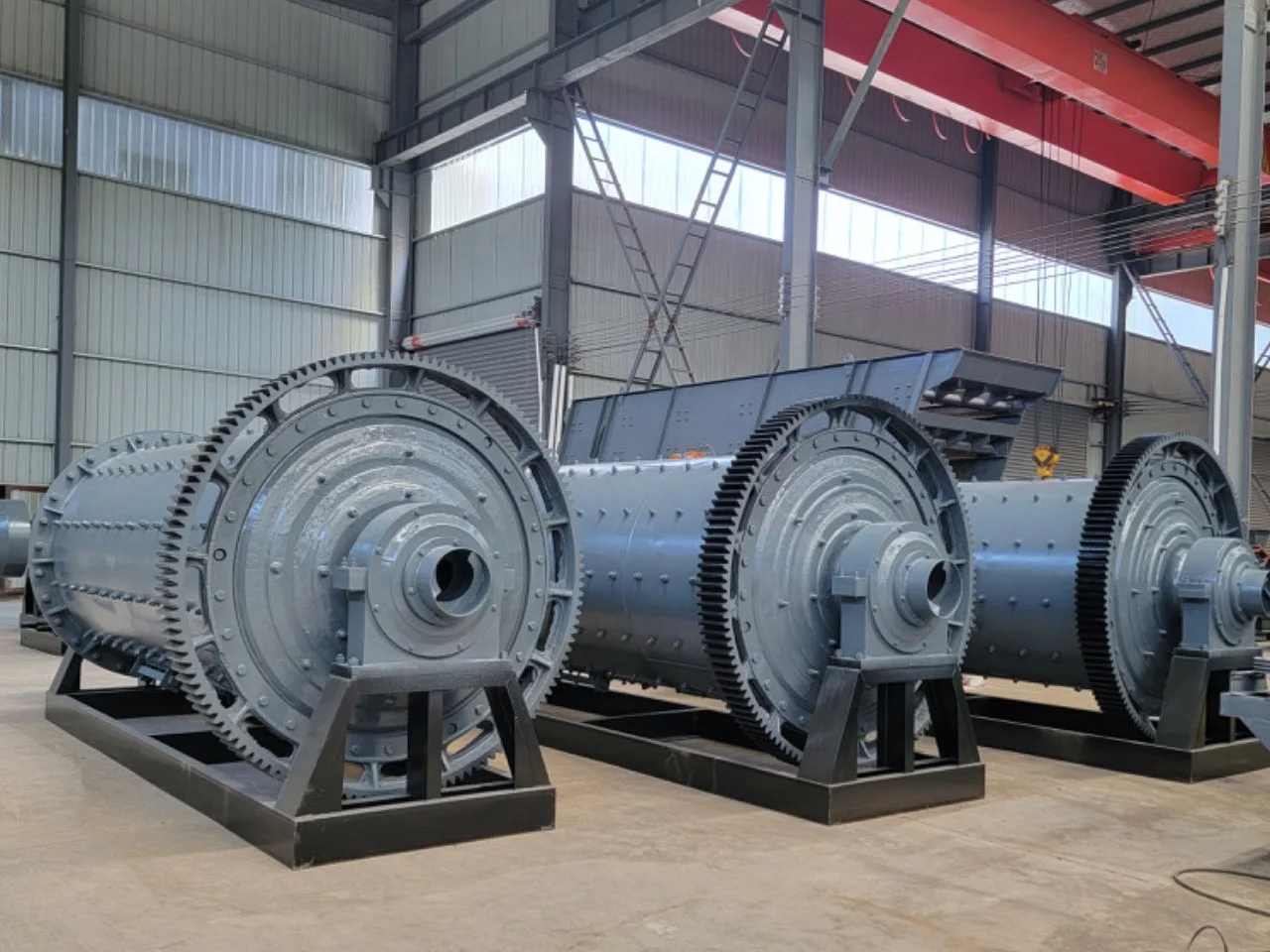

Huansheng Automatic High Profit High Quality 1Tph Big Gold Ball Mill 2-3T/H Gold Ore Ball Mill Machine
If you are interested in our products,please add my whatsapp:008615515534781
Specification
Working principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liners and ripple liners and different specifications of steel balls in the chamber. The centrifugal force caused by the rotation of the barrel brings the steel balls to a certain height and impacts and grinds the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
The ball mill produced by our company is a horizontal cylindrical rotating device, with outer gear transmission, two chambers, and a lattice-type ball mill.
The material enters the first chamber of the mill evenly and spirally from the feeding device through the feeding hollow shaft. There are ladder linings or corrugated linings in this chamber, and different specifications of grinding media - steel balls. When the rotating part rotates, The centrifugal force is generated to bring the steel ball to a certain height and then fall, which has a heavy impact and grinding effect on the material.
After the materials reach coarse grinding in the first chamber, they enter the second chamber through the single-layer partition plate. This chamber is equipped with a flat lining plate and contains steel balls for further grinding the materials. The powdery material is discharged through the discharge grate plate to complete the grinding operation.

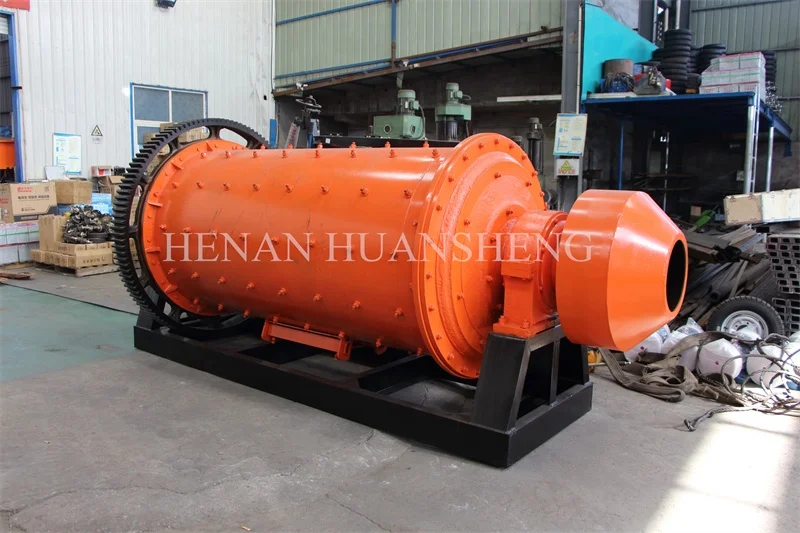

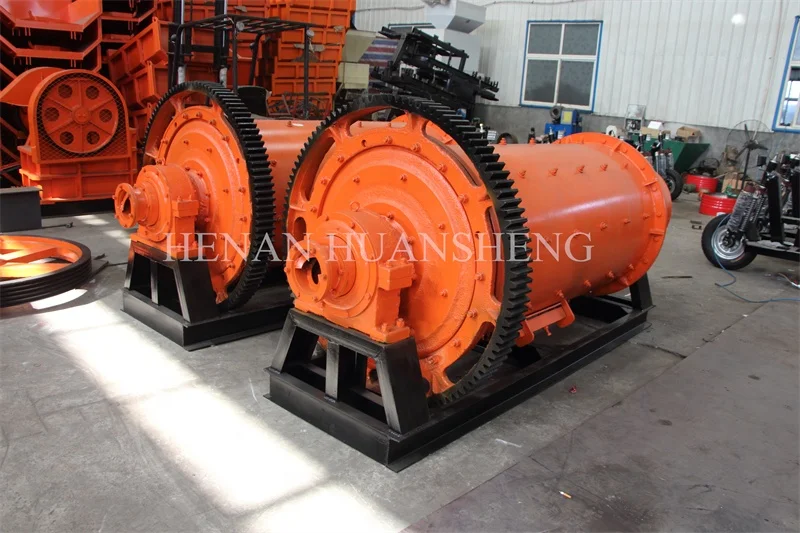

Huansheng Automatic High Profit High Quality 1Tph Big Gold Ball Mill 2-3T/H Gold Ore Ball Mill Machine
If you are interested in our products,please add my whatsapp:008615515534781
Product Parameters
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
APPLICATION
Our Advantages
1. High production capacity and crushing ratio;
2. Low power consumption, uniform particle size;
3. Simple structure, easy to operate;
4. Low investment cost, big profit;
5. Perfect services, both before-sales services and after-sales services.
If you are interested in our products,please add my whatsapp:008615515534781

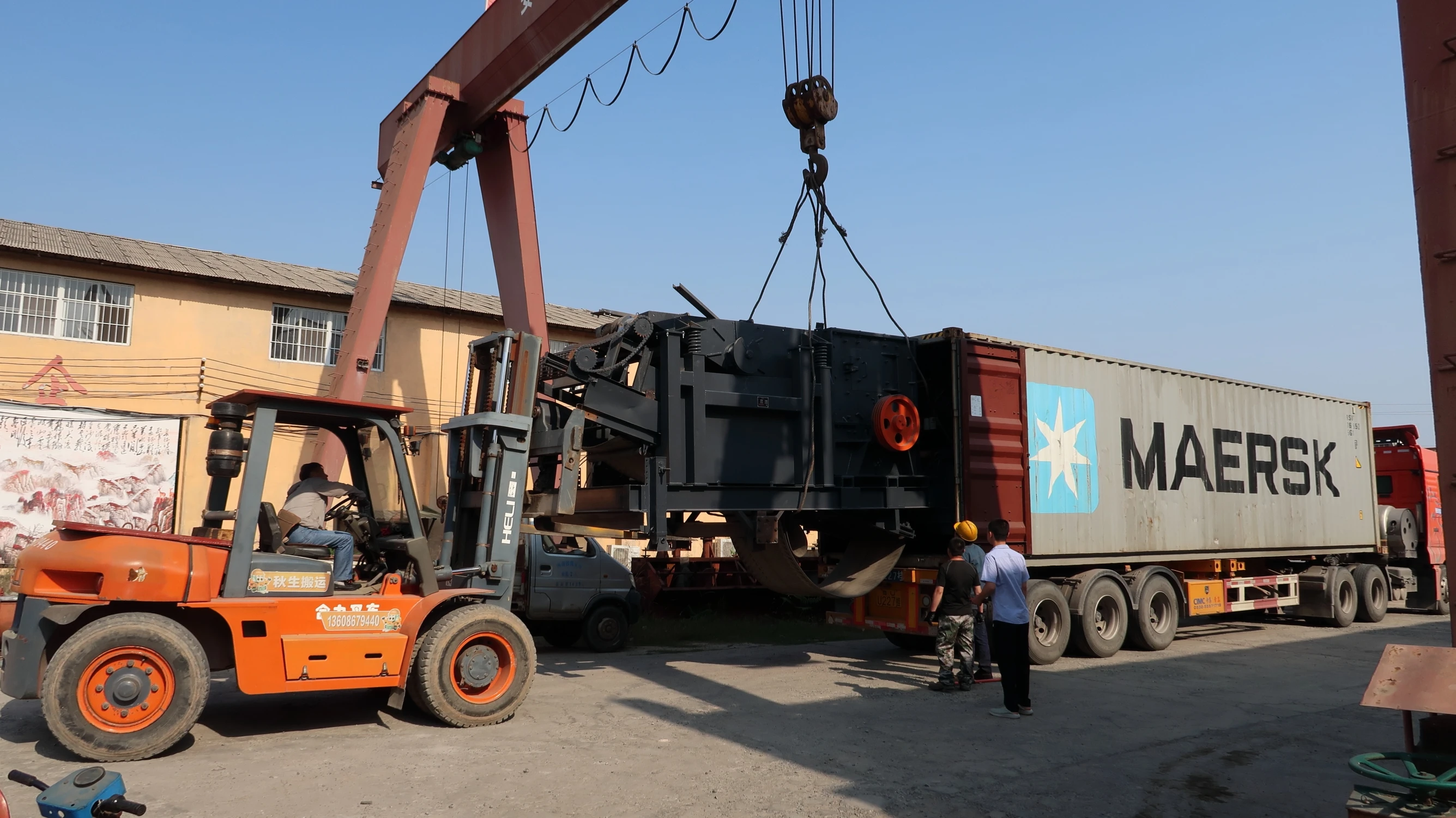

Packing and Delivery
Recommend Products
Company Information
Henan Huansheng Machinery Equipment Co., Ltd. dedicated to producing Mining machinery for 20 years, is a professional manufacturer of mining equipment in the R&D manufacture. Our brand is recognized worldwide for our high quality, reliability and our customer service. Company is opening, Whenever people in China and abroad are able to visit.
We currently supply over 60 different countries with our products, include three categories: Stone Crushing & Screening Plants, Portable Crushing Plants, and Complete Crushing Plants. Our primary products are Jaw Crushers, Impact Crushers, Hydraulic Cone Crushers, Spring Cone Crushers, Vibrating Screens, Vibrating Feeders, Portable Crushing Plants and Aggregate Crushing Plants. Our products are available for countless use, meeting all of our customers' special needs.
Contact Information
If you are interested in our products,please add my whatsapp:008615515534781
