Product Overview
Description

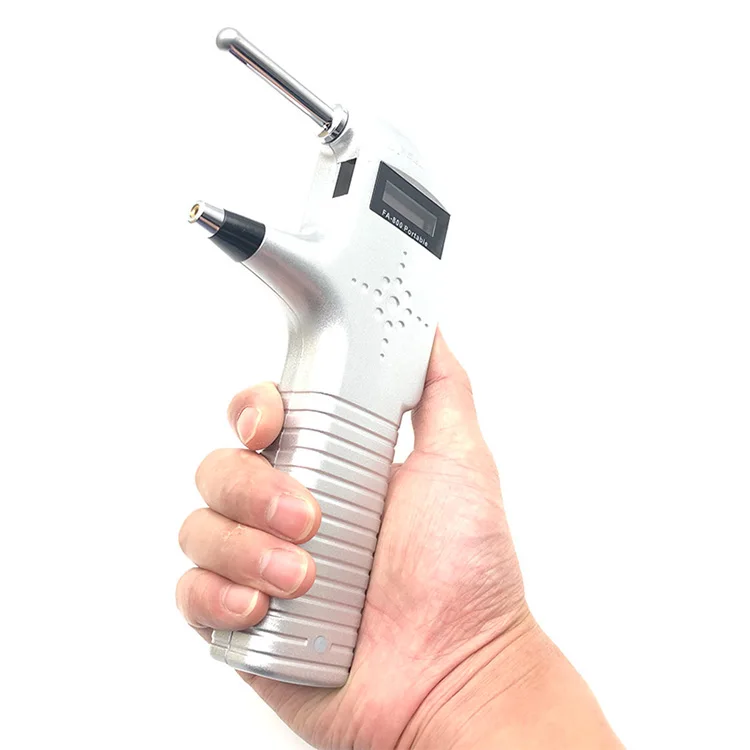

MCYYJ800V Veterinary Rebound Tonometer
Features:
Rebound tonometer, also known as impact tonometer, adopting an innovative sensing rebound technology. The probe will be magnetized when being inserted into the tonometer and generates N/S poles. An transient current in the solenoids of the device (lasting about 30 milliseconds) produces an transient magnetic field that causes the magnetized probe to move towards the cornea at 0.2m/s (homopolar repulsion principle). The probe bounces on the anterior surface of the cornea, slowing down and rebounding. If the ocular pressure is
Rebound tonometer, also known as impact tonometer, adopting an innovative sensing rebound technology. The probe will be magnetized when being inserted into the tonometer and generates N/S poles. An transient current in the solenoids of the device (lasting about 30 milliseconds) produces an transient magnetic field that causes the magnetized probe to move towards the cornea at 0.2m/s (homopolar repulsion principle). The probe bounces on the anterior surface of the cornea, slowing down and rebounding. If the ocular pressure is
increased, the decelaration of the probe increases, and the duration of the impact decreases.
The electrical control switch monitors the solenoid voltage caused by the rebound of the magnetized probes,and the electrical signals processors and the microsensors calculates the deceleration of the probe after impacting the cornea. Finally the integrated information is converted into ocular pressure readings.
Rebound tonometer is an electric measuring type pressure guage which converts the presurre into the voltage or current signal through the physical characteristics of the metal.Tonometer can obtain the measurement data within 0.1secons.
Applicability:
1. Used in tonometery tests by ophthalmologists,optometrists,general physician,professional health advisors.
2. Better for patients with dementia,mobility problems and children in the measurement of cornea
The electrical control switch monitors the solenoid voltage caused by the rebound of the magnetized probes,and the electrical signals processors and the microsensors calculates the deceleration of the probe after impacting the cornea. Finally the integrated information is converted into ocular pressure readings.
Rebound tonometer is an electric measuring type pressure guage which converts the presurre into the voltage or current signal through the physical characteristics of the metal.Tonometer can obtain the measurement data within 0.1secons.
Applicability:
1. Used in tonometery tests by ophthalmologists,optometrists,general physician,professional health advisors.
2. Better for patients with dementia,mobility problems and children in the measurement of cornea
edema,opacity or uneven cornea surface.
3. Handy of glaucoma patients in measuring ocular pressure at home.
3. Handy of glaucoma patients in measuring ocular pressure at home.
Specification | ||
Working Temperature Range | +5℃~+40℃ | |
Working Humidity Range | ≤80% | |
Working Atmospheric Range | 700 hpa~1060hpa | |
Q1. How to buy your products ?
A: You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
A: You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
Q2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
A: As China is still a developing country, there are only a few products with patent rights, and copy products are spread very fast in the market, Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper
A: As China is still a developing country, there are only a few products with patent rights, and copy products are spread very fast in the market, Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper
Q3. What is time of delivery?
A: Since our products are produced according to each specific order, the delivery period will be around 10 days after confirmation of order, lf it is small or sample order. please do check with us about whether we have ready goods in stock to make delivery as soon as possible
A: Since our products are produced according to each specific order, the delivery period will be around 10 days after confirmation of order, lf it is small or sample order. please do check with us about whether we have ready goods in stock to make delivery as soon as possible
Q4. What is the warranty? How about the spare parts?
A: We provide 1 year warranty and life-long maintenance for all the equipment. lf any spare parts broken down within the warranty period, we will repair and change it for free.
A: We provide 1 year warranty and life-long maintenance for all the equipment. lf any spare parts broken down within the warranty period, we will repair and change it for free.
Q5. Do you offer the training for free? How about the after service?
We can provide video of installation, operation and repairing online. Any question just contact us, we will try our best to solve it as quickly as we can.
We can provide video of installation, operation and repairing online. Any question just contact us, we will try our best to solve it as quickly as we can.
