  • Flexible Connector Coupling Pipeline Bellows Compensator EPDM Flanged Rubber Expansion Joint
Flexible Connector Coupling Pipeline Bellows Compensator EPDM Flanged Rubber Expansion Joint
Flexible Connector Coupling Pipeline Bellows Compensator EPDM Flanged Rubber Expansion Joint
Flexible Connector Coupling Pipeline Bellows Compensator EPDM Flanged Rubber Expansion Joint

Flexible Connector Coupling Pipeline Bellows Compensator EPDM Flanged Rubber Expansion Joint

Share on (1601160538874):


Price:$15.00

Quantity:


Product Overview

Description





Product Description

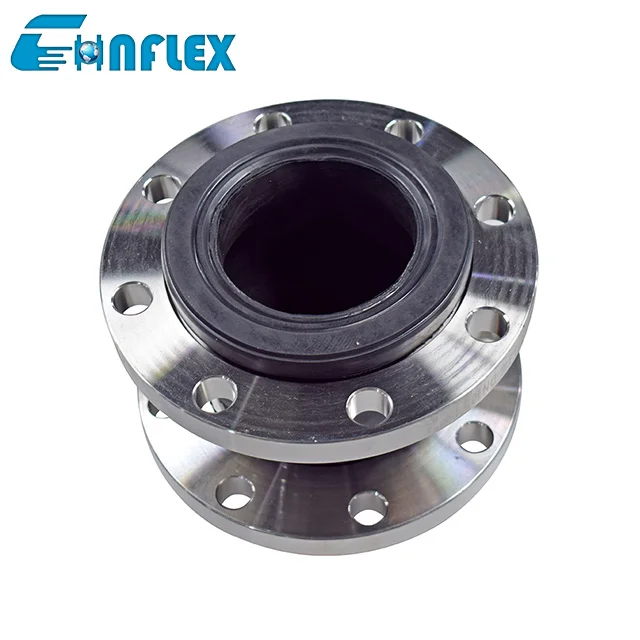

Bellows rubber joint is a type of pipeline joint with high elasticity, high air tightness, moderate resistance, and weather resistance. It is a composite rubber pipe composed of an inner rubber layer, a fabric reinforcement layer, an intermediate rubber layer, an outer rubber layer, and a metal or steel ring reinforced at the end. After high-temperature and high-pressure vulcanization, it is loosely bonded with a metal flange or parallel joint.





Functions


1. Small size, light weight, good elasticity, and convenient installation and maintenance.


2. Absorb lateral, axial, and angular displacement caused by pipeline vibration, without being limited by non concentric pipelines and non parallel flanges.


3. Reduce the noise generated by pipeline water pump vibration and have strong vibration absorption ability.


4. High temperature resistance, acid and alkali resistance, oil resistance, and improved service life.





































                   GENERAL CHARACTRISTICS



Nominal Diameter



DN25-DN1600



Working Pressure



PN6-PN25



Working Temperature



-20℃-130℃



Working Medium



Water,Oil,Acid,Alkali,Etc










Technology


















































































































































































Main data of flanged rubber expansion joint







Nominal diameter(DN)





Length





Axial displacement(mm)





Horizontal displacement





Deflexion angle





mm





inch





mm





Extension





Compression





mm





(a1+a2)°





32





1 1/4





95





6





9





9





15°





40





1 1/2





95





6





10





9





15°





50





2





105





7





10





10





15°





65





2 1/2





115





7





13





11





15°





80





3





135





8





15





12





15°





100





4





150





10





19





13





15°





125





5





165





12





19





13





15°





150





6





180





12





20





14





15°





200





8





210





16





25





22





15°





250





10





230





16





25





22





15°





300





12





245





16





25





22





15°





350





14





255





16





25





22





15°





400





16





255





16





25





22





15°





450





18





255





16





25





22





15°





500





20





255





16





25





22





15°





600





24





260





16





25





22





15°




Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device.




Detailed Images


2





Production Flow


.jpg







Do you know how is a high quality rubber expansion joint made?Let's see with JINGNING.


It is very important to select the appropriate flexible rubber expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges.


                            Hot products


.jpg



Advantages


1.Factory price


2.20 years of manufacturing experience,7years of export experience


3.Strict quality inspection, the quality far exceeds the industry standard.


4.Mold a variety of specifications, support customization, OEM


5.Provide free samples


6.Large inventory





Product Uses


Because of its good comprehensive performance,bellows rubber is widely used in chemical engineering, construction, water supply, drainage, petroleum, industry, refrigeration, sanitation, water heating, fire protection, electric power and other basic engineering.







Certifications



.jpg











                                                            FAQ





Q1What`s the rubber material of flexible rubber expansion joints?


A1: EPDM,CR,NBR,etc .It depends on the working enviroment and media.





Q2: Is the flange galvaized of flexible rubber expansion joints?


A2: Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.





Q3: Can I get a sample?


A3: Of cause. We could delivery by Express,by air or by sea.





Q4: What is the MOQ of flexible rubber expansion joints?


A4: 1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
