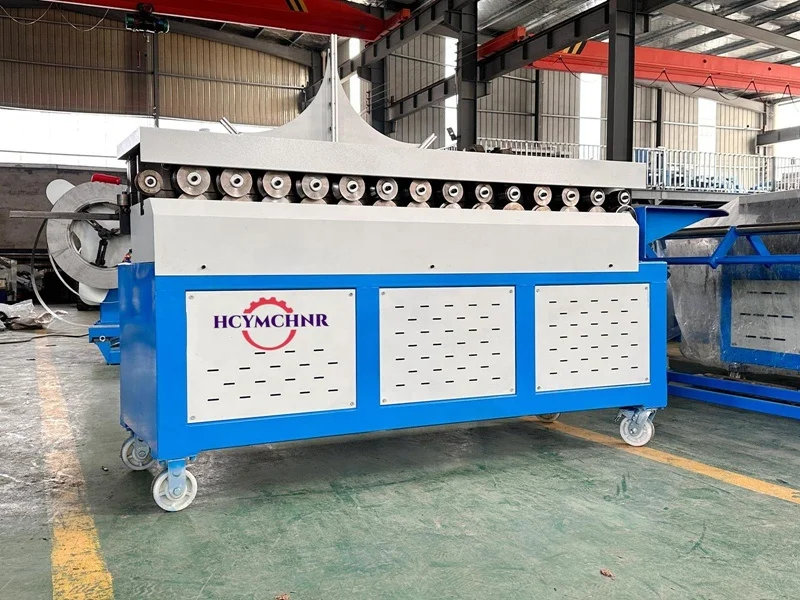

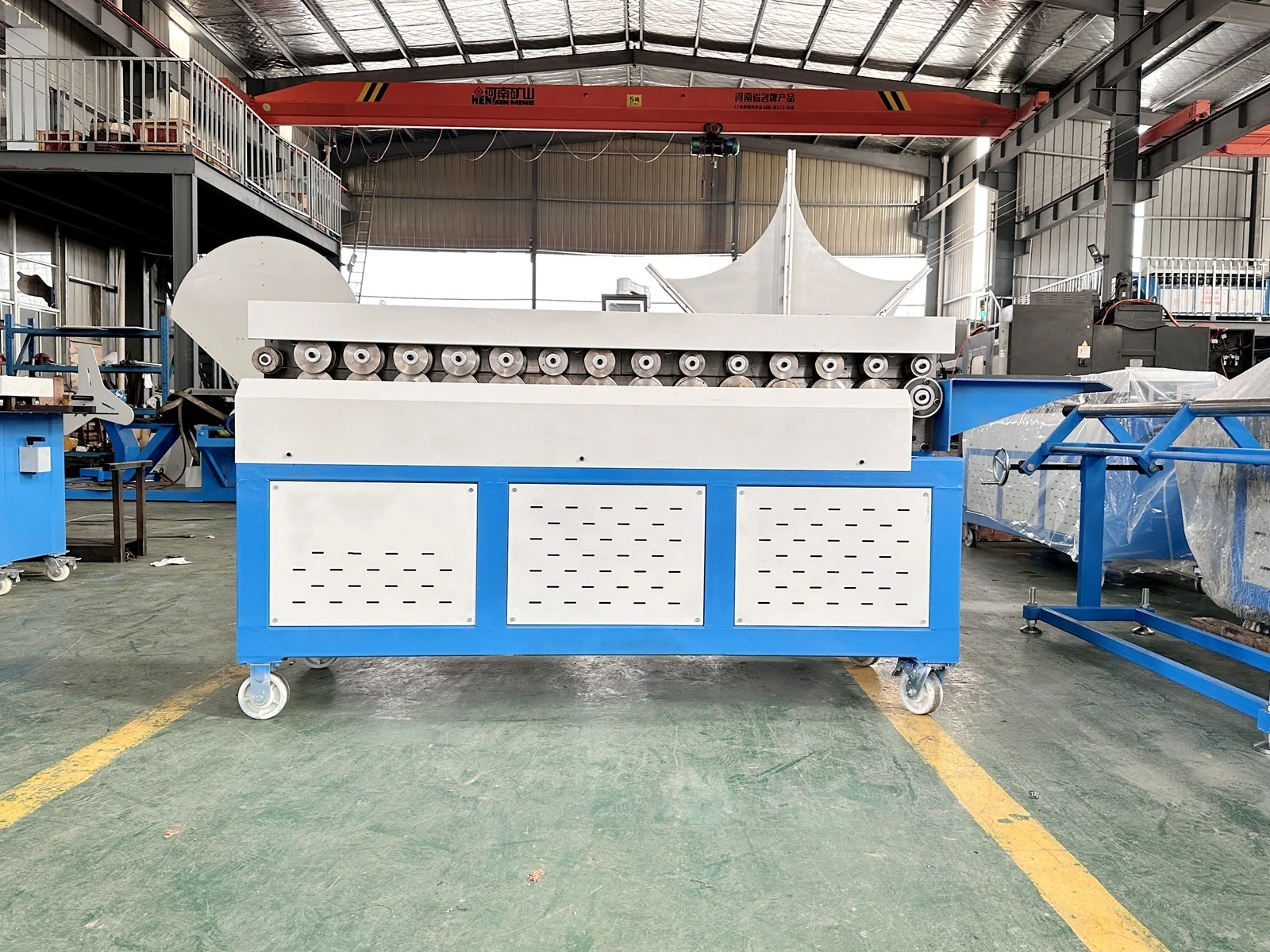

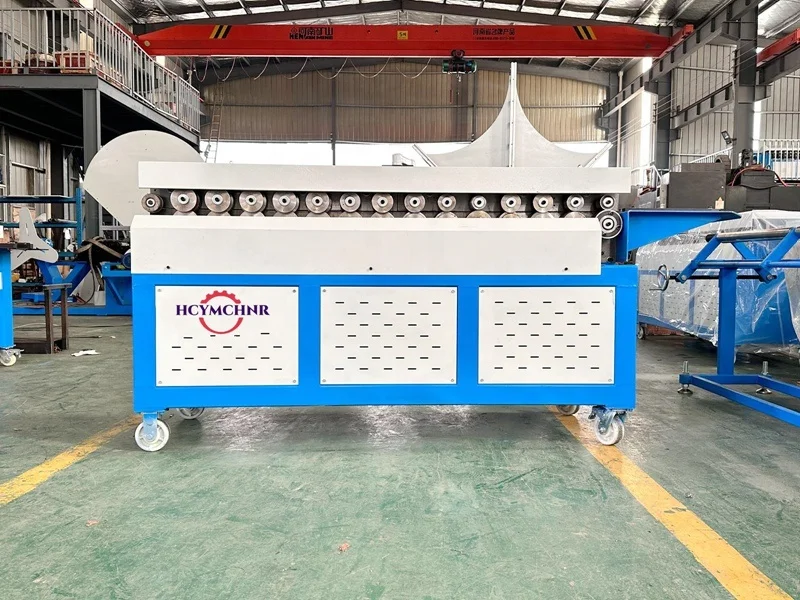

high quality Sheet Metal TDF Air Duct Flange Forming Machine for Rectangular duct making

Product Overview

Description

high quality Sheet Metal TDF Air Duct Flange Forming Machine for Rectangular duct making:

I. TDF Flange Forming Machine's Features:

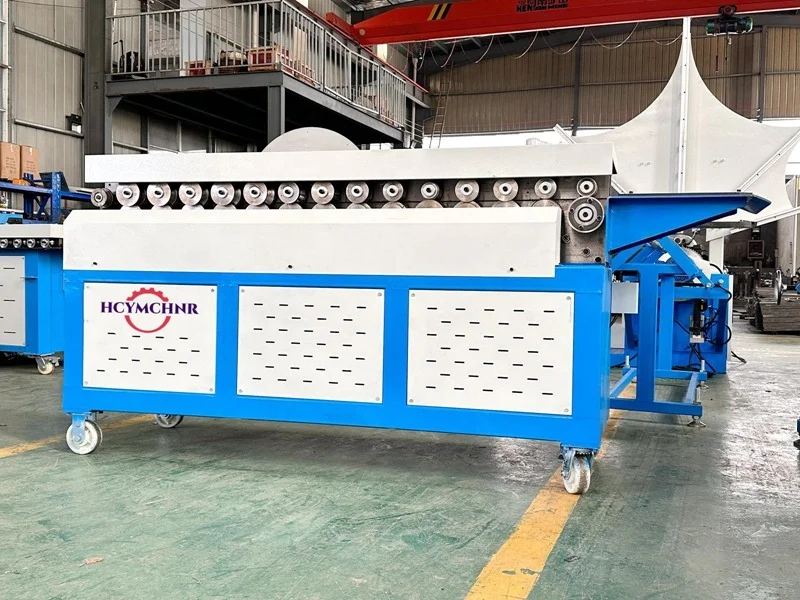

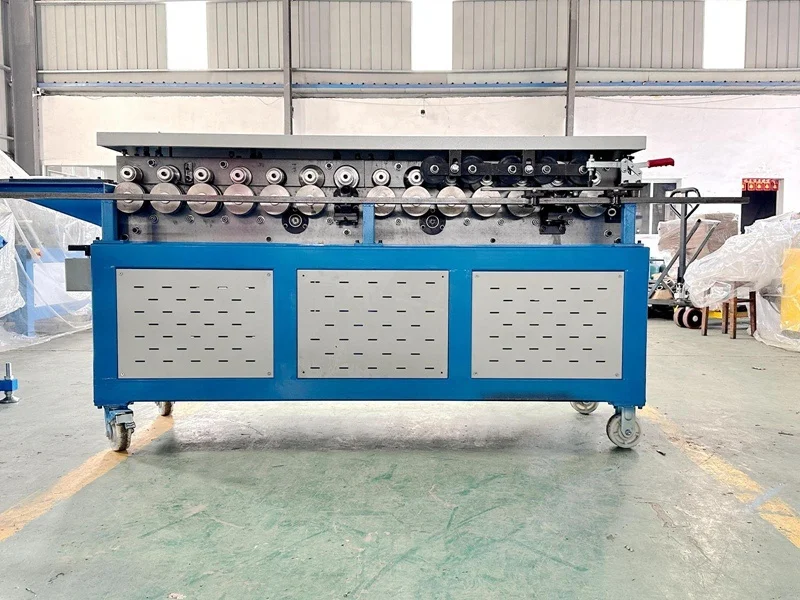

TDF flange forming machine has two sides, one side is to make flange shape, another side is to make clip shape. Besides, we also can customize both sides to make flange shape. Flange height usually is 35±0.5mm, but 20,25,30mm also can be customized. This TDF flange forming machine is very easy operated on site and in factory.

TDF flange forming machine T-12 can make max 1.2mm thickness galvanized sheet and max 0.7mm stainless steel.

1. The rectangle duct flange can be fast processed.

2. Low making cost and high installing efficiency, convenient for standard & batches of production.

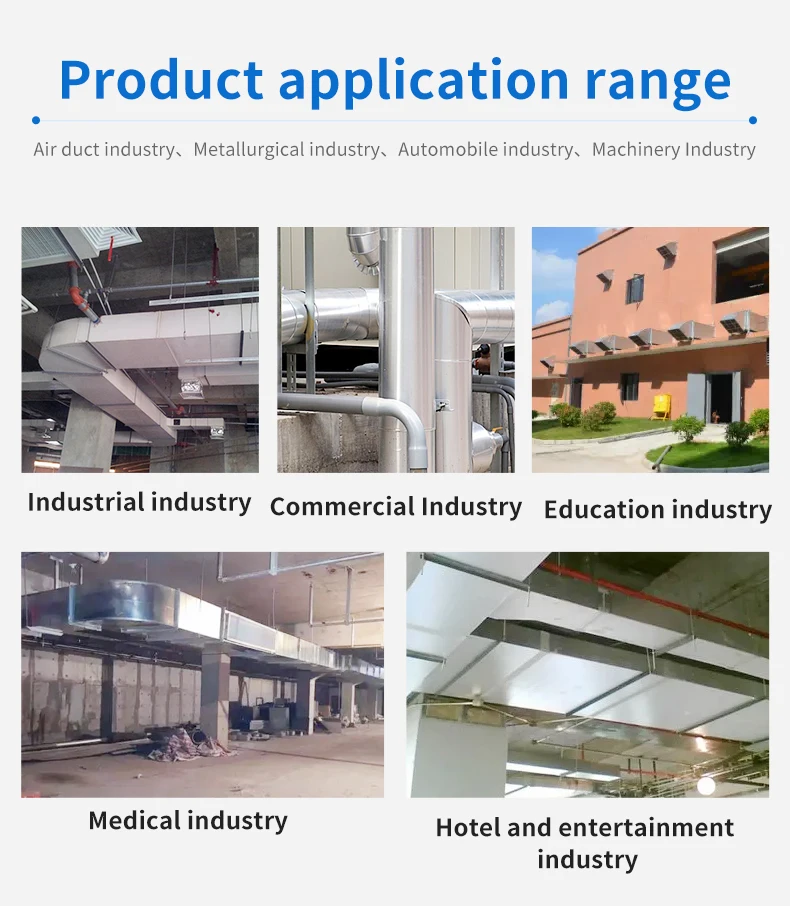

3. Suitable for making rectangle wind pipe with big section.

4. High quality, easy and convenient operation

---

II. Technical Parameters

1. Machine name: TDF flange forming machine

2. Machine model: T-15

3. Thickness range: 0.8-1.5mm

4. Power: 4.5KW

5. Weight: 1140KGS

6. Dimension: 2700x700x1110mm

---

---

The actual price is subject to consultation with customer service personnel.
