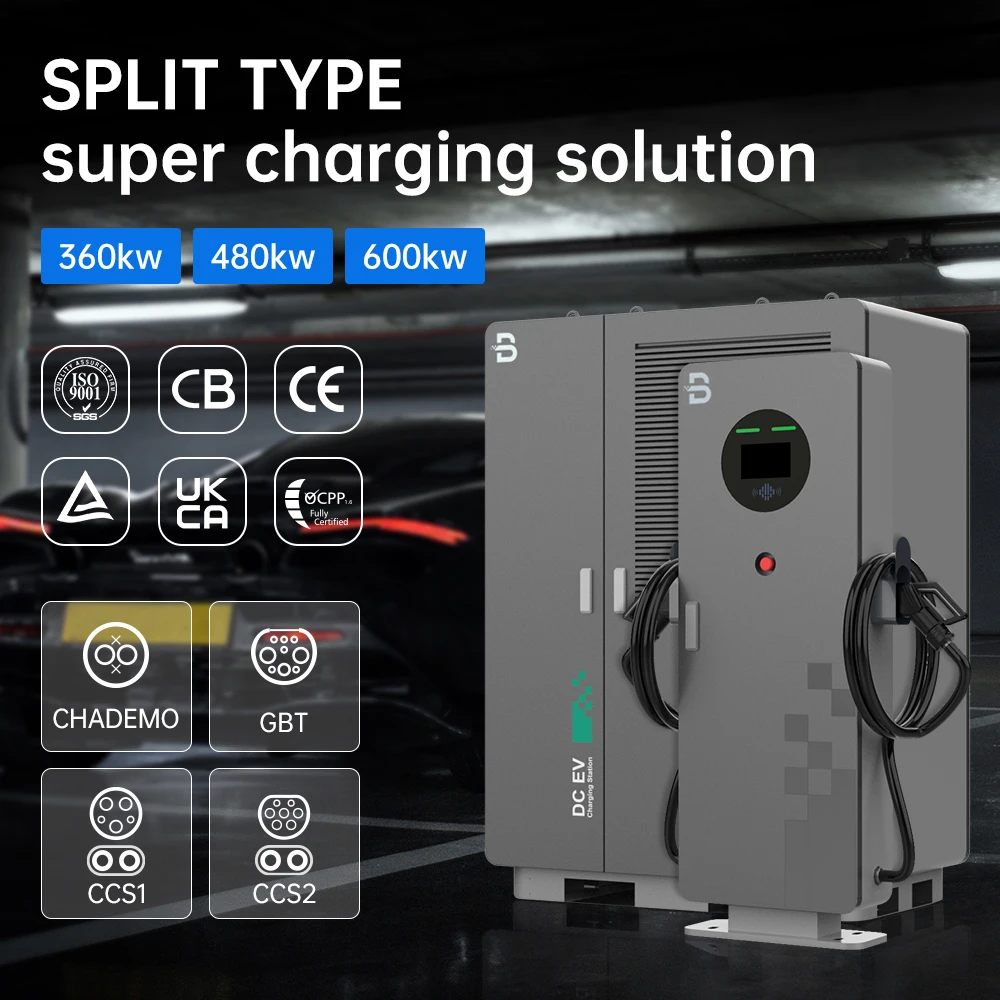

BENY New Commercial Split DC EV Charger 180 KW 240KW 360KW 480KW 600KW DC Fast Electric Car Vehicle Charging Station With OCPP
- Category: >>>
- Supplier: ZHEJIANG BENYI NEW ENERGY CO. LTD.
Share on (1601160890181):
Product Overview
Description
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Product Introduction
Highlights :
*180kw/240kw/360kw/480kw/600kw Optional
* 2 Guns or 4 Guns or 6 Guns or 8 Guns or 10 Guns or 12 Guns( CCS1, CCS2,Chademo,GBT,)

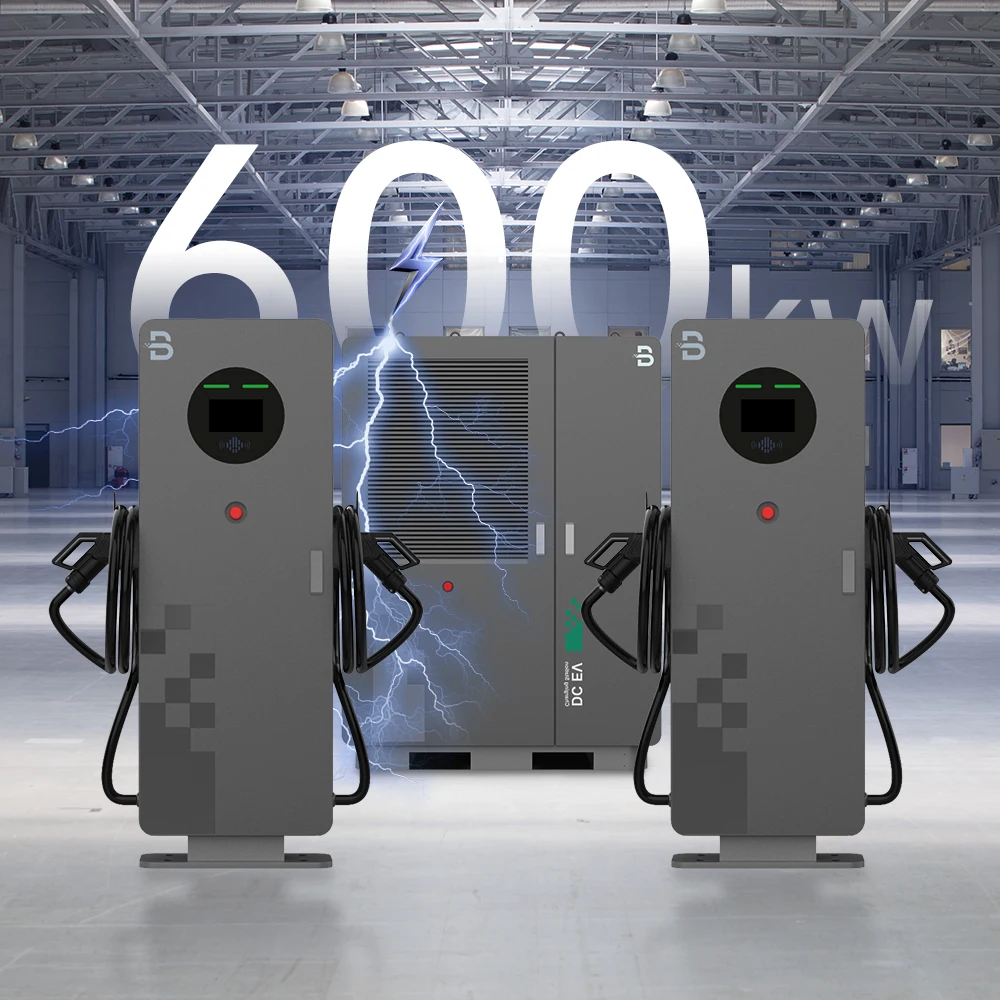

* SPLIT DC EV CHARGER
* 7-inch LCD screen/LED light
* OCPP 1.6
* IP55
* 24 Months Warranty
* Scalability - adding units to meet growing demand without replacing the entire system
* Cost-effective - separation units lower infrastructure and site preparation costs
* Adaptability - configurable power units support various electric vehicle models
* SPLIT DC EV CHARGER
* 7-inch LCD screen/LED light
* OCPP 1.6
* IP55
* 24 Months Warranty
* Space flexibility - split design allows flexible installation
* Scalability - adding units to meet growing demand without replacing the entire system
* Cost-effective - separation units lower infrastructure and site preparation costs
* Adaptability - configurable power units support various electric vehicle models
Details Images
Product Specification
Item | External Machine | Internal Machine | ||
Structure Description | ||||
Shell Material | Sheet Metal | |||
Dimension | 600*230*1700(L*W*T) | 1400*800*1910(L*W*T) | ||
Weight | ≤110KG | ≤800kG | ||
Installation Method | Floor‑Stand Type | |||
Cable Routing | Bottom Inlet Wiring, Bottom Outlet Wiring | |||
Cable Length | 5M | Custom | ||
Charging Outlets | Double (CCS1+CCS1) Double (CCS1+CHADEMO) Double (CCS2+GBT) Double (CHADEMO+CHADEMO) Double (CCS2+CCS2) Double (CCS2+CHADEMO) Double (CHADEMO+GBT) Double (CCS1+CCS2) Double (CCS1+GBT) Double (GBT+GBT) | / | ||
Connectivity Authorization | RFID, App | / | ||
Screen | 7 Inch LCD Screen/LED Light | 7 Inch LCD Screen | ||
Electrical Specification | ||||
AC Input Voltage | 150Vdc‑1000Vdc | AC400V±15% ,3P+N+PEAC | ||
Input Frequency | / | 50Hz/60Hz | ||
Consumption | ≤15WH | ≤30WH | ||
Rated Power | / | 150Vdc-100Vdc | ||
Output Voltage Range | CCS2:150Vdc –1000Vdc | ≥95% | ||
Output Current | 0~250A | / | ||
Efficiency | ≥95% | / | ||
Functionate Design | ||||
User Interface | Emergency Stop Button, LED Indicator, Card Swiping, Touch Screen | Touch Screen | ||
Charging Stands | IEC 61851‑21‑2:2021; IEC 61000‑6‑2:2019; EN61000‑6‑4:2019; IEC 61851‑1:2019; EN 61851‑23:2014; EN 61851‑24:2014 | |||
Communication | ||||
OCPP | OCPP1.6 | |||
Network Interface | Ethernet/4G | |||
Environment Condition | ||||
Application Place | Indoor/Outdoor | |||
Working Latitude | <2000m | |||
Working Temperature | ‑30 °C ~+50 °C | |||
Working Humidity | 5%~95% | |||
Protection Level | IP55 | |||
Natural Cooling | Forced‑air Cooling | |||
MTBF | 24 Months Warranty | |||
Security Design | Over/Under Voltage Protection, Overlord Protection, Current Leakage Protection, Grounding Protection, Over Temp Protection, Lightening Surge Protection | |||

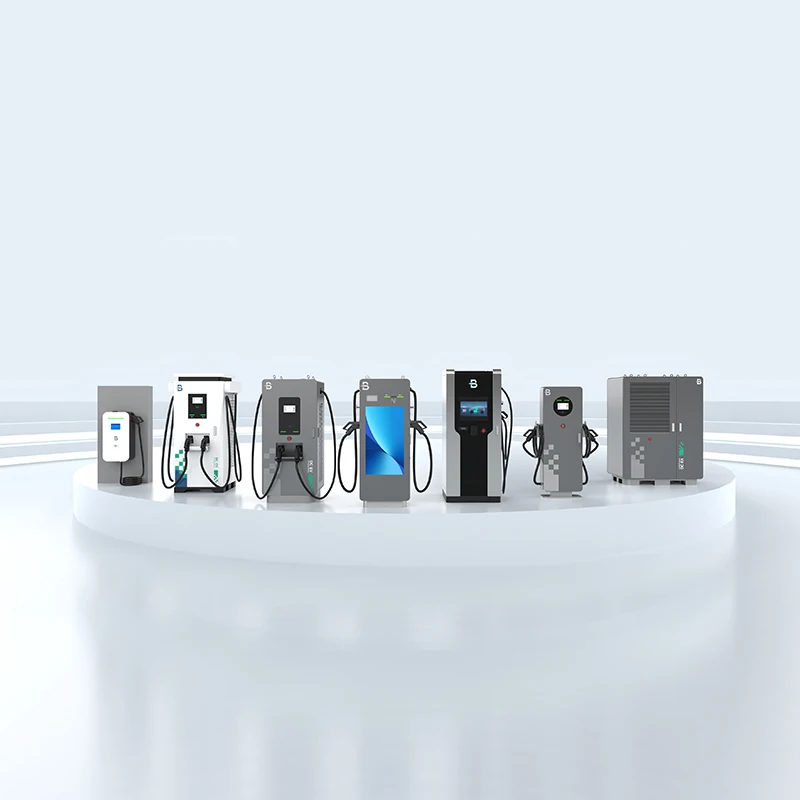

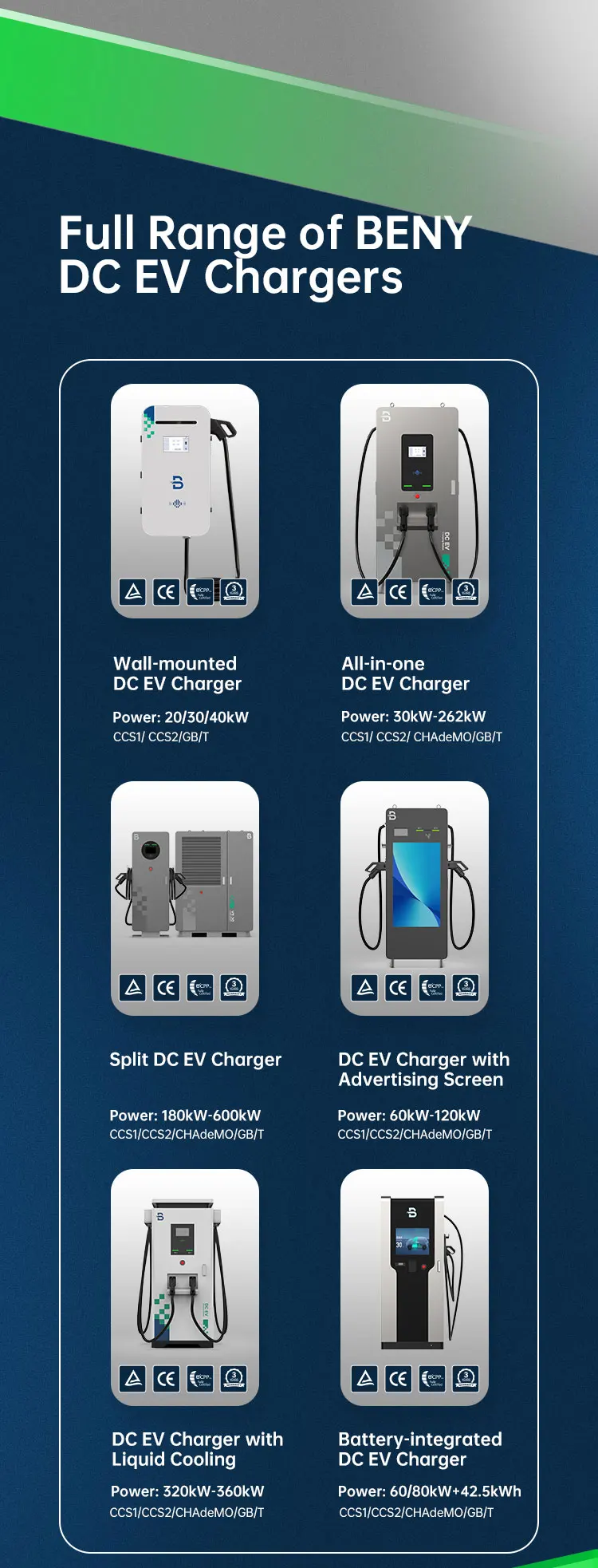

OUR EV CHARGER PRODUCT LINE
Our EV charger supplies power to any electrical vehicle. The wall-mounted and floor-mounted design as well as its IP65 dust and waterproof housing make the EV chargers suitable for outdoor or indoor spaces. The output of our AC EV charger ranges from 16amps to 32amps. And the output power of DC fast EV charging is up to 600kW.
BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.
The robust build of our EV charger lets you satisfy various business goals while driving your brand. Contact us for a free consultation
BENY is a long-running EV charger and PV products manufacturer with more than 30 years of experience. Our knowledge in manufacturing PV components ensures all of our EV chargers surpass your expectations in terms of service life and performance.
The robust build of our EV charger lets you satisfy various business goals while driving your brand. Contact us for a free consultation

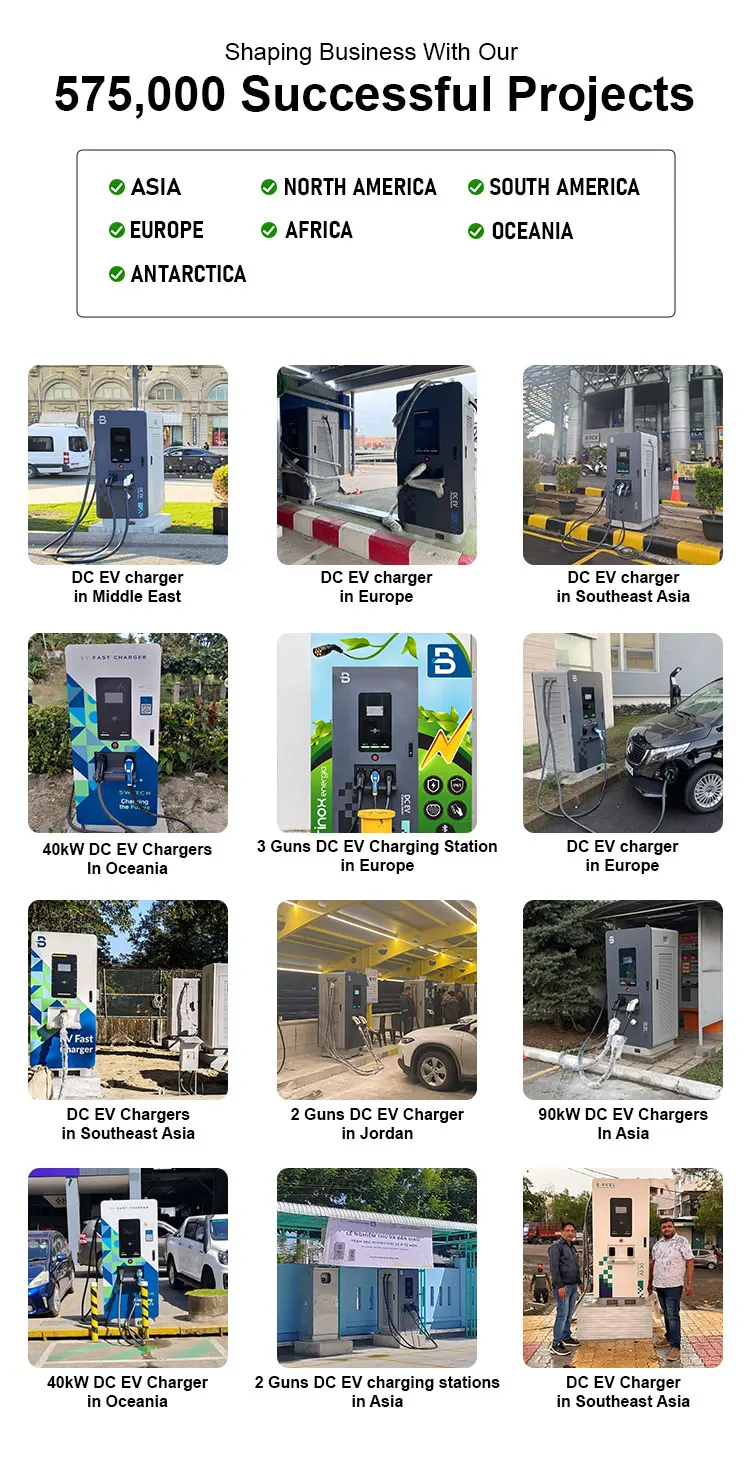

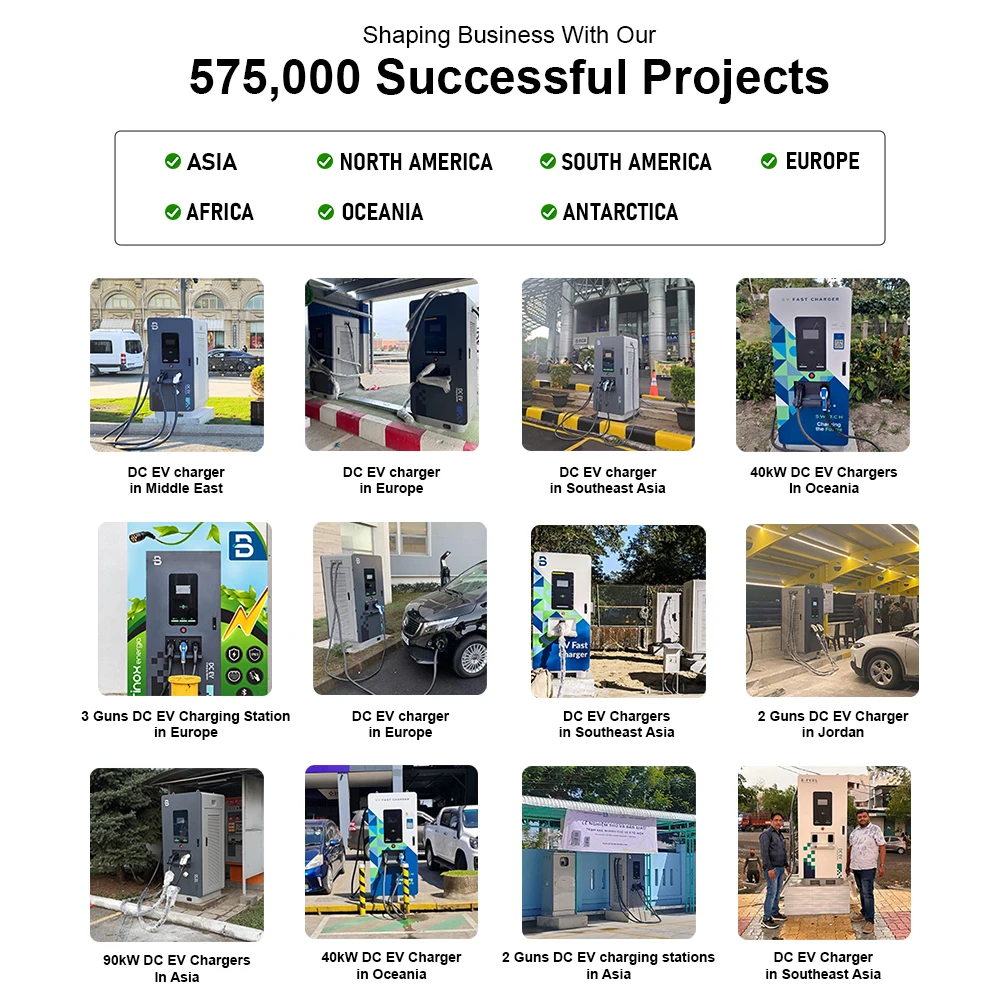

Product Application Case
Across the globe, BENY has forged robust business relationships with clients in the realm of EV charging station construction, offering comprehensive, cost-effective, instant charging solutions for their vehicles.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.
Our expertise and services in EV charging projects empower numerous individuals worldwide to start global EV charging station development.
These worldwide projects of EV chargers showcase how our innovative global EV charging station solutions have been applied to diverse environments, contributing to EV charging station construction.
Company Profile
BENY New Energy is a specialist in EV charging station installations around China in multiple different scenarios.
Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.
We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.

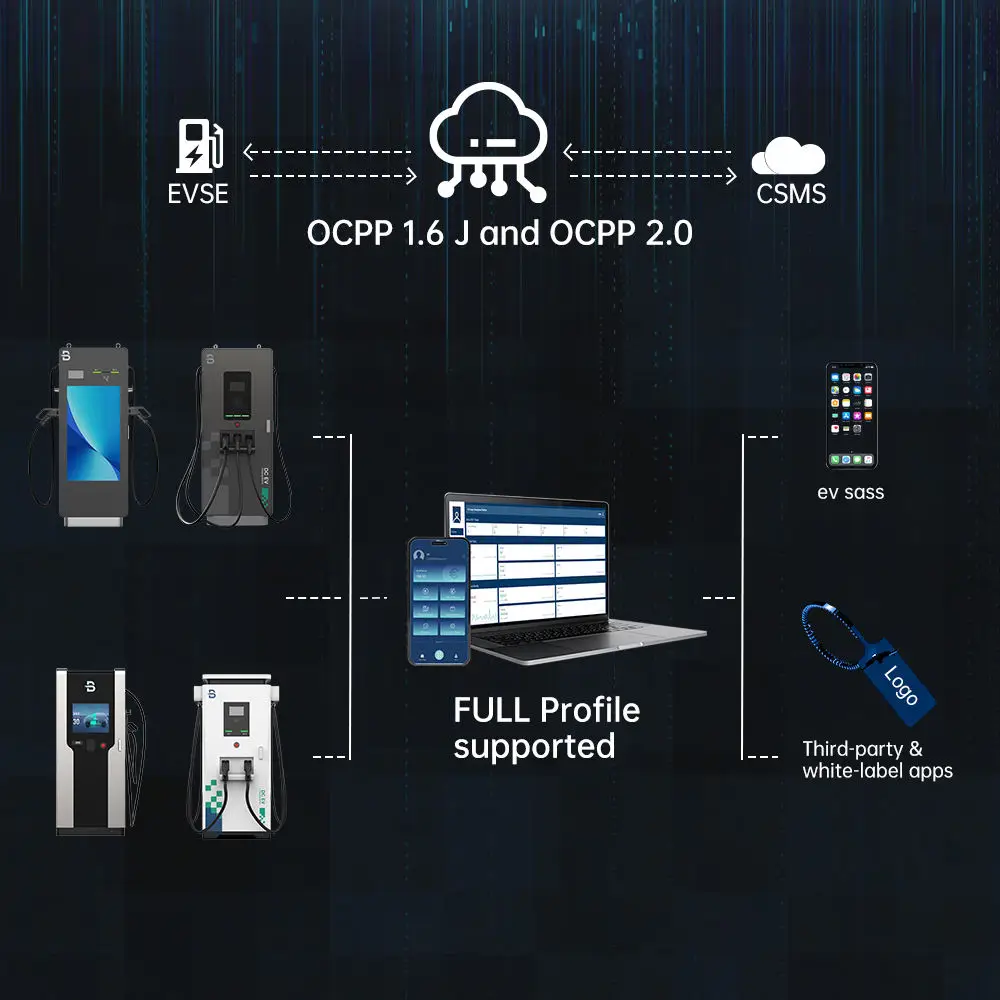

Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.
BENY New Energy incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.
Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.
We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.
Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.
BENY New Energy incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.
With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have beenattractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.
BENY EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.
Therefore, BENY EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc
