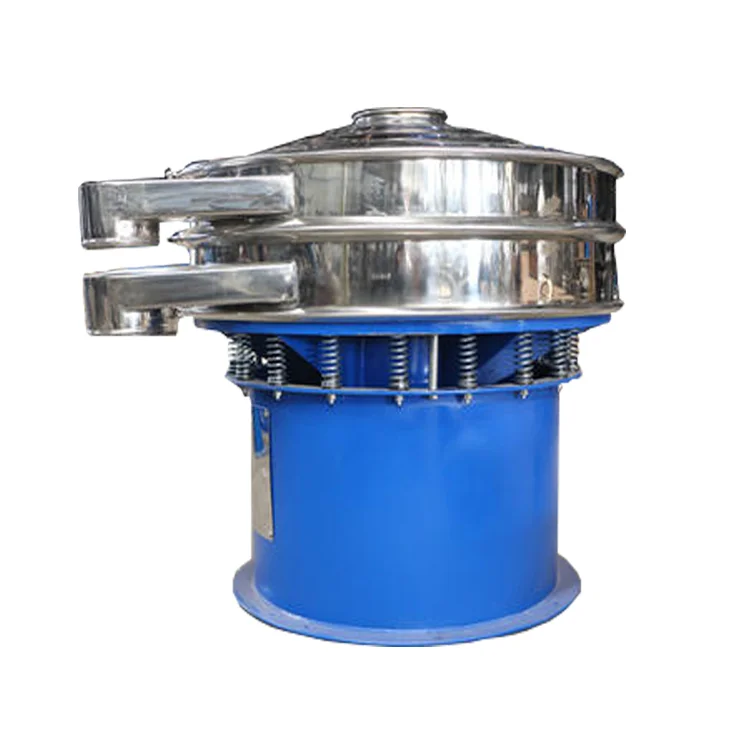

Xxnx Henan Xinxiang Stainless Steel Circular Rotating Vibrating Screen Sorting Machine
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1601160944673):
Product Overview
Description
Products Description
Common screening equipment - Rotary vibrating screen
The rotary vibrating screen, also known as the three-dimensional rotary vibrating screen, is a high-precision fine powder screening machine with low noise and high efficiency. It only takes 3-5 minutes to change the screen quickly. It has a fully enclosed structure and is suitable for granules, powder, Screening and filtering of mucus and other materials.
Yuanzhen Machinery is a manufacturer specializing in the production of three-dimensional rotary vibrating screens, and can customize the design and production of equipment according to the specific needs of customers.
Yuanzhen Machinery is a manufacturer specializing in the production of three-dimensional rotary vibrating screens, and can customize the design and production of equipment according to the specific needs of customers.

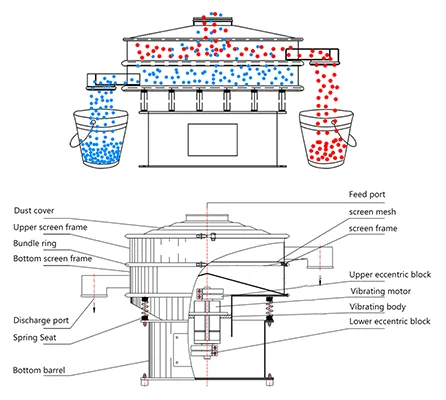

Structural principle
The three-dimensional rotary vibrating screen uses a vertical motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights to convert the rotating motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transfer this motion to the screen surface .
Adjusting the phase angle of the upper and lower ends can change the movement trajectory of the material on the screen surface.
Product Features
1. It is convenient and quick to change the screen mesh. It only takes 3 to 5 minutes. The box adopts a fully enclosed structure and a fast ring design. It is a high-precision subdivision and screening machine.
2. The motor power adopts the middle flange motor, which has large power, which makes the horizontal, vertical, and inclined three-dimensional power more prominent, and the noise is low while the power is large.
3. A wide range of screening materials, no matter the material is dry or wet, fine or coarse, heavy or light, as long as the material is in the range of 10-400 mesh, it can be screened, even if the material is liquid or slurry, as long as the material is 600 mesh It can be easily sieved within.
4. Equipped with a professional screen cleaning device, the screen will not be blocked in the process of screening materials, which greatly improves the screening output and screening efficiency of the screen.
5. In response to the special needs of different industries, the three-dimensional vibrating screen has a unique design, such as the edge-added type, gate type, powerful type, sealed type and other different types.
2. The motor power adopts the middle flange motor, which has large power, which makes the horizontal, vertical, and inclined three-dimensional power more prominent, and the noise is low while the power is large.
3. A wide range of screening materials, no matter the material is dry or wet, fine or coarse, heavy or light, as long as the material is in the range of 10-400 mesh, it can be screened, even if the material is liquid or slurry, as long as the material is 600 mesh It can be easily sieved within.
4. Equipped with a professional screen cleaning device, the screen will not be blocked in the process of screening materials, which greatly improves the screening output and screening efficiency of the screen.
5. In response to the special needs of different industries, the three-dimensional vibrating screen has a unique design, such as the edge-added type, gate type, powerful type, sealed type and other different types.
Common Model
Model | YZ-400 | YZ-600 | YZ-800 | YZ-1000 | YZ-1200 | YZ-1500 | ||||||
Nominal diameter(mm) | Φ350 | Φ550 | Φ750 | Φ950 | Φ1150 | Φ1430 | ||||||
Effective screening area(m2) | 0.0804 | 0.2124 | 0.4072 | 0.6221 | 0.9331 | 1.5175 | ||||||
Screen mesh number | 2-500 | |||||||||||
Power(Kw) | 0.18 | 0.37/0.55 | 0.55/0.75 | 0.75/1.5 | 1.1/1.75 | 1.75/2.2 | ||||||
Support customized production（Click here to get accurate quotation） | ||||||||||||
How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
---------------------------------------------------------------------------------------------------------
In order to make it more convenient for you, you can compare the following table to clear your machine configuration
（You can also click this link to contact us directly）
General requirements | Diameter Size（mm） | 400/800/1000/1200/1500/2000 | ||||
Number of Layers（L） | 1-5（Suggest ≤ 3） | |||||
Main Material | Stainless Steel（304/316L）·Carbon Steel（Q235）·PP | |||||
Screen Mesh Number | 2-500 | |||||
Sealing Strip | Silica gel / Rubber | |||||
Special requirements | Overall height of the fuselage | Please communicate specifically | ||||
Feed inlet | Angle / Size and so on | |||||
Outlet | Angle / Size /Add valve | |||||
Observation port | Silicone cover / Rubber cover / Glass cover | |||||
spring | You can choose whether to add a silicone protective cover | |||||
Internal spray（mm） | PTFE / ePTFE / WC / Al2O3 | |||||
Equipment surface treatment | Polishing / Sandblasting | |||||
Body metal material requirements | For example: require no Cu and Zn (except electrical parts) | |||||
Vibration motor | Ordinary motor / Explosion-proof motor | |||||
other | ||||||
Show Details
Inlet
The inlet can be made according to requirements, such as size, adding flanges, etc.
view port
The observation port can be made of silica gel, rubber and observation mirror according to your needs.
Clamp ring
This structure can help you save time for fastening and disassembly.
Outlet
The discharge port can add a valve to control the flow rate of the material.
Welding technology
Sophisticated welding process is the guarantee of quality.
Spray
PTFE, ePTFE, WC and Al2O3 can be sprayed according to your needs.

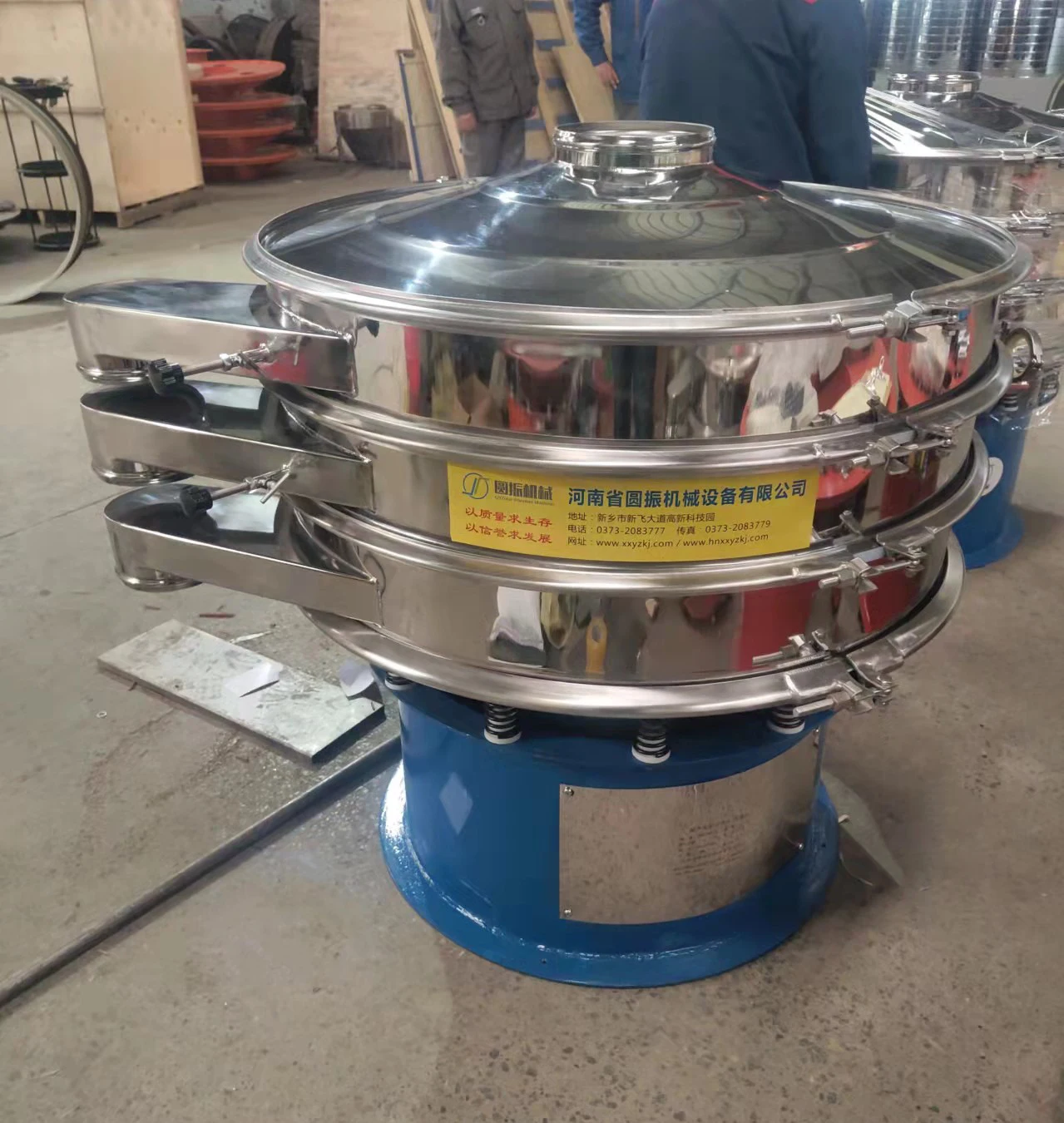

Product Show
We provide you with quality products and services.
---------------------------------------------------------------------------------------------------------
Please click on the pictures below to learn about related products
Application
We used ordinary vibrating screen and ultrasonic vibrating screen for comparison, the following is the reference result.
Application Scenario Description
Rotary vibrating screen can be used for impurity removal, classification and filtration of powder, granule and slurry materials in various industries.
Common screening materials are:
Common screening materials are:
Food industry: starch, milk powder, monosodium glutamate, soy milk, fruit juice, soy sauce, vinegar, etc.
Chemical industry: rubber powder, resin powder, paint, washing powder, paint, soda ash, lemon powder, rubber, plastics, etc.
Pharmaceutical industry: Chinese medicine powder, pharmacy, Chinese and Western medicine granules, etc.
Metallurgical industry: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
Abrasives, ceramics industry: alumina, quartz sand, mud, spray soil particles.
Customer Case
Why Choose Us
What can I do for you？
1.Rich production experience
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route

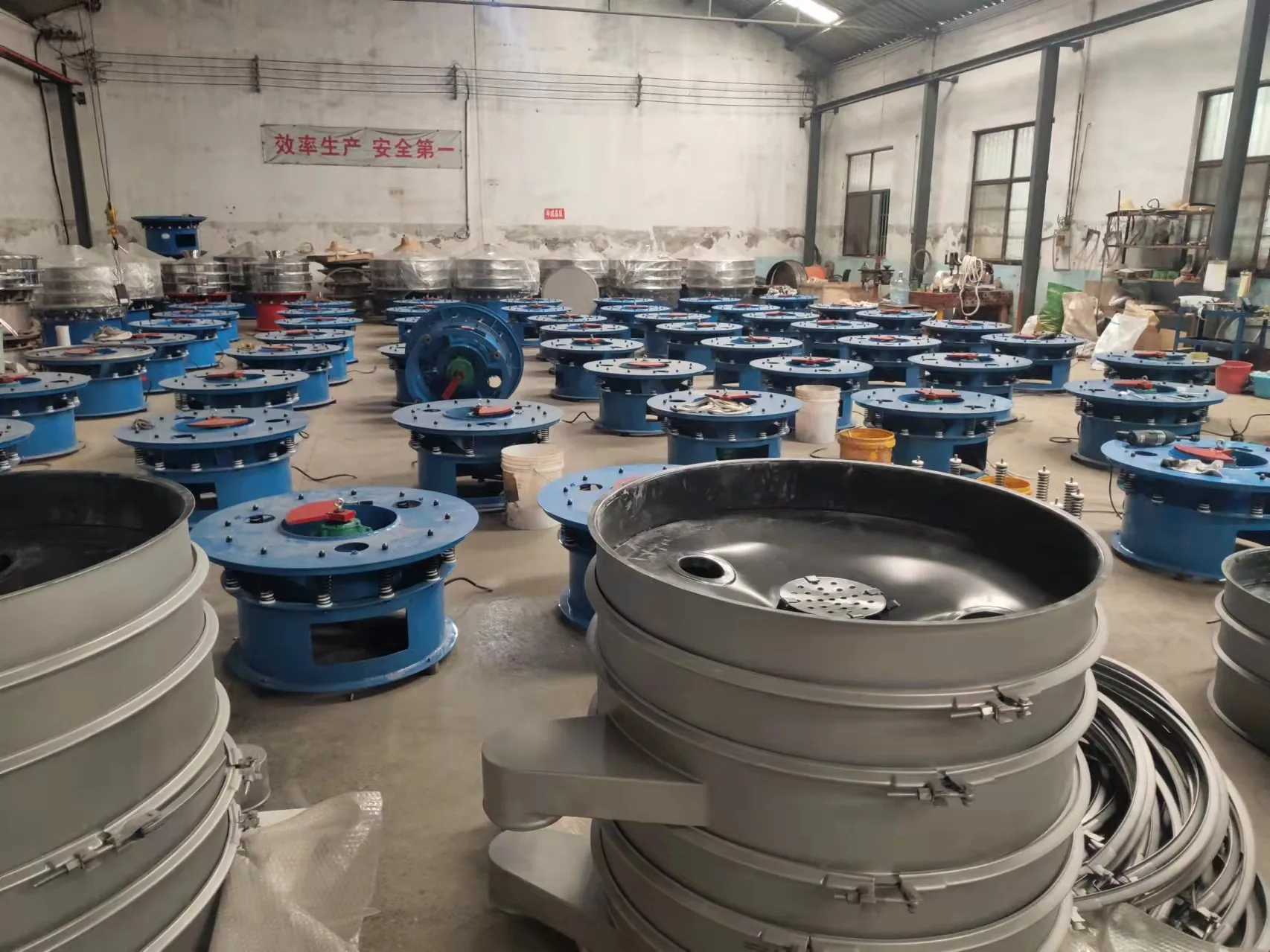

Factory Display
Creating a trustworthy factory
About Yuanzhen
Henan Yuanzhen Machinery Equipment Co., Ltd. is an enterprise integrating production, technology research and development, and trade. Our main products are screening equipment and conveying equipment, and we can also provide design, production and installation of other related equipment.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Yuanzhen’s sales network has penetrated the whole China, and many products have gone to the world through other foreign trade companies. Now it is necessary to build a more complete sales network so that users in more countries can use our products and feel our dedicated service.
Yuanzhen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
Our Team & Service
Basis service
1.Your sample material can be free analysis in our laboratory.
2.24 hours a week online & quick response within 12 hours.
3.Production lead time and delivery time guaranteed.
Customized services
1.Professional R & D team to develop the new products as you requirements.
2.Help customers to develop the local market
3.All packing and shipping can customized as per your requirements.
After-sale services
After customers received the goods,if have any questions or quality problems, Our customer service Dept. will
be always available.
be always available.

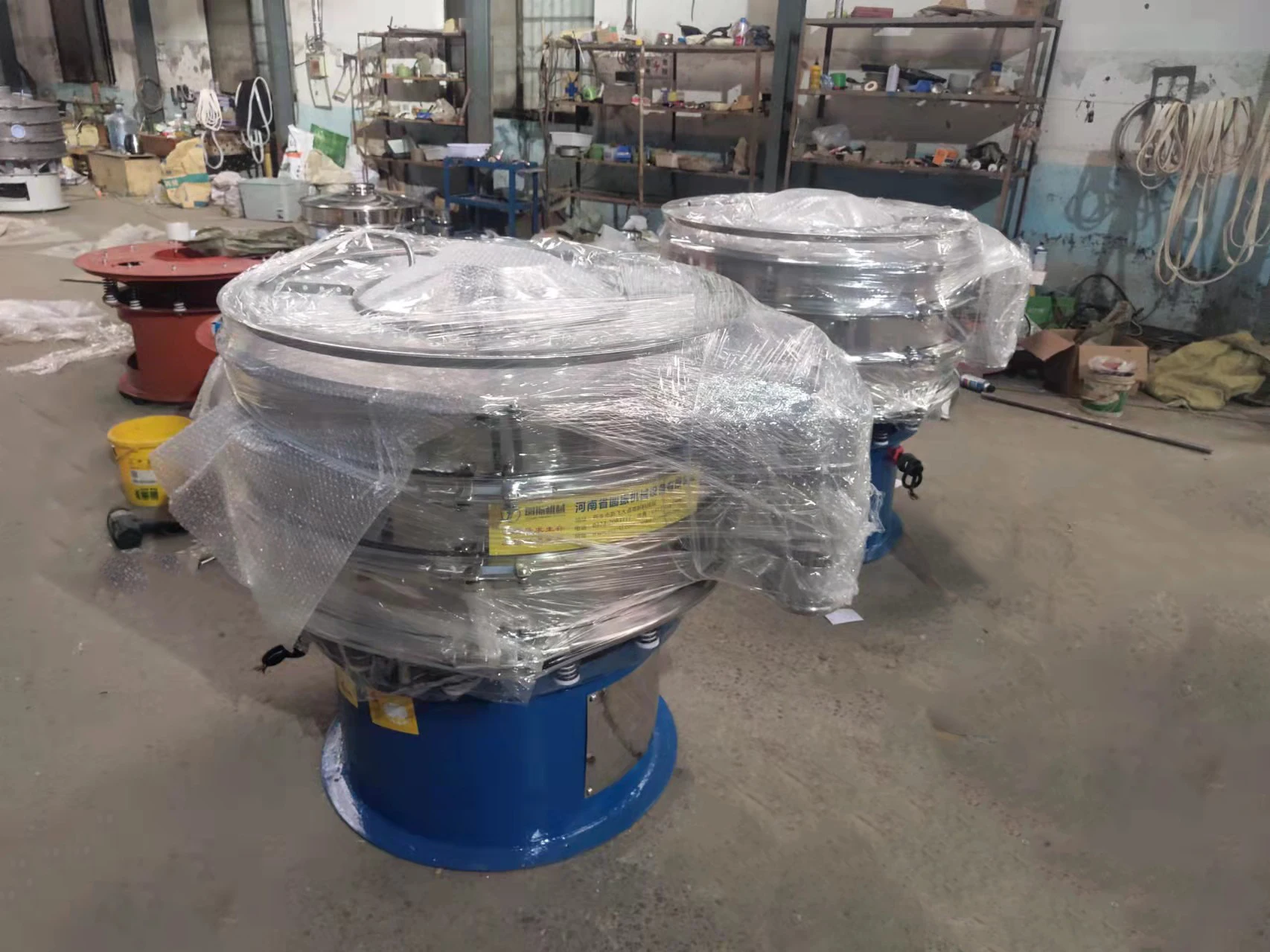

Packaging & Shipping
---------------------------------------------------------------------------------------------------------
All packing and shipping can customized as per your requirements.
FAQ
Q:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
---------------------------------------------------------------------------------------------------------
