Customizable 5T Offset Single Girder Overhead Crane With Electric Mobile Hoist
- Category: >>>
- Supplier: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.
Share on (1601160970671):
Product Overview
Description
Products Description

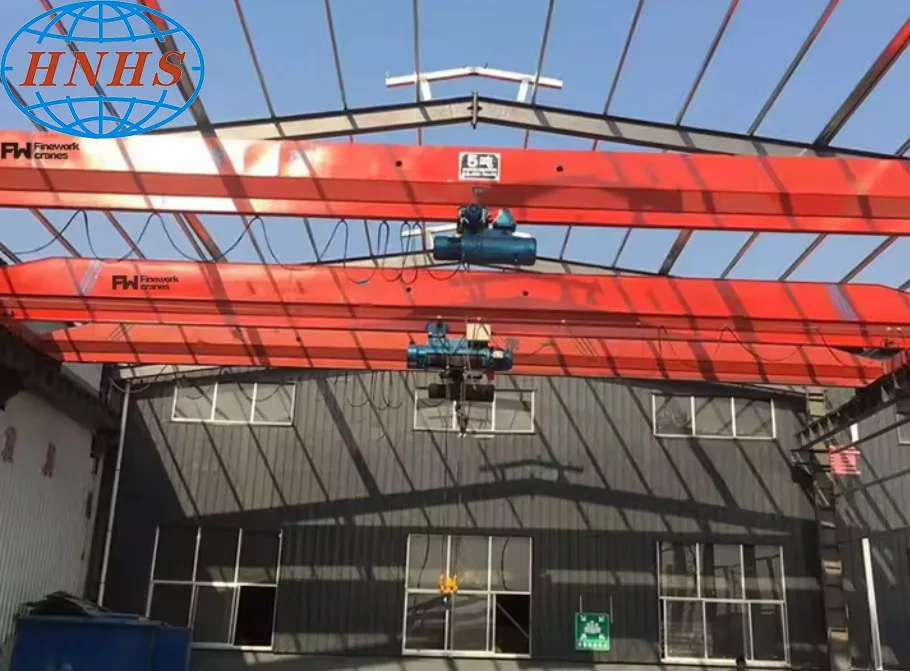

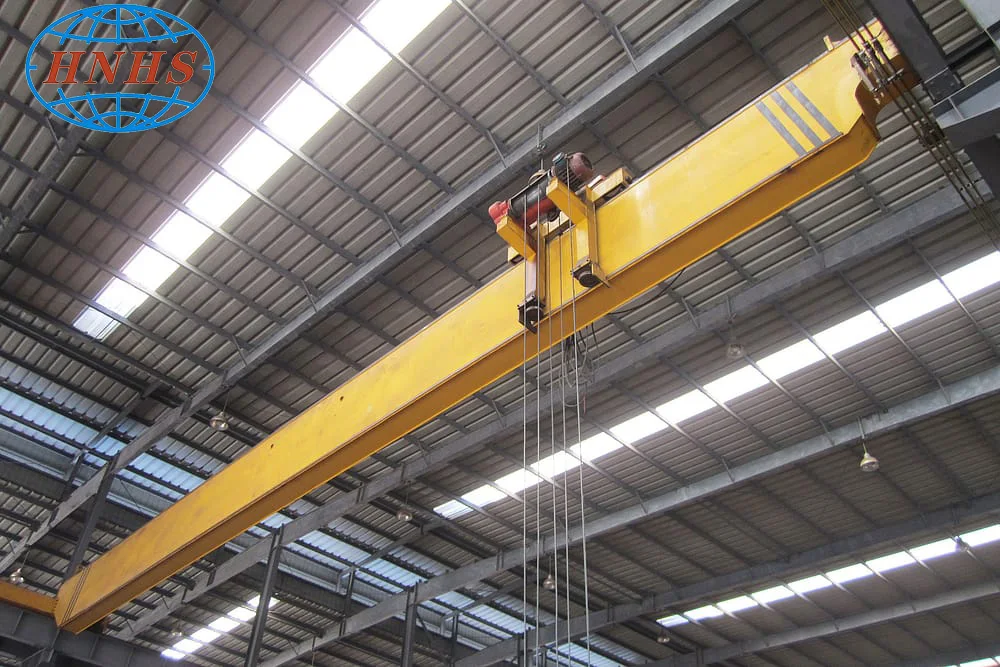

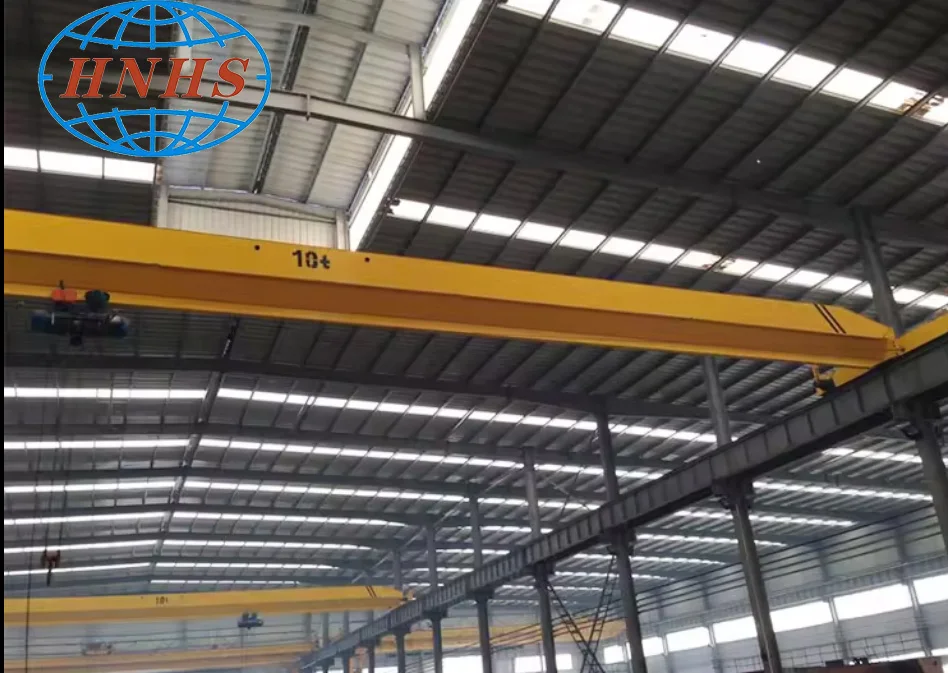

Offset Trolley Single Girder Overhead Crane
Offset trolley single girder overhead cranes are girder cranes with angular trolley structure. It has better height space utilization compared with single girder electric overhead travelling cranes. The structure of the product is often used in the case that the position of the overhead crane in the plant is low, but the headroom height between the top surface of the track and the lowest point of the plant is large.

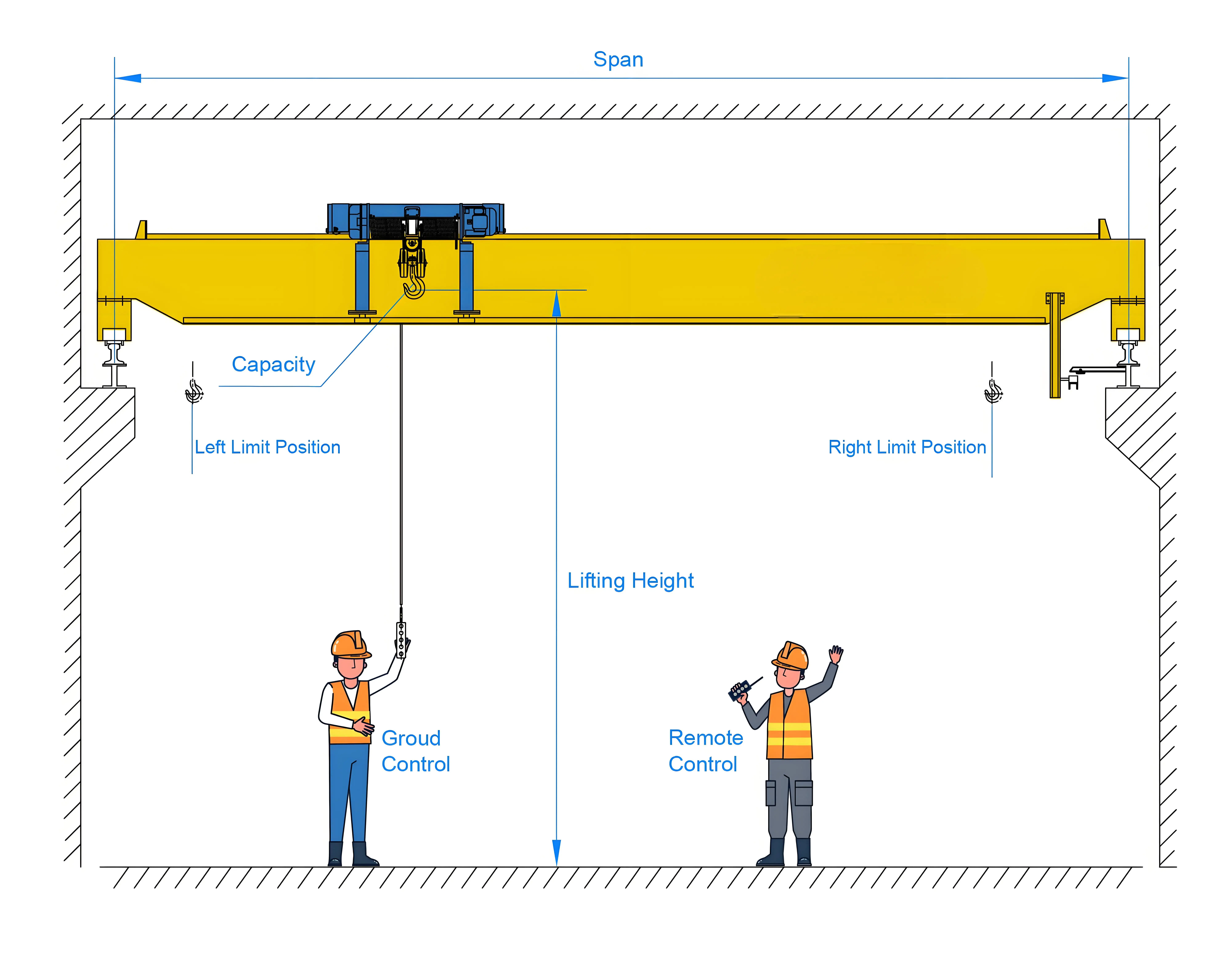

* Standard Capacity: 1t/2t/3t/5t/10t/16t/20t or customized on demand
* Span length: 7.5m-28.5m
* Lifting height: 6m/9m/12m/18m/24m/30m
* Work duty: A3/A4
* Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
* Crane control mode: Floor control / Remote control
* Traveling speed: 20-30m/min
* Span length: 7.5m-28.5m
* Lifting height: 6m/9m/12m/18m/24m/30m
* Work duty: A3/A4
* Rated voltage: 220V/380V/400V/415V/660V, 50-60Hz, 3ph AC
* Crane control mode: Floor control / Remote control
* Traveling speed: 20-30m/min
Offset trolley single girder overhead cranes mainly consists of main girder, end girder, angle trolley, trolley running mechanism, electrical equipment and other parts. All other parameters are the same as single girder electric overhead travelling cranes type.
Details Images

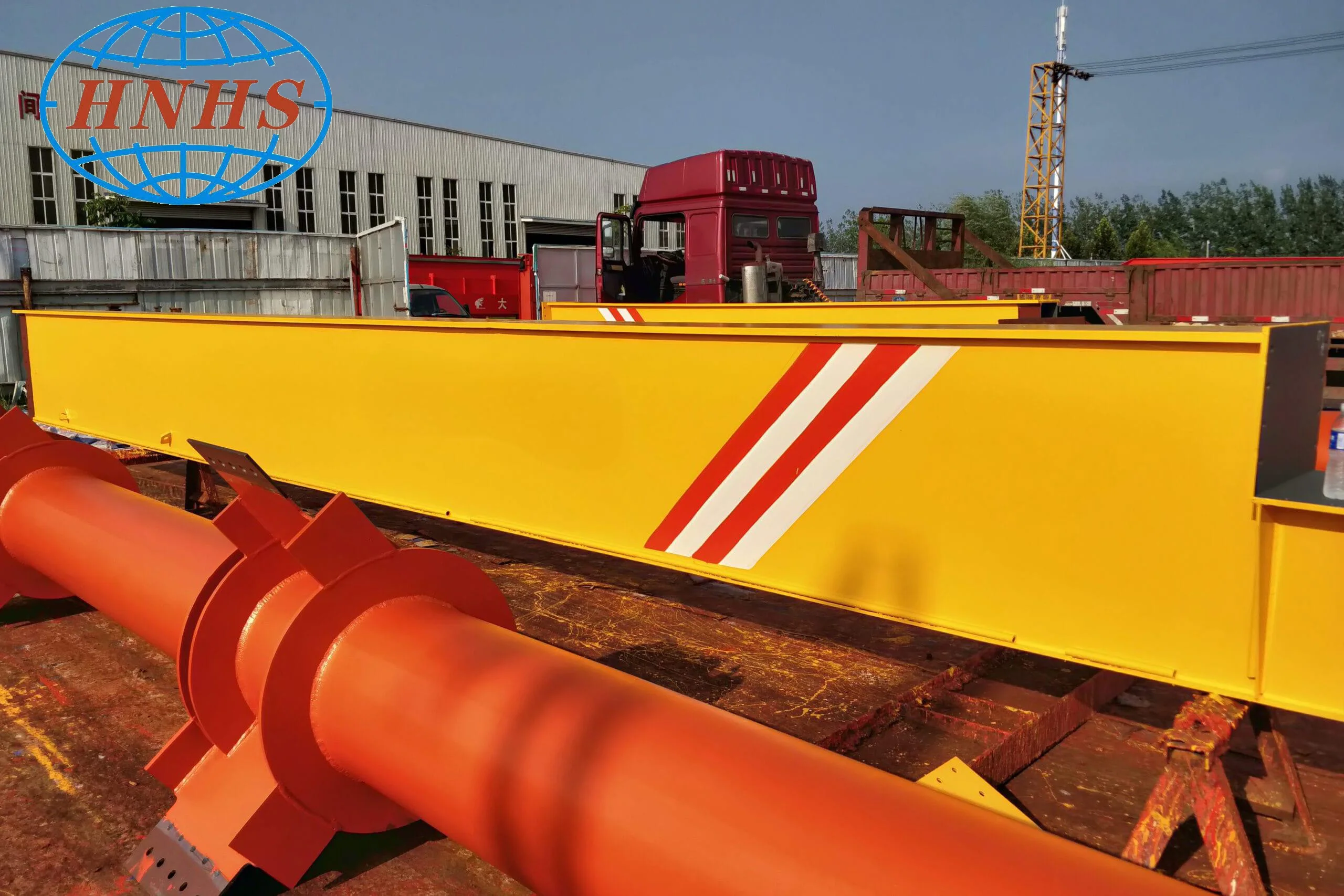

Main Girder
Main girder is the main bearing part of the crane, its structure is made of U-shaped groove, inclined cover plate, rib plate and I beam steel plate, its upper arc is ((1/1000～1.4/1000)S, when the rated lifting weight and the hoist's self-weight are located in the middle of the span, the degree of camber caused is not lower than the horizontal line, and there is no permanent deformation
during normal operation.
during normal operation.

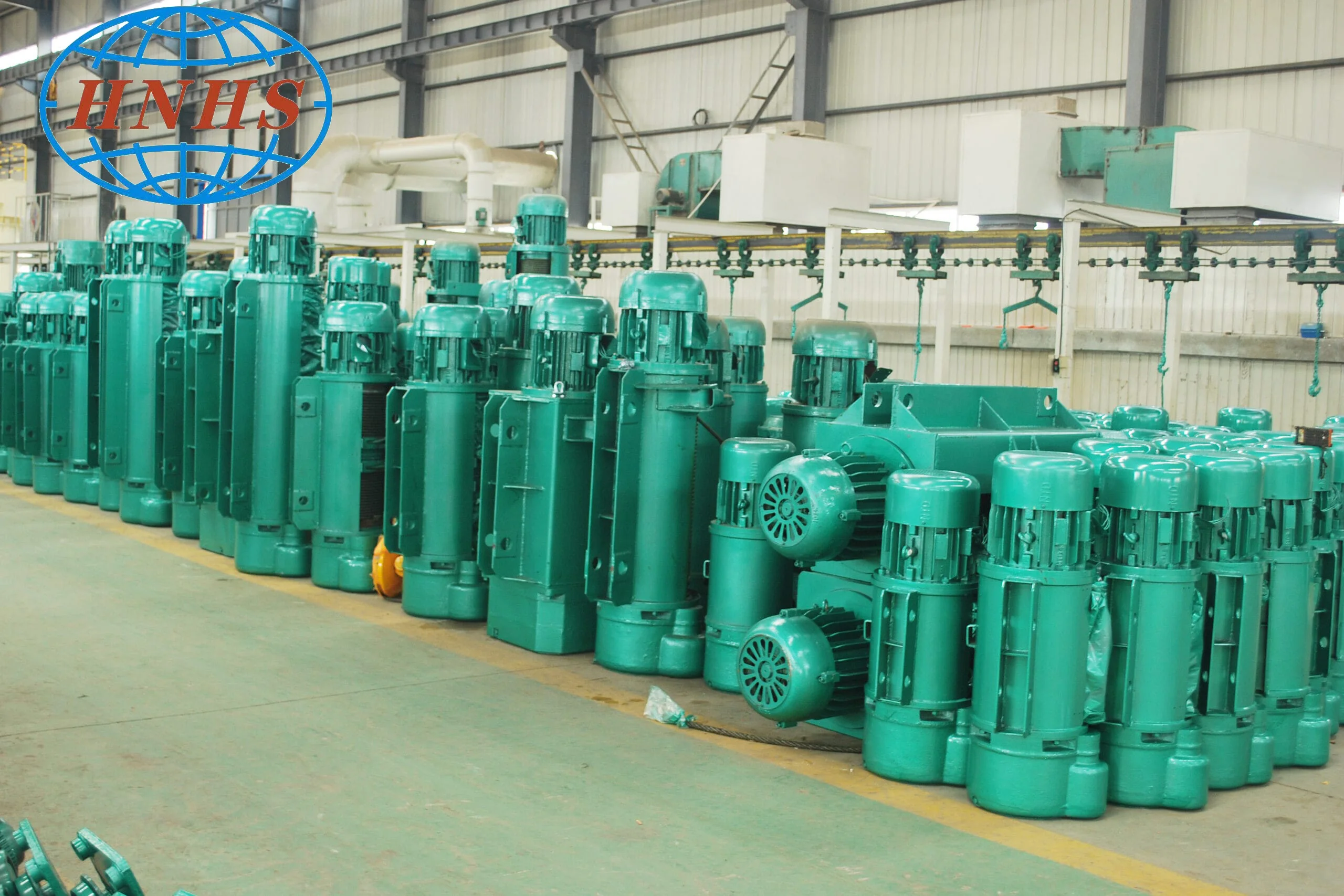

Electric Hoist
Electric hoist is to be used on single girder overhead crane, each electric hoist will perform dynamic and static load test, rise and drop pressure tests. The baking paint process is adopted to enhance the adhesion of the paint film and improve the appearance quality. Assembly line ensures product quality.

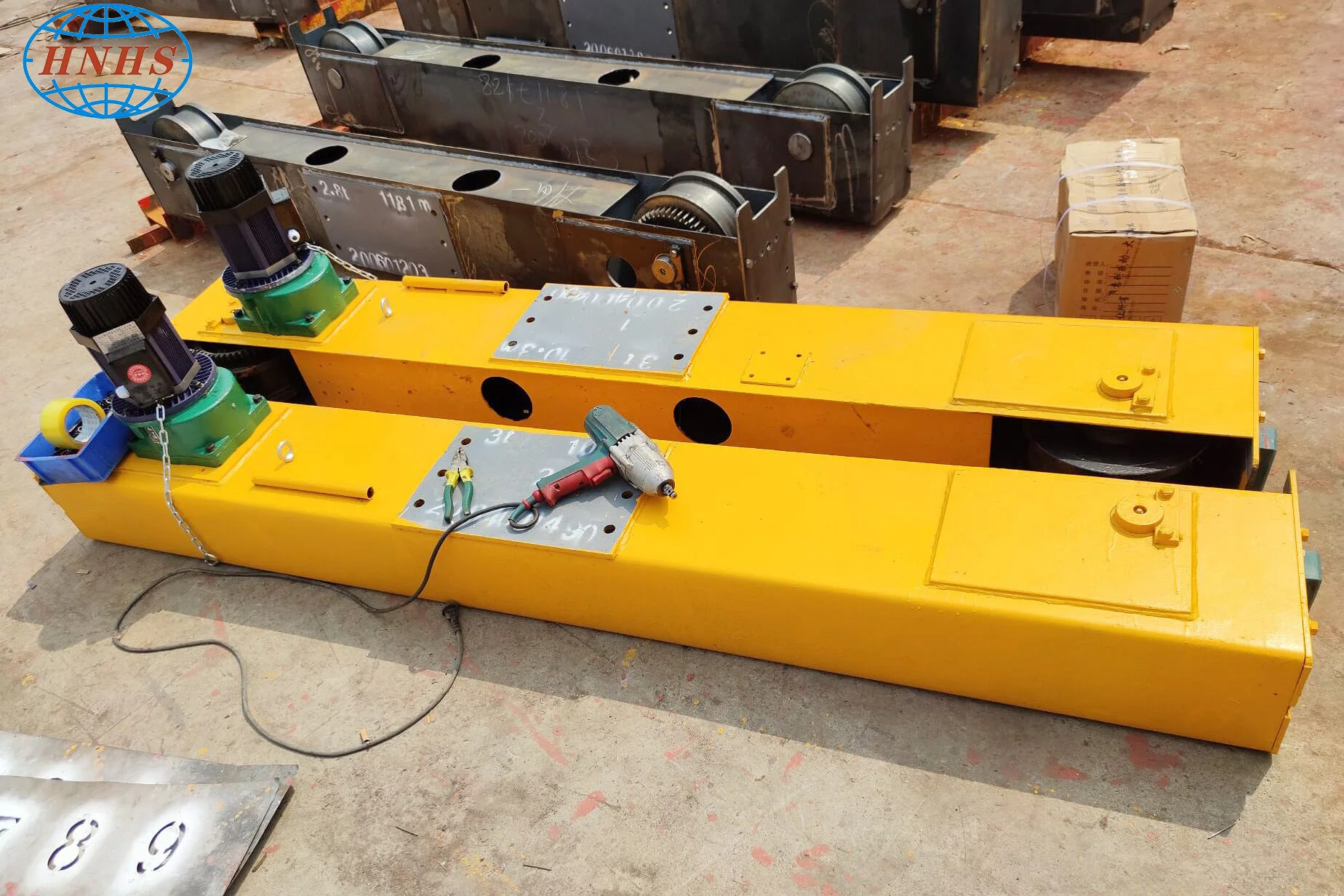

End Girder
End girder is located at both ends of the main beam, is bolted to the main beam by flange plats. It's box structure, composed of U-shaped groove, lower cover plate, reinforcement plate, and rib plates formed by steel plate rolling or welded steel plates. The end girder has the characteristics of light structure, good rigidity, beautiful appearance and good welding performance.

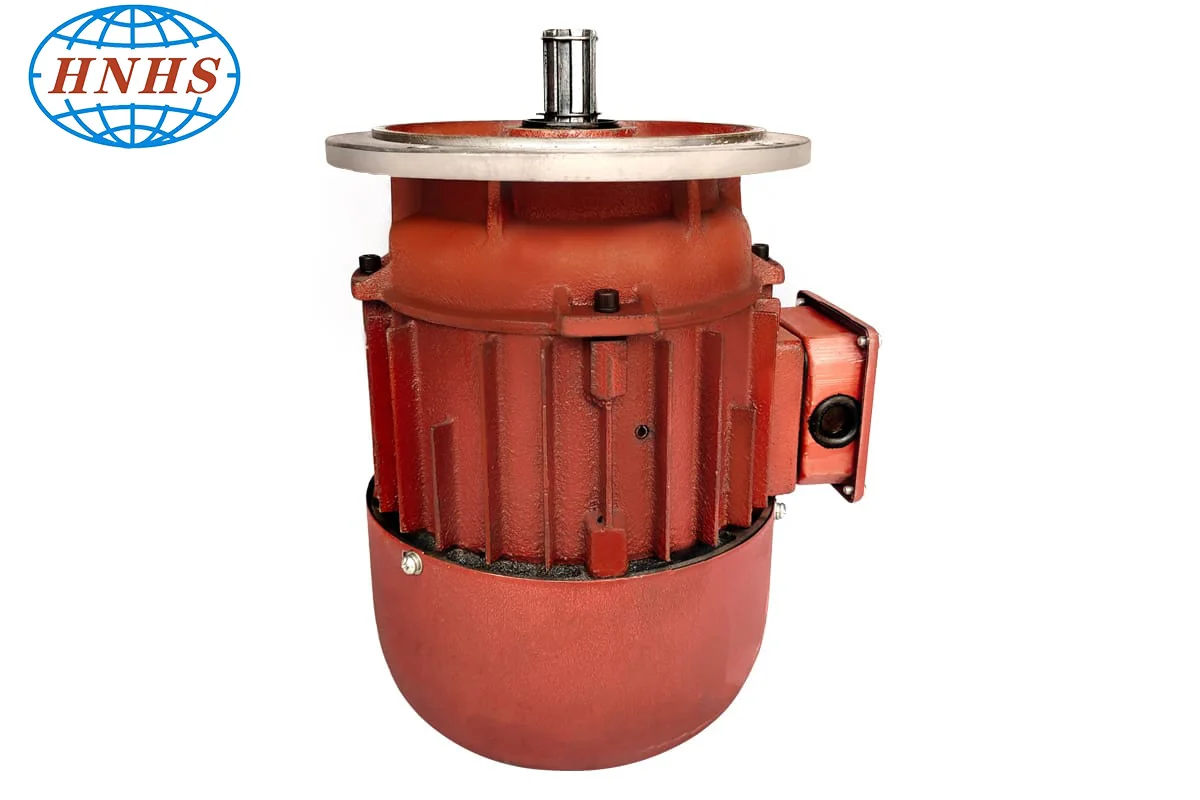

Crane Motor
The crane motor adopts ZDY(D) series cone rotor brake motor or soft starter motor. The standard motor insulation class is B and the protection class is IP44. The motor has the characteristics of good heat dissipation, long service life, safety and reliability. Special working conditions can be customized.
Parameter List
Products | Span/m | Lifting Height/m | Power Supply Voltage |
1 ton single girder overhead crane | 7.5-28.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
2 ton single girder overhead crane | 7.5-28.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
3 ton single girder overhead crane | 7.5-31.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
5 ton single girder overhead crane | 7.5-31.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
10 ton single girder overhead crane | 7.5-31.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
16 ton single girder overhead crane | 7.5-31.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |
20 ton single girder overhead crane | 7.5-31.5 | 6-30 | 220V-660V, 50-60Hz, 3ph AC |

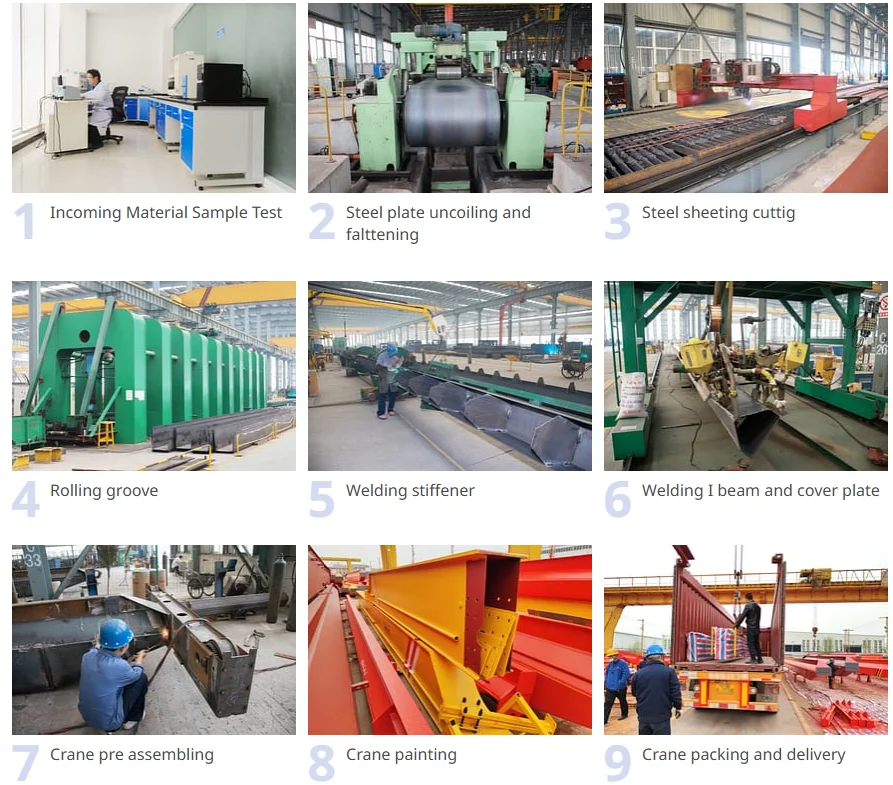

Making Process

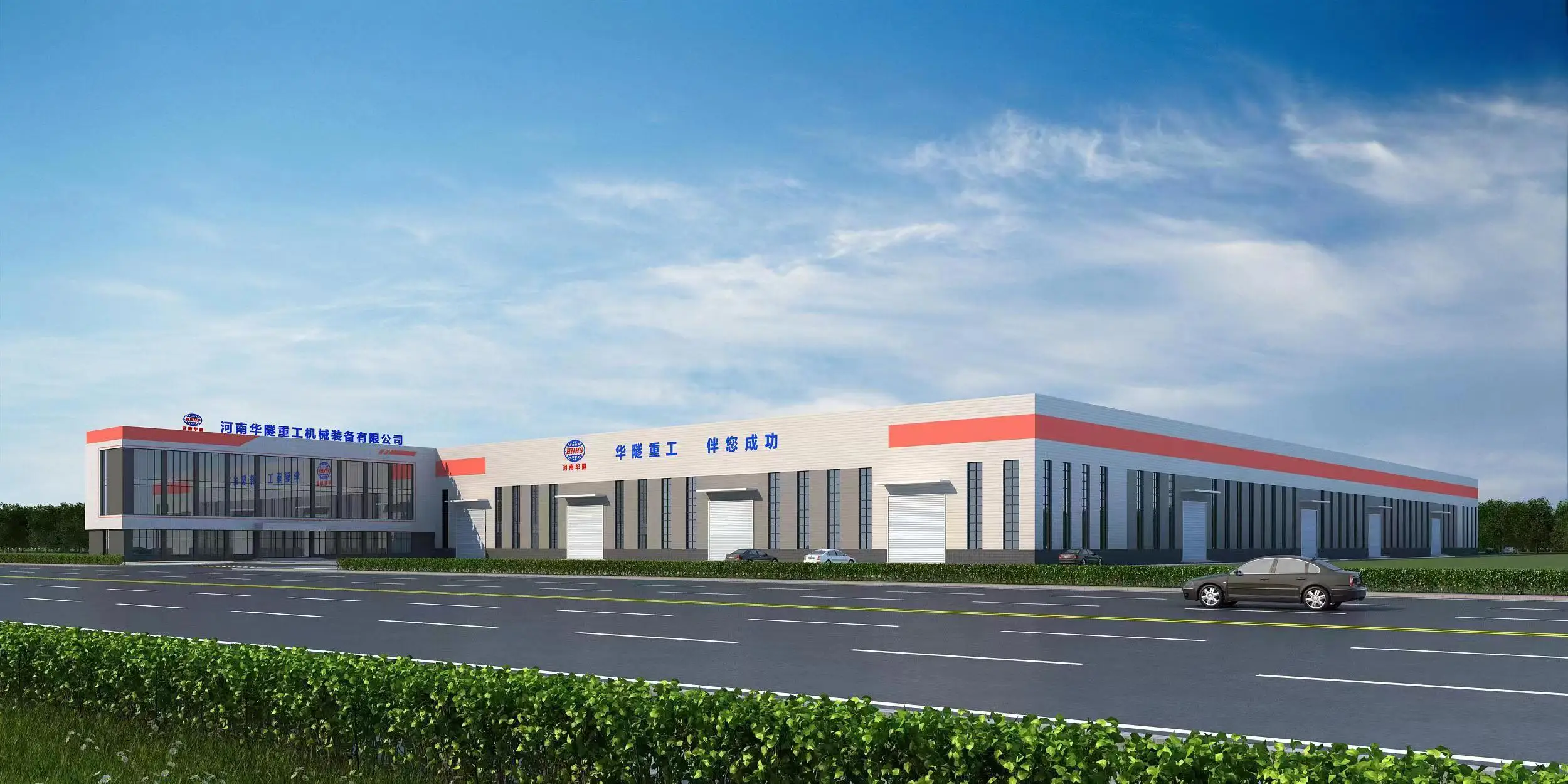

Company information
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don't worry about your needs, just tell us your demands, and we can design and manufacture your own crane based on your needs.
A:Which industries do you service?
A:Which industries do you service?
B: We service many industries including machinery, metallurgy, electric power, railway, water conservancy, port, aviation,
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble and stone and other fields.
A:Which areas do you service?
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete.steel warehouse, marble and stone and other fields.
A:Which areas do you service?
B: We have very big market in China local market, at the same time, we have exported our cranes to all over the world, including European, Africa, Middle-East, Asia, North American, South America and so on. Totally more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A:Which cranes are most suitable for outdoors?
B: The gantry crane range is most suitable for outdoor type work. There are different types, including the single girder gantry crane and double girder gantry crane.
A:What international certifications has your company passed?
B: Our crane has passed CE, lSO, GOST, SGS, TUV, BV, and so on.
