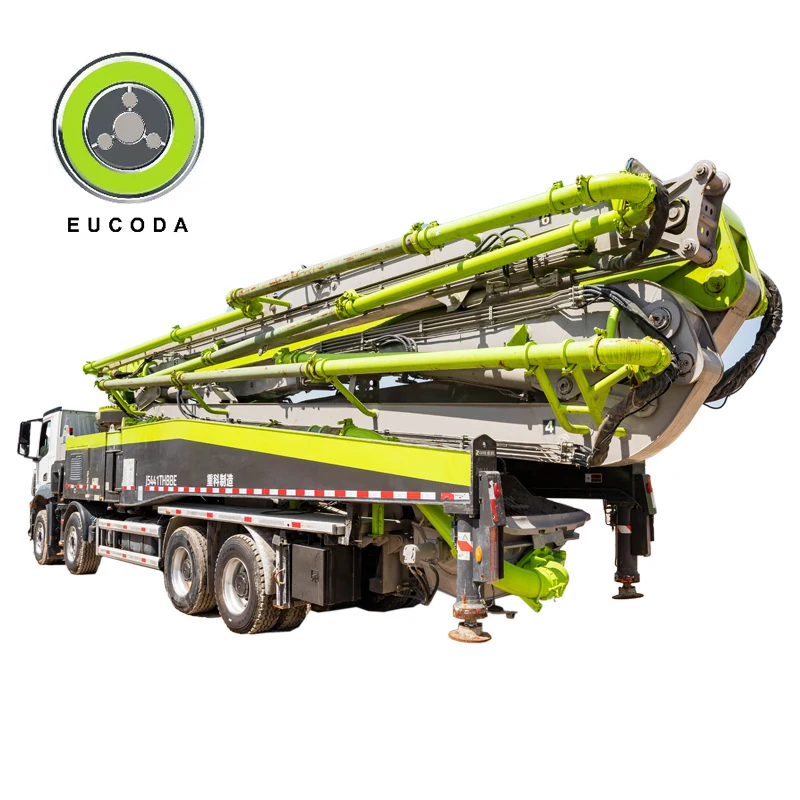

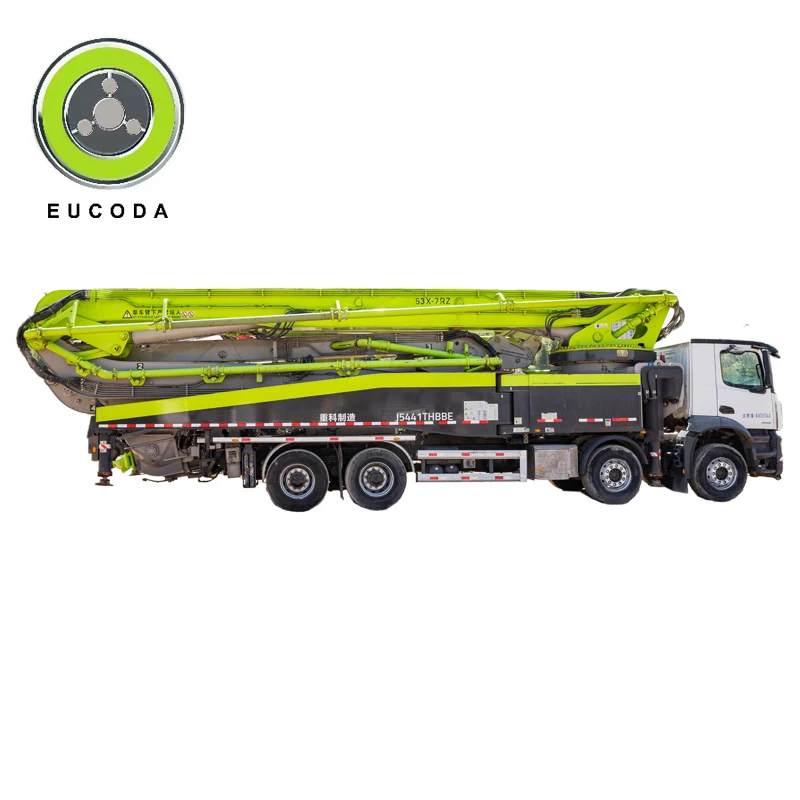

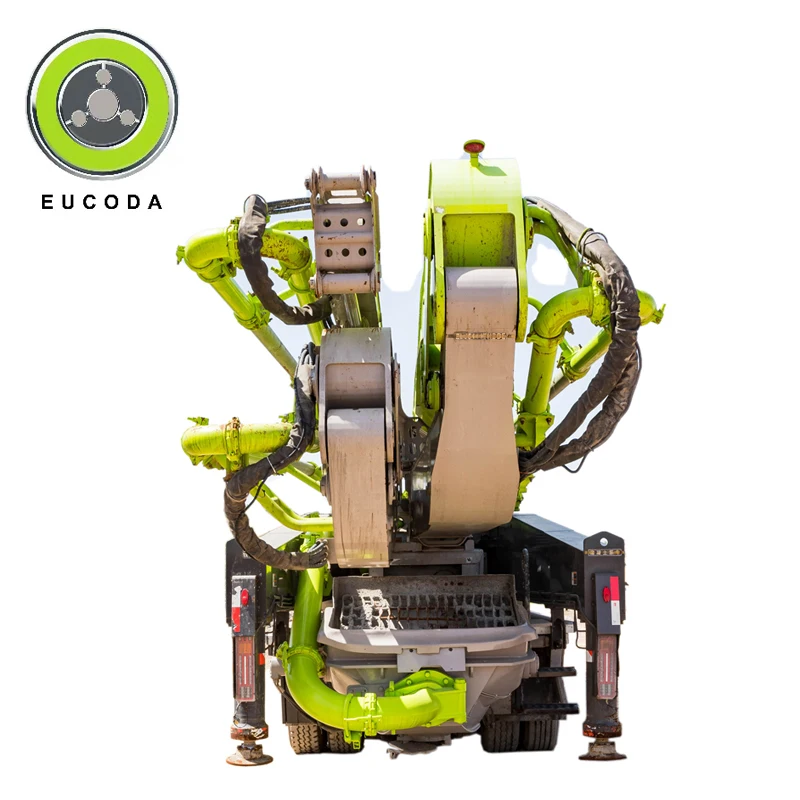

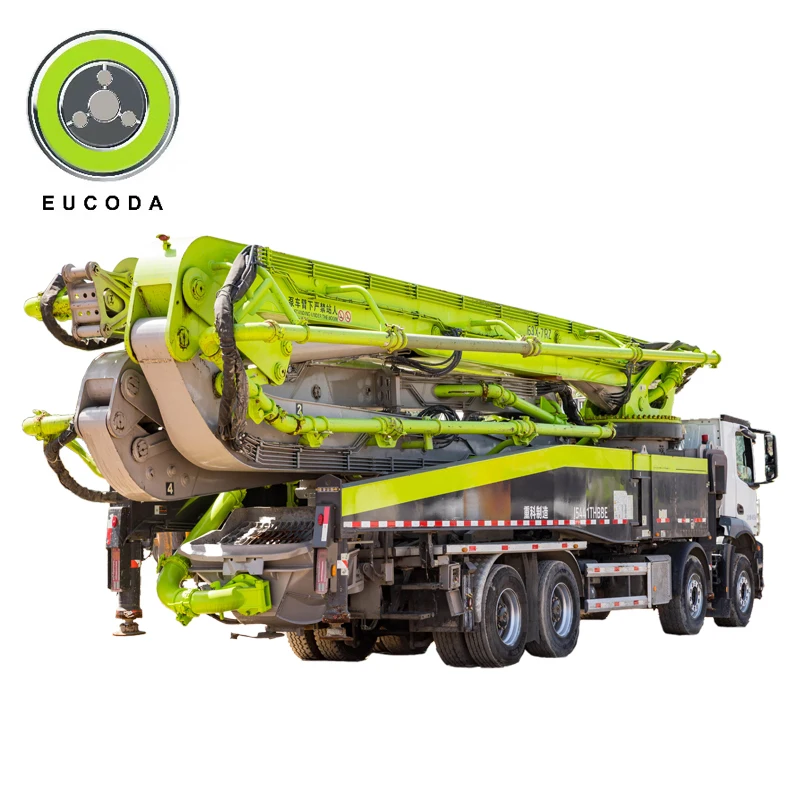

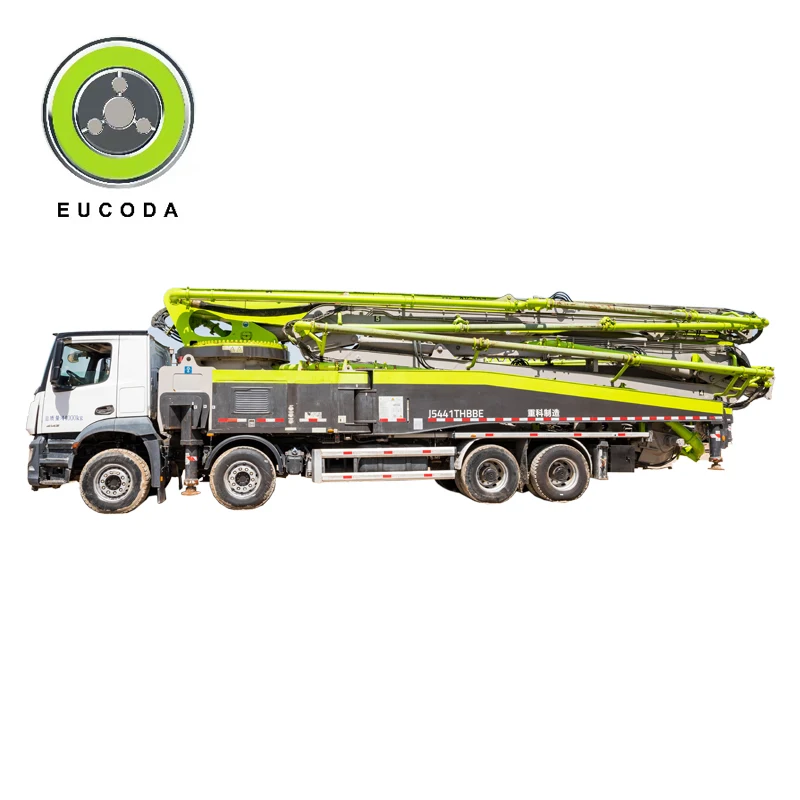

Good Price Of New Product 63M Hydraulic Pump Self Loading Concrete Mixer Truck With Pump

Model

J5441THBBE 63X-7RZ

Pumping system

Max. Theor. output

180 m3/h

Max. Theor. concrete output Pressure

11.3 MPa

Rated working pressure

42 MPa

Pumping frequency

26min-1

Hydraulic system type

Closed loop

Distribution valve

S valve

Concrete cylinder dia*stroke

260*2100 mm

Hydraulic oil cooling

Air cooling

Recommended concrete slump

12~23 cm

Max. aggregate dimension

40 mm

Placing boom

Structure type

63X-7RZ

Placing depth

62.1 m

Horizontal distance

56.9 m

Placing depth

46.4 m

Slewing angle

±270°

Boom number

7

Pipe diameter

125mm

End hose length

3000mm

Outriggers span (front×rear×side)

12250x12820x11660mm

Chassis and the whole machine

Chassis model

BENZ Actros 4141 8*4

Wheelbase

2050+4300+1350mm

Engine type

OM470LA.5-54

Engine power

315/1600 kW/(r/min)

Maximum displacement

10677ml

Total weight

44000 kg

Overall dimensions

14045×2530×4000 mm

Others

Lubrication mode

Automatic lubrication

Control mode

Manual＋remote control

Pipe cleaning mode

Water cleaning/dry cleaning

Feature

Extractive design: ZL introduces into PRO/E、ANSYS、ADMAS、IDEAS software, and so on. Through analysis for the boom、base structure
and outriggers, stress is very reasonable. According to the calculation, engineers rectify the design, so this will make the boom
system more reasonable and unparalleled.

More steady: equipped with slewing reducer、slewing bearing which with advanced technique in world and electro-hydraulic
proportional direction valve, etc. All of these ensure the boom’s motion of slewing and extension more steady.

High reliability: electro-hydraulic proportional valves and compensation valve with secondary pressure relief valves are all
original ones imported from Germany HAWE. This prevents boom going at excessive speed while it being folded back. And this also
prevents boom being damaged in case of the increase of pressure in boom cylinders caused by outside force. So, the reliability of
the whole machine is improved effectively.

Low oil cost: adopting the control technique that the whole machine power can be matched automatically, this make the oil consume
lower and lower, consume is reduced about 30% and it is lower 10% than trade.

Straight pipe and elbow adopts special double layer pipes which makes the pipe’s life is longer than 60000m3.

Glasses plate and cutting ring adopt alloy that is wearable and especial technology，so they have the longer life

Product Name

Concrete Pump Truck

MOQ

1unit

Delivery time

15-30 days

Brand Name

EUCODA

Car Model

ZL 63M
