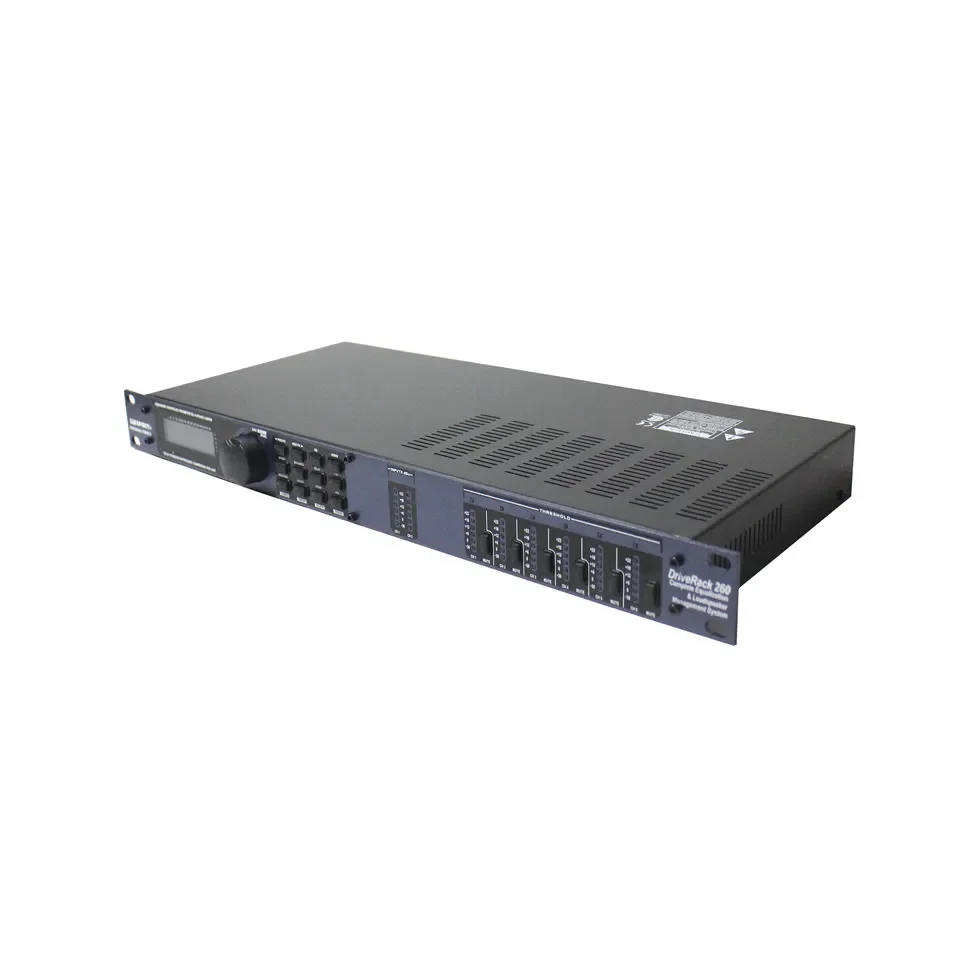

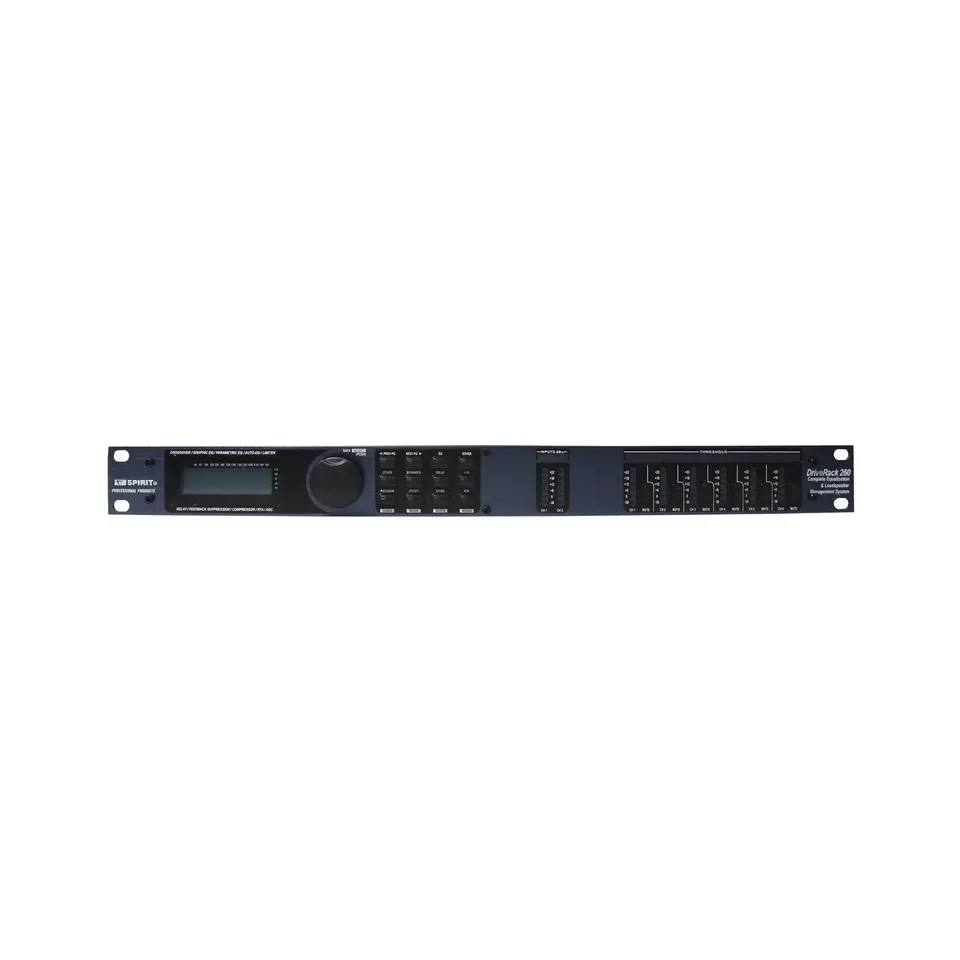

Professional Drive Rack 260 PA System Audio Processor with Auto EQ and Auto Gain Control
- Category: >>>
- Supplier: Guangzhou Aoleijie Audio Co. Ltd.Guangzhou Ltd.
Share on (1601161126482):
Product Overview
Description
Product Description
Description:
The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. The DriveRack products provide the tools that ensure that the system sounds its very best. The 260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications.
Features:
*2.7 Seconds of Alignment and Zone Delay
*Feedback Elimination
*2.7 Seconds of Alignment and Zone Delay
*RS-232 PC GUI control
*Classic dbx Compression and Limiting
*Graphic and Parametric EQ
*Auto-EQ Function
*Full Bandpass, Crossover, and Routing Configurations
*Auto Gain Control
*Pink Noise Generator and fulltime RTA
*Classic dbx Compression and Limiting
*Graphic and Parametric EQ
*Auto-EQ Function
*Full Bandpass, Crossover, and Routing Configurations
*Auto Gain Control
*Pink Noise Generator and fulltime RTA
SPECIFICATIONS | DriveRack 260 |
Input | (2) line inputs. (1) RTA Mic input |
Input Connectors | (2) Female XLR line inputs. XLR RTA Mic input |
Input Type | Electronically balanced/RF filtered |
Input Impedance | >40k ohm |
Max Input | +30dBu with input jumpers in +30 position |
CMRR | > 45dB |
Mic Preamp Phantom Power | +15VDC (RTA) |
Mic Preamp Equivalent Input Noise (EIN) | < -110dB, 22Hz-22kHz, 150 ohm (RTA) |
Output | 6 total |
Output Connectors | Male XLR |
Output Type | Electronically balanced, RF filtered |
Output Impedance | 120ohm |
Max Output | +22dBu |
A/D Converter | dbx Type IV™ Conversion System |
A/D Dynamic Range | (line) >113 dB, A-weighted, >110 dB unweighted |
Type IV Dynamic Range | >119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW |
Sample Rate | 48kHz |
D/A Dynamic Range | 112 dB A-weighted, 109dB unweighted |
Dynamic Range | >110 dB A-weighted, >107dB unweighted |
THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB gain |
Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
Interchannel Crosstalk | >110dB, 120dB typical, (input-to-output: >100dB) |
