AC Coupled Megarevo Inverter Three Phase Hybrid Solar Inverter 6Kva 8KW 10Kva 12kw 15kw Inverter For Energy Storage System
- Category: >>>
- Supplier: Anhui Solarasia Energy Technology Co. Ltd.Anhui Ltd.
Share on (1601161142337):
Product Overview
Description
Product Description
Technical Specifications
MODEL | R8KH3 | R10KH3 | R12KH3 | |||
Input (PV) | ||||||
Max. power(kW) | 12 | 15 | 18 | |||
Max. DC voltage (V) | 1000 | |||||
MPPT voltage range(V) | 180~850 | |||||
AC output | ||||||
Rated output power(kVA) | 8 | 10 | 12 | |||
Max. output current(A) | 12.7 | 15.9 | 19.1 | |||
Grid voltage/range(V) | 400/360~440 | |||||
Frequency (Hz) | 50/60 | |||||
AC output topology | 3W+N+PE | |||||
Battery | ||||||
Battery voltage range(V) | 125~600 | |||||
Max. charging voltage(V) | 600 | |||||
Full battery voltage(V) | 250 | 300 | 350 | |||
Rated charge/discharge current(A) | 40 | 40 | 40 | |||
Battery type | Lithium /Lead-acid | |||||
Communication interface | CAN/RS485 | |||||
General Data | ||||||
Max. efficiency | 99.5% | |||||
Ingress protection | IP65/NEMA 3R | |||||
Operation temperature | -25℃ ~ 60℃ | |||||
Dimensions W *D *H (mm) | 530*200*600 | |||||
Weight(kg) | 29 | |||||
Display | LCD, touch screen | |||||
Interface:RS485/Wifi /4G/CAN/DRM | Yes/ Opt/ Opt/ Yes/ Yes | |||||
Safety standard | IEC/EN62109-1/-2, IEC/EN62477-1 | |||||

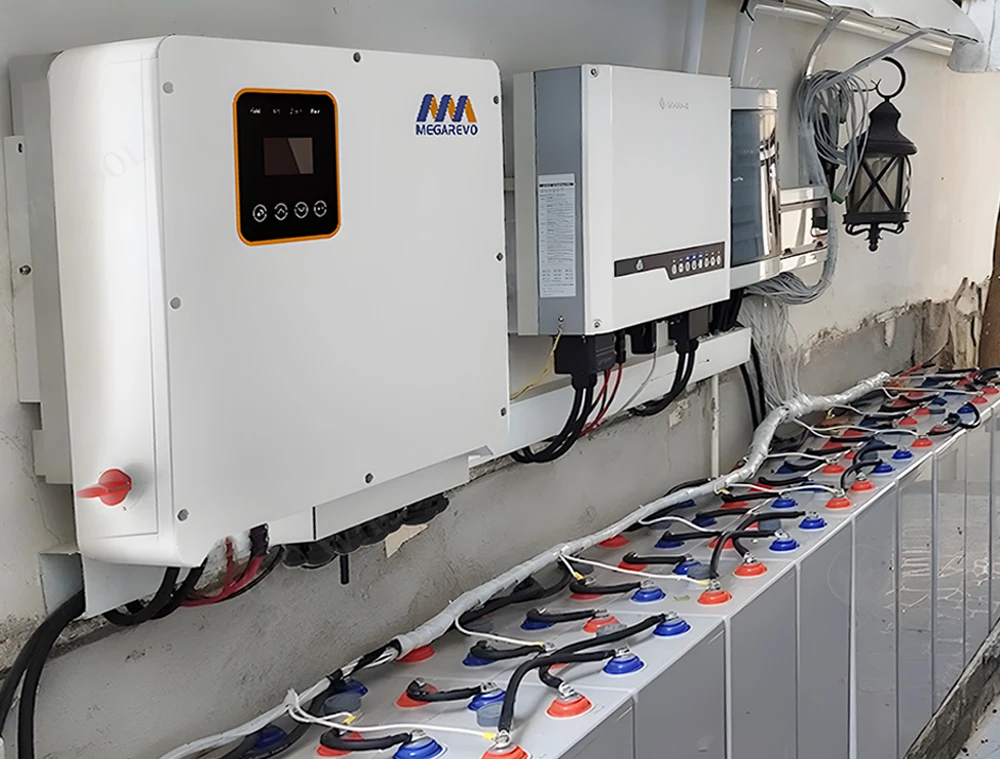

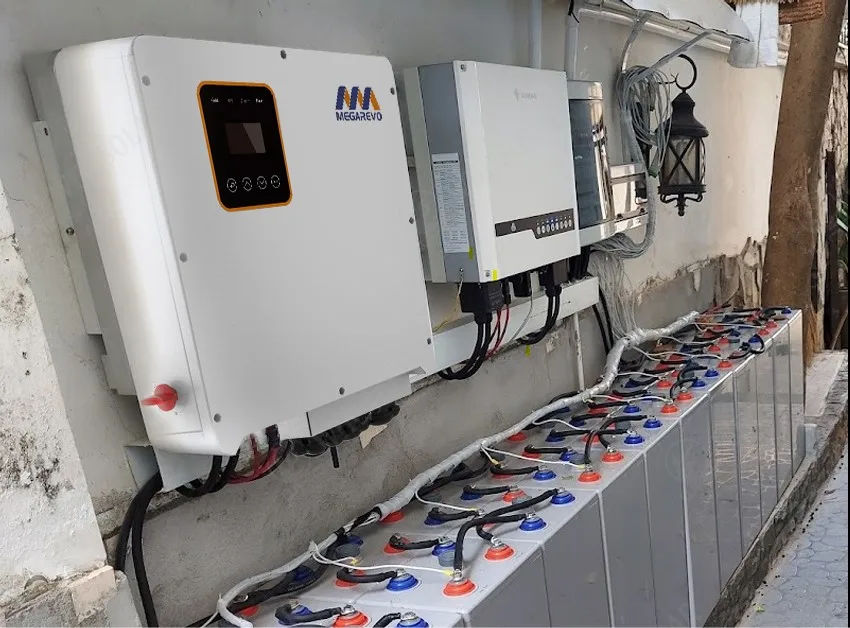

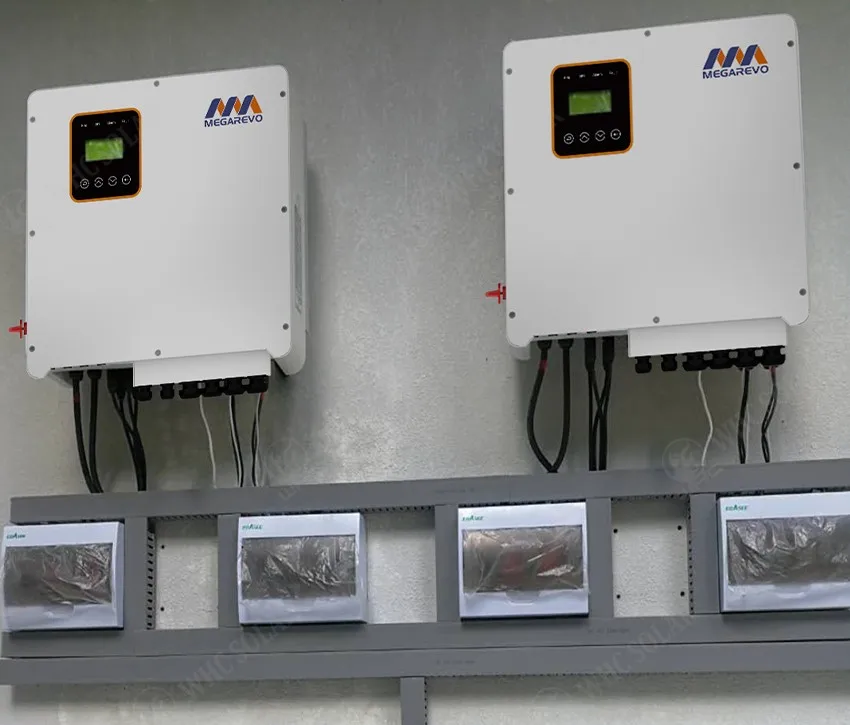

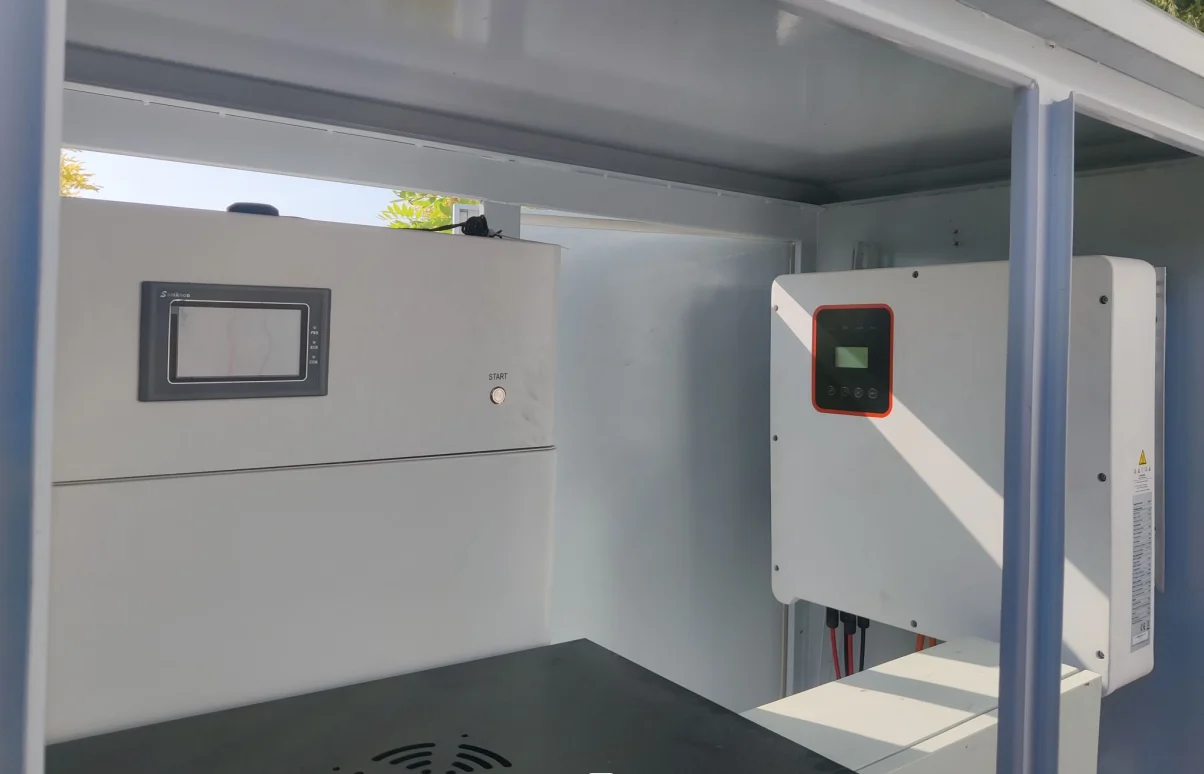

Project Case

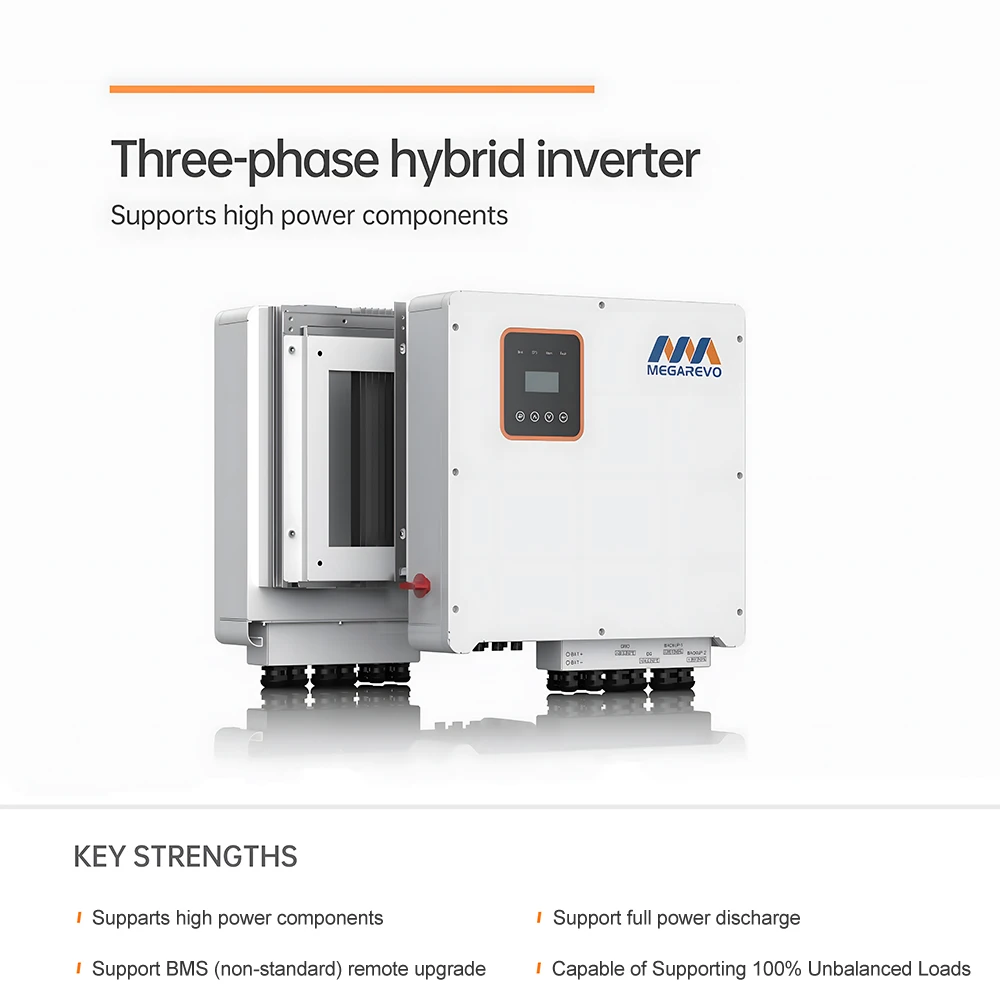

Product Detail

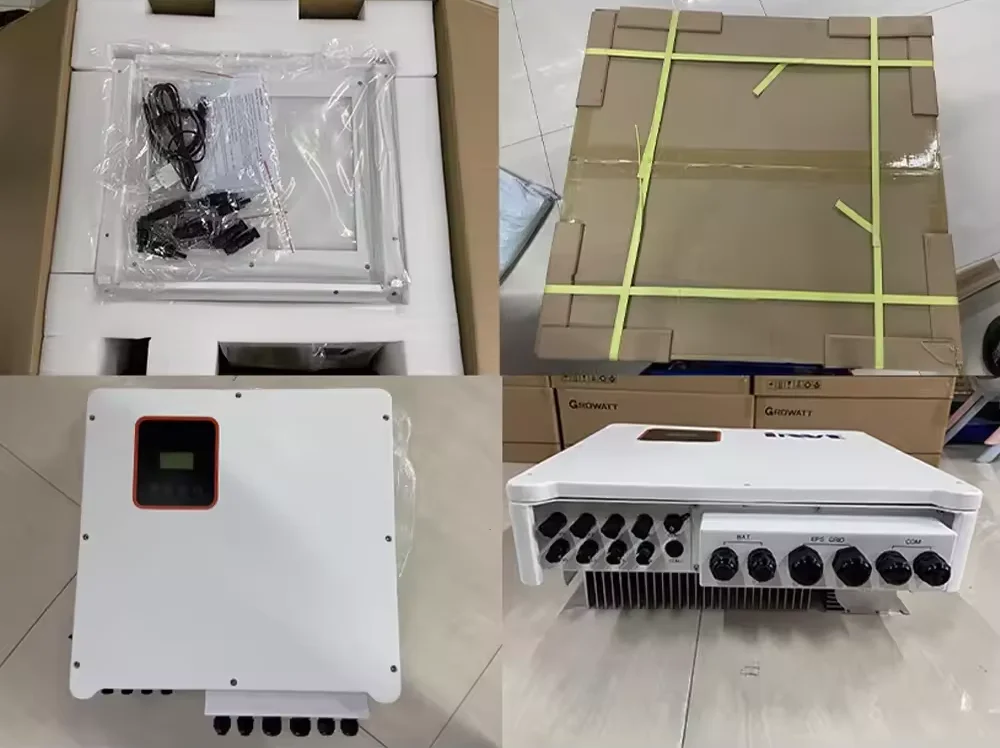

Product packaging
Related Products
FAQ
Q1：What if l don't have import experience?
We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q2：How long is the warranty of your products?
The warranty for Megarevo off-grid inverters is 3 years, and the warranty for Megarevo on-grid and hybrid inverters is 5 years.
Q3：What is your lead time for mass production?
Delivery time is generally determined by the starting quantity, minimum order quantity 1 unit, less than 10 units, 7 days, less than 100 units, 25 days, less than 1,000 units, 30 days.
Q4：How can I make sure it's a secure transaction?
Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you finish the payment, themoney will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba willrelease us the money.
