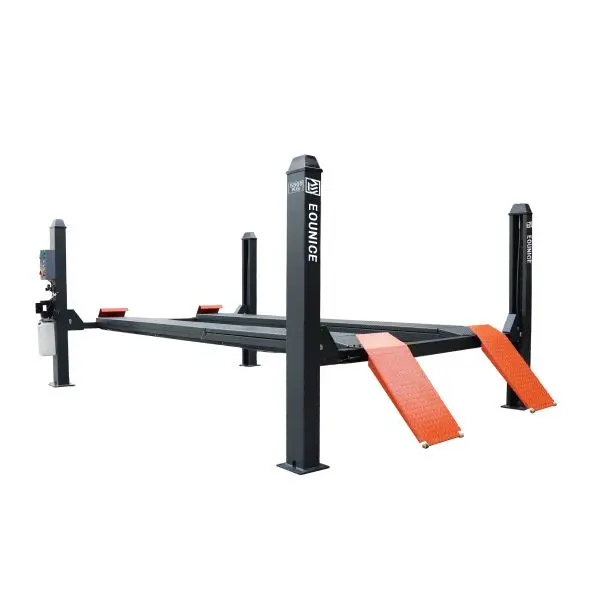

ON-7445E Electric Lock Realease 4.5 Ton  four-wheel alignment  4 post Car Lift with CE










FEATURES




  1. 4,500Kg (10,000LBS.) lifting capacity.

  2. Reliable mechanical self-lock safety locking system.

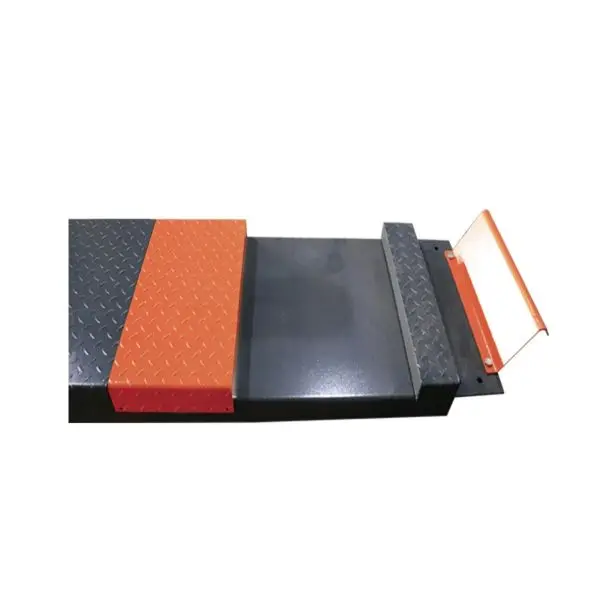

  3. Long slip plate and adjustable turntable positions for wheel alignment use;

  4. Manual safety lock release.

  5. Max height limit switch to ensure the cylinders work within the stroke.

  6. Skid proof diamond and low-profile platforms.

  7. Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.

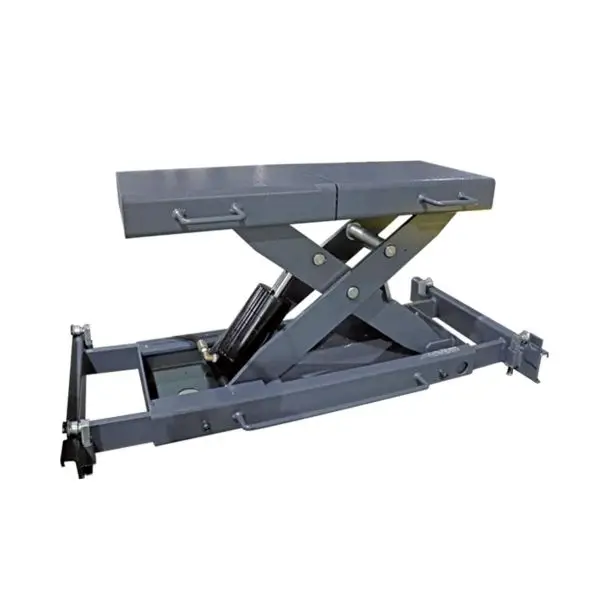

  8. Optional manual or pneumatic rolling jack.








TECHNICAL DATA:













































Model                              7445E
Lifting Capacity4,500kgs (10,000LBS)
Lifting Height1770mm (69 11/16”)
Lifting Time≤60S
Overall Height2120mm (83 7/16”)
Overall Length (Inc.Ramps)5512mm (217”)
Overall Length (No Ramps)4600mm (181 1/8”)
Overall Width3350mm (131 7/8”)
Width inside Columns3050mm (120 3/4”)
Shipping Weight1150kgs (2,535LBS)

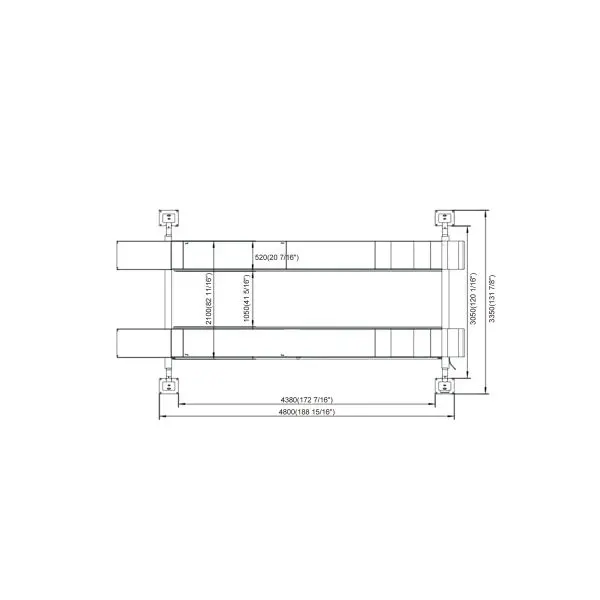

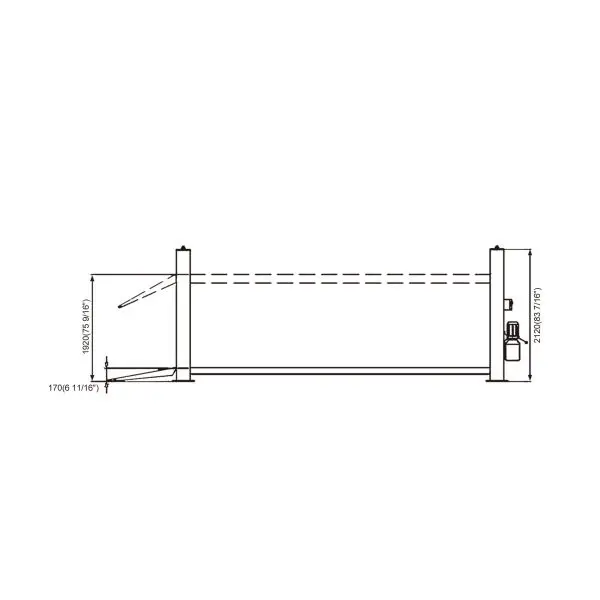

DIMENSION:


CERTIFICATIONS

7214K 4.png

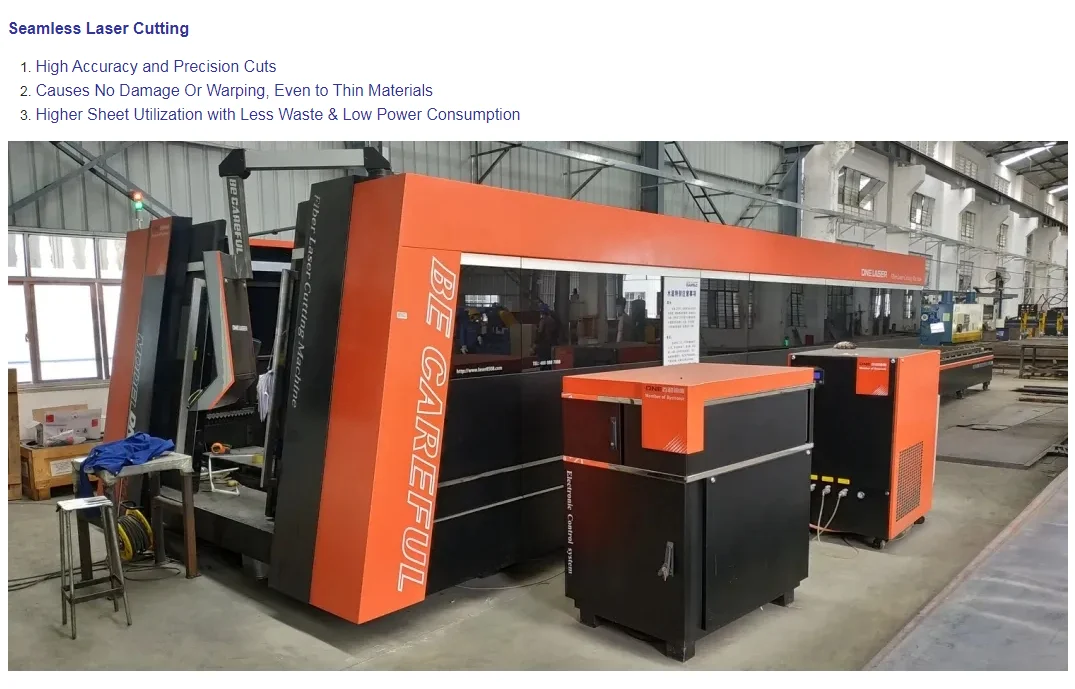

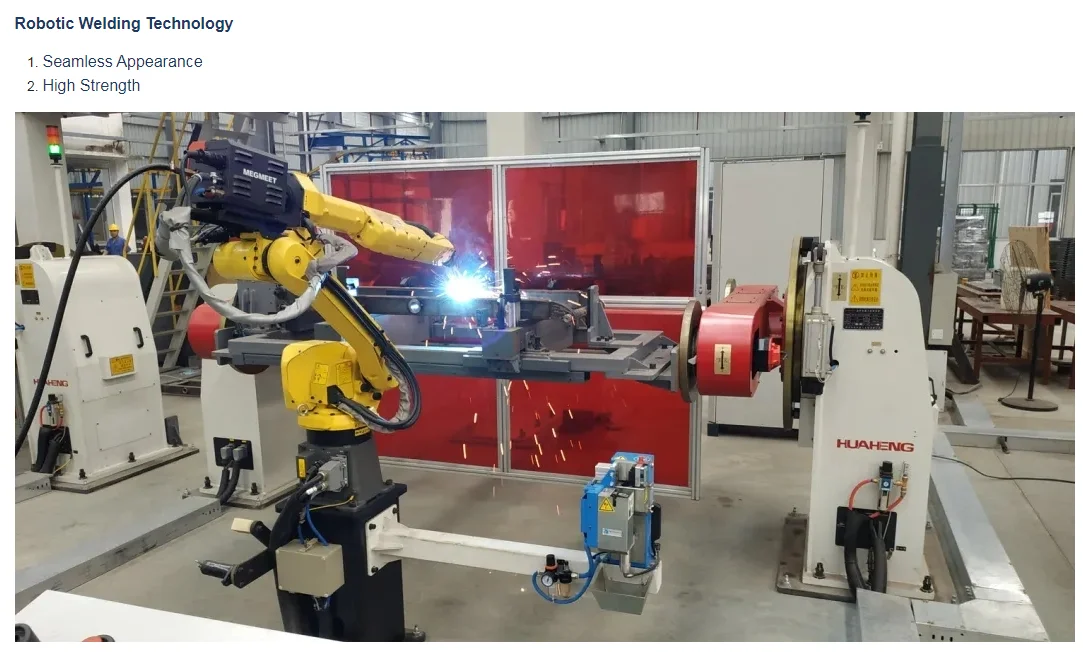

FACTORY PROCESSING AND TECHNOLOGIES

7214K 1.png7214K 2.png7214K 3.png




Warranty:

 a. Steel structure warranty for five years.
 b. Hydraulic parts, electrical components, slider block,bronze bush, cable,etc warranty for one year.
 c. Consumption parts such as rubber pads etc.are not under warranty



OUR SERVICES


Our Company will Provide you some Services.
1. OEM ODM service.
2. Customized service.
3. Professional aftersales team consultant service for life long time.



FAQ


 Some buyers  may ask ?





A:You are a trading company or a factory?


A: We are a manufacturer and we have our own trade company. So pls don`t worry.





B: How long can our order be finished and delivered?


A:  Usually the lead time is within 30 days after receiving 30% deposit or L/C,





C: What is the regular color? Can I order special color which I like?


A: The regular color is Blue, Red, Yellow.


    Yes, we can also produce machines with special color according to client's request.





D: Can I order for any special size?


A:  Yes,you can.


    The size can be customized, but should be suitable for the inner size of containers.pls understand.
