Product Overview

Description



Products Description




Title
Quayside Container Gantry Crane


Portal crane has been widely used at port, yard, station,shipyard, stack and so on. In order to quicken the turnover of the vehicles, loading and unloading, transshipment of goods on the shipping and car needs high efficiency. With the advantage of advanced capability, high working efficiency, compact frame, calm movement, comfortable operation, safety and reliability, convenience maintenance, nice appearance and so on, it can make good use of the limited space of the port, yard and other places, and is available for empty and full loaded work of shipping and can meet requirement of surface car
transportation. Including Four-bar Linkage
Portal Crane and Single-arm Portal Crane.




Technical features:
1.Automatic rectify deviation control
2.Weight overload protection device
3.Top quality polyurethane buffer
4.Phase protection
5Lifting limit switch
6.Cross traveling limit switch
7.Long traveling limit switch
8.Voltage lower protection function
9.Emergency stop system
10.Current overload protection system
11.Lighting system
12.Light and alarm system

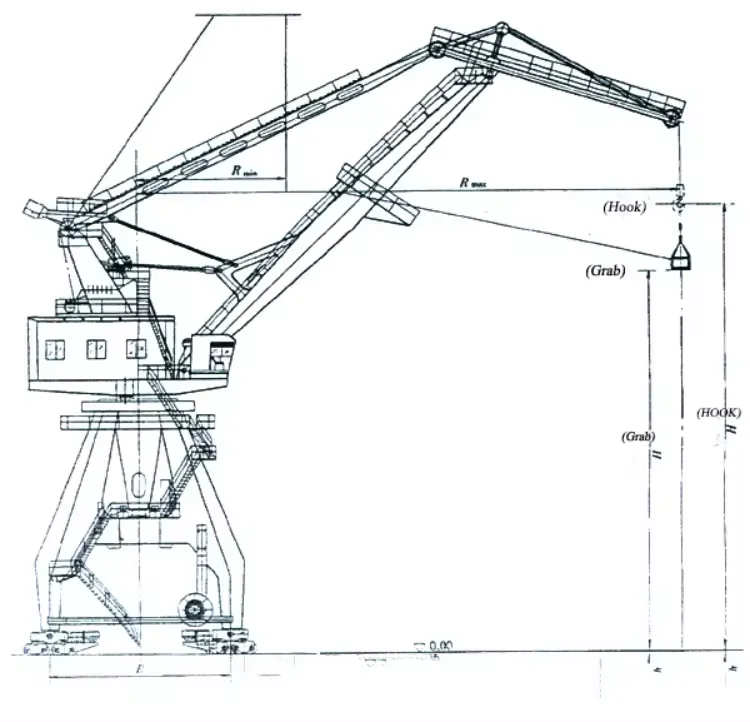

Specification




Main technical parameters











Basic Parameters

Rated Lifting Capacity
Grab(t)
10
16
25
40
40
40
Hook
10
16
25
40
60
80
Max working range
30
35
35
35
40
45
 Min working range
8.5
8.5
9.5
11
12
12
Slewing radius of tail
6.5
7
7.5
8
9
9.5
Rail gauge
10.5/12
10.5/12
10.5/12/14
10.5/12/14/16
12/14/16
12/14/16
 Base distance
10.5/12
10.5/12
10.5/12/14
10.5/12/14
12/14/16
12/14/16



Speed Parameters


 Lifting Speed

Full Load
40
40
50
50
40
30
No Load
60
60
80
80
70
50
Luffing Speed
40
40
50
50
30
30
Slewing Speed
1/1.2/1.5
1/1.2/1.5
1/1.2/1.5
1/1.2/1.5
0.8/1
0.8/1
Crane Traveing Speed
25/30
25/30
25/30
25/30
25/30
25/30

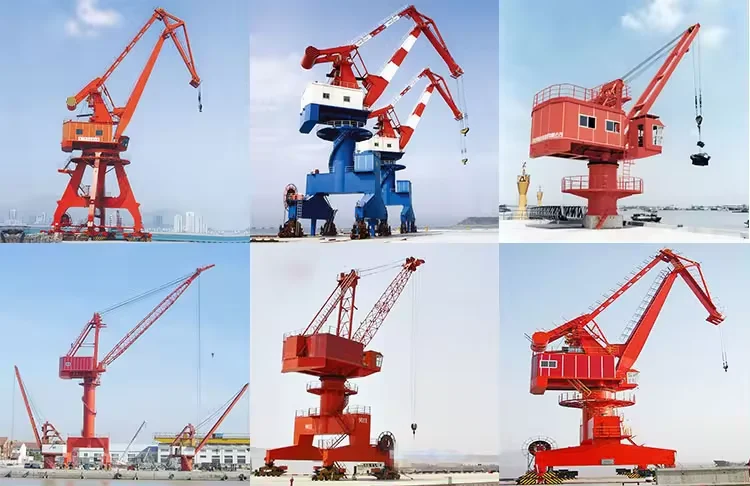

Product show

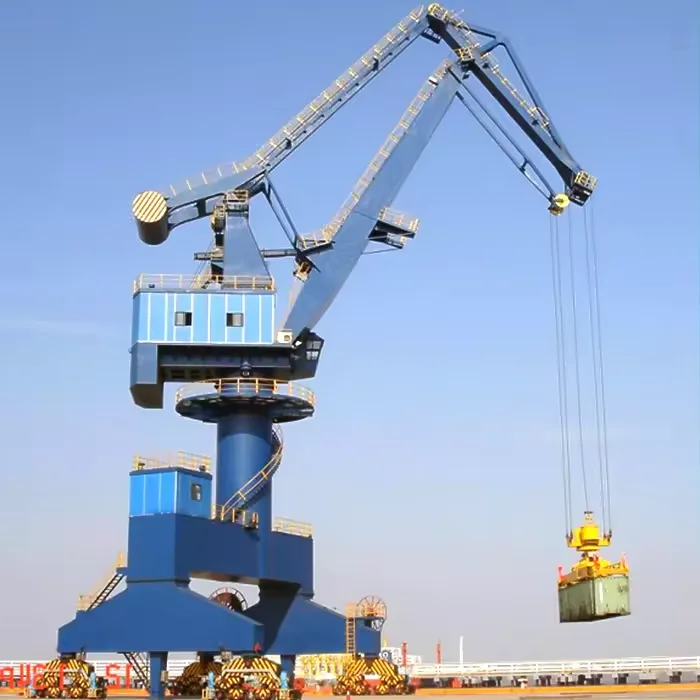

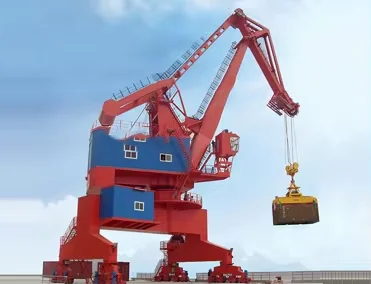

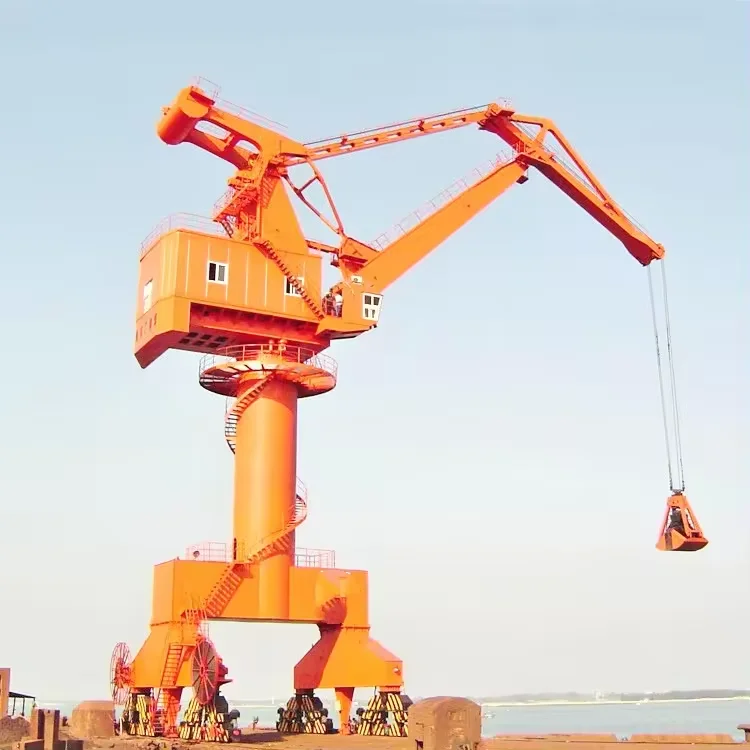

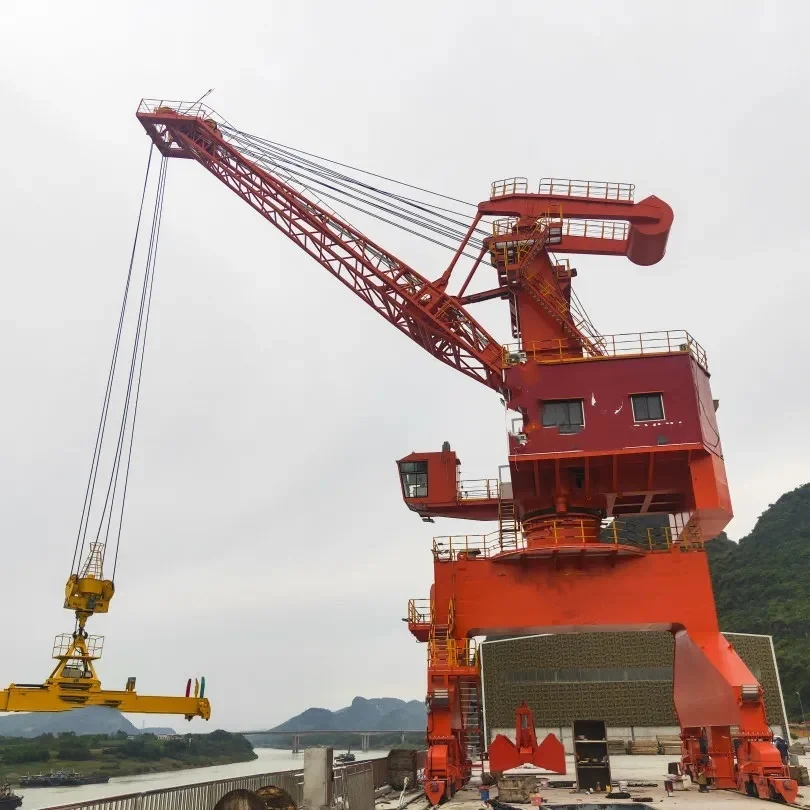

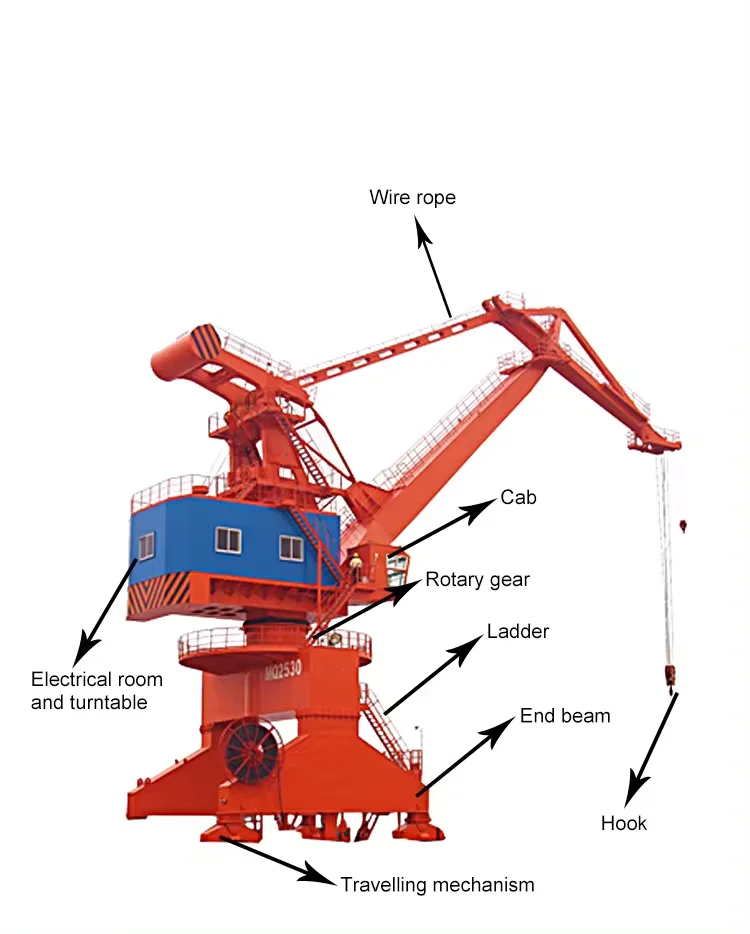

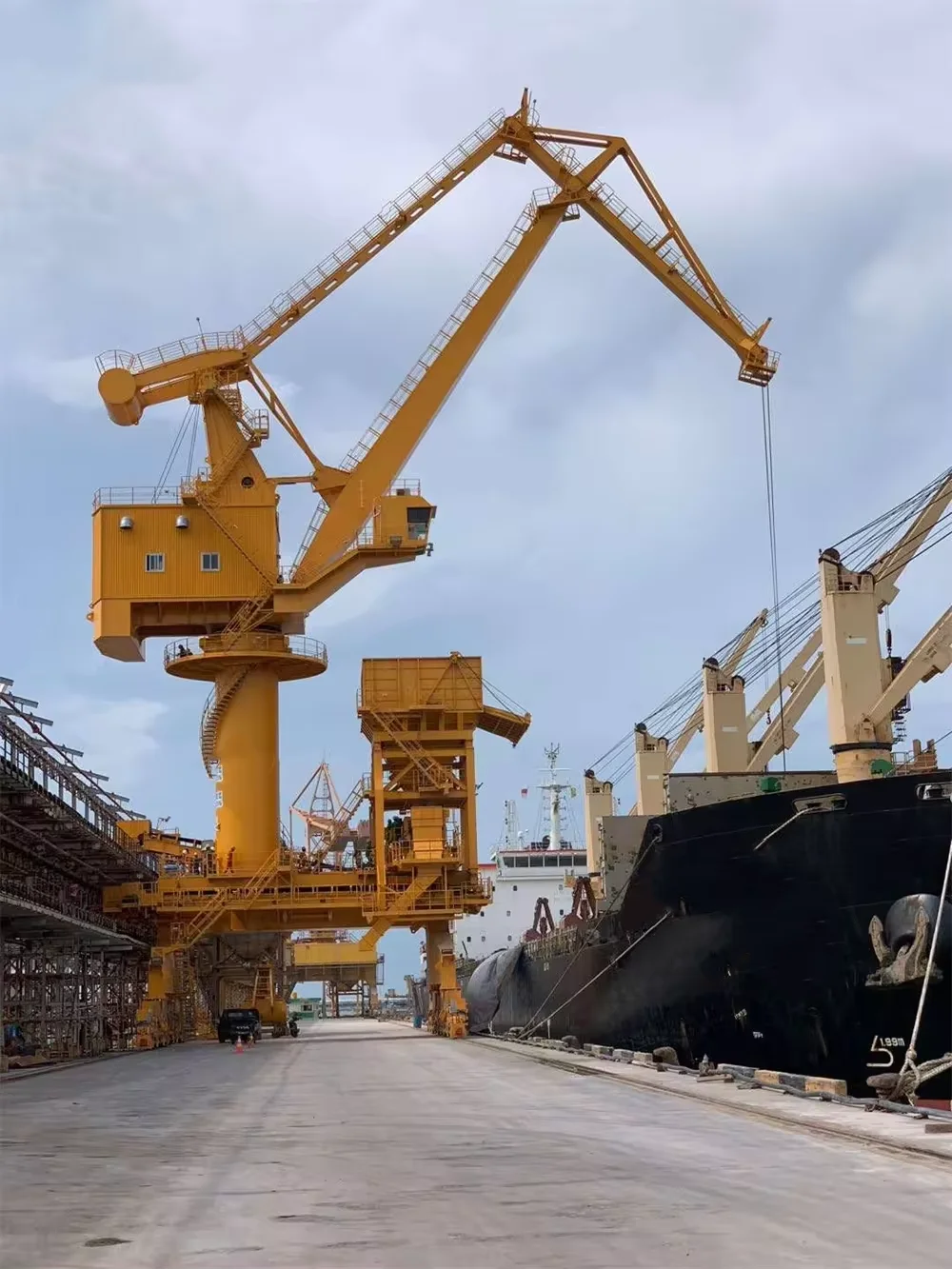

Four Link Portal Crane

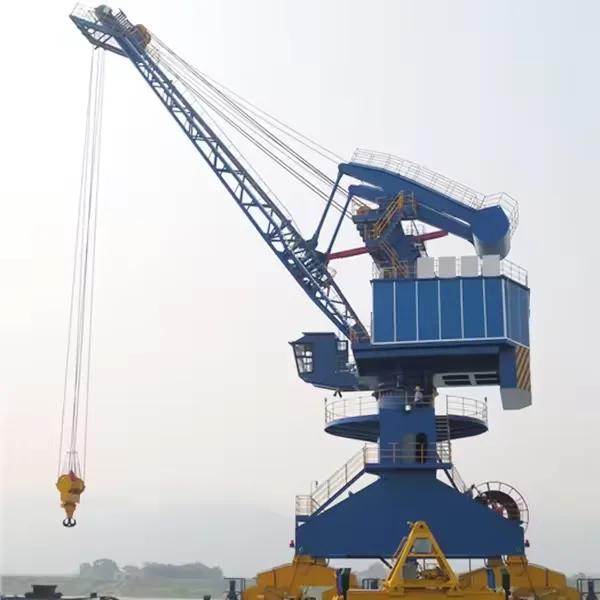

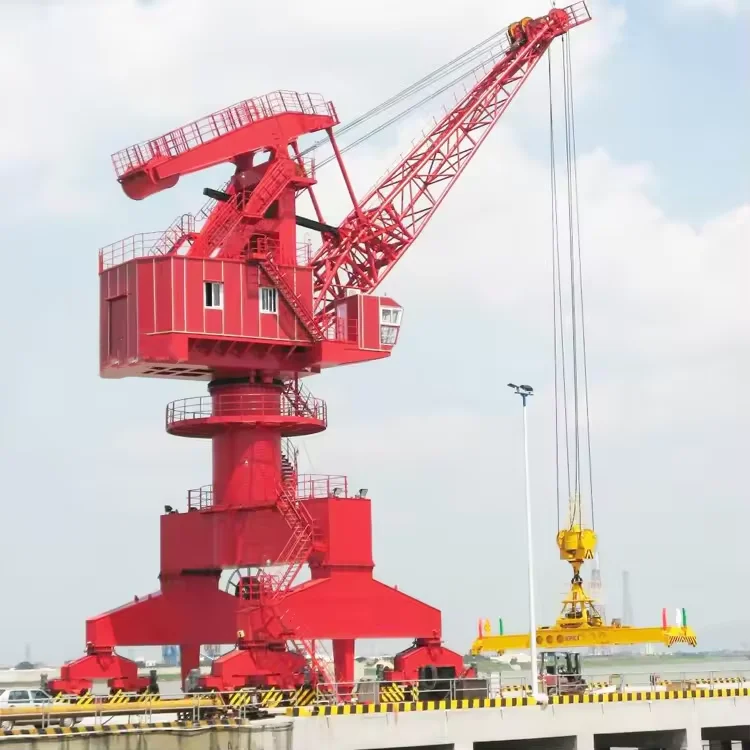

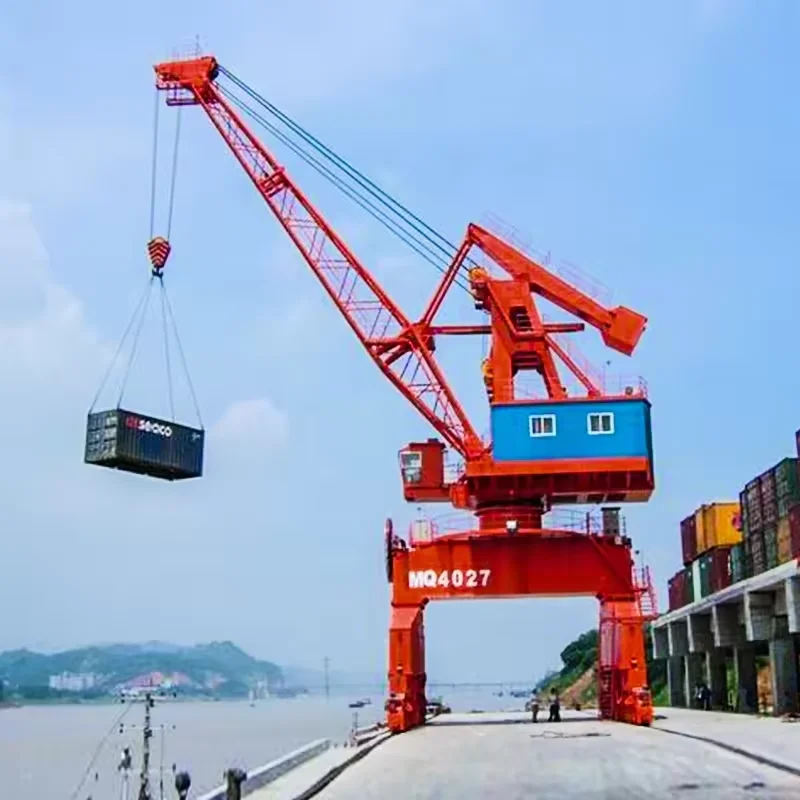

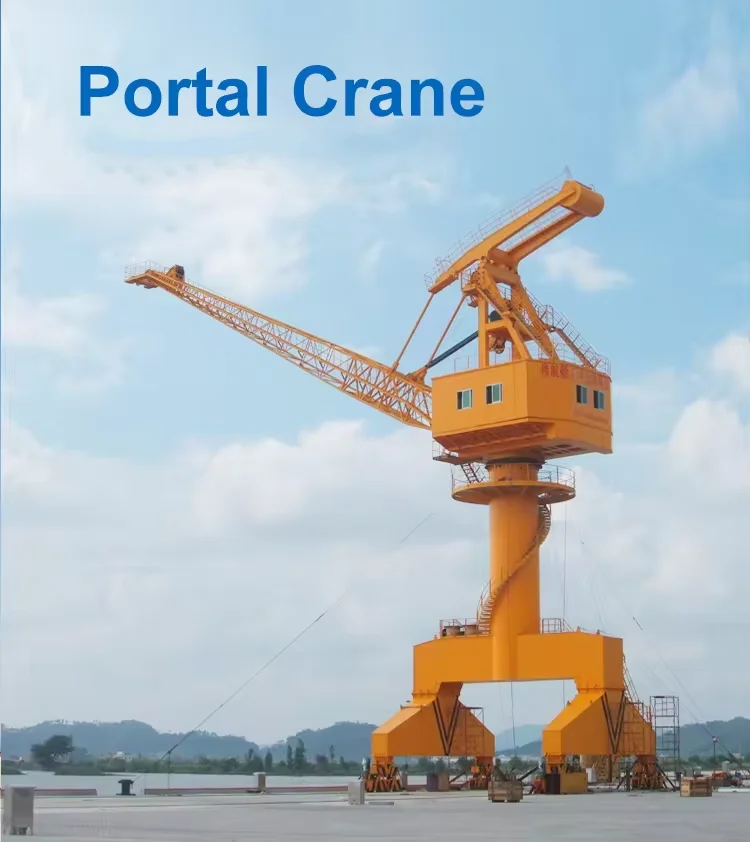

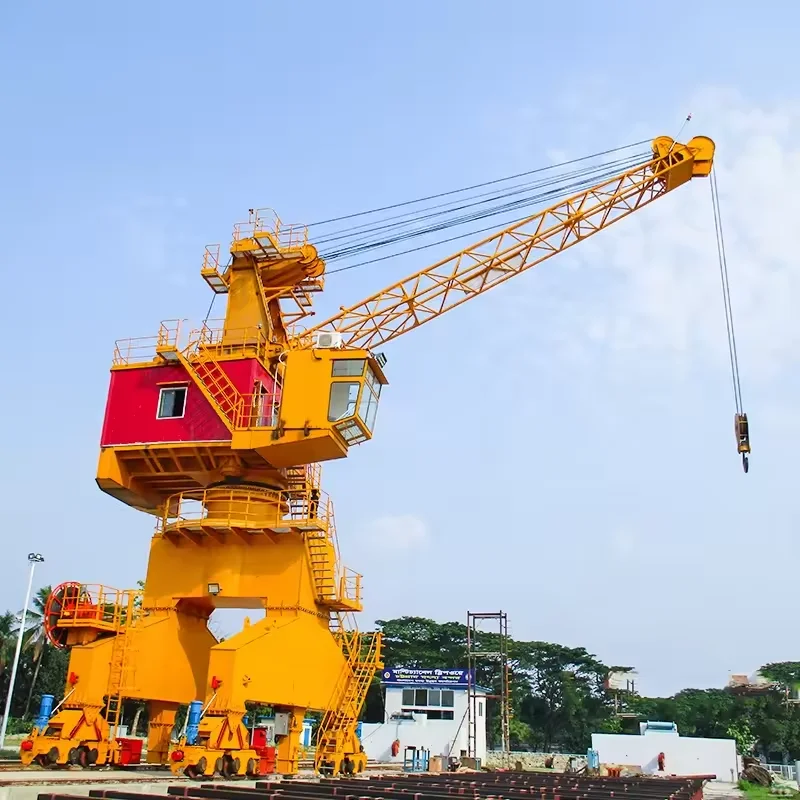

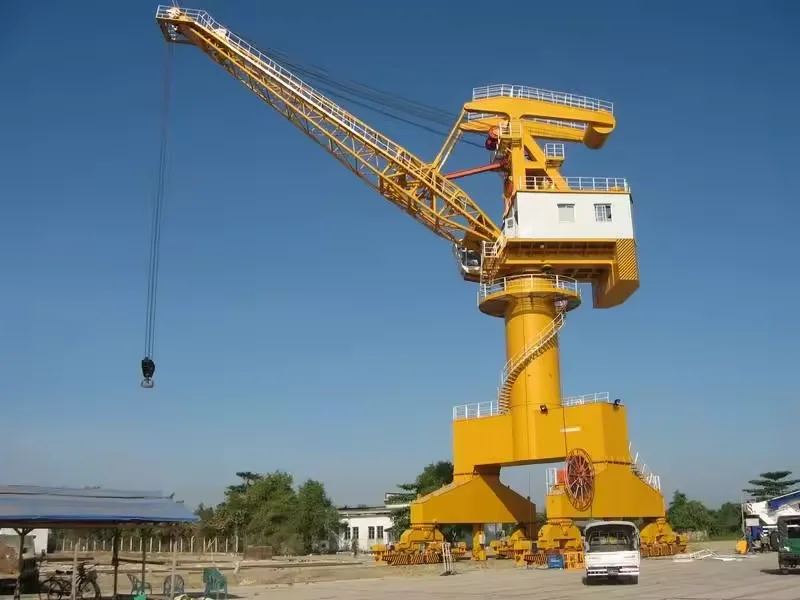

Single-boom Portal Crane
