portable DN 16 Spot Welding Machine Industrial welding equipment Origin Warranty 1 Year for metal welding
- Category: >>>
- Supplier: Jiangsu Langcui Welding Technology Co. Ltd.
Share on (1601161799510):
Product Overview
Description
Product Overview
AC portable spot welding machine heavy industry enhanced type welder
Portable spot welding machine Spot is the latest spot welding machine developed by our company and produced in bulk .It has become an indispensable equipment in sheet, box, cabinet, anti-theft door and window, steel furniture, stainless steel products, kitchen equipment, air conditioning equipment and industrial production.it easy use for sheet metal ,it is used for mild carbon steel plates, wire rods, stainless steel plates and other materials.it can spot welding .stainless steel mesh welding ,easy movement ,easy use, all copper coil,water-cooling mechanism,microcomputer control , Industrial chassis, recycle water cooling.
FEATURES AT A GLANCE
INDUSTRY SUPPLY DIRECTLY
ALL COPPER COIL
RECYCLE WATER-COOLING
MICROCOMPUTER CONTROL
INDUSTRIAL CHASSIS
IRON WHEEL AND STRONG HANDLE -EASY MOVEMENT AND SAFETY
SPOT WELDING ,MESH WELDING ,PLATE WELDING, SPECIAL DESIGN FOR SHEET METAL , AT LEAST CAN WELDING 0.1MM SHEET .
OWN PATENT
CE CERTIFICATE
380V, 50HZ
PROFESSIONAL AFTER-SERVICE .
ALWAYS ON THE WAY TO INNOVATE .
SUPPLY ODM AND OEM

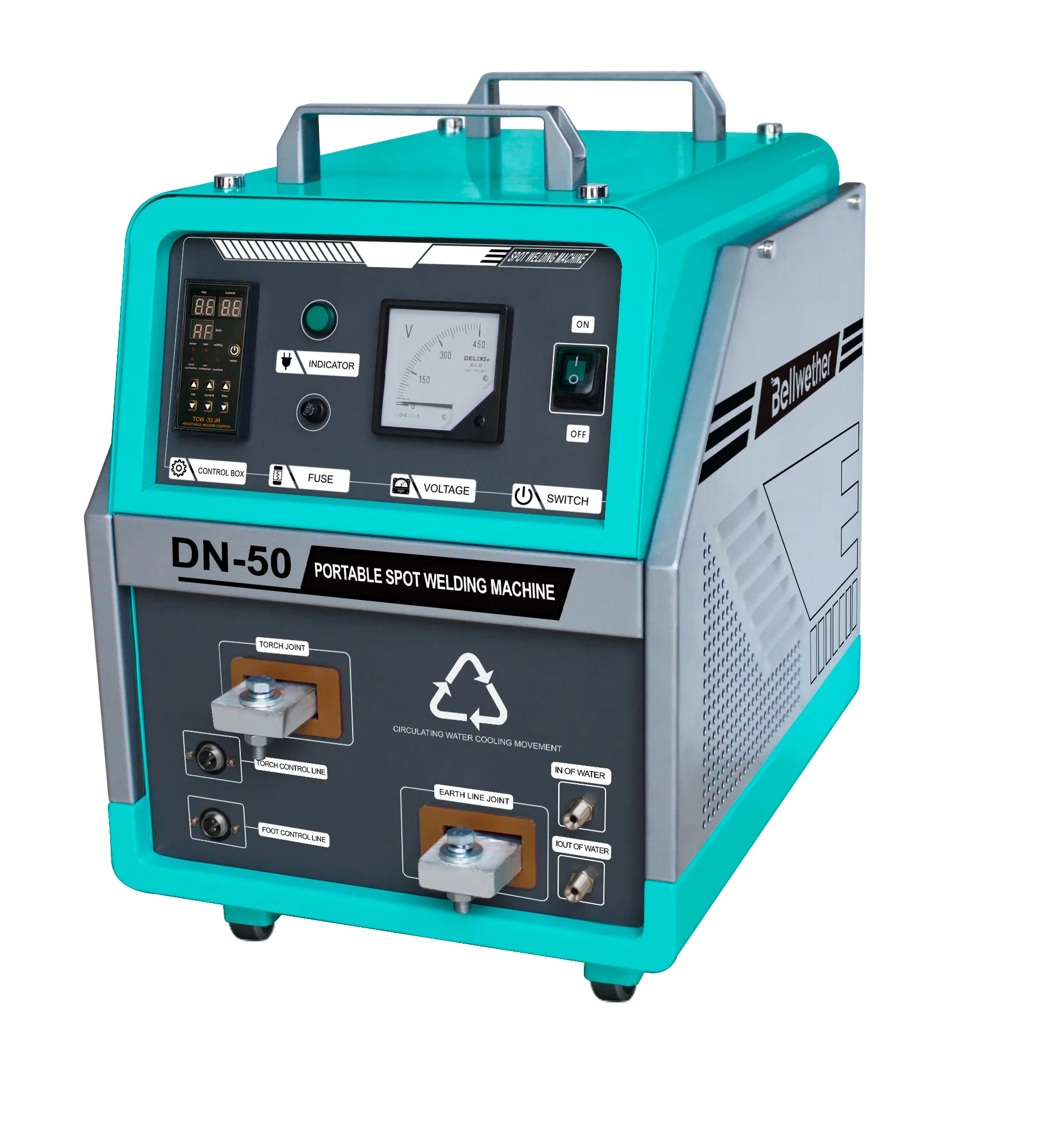

Right view
Front view
Left view
PRODUCT SPECIFICATIONS
Model | DN-16 | DN-25 | DN-50 |
Power and voltage(V) | Single phase AC 380V | Single phase AC 380V | Single phase AC 380V |
Rated frequency（HZ） | 50/60 | 50/60 | 50/60 |
Rated power（KVA） | 16 | 25 | 50 |
Power at 50% utilization factor（KVA） | 10.2 | 15.8 | 31.5 |
Continuous power（KVA） | 7.2 | 11.2 | 22.3 |
Rated primary current（A） | 42 | 62 | 132 |
utilization factor（%） | 20 | 20 | 20 |
Secondary unload voltage（V） | 2.5-9.5 | 3-11.4 | 4-15 |
Welding time adjustment | 0-98 （Continuous welding at 99） | 0-98 （Continuous welding at 99） | 0-98 （Continuous welding at 99） |
Welding thickness（mm） | 0.2～1 | 0.3～2 | 0.5~3 |
Cooling method | Water-cooling | Water-cooling | Water-cooling |
Cooling water flow rate（L/h） | 100 | 120 | 180 |
Rated cooling water pressure（Mpa） | 0.05 | 0.05 | 0.05 |
Insulation Level | F | F | F |
Ingress protection(IP) | IP20 | IP20 | IP20 |
Overall weight (KG) | 56 | 75 | 95 |
Overall size（mm） | 540*345*505 | 540*345*505 | 540*345*505 |
PRODUCT CONFIGURATION
core of machine
Nanhai silicon steel sheet is used, vacuum pressure impregnation paint is used, imported epoxy resin paint is used, and it is dried in a vacuum drying furnace.
all copper coil ,recycle water-cooling
all copper coil ,recycle water-cooling system ,

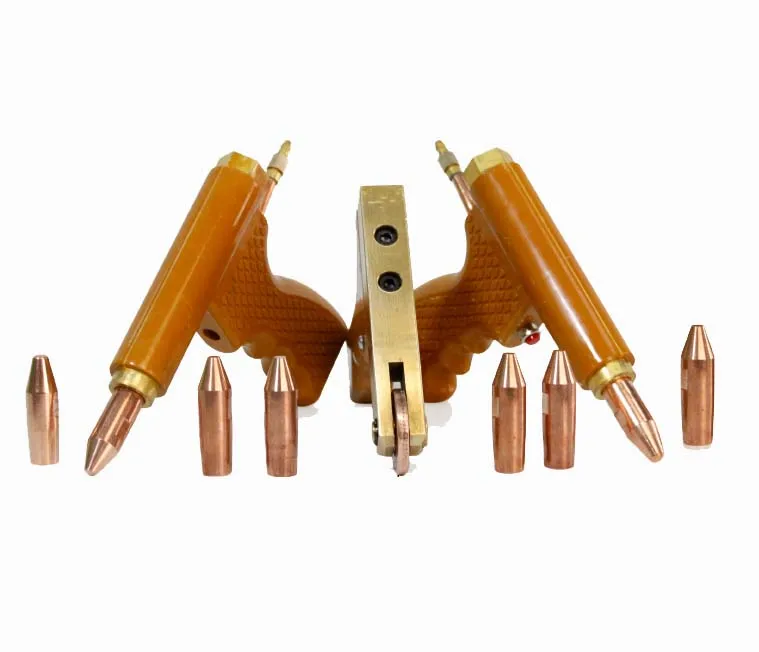

hand-held welding torch
2 in 1 welding torch
welding torch

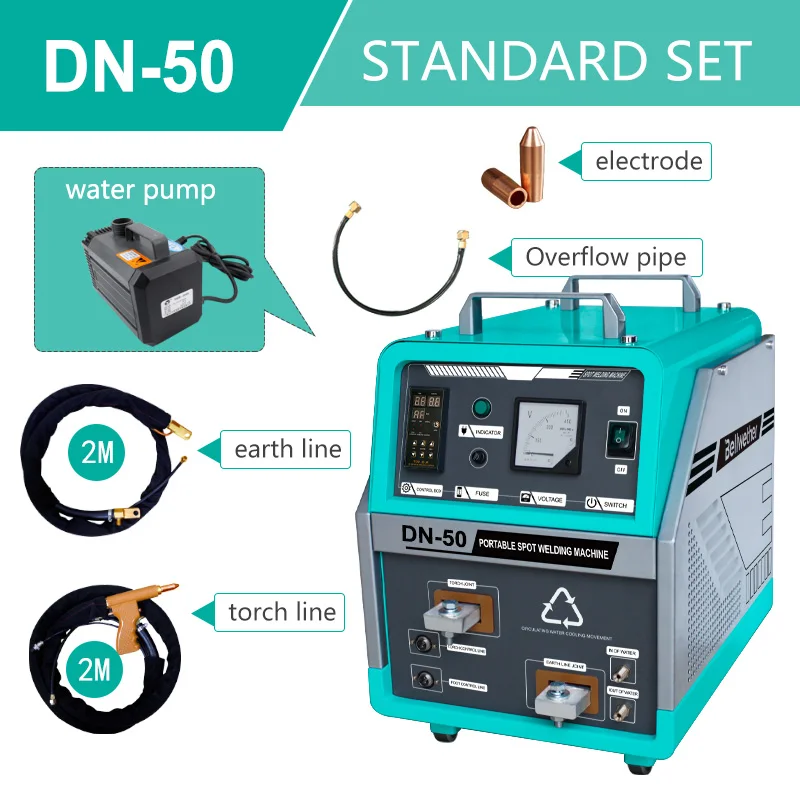

standard accessory
2M welding wire and 1 spot welding torch
standard accessory
2M earth wire
optional accessory

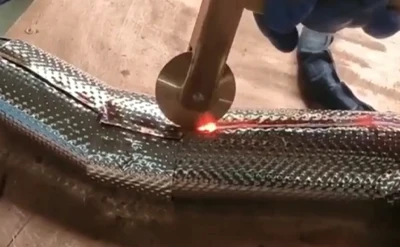

rolling welding head
optional accessory
spot welding torch with foot switch

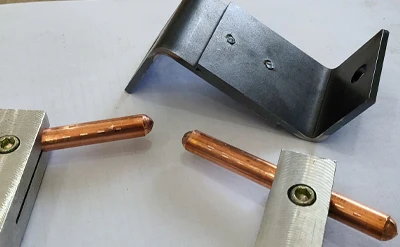

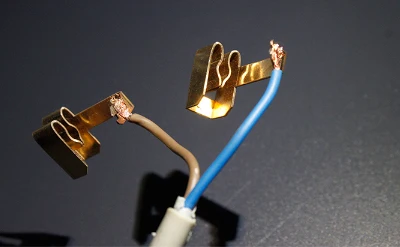

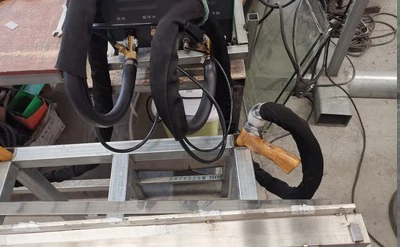

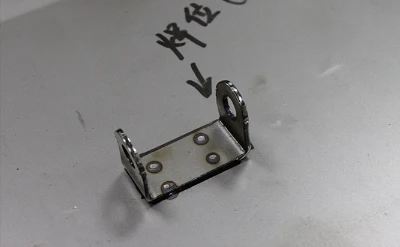

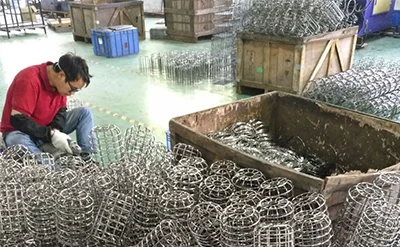

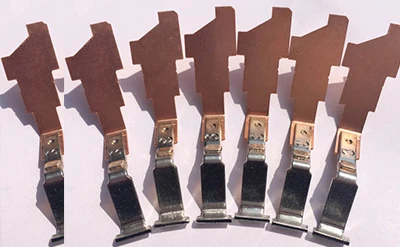

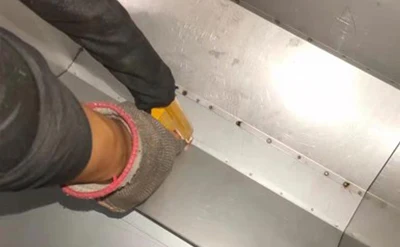

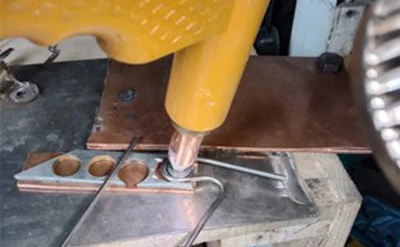

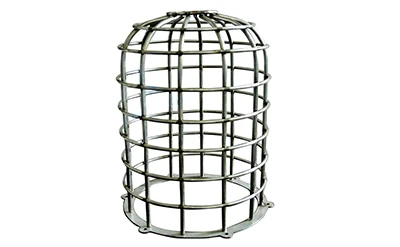

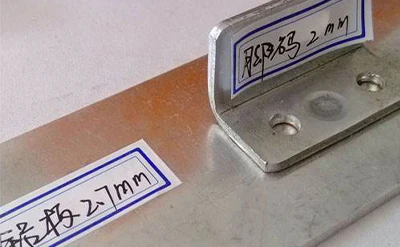

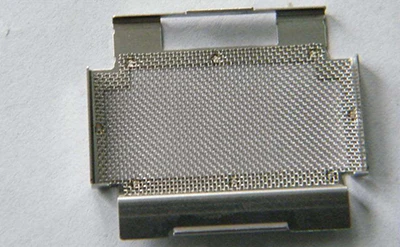

Customer show
company profile
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(60.00%),South America(3.00%),Eastern
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000 square meters in our company .
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000 square meters in our company .
we main supply CD welding machine, capacity discharge welder,air duct insulation nail welding machine ,marine insulation nails welding machine ,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal spot welding machine,point welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding machine,mesh welding machine ,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,arc stud welding machine, arc stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty welding machine, construction welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding system,industrial welding equipment , DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet ,copper plate , fastener and so on .
we have our own R&D team , patent ,design ,OEM ,ODM ,we are always on the way to innovate and supply advanced solution to our customers ,make our products more and more popular and our customers more and more approved .
24 hours hotline service
our R&D main engineers
1.about our service : 24 hours hotline or you can email us ,call us , or app contact .
2.all R&D team members have rich experience in welding machine more than 20 years ,and with the support of our company .they are always on the way to innovate and supply advanced solution to our customers ,make our products more and more popular and our customers more and more approved .
every year we will attend related welding exhibition ,every exhibition our products attract a lot of customer,most of them work with us all the time .
our products not only fit for mainland ,but also fit for customer from all over the world .we also import our product.
exhibition is a way to learn from our customers and market, then we will update our product according to market and customer .
MR.Chen - chief engineer,he has worked in company more than 15 years and is professional in welding machine technology update and design ,supply advanced solution to
our customers .
MR.Zhang- sales engineer,professional in communicate with customers , comprehend customer ,then supply customers to solve problem in use and buy welding machine ,he also work with MR .CHEN to update products .
MR. Xu -purchase engineer,according customer requirement ,he buy original material for welding machine .He work with MR.Chen and MR.Zhang together to update products and supply solutions for customers .
Package
professional export plywood box ,safe and strong.
shipping way
due to weight too much ,normally ship by sea if possible .
FAQ
Q1： Who are we ?
A1： We are based in Jiangsu, China, start from 2011,sell to Domestic Market(60.00%),South America(3.00%),Eastern
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000 square meters in our company .
Europe(3.00%),Oceania(3.00%),South Asia(8.00%),North America(2.00%),Southeast Asia(7.00%),Africa(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 1000 square meters in our company .
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Always final Inspection before shipment.
Q3: What can you buy from us?
A3: CD welding machine, capacity discharge welder,portable stud welder,CD studs welding machine , arc bolt welding machine, pedal spot welding machine,point welding machine,ac spot welder , single spot type welder, foot spot welding machine,metal welding machine ,mesh welding machine ,metal welding machine .stainless steel welding machine ,wire mesh stainless steel welding machine,arc stud welding machine, arc stud welding equipment, short cycle stud welding machine,long cycle stud welding machine,heavy duty welding machine, construction welding machine,nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding system, DA stud welder,welding machine accessories such as welding gun ,welding torch ,collet , copper plate , fastener and so on .
Q4: Application and base material.
A4: Carbon steel , mild steel ,copper,ETC,material with arc weld ability. welding in the workpiece surface of oxide layer,oil slick,priming paint or electroplate.after welding,NO deformation,NO convex,download position welding,vertical position welding,overheard position welding,all position welding.application welding project:steel construction , floor decks,bridge,embedded parts,heavy machine,industrial factory building machines are used in a wide variety of industries:
1.Aerospace
2.Appliances
3.Automotive
4.Construction
5.Electronics
6.Forging Process
7.Insulation Installation
8.Light and Heavy Duty Equipment
9.Offshore
10.Petrochemical
11.Shipbuilding
12.Signs and Decorative Trim
13.Toys
14.Transportation
15.Utilities Metal working
1.Aerospace
2.Appliances
3.Automotive
4.Construction
5.Electronics
6.Forging Process
7.Insulation Installation
8.Light and Heavy Duty Equipment
9.Offshore
10.Petrochemical
11.Shipbuilding
12.Signs and Decorative Trim
13.Toys
14.Transportation
15.Utilities Metal working
Q5: Certificate
A5: CE, patent certificate .
Q6: R&D TEAM
A6: R&D team includes 10 people ,all of them have worked in welding machine more than 20 years ,they can supply professional design and after-service for you .
Q7: What services can we provide?
A7: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery AND SO ON
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Cash,Escrow ,Alipay and so on .
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Cash,Escrow ,Alipay and so on .
Q8: Why should you buy from us?
A8: Our company founded in 2011.it covers more than 1000 square meter, and have own patent ,ce ,every year supply new product ,always on the way to innovate according market and development of industry .we are manufacture not agent .we have own R&D team ,we supply ODM ,OEM .welcome to visit our company .
Q9: What included in a standard order ?
A9: Normally a machine ,a welding torch ,welding wire ,earth wire .a few pcs collets ,if you need test screw ,please contact us , it only for reference , standard configure of different machine is different ,you can ask after-service for help .if you need optional accessories ,tell us and we will help you solve it .
