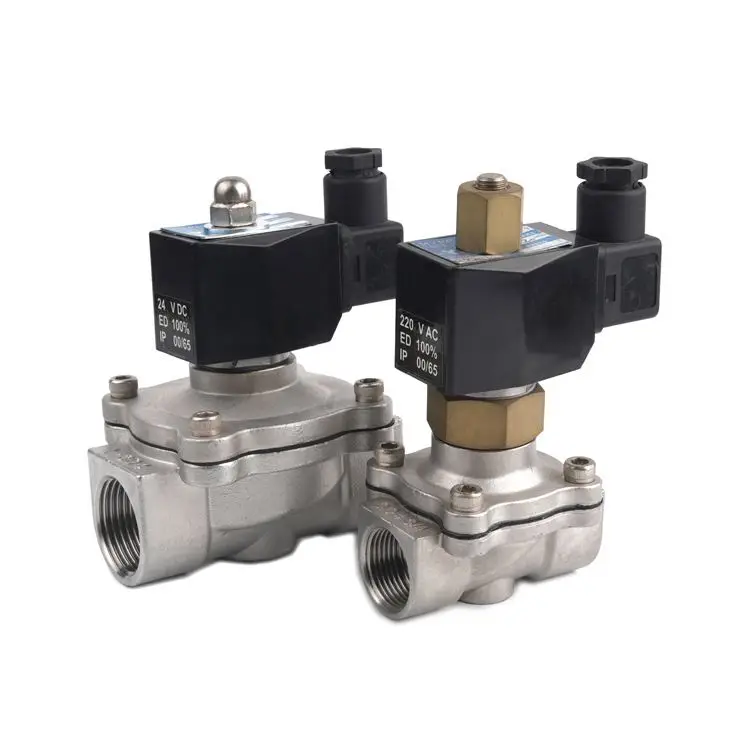

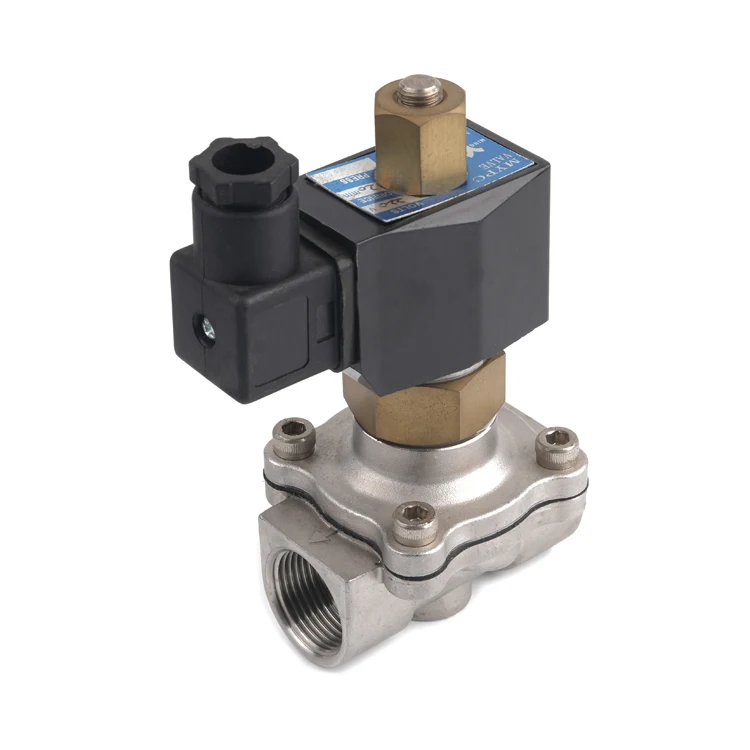

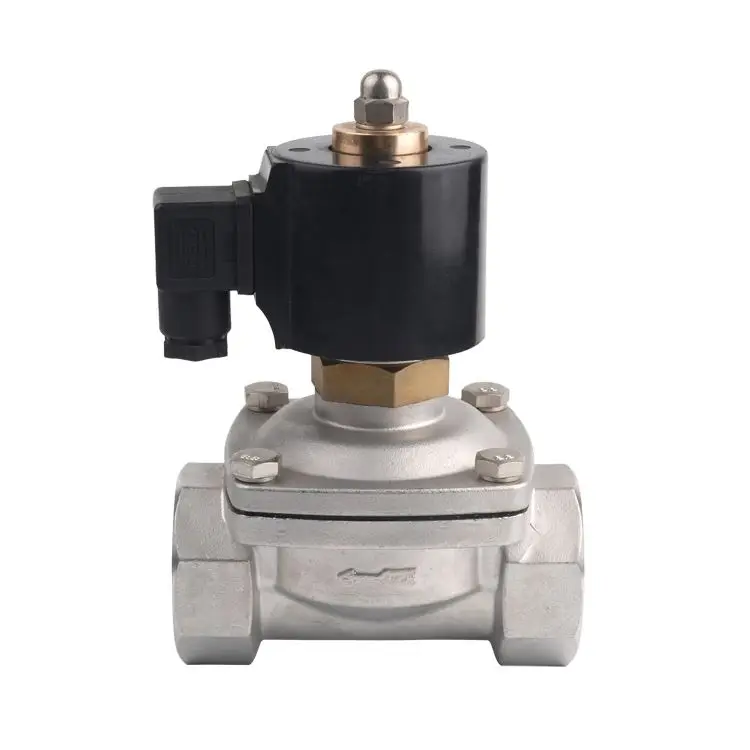

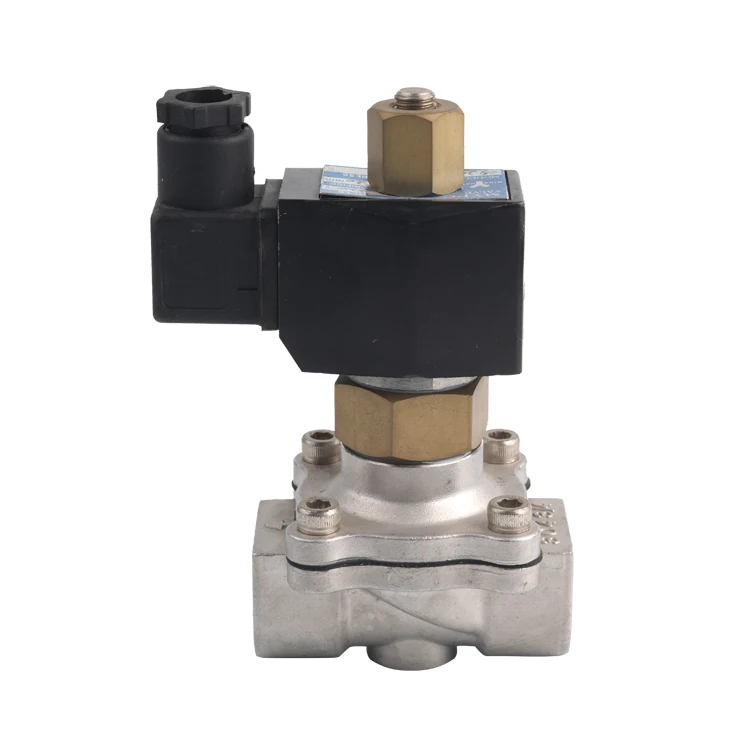

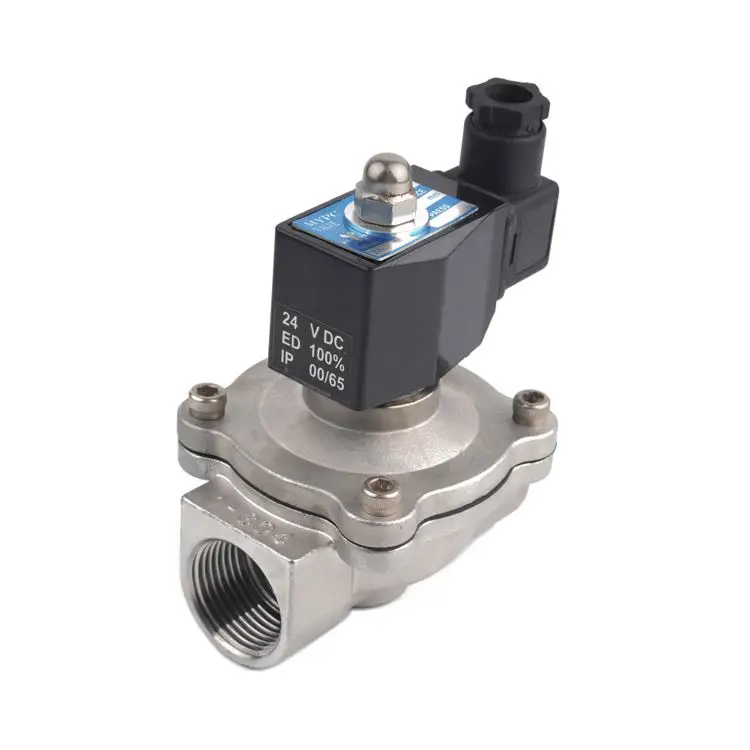

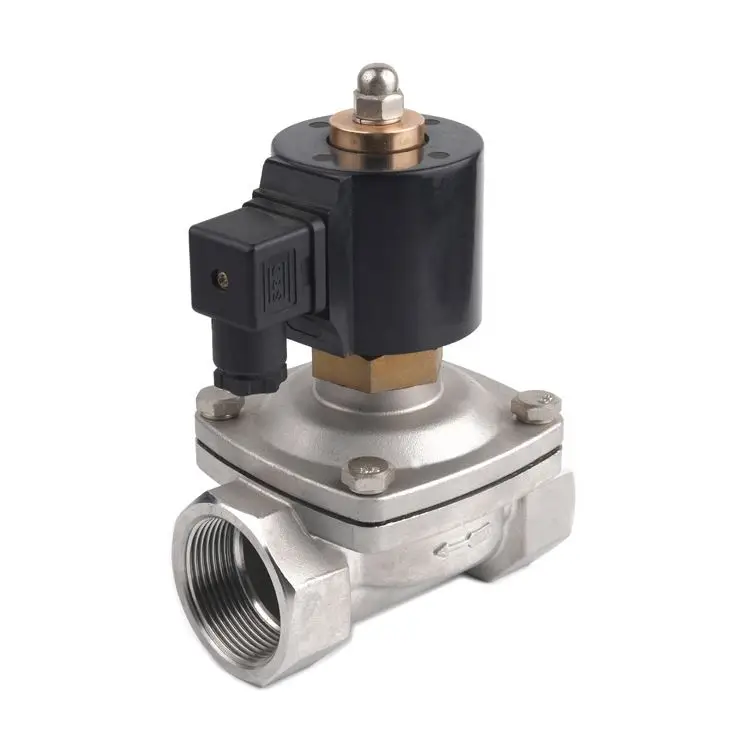

2/2 Way Normally Open Solenoid Valve High Temperature 3/4in Direct Acting Water Air 220V 110V 24V Solenoid Valve
- Category: >>>
- Supplier: Ningbo Mingyuanhongda Automation Co. Ltd.
Share on (1601161823803):
Product Overview
Description
Products Description
Product Parameter
Place of Origin | Zhejiang, China |
Customized support | OEM, ODM, OBM |
Product name | Solenoid Valve |
Material | Stainless Steel |
Seal Material | NBR |
Medium | air,water,oil,gas |
Working Pressure | 0~0.7mpa |
Voltage | DC12V/DV24V/AC110V/AC220V |
Working Temperature | -5~80℃ |
Working Tpye | Direct Acting NO |
Duty Cycle | ED 100% |
Degree of pretection | IP65 |
MOQ | 10 |
Product Features
2S Series Two- position Two-way Stainless Steel Solenoid Valve:
1.Suitable for controlling the liquid, gas, light oil (≤ 20CST) and other media, the use of the structure of direct-acting, zeropressure to open the valve, flow rate, and high reliability.
2.Bodymade of stainless steel SS316 Precision Casting.
Coil Parameters:
AC220V 110V 50Hz/60Hz DC 24V 12V
Plastic coil IP65 /ClassF
Standard Junction Box
Hulled coil IP54 /ClassF
Leaded /Available for other voltage coil
Plastic coil: DN2.5-25mm AC20VA DC 18W
DN35-50mm AC40VA DC 30W
2.Bodymade of stainless steel SS316 Precision Casting.
Coil Parameters:
AC220V 110V 50Hz/60Hz DC 24V 12V
Plastic coil IP65 /ClassF
Standard Junction Box
Hulled coil IP54 /ClassF
Leaded /Available for other voltage coil
Plastic coil: DN2.5-25mm AC20VA DC 18W
DN35-50mm AC40VA DC 30W
Hulled coil: DN2.5-5mm AC16VA DC16W
DN10~25mm AC 20VA DC 28W
DN35~50mm AC 46VA DC 30W
DN10~25mm AC 20VA DC 28W
DN35~50mm AC 46VA DC 30W
Product Deatils
A variety of coils are available!
Solenoid Valve Drawing
