Sinoshine High Quality Solar Energy System 300kW Solar Inverter 500kW Solar Inverter 300kVa Hybrid Solar Power System
- Category: >>>
- Supplier: Pingdingshan Sinoshine Energy Co. Ltd.
Share on (1601161825006):
Product Overview
Description
System Configuration
5KW ON Grid Solar System | ||
Solar Panels | 450W*12pcs Mono solar panel Size:2094*1038*35mm | |
Inverter | Single Phase:110V/220V/230V | |
Mounting Bracket | Sloping/Flat Roof/Ground Type | |
PV Cable | PVF1*4mm² Black*100m+Red*100m | |
AC Cable | BVV2*4mm²*30m | |
Grid-Connected Box | Stainless steel spray AC surge protector 40/2P/40KA Undervoltage/Overvoltage protector 40A/2P AC Switch 40A/2P | |
Accessorles | MC4 connector*10sets Installation Tools*1sets | |
10KW ON Grid Solar System | ||
Solar Panels | 450W*24pcs Mono solar panel Size:2094*1038*35mm | |
Inverter | Three Phase:220V/230V/380W/400W | |
Mounting Bracket | Sloping/Flat Roof/Ground Type | |
PV Cable | PVF1*4mm² Black*100m+Red*100m | |
AC Cable | YJV3*4+1*2.5mm²*30m | |
Grid-Connected Box | Stainless steel spray AC surge protector 40/4P/40KA Undervoltage/Overvoltage protector 63A/4P AC Switch 63A/4P | |
Accessorles | MC4 connector*10sets Installation Tools*1sets | |
15KW ON Grid Solar System | ||
Solar Panels | 450W*36pcs Mono solar panel Size:2094*1038*35mm | |
Inverter | Three Phase:220V/230V/380W/400W | |
Mounting Bracket | Sloping/Flat Roof/Ground Type | |
PV Cable | PVF1*4mm² Black*100m+Red*100m | |
AC Cable | YJV3*6+1*4mm²*50m | |
Grid-Connected Box | Stainless steel spray AC surge protector 40/4P/40KA Undervoltage/Overvoltage protector 63A/4P AC Switch 63A/4P | |
Accessorles | MC4 connector*10sets Installation Tools*1sets | |
20KW ON Grid Solar System | ||
Solar Panels | 450W*48pcs Mono solar panel Size:2094*1038*35mm | |
Inverter | Three Phase:220V/230V/380W/400W | |
Mounting Bracket | Sloping/Flat Roof/Ground Type | |
PV Cable | PVF1*4mm² Black*100m+Red*100m | |
AC Cable | YJV3*10+1*6mm²*50m | |
Grid-Connected Box | Stainless steel spray AC surge protector 40/4P/40KA Undervoltage/Overvoltage protector 63A/4P AC Switch 63A/4P | |
Accessorles | MC4 connector*10sets Installation Tools*1sets | |
25KW ON Grid Solar System | ||
Solar Panels | 450W*60pcs Mono solar panel Size:2094*1038*35mm | |
Inverter | Three Phase:220V/230V/380W/400W | |
Mounting Bracket | Sloping/Flat Roof/Ground Type | |
PV Cable | PVF1*4mm² Black*100m+Red*100m | |
AC Cable | YJV3*10+1*6mm²*50m | |
Grid-Connected Box | Stainless steel spray AC surge protector 40/4P/40KA Undervoltage/Overvoltage protector 63A/4P AC Switch 63A/4P | |
Accessorles | MC4 connector*10sets Installation Tools*2sets | |

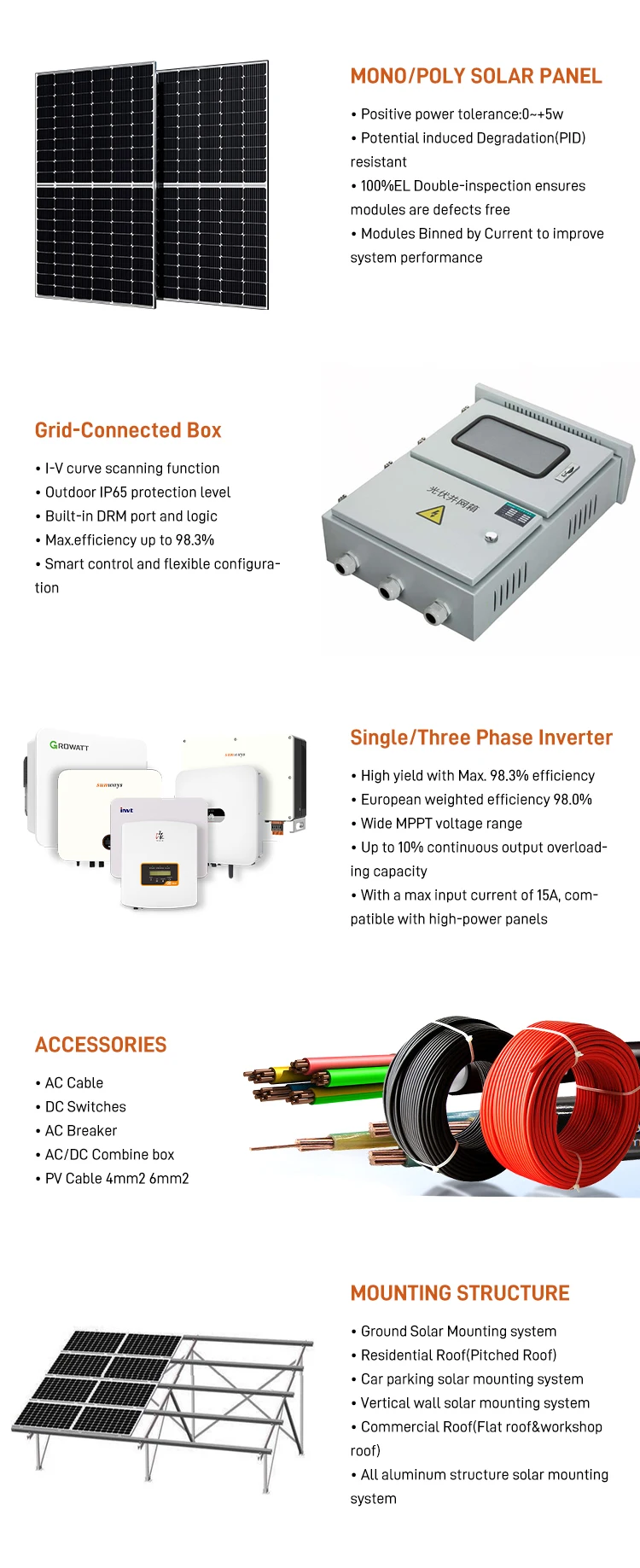

Products Description

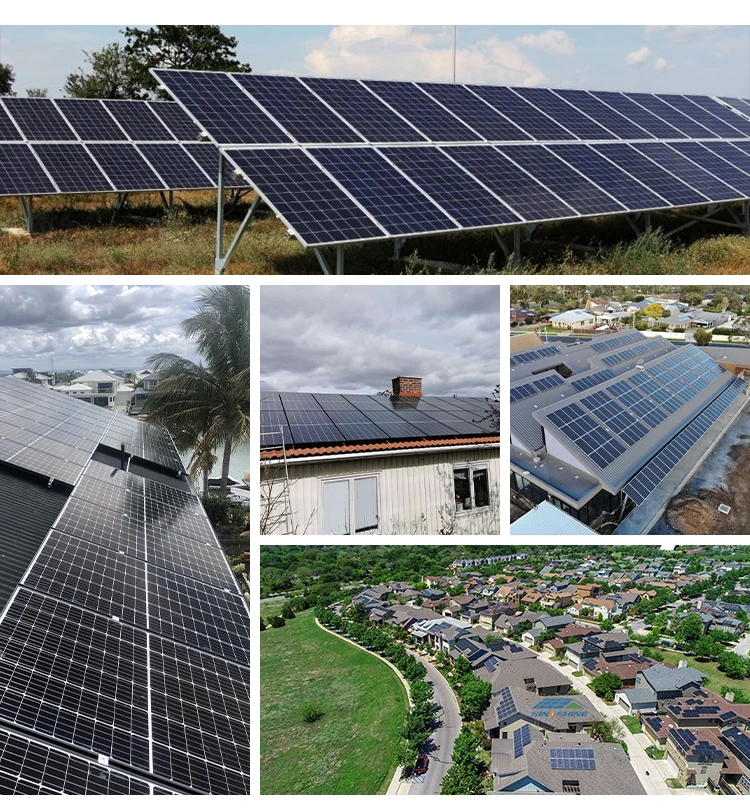

Project Case
Certifications

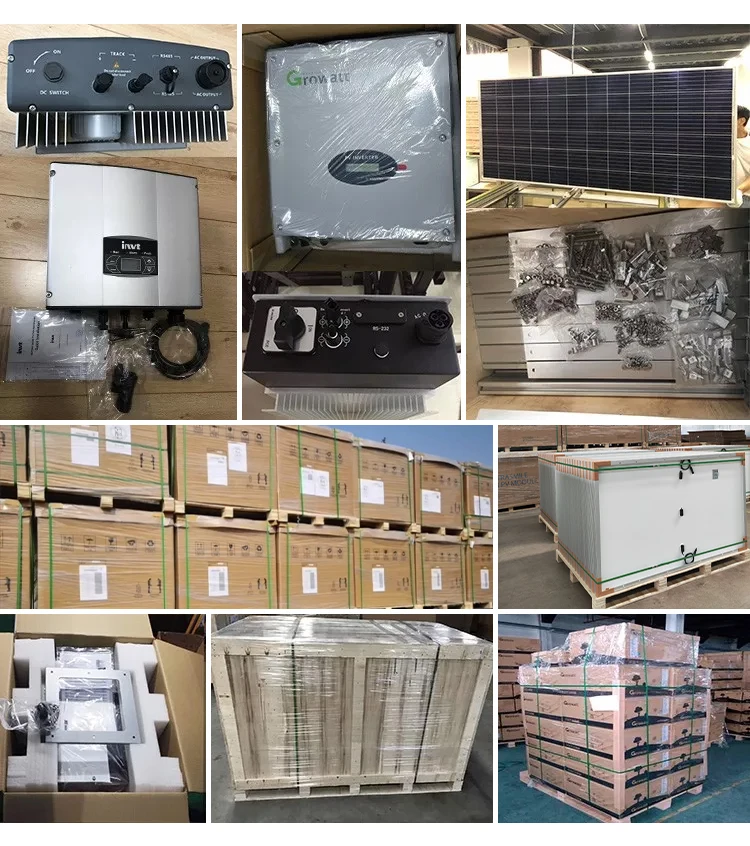

Packing & Delivery

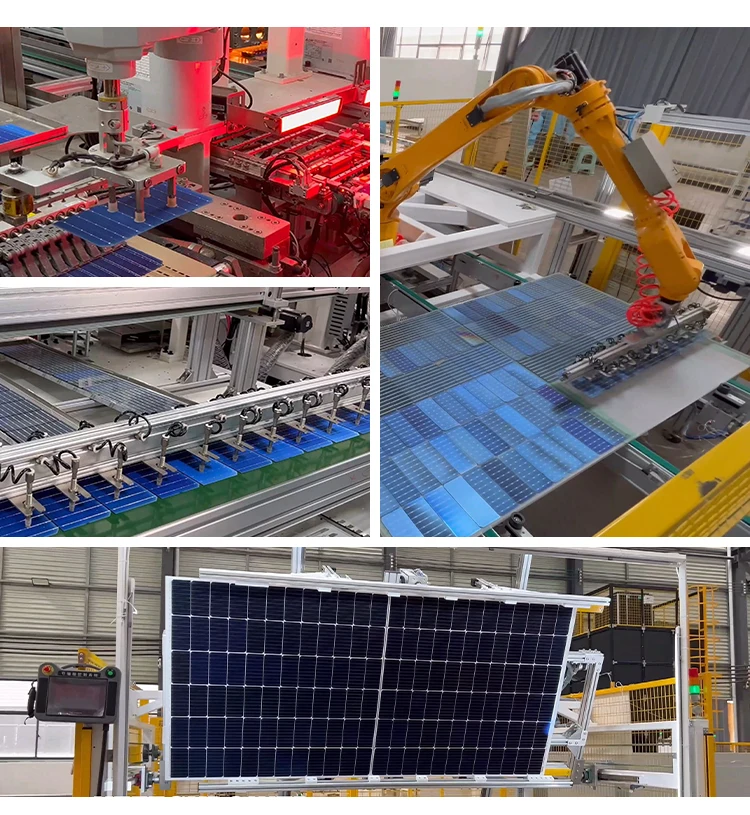

Company Profile
