High Quality India Washing Machine Motor & Spin Motor YYG 60w 70w 90w XD 120w 150w 180w
- Category: >>>
- Supplier: Ningbo Ezone Machinery Co. Ltd.
Share on (1601161826440):
Product Overview
Description

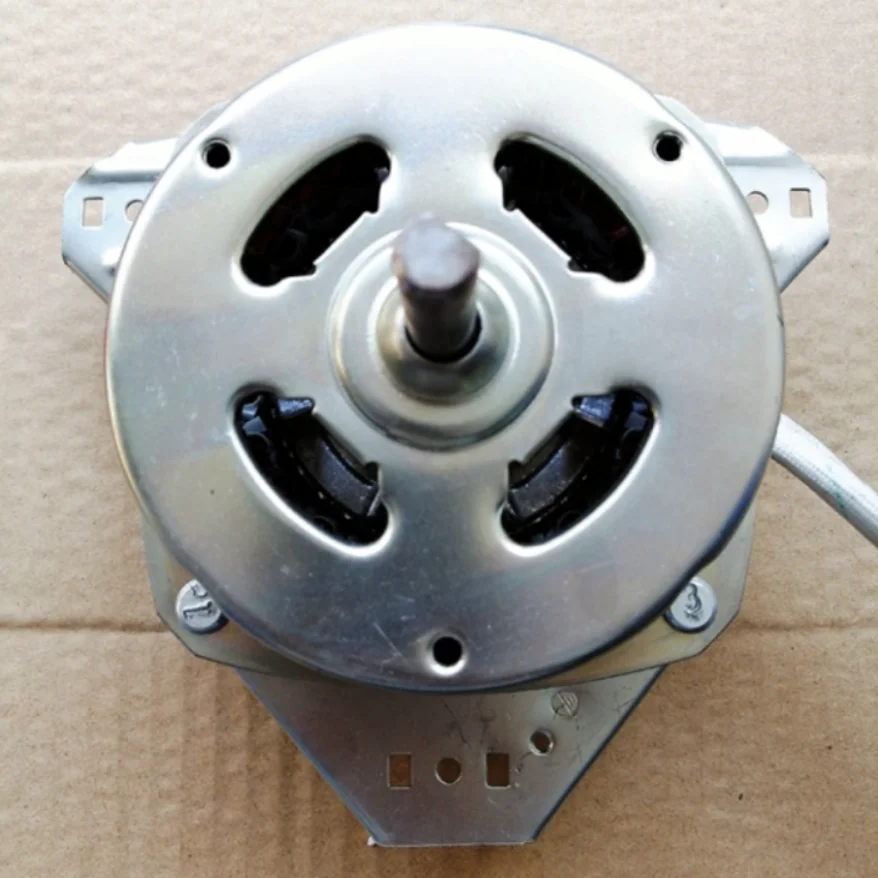

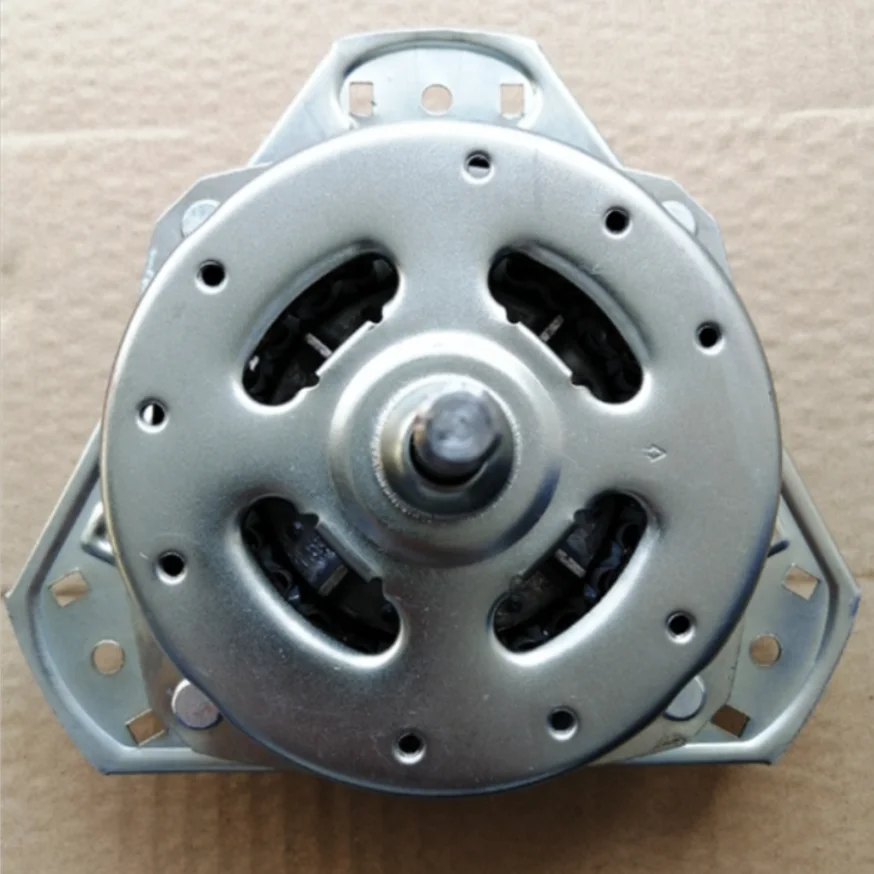

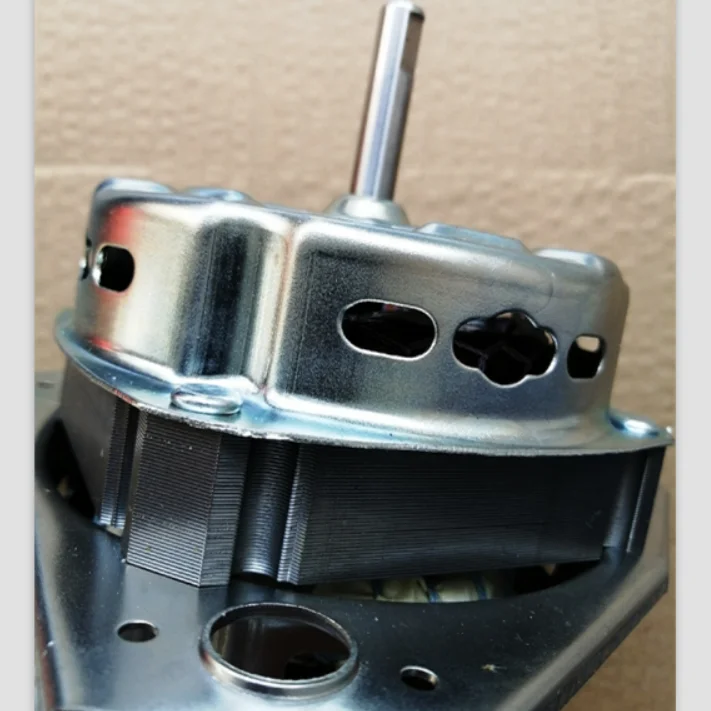

60w 70w 90w XD-120w 150w 180w Washing Machine Motor & Spin Motor
PRODUCT DESCRIPTION
| Rated Power | 60W | 70W | 90W | 100W | 120W | 135W | 150W | 180W |
| Rated Voltage | 220-240V | |||||||
| Rated Frequency | 50/60Hz | |||||||
| Rated Current | 0.7A | 0.85A | 1.0A | 1.05A | 1.15A | 1.35A | 1.45A | 1.70A |
| Capacitance | 5uF | 7uF | 8uF | 9uF | 10uF | 12uF | 13uF | 14uF |
| Insulation Grade | B or E Class | |||||||
| Number of Poles | 4 Class | |||||||
| Noise | <=48db | |||||||
| Character of Service | S1 | |||||||
| Ambient Temperature | 0-40 C | |||||||
| Altitude |
<=1000m | |||||||
CUSTOMIZATION
1-Shaft diameter or length can be any as customer s request
2-Stator height can be any from 22mm to 40mm.
3-Mounting holes size and distance can be any as customer s needs
4-Brackets can be either metal or aluminum. Its height can be changed.
5-Motor rotation direction can be CW or CCW.
6-The motors can be customized according to the different voltages, Frequency and rotation speed.

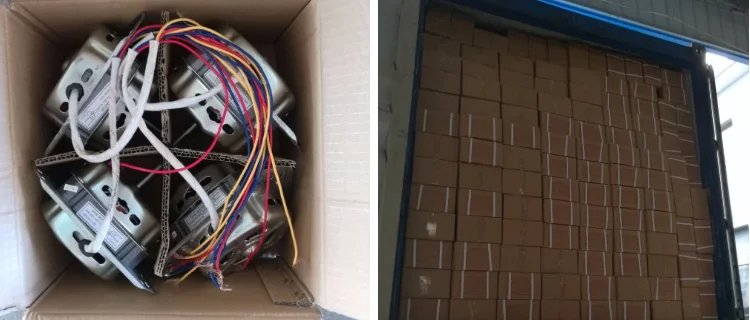

PACKAGING & SHIPPING

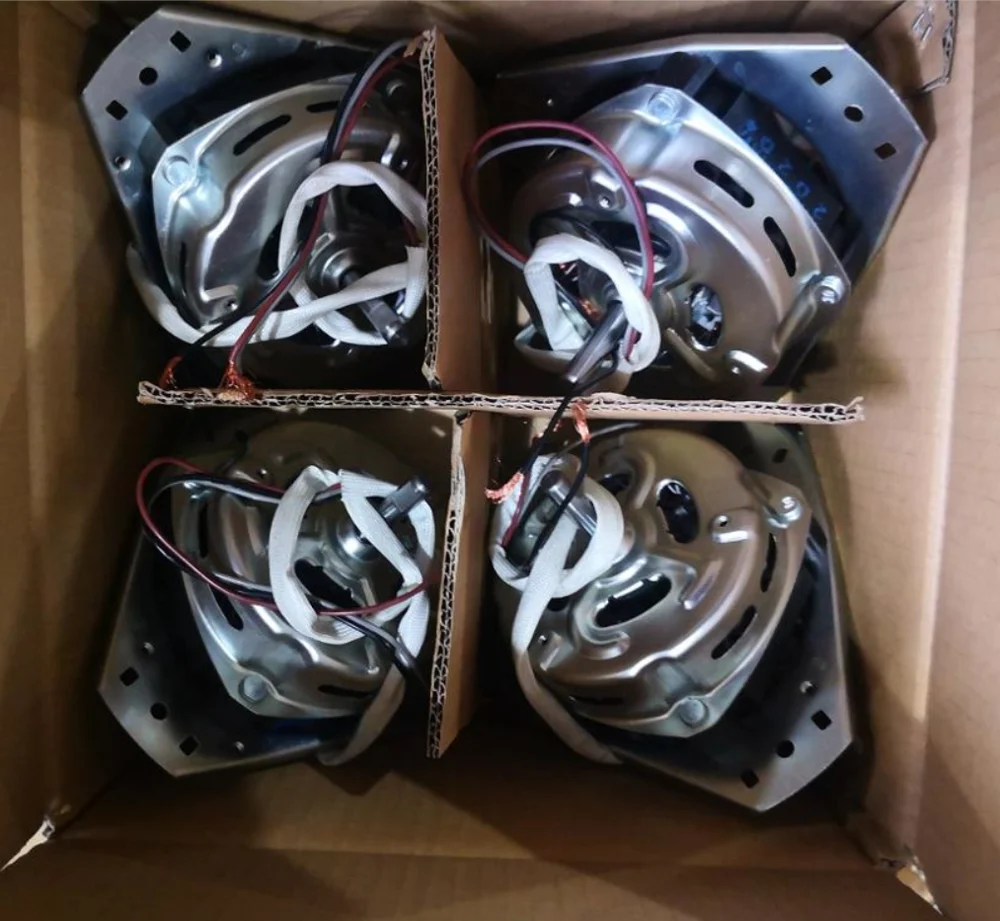

Packing details
1) in cartons (4pcs/ctn) Qty/20GP: 8600pcs (2100 cartons) about 20tons.
2) in pallets(180pcs/plt) Qty/40GP: 7200pcs (40 pallets) about 20tons.
3) in pallets (216pcs/plt) Qty/40HQ: 8640pcs (40 pallets) about 24tons.

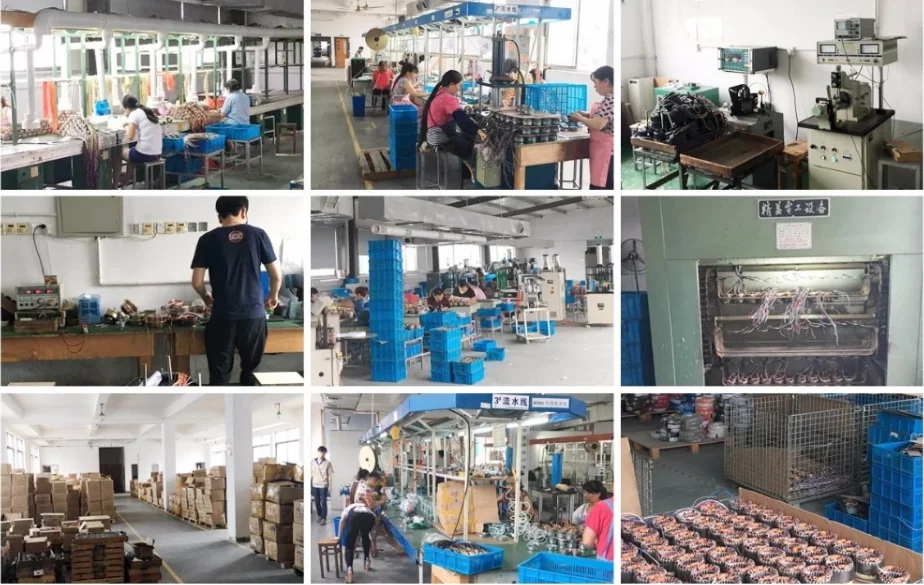

COMPANY INFORMATION
FAQ
Q: Can I get a sample before the order ?
A: Yes, We offer free sample to you, do not hesitate to send inquiry to get the free sample.
Q: How about your payment term and delivery time?
A: You can pay by T/T bank transfer or through alibaba , delivery time is around 20-25 days after advanced payment.
Q: Why you choose us ?
A: Good quality , Good sevice, Competitive price.
