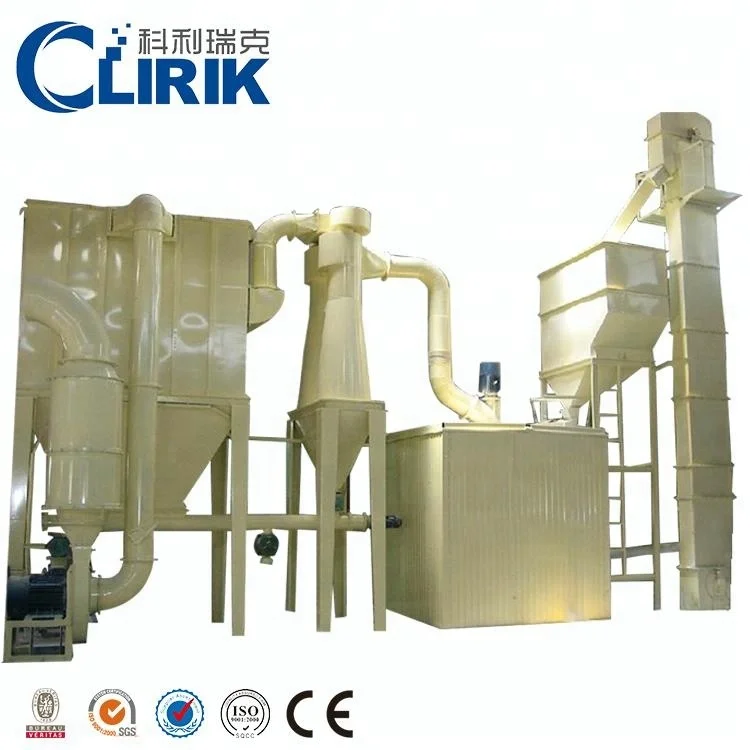

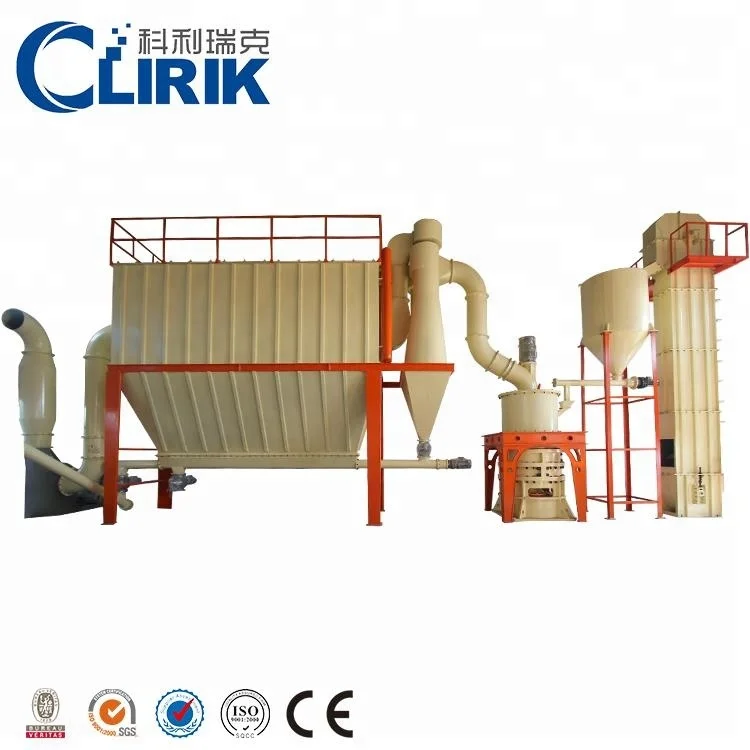

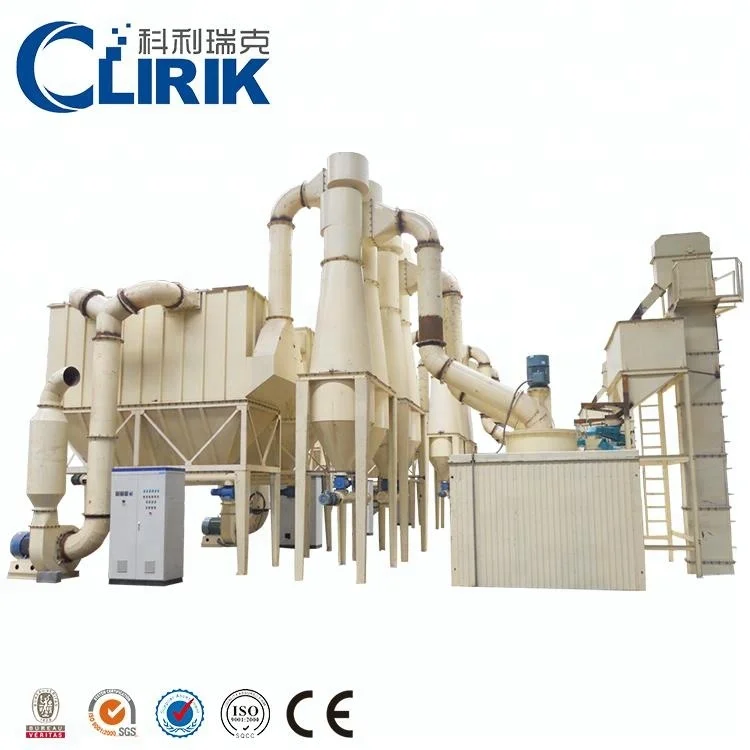

HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line
HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line

HGM80 Micro Powder Grinding mill machines is good calcium carbonate graphite limestone production line

Share on (1601161832572):


Price:$60,000.00 - $75,000.00

Quantity:


Product Overview

Description



Product Overview


Micro powder grinding mill
Micro powder grinding mill is designed by our R&D department on the basis of multiple innovation and testing, It has been proved by thousands of customers that our machine has outstanding features, stable quality,easy operation and maintenance.It is the ideal equipment for fine powder milling.


FEATURES AT A GLANCE


The yield is 40% higher than other mills.
High utilization rate of Wear material:2-5years.
Adjustable particle size:325-3000mesh.

High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
Closed system, so it is the green and ideal equipment for environment protection.





The host

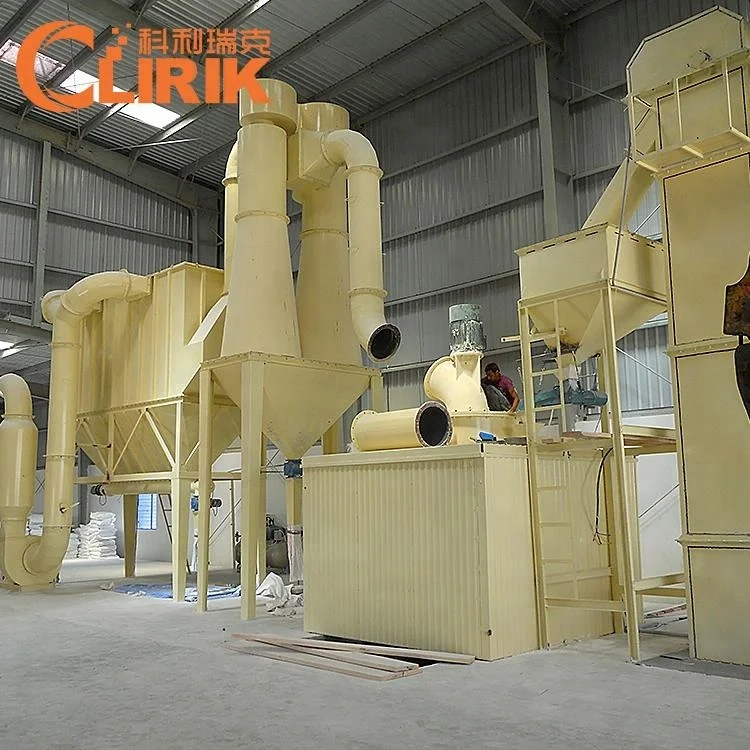

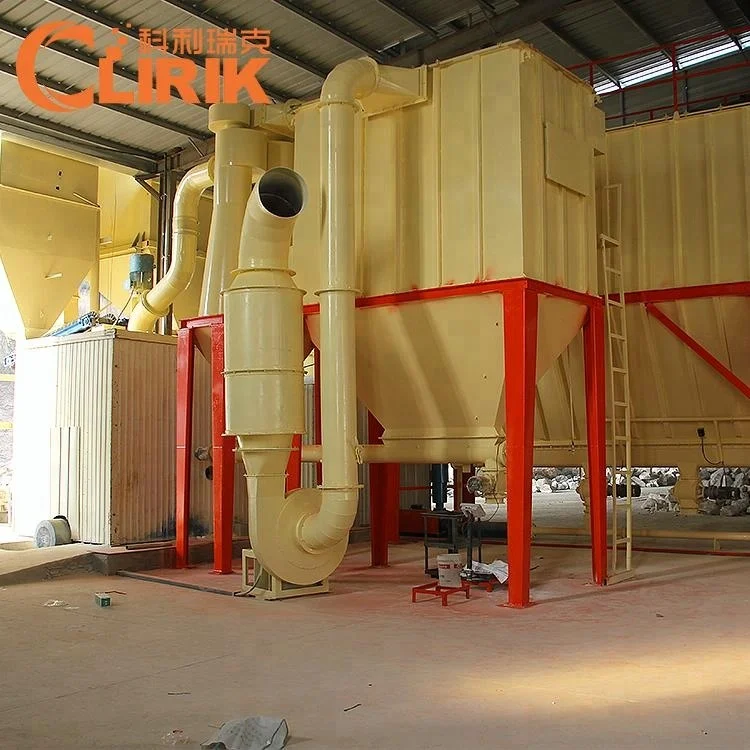

Indoor application scene
Outdoor application scenario


PRODUCT SPECIFICATIONS


Parameter 1



Model

HGM80

HGM90L

HGM100L-II HGM100P

HGM125L

HGM168L
Ring Diameter
(mm)
800
900
1000
1250
1680
Ring Number
(PCS)
3
3
4
4
4
Roller Number
(PCS)
18-21
24-29
28-36
30-40
30-44
Main Shaft Speed
(r. p. min)
230-240
200-220
180-200
135-155
120-130
Input Size
(mm)
≤20
≤20
≤20
≤20
≤20
Finished Size
(um/mesh)
74-5
(200-2500)
74-5
(200-2500)
74-5
(200-2500)
100-8
(150-2000)
100-9
(150-1500)
Capacity
(t/h)
0.5-5.5
0.8-6.5
1.2-10
1.2-11
2.5-20
5-45
Outlet Size L*W*H
(m)
15.1*4.2*7.3
18.4*3.9*7.8
22.7*3.6*8.5
27.3*4.2*9.9
31.7*7.7*12.6
Note:The capacity is based on the domesitlc CaCO3 Powder factory's feedbackNote:The capacity is based on the domesitlc CaCO3 Powder factory's feedback


Parameter 2


Unit KW
HGM80
HGM90L
HGM100L-II HGM100P
HGM125L
HGM168L

Main Unit
75
2*45
132-150
185-200
315

Classifier
18.5
18.5-30
30-37
75
132

Blower
45
55
75
2*45-2*55
2*75-2*90

Crusher
18.5
18.5
18.5
45
75

Bucket Elevator
3
3
4
4
7.5

BeltConveyor Feeder
1.5
1.5
1.5
1.5
2.2

Discharging Valve
2*0.75
1.1
1.1
1.5
2*1.5

Air compressor
11
15
22
37

55
Note:For the data with prefix such ad "2xx",which means there are two same motors configured for one item


Other Products offered


Ultrafine Vertical Roller Mill
Finished Size: 600-4500(mesh）Capacity: 3-20(t/h)
Pass rate: D50 2 micron

High Pressure Suspension Grinding Mill
Finished Size: 50-450(mesh）
Capacity: 1-28(t/h)
Pass rate: D90 30 micron
Coating Machine
Used to stone powder modification machine


SALES AND SERVICE NETWORK




Company Profile


Company introduction:
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent,standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.


what can we do for you?




Services For You:
1.one year guarantee for whole machine except for wear parts.

2.24 hours technical support by email.

3.calling service.

4.user manual available.

5.reminding for the service life of the wearing parts.

6.installation guide for clients from both China and abroad.

7.maintance and replacement service.

8.whole process trainling and guidance from our technicians.
High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.


The factory
Our factory has a professional R & D team and advanced production equipment
Customer visiting
Customer site visit, visit our sample workshop
Technical support
Provide technical support service after purchasing mill equipment.
