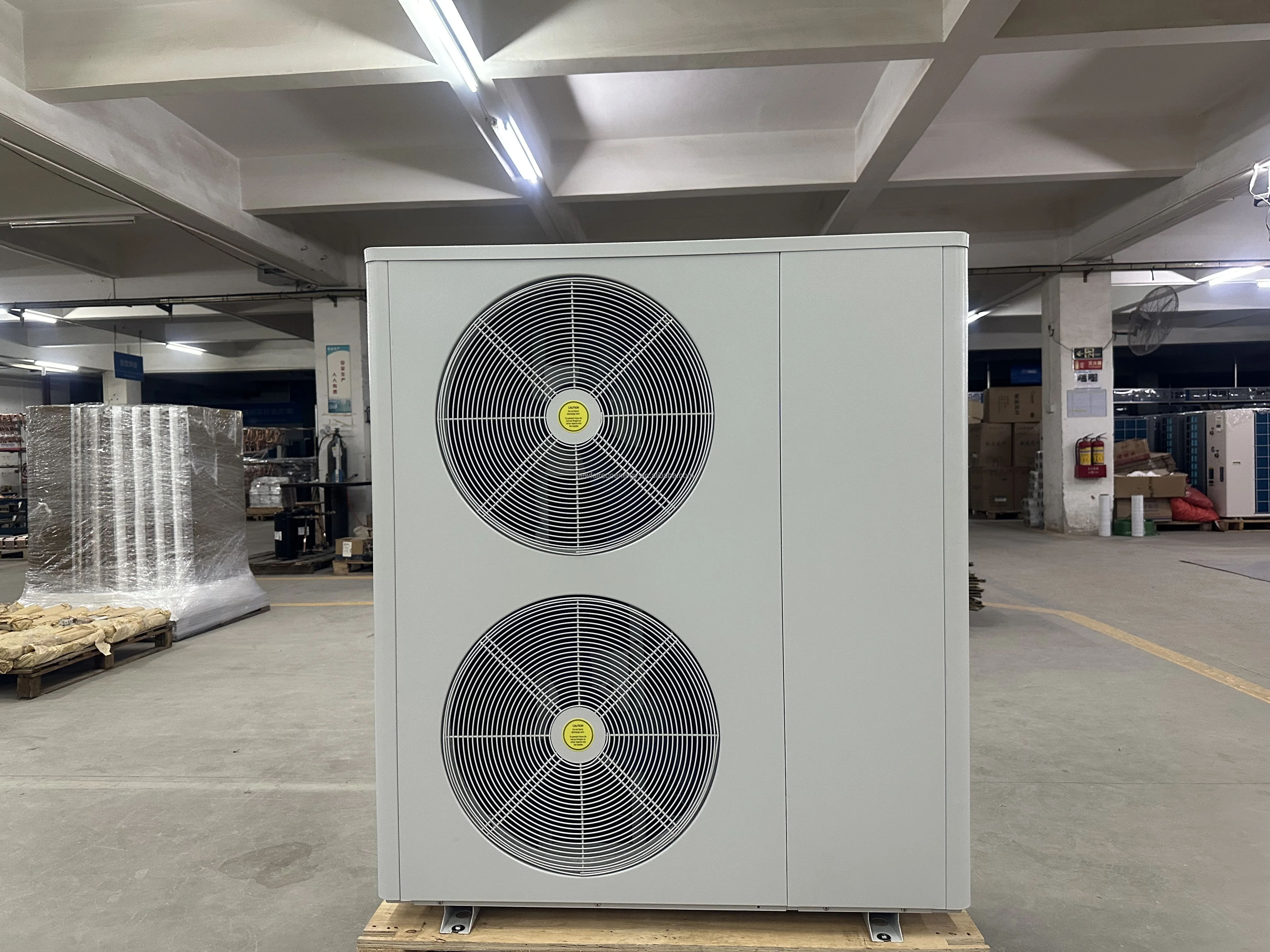

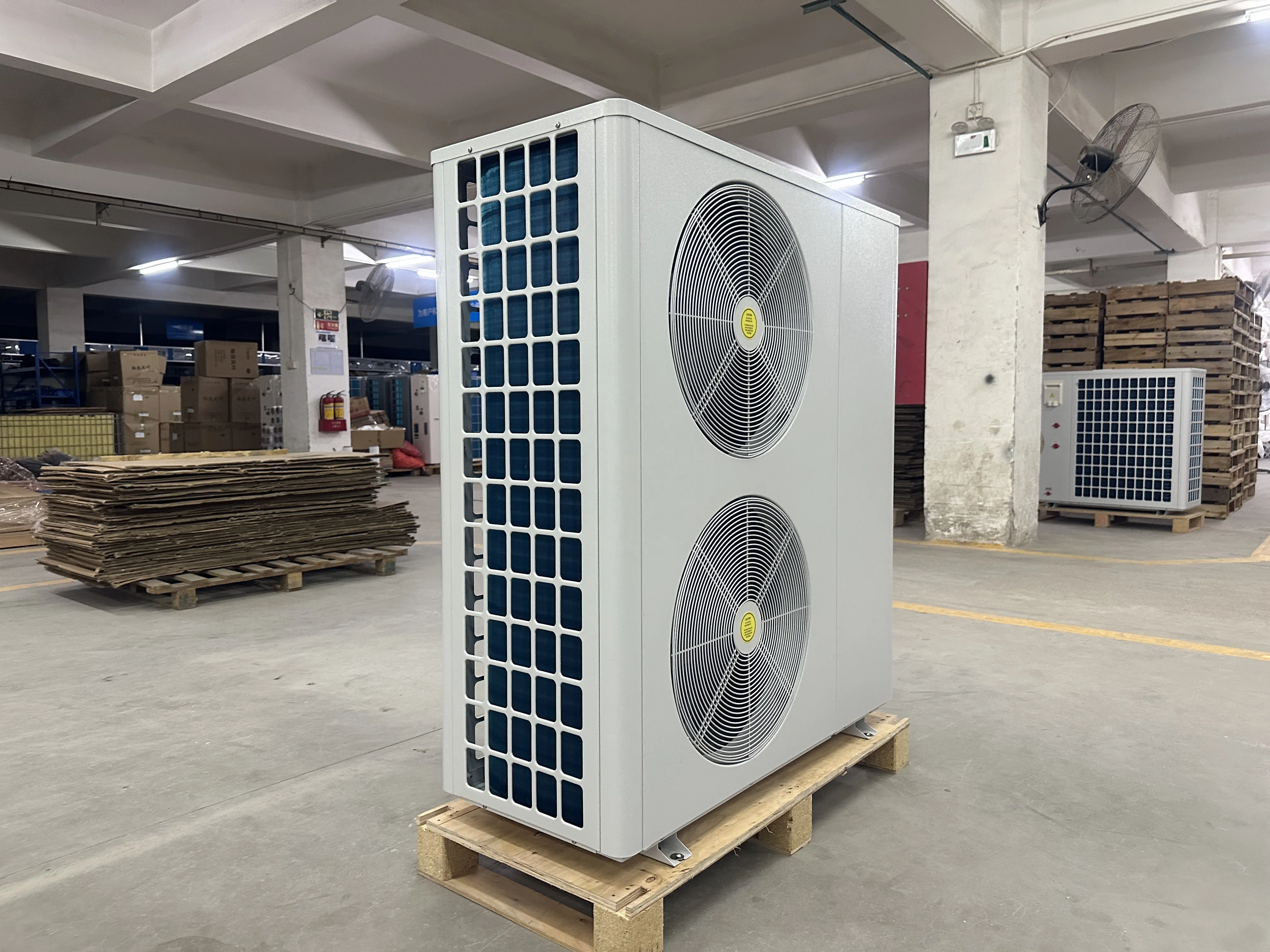

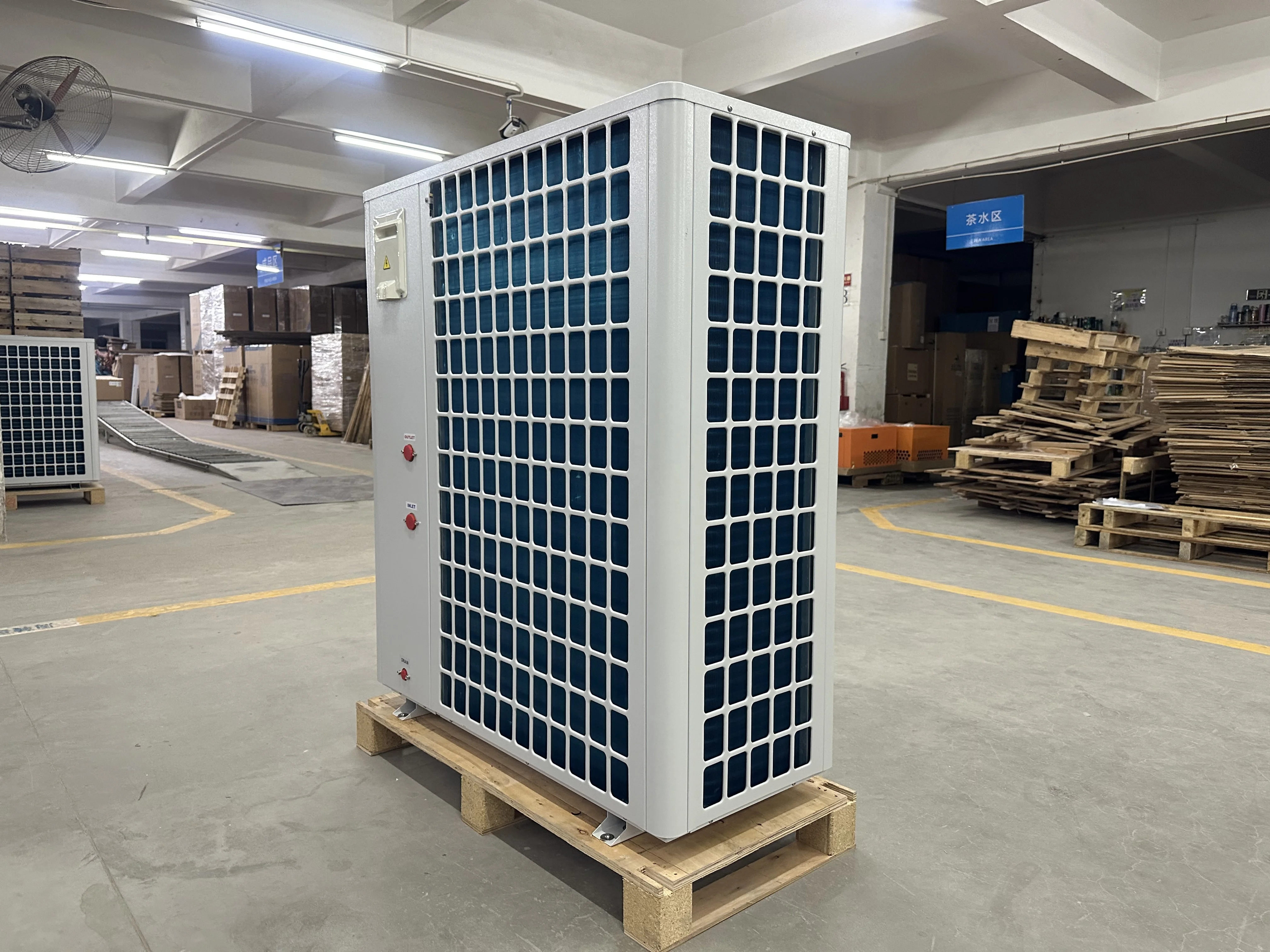

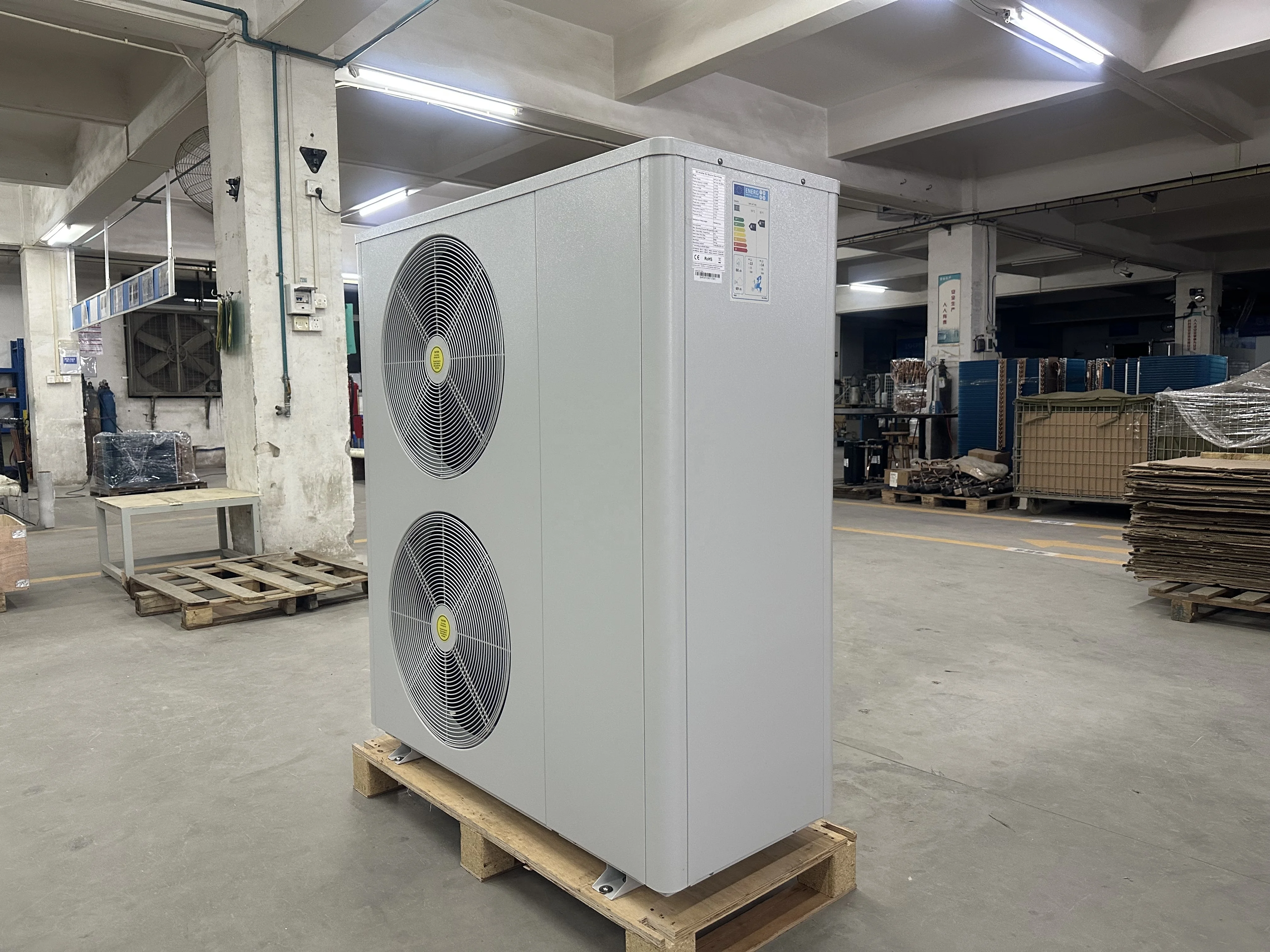

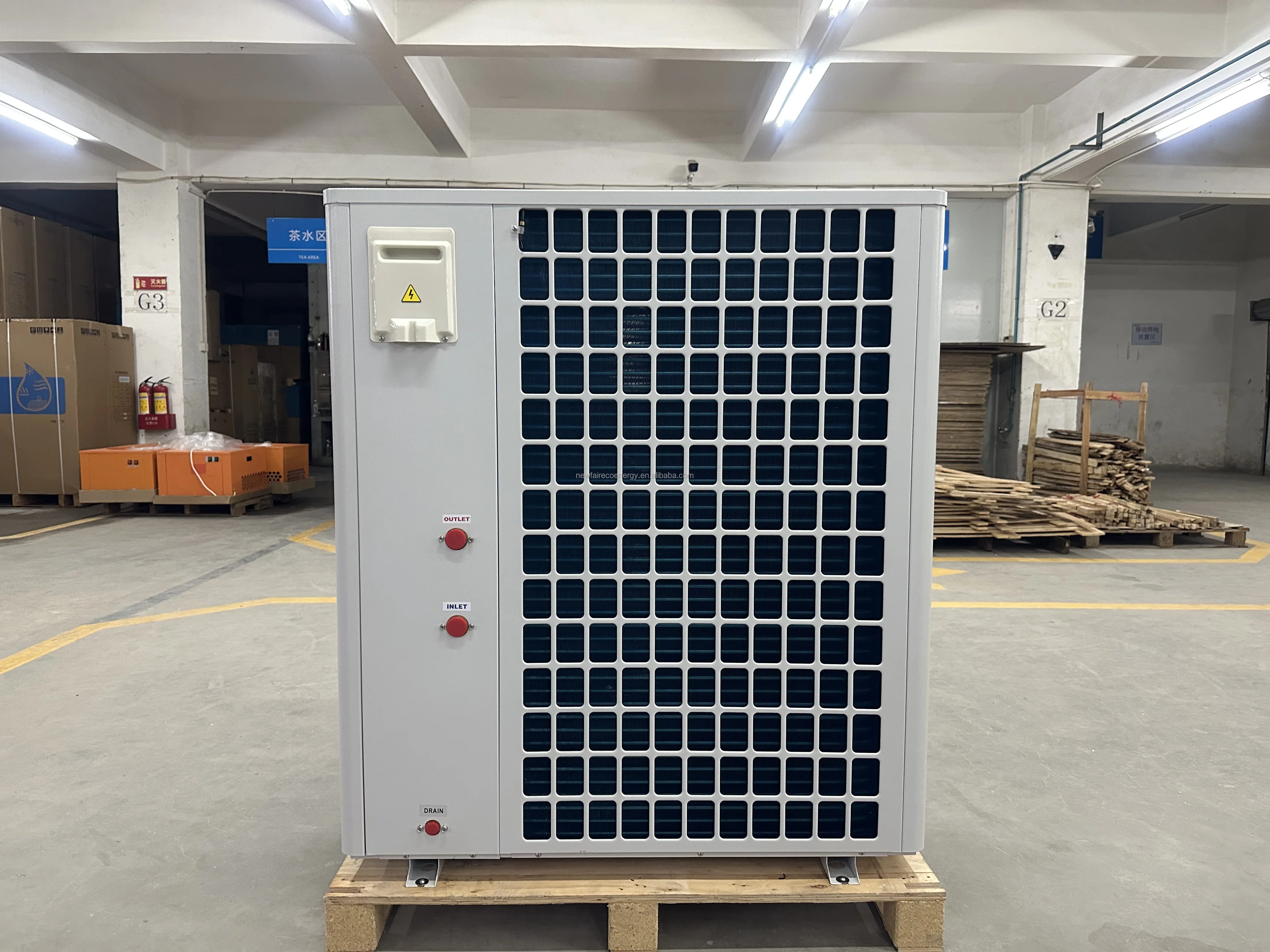

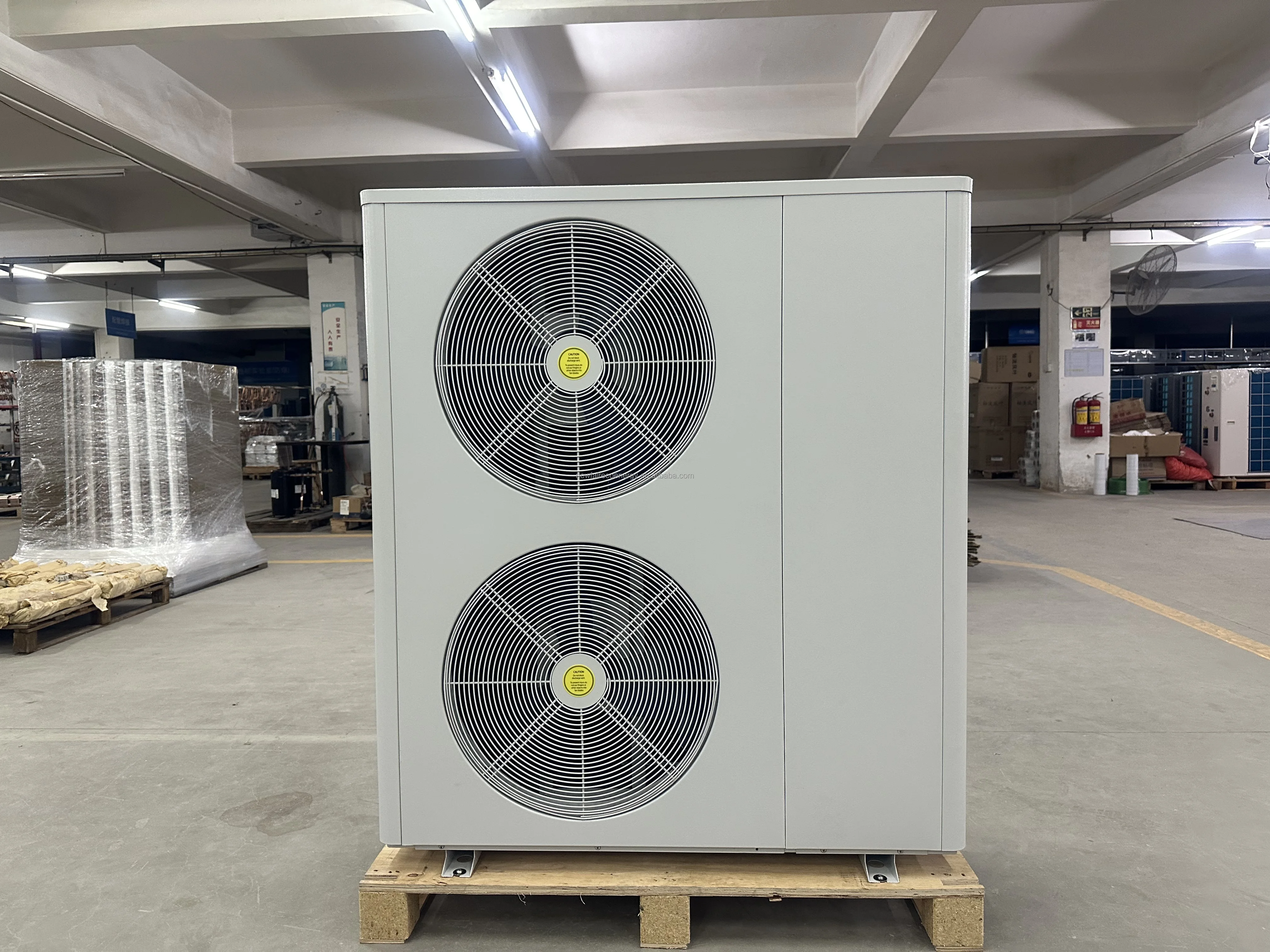

2024 20KW Swimming Pool Heat Pump Pana sonic Mitsubishi Compressor Water Heater DC inverter R32 monoblock
- Category: >>>
- Supplier: Kolant Heat Pump Manufacturing Co. Limited
Share on (1601161836638):
Product Overview
Description
DETAILED SPECIFICATIONS
Model No. | NFE 12VIN | NFE 20VIN | ||
Heating A 7℃ W 30/35℃ | Capacity (KW) | 9.71 | 15.87 | |
Rated Input (KW) | 2.16 | 3.22 | ||
COP | 4.49 | 4.96 | ||
Heating A 7℃ W 55℃ | Capacity (KW) | 9.60 | 15.13 | |
Rated Input (KW) | 3.14 | 4.71 | ||
COP | 3.05 | 3.21 | ||
Cooling A35℃ W 7℃ | Capacity (KW) | 8.50 | 13.50 | |
Rated Input (KW) | 2.54 | 3.85 | ||
EER | 3.35 | 3.51 | ||
Seasonal Space Heating Energy Efficiency Class | LWT at 35℃ | A+++ | ||
LWT at 55℃ | A++ | |||
Max. Outlet Water Temperature | ℃ | 60 | ||
Rated Current (Max.) | A | 22 | 32 | |
Rated Power Input (Max.) | KW | 4.80 | 6.80 | |
Rated Water Flow Rate | m³/h | 1.69 | 2.73 | |
Power Supply | V/Hz | 220 - 240V / 50Hz | ||
Refrigerant | R32 | |||
Compressor | Pana-sonic | MIT-SUBISHI | ||

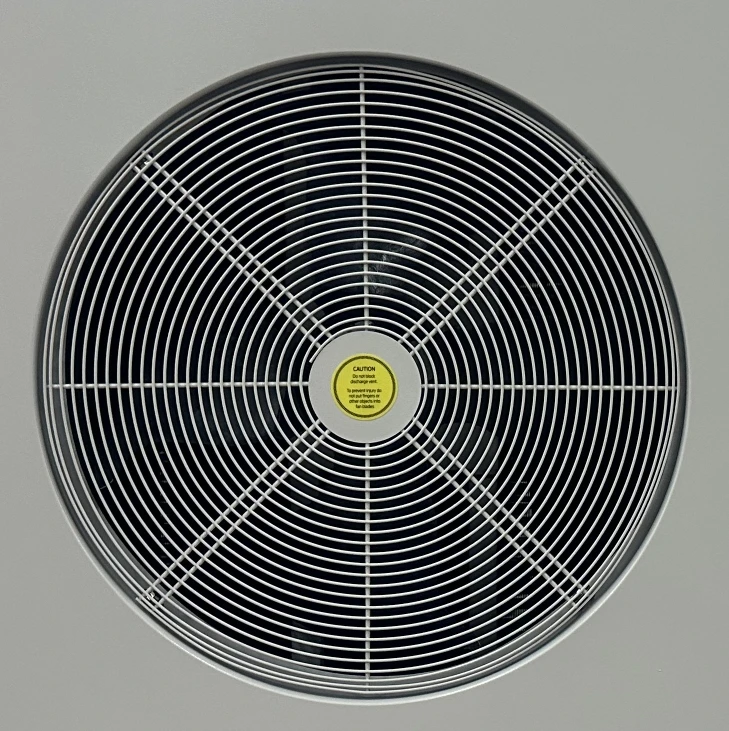

Outdoor Fan | Brushless DC Motor | |||
Minimum Noise | dB(A) | 56 | 60 | |
Operating Temperature | ℃ | -25 ~ 43℃ | ||
Weight（kg） | 106 | 140 | ||
Dimensions | CM | 116*42*86 | 105*37*140 | |
PRODUCTS DESCRIPTION
Ultra-Low Temperature Air Source Heat Pump for Home-Use

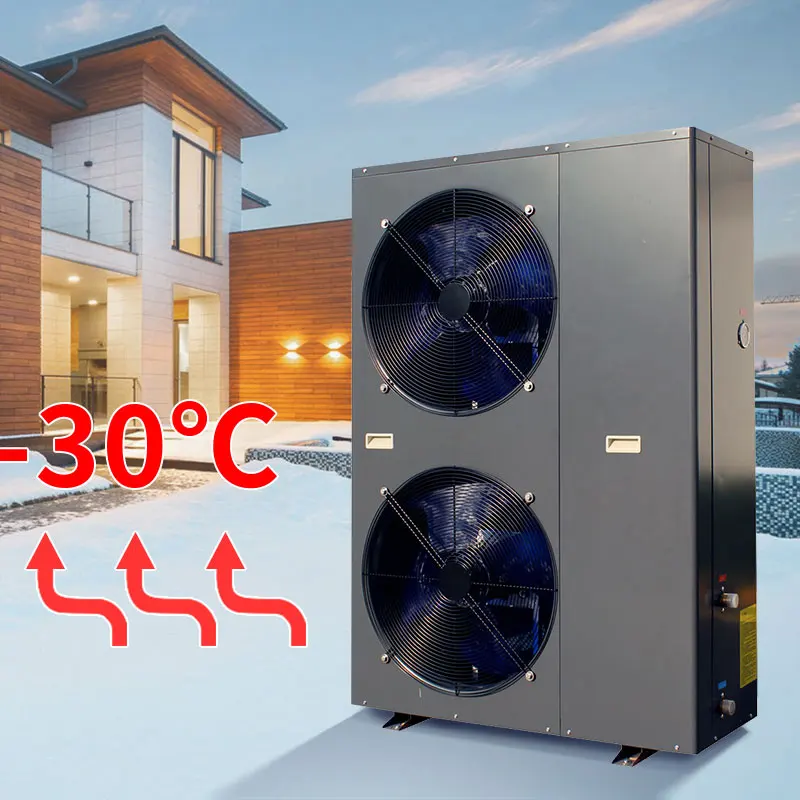

Ultra-low operating temperature: as low as -30 ℃.

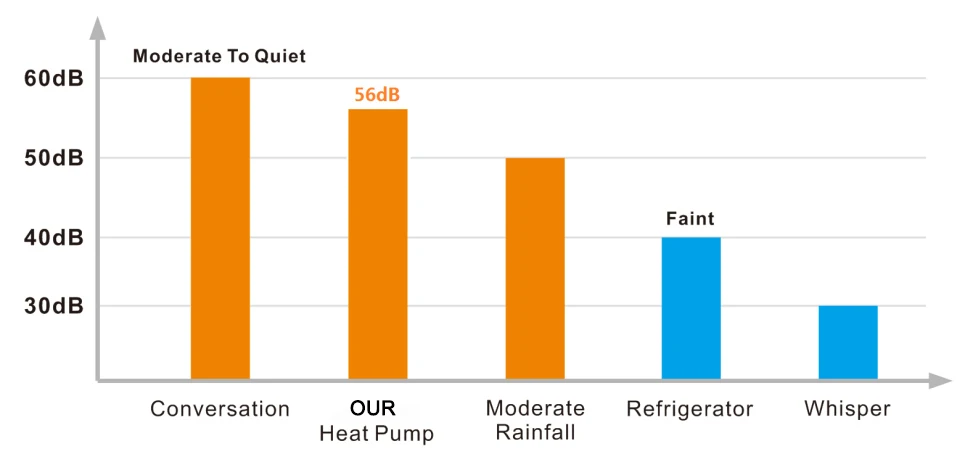

The machine uses double vibration reduction technology, equipped with brushless DC EVI fan and compressor to reduce the noise.
SUPER ENERGY SAVING

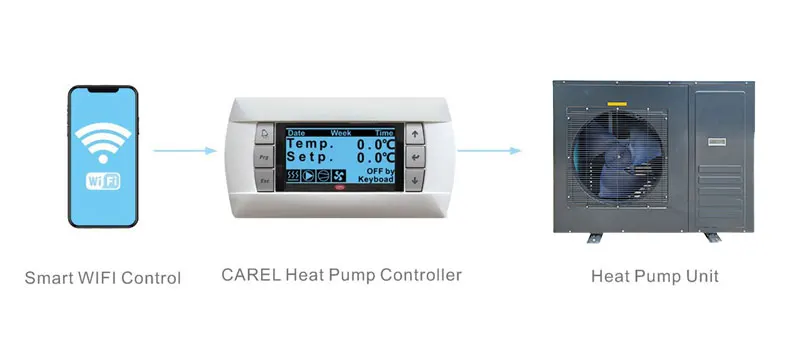

CAREL WIFI REMOTE CONTROLLING SYSTEM
Controlling Temperature by Your Fingertips
DETAILED IMAGES
Carefully Selected Core Parts
Carel remote Wifi controller
Copeland Scroll compressor
U-shaped corrugated fin evaporator
Vertical heat exchanger
4 ways reversing valve
R32 refrigerant
PROJECT CASES
JiZe County Gym Centre
Luliang County Gym Centre
Prada Gym Club in Nanjing
Grand Skylight International Hotel Guanlan
Sheraton Kunming
DoubleTree by Hilton Shenzhen Nanshan Hotel & Residences
Gothenburg house, Sweden
Hofen house,Iceland
Interlaken house Switzerland
Supetar Croatia swimming pool
Swimming pool in Edinburgh, UK
Swimming pool in The Hague, Netherlands
Tangshan Oriental Bilingual School
Nanhai Experimental Middle School
The Affiliated Middle School of Jining university
ABOUT US
An Energy Saving Researcher and Manufacturer Since 2006

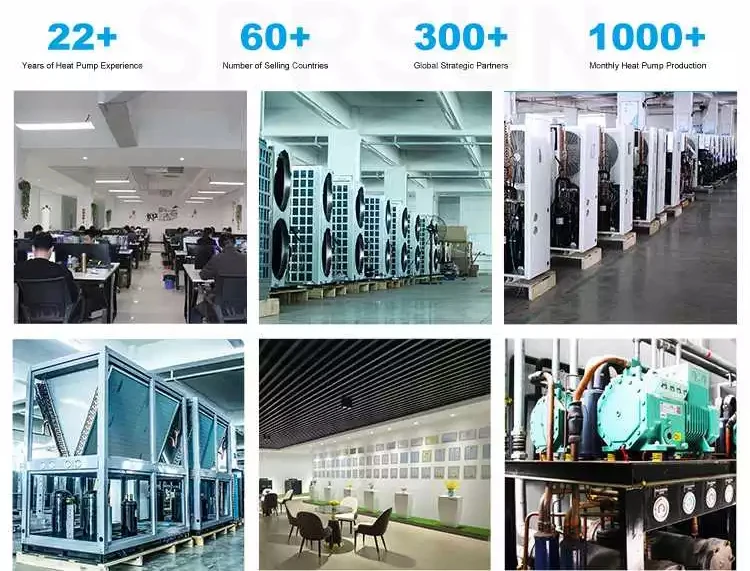

Established in 2006, Kolant Heat Pump Manufacturing Co., Limited stands as a pioneer in manufacturing Swimming Pool Heat Pumps, House Heating Heat Pumps, and Heat Pump Water Heaters in China. With a steadfast focus on air source products, we have secured over 82 product patents and garnered a range of industry certificates and accolades. Setting new standards, we introduced the industry's premier ultra-low temperature testing laboratory in 2007, capable of reaching temperatures as low as -35℃. Our cutting-edge facility boasts 6 fully automated assembly lines outfitted with state-of-the-art temperature controllers sourced from Siemens Germany. Committed to excellence, our service team comprises 122 seasoned electrical HVAC engineers and 48 skilled PLC/controlling APP programmers, dedicated to delivering top-notch service to our esteemed OEM/ODM clients.
An Award Winning Company
Since 2008, we have proudly acquired 82 product patents and an array of esteemed industry certifications, such as CE, TUV, KETI, China National Industrial Production License, ISO9001, ISO45001, CRAA, and "Environmental Engineering Construction Qualification Level 3." Our commitment to excellence has not gone unnoticed, as we have been recognized with several prestigious awards, including the 'China Hot Spring SPA Annual Conference Influential Brand in 2019.' In 2018, we were honored with titles such as 'China Refrigeration and Air Conditioning Equipment Industry Alliance Manufacturer,' 'Premier Supplier of Ever Grande (China’s Biggest Real Estate Developer),' and 'Liansheng Cup Hot Spring Pool Annual Conference Industry Recommending Brand.' In 2017, we were lauded as the 'Heat Pump Industry Recommended Brand.
We Care About Details
Each product undergoes a rigorous 100% inspection and testing process prior to delivery, encompassing four meticulous steps: raw material inspection, on-line inspection, function test & final inspection.
Comprehensive Performance Lab
Function Test
Leaking Detection Room
Why Choose Us
1. With around 20 years of manufacturing expertise.
2. Our team comprises 122 seasoned electrical HVAC engineers and 48 skilled PLC/controlling APP programmers.
3. There are 6 fully automated assembling lines.
4. Core parts coming from Copeland-Scroll, Pana-sonic, Mit-subishi, and Sie-mens.
