felicity 6kW High frequency 6000VA Three Stage Charging Control Pure sine wave Inverter Off grid Solar Inverter
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.Guangzhou Ltd.
Share on (1601161891219):
Product Overview
Description
To become a distributor or agent of Felicitysolar, please contact us！！！
We can ship from 30+ oversea branches in the United States, the European Union, Nigeria, South Africa, the Philippines,Myanmar, Dubai, Mali... and provide fast transportation services. If you need it, please click here to contact us directly.
Features
● Parallel connection quantity up to 12 units for 6KVA model (Battery must be connected)
● Configurable battery charging current based on applications via LCD setting.
● Configurable AC/Solar Charger priority via LCD setting.
● Compatible to mains voltage or generator power.
● Built-in MPPT solar charge controller.
● Lithium battery activation function.
● Auto restart while AC is recovering.
● Inverter running without battery.
● Pure sine wave inverter.
● Cold start function.
● Configurable battery charging current based on applications via LCD setting.
● Configurable AC/Solar Charger priority via LCD setting.
● Compatible to mains voltage or generator power.
● Built-in MPPT solar charge controller.
● Lithium battery activation function.
● Auto restart while AC is recovering.
● Inverter running without battery.
● Pure sine wave inverter.
● Cold start function.
Model | IVEM6048 | |
Line Mode Specifications | ||
Rated Output Power(VA) | 6000VA | |
Rated Output Power(W) | 6000W | |
Nominal DC Input Voltage | 48V | |
Nominal Input Voltage | 230Vac | |
Max. AC Input Voltage | 280Vac | |
Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | |
Efficiency(Line Mode) | >95% (Rated R load, battery full charged) | |
Pass Through Without Battery | Yes | |
Utility Charge Mode Specifications | ||
Input Voltage Range | 230Vac | |
Over Charge Protection | Yes | |
Inverter Mode Specifications | ||
Output Voltage Waveform | Pure sine wave | |
Nominal Output Voltage | 230Vac±5% | |
Nominal Output Frequency(Hz) | 50±0.3Hz/60Hz±0.3Hz(Adjustable) | |
Parallel capability | Yes, up to 12 units | |
Peak Efficiency | 93% | |
General Specifications | ||
Operating Temperature | 0°℃~55℃ | |
Range Storage Temperature | -15C~60°C | |
Net Weight(KG) | 11.5KG | |

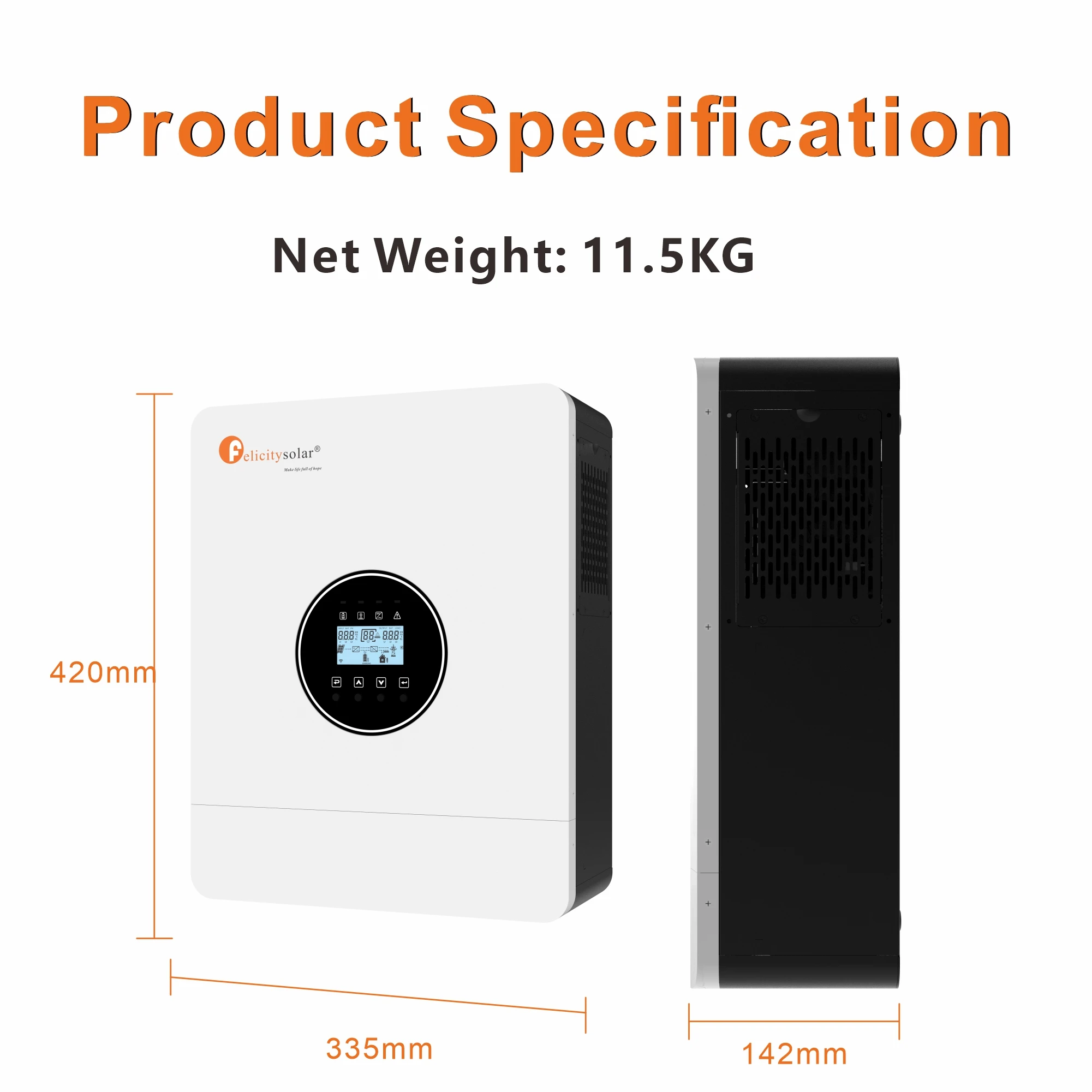

Product Dimension(MM) | 420*335*142MM | |
Package Dimension(MM) | 512*417*216MM | |

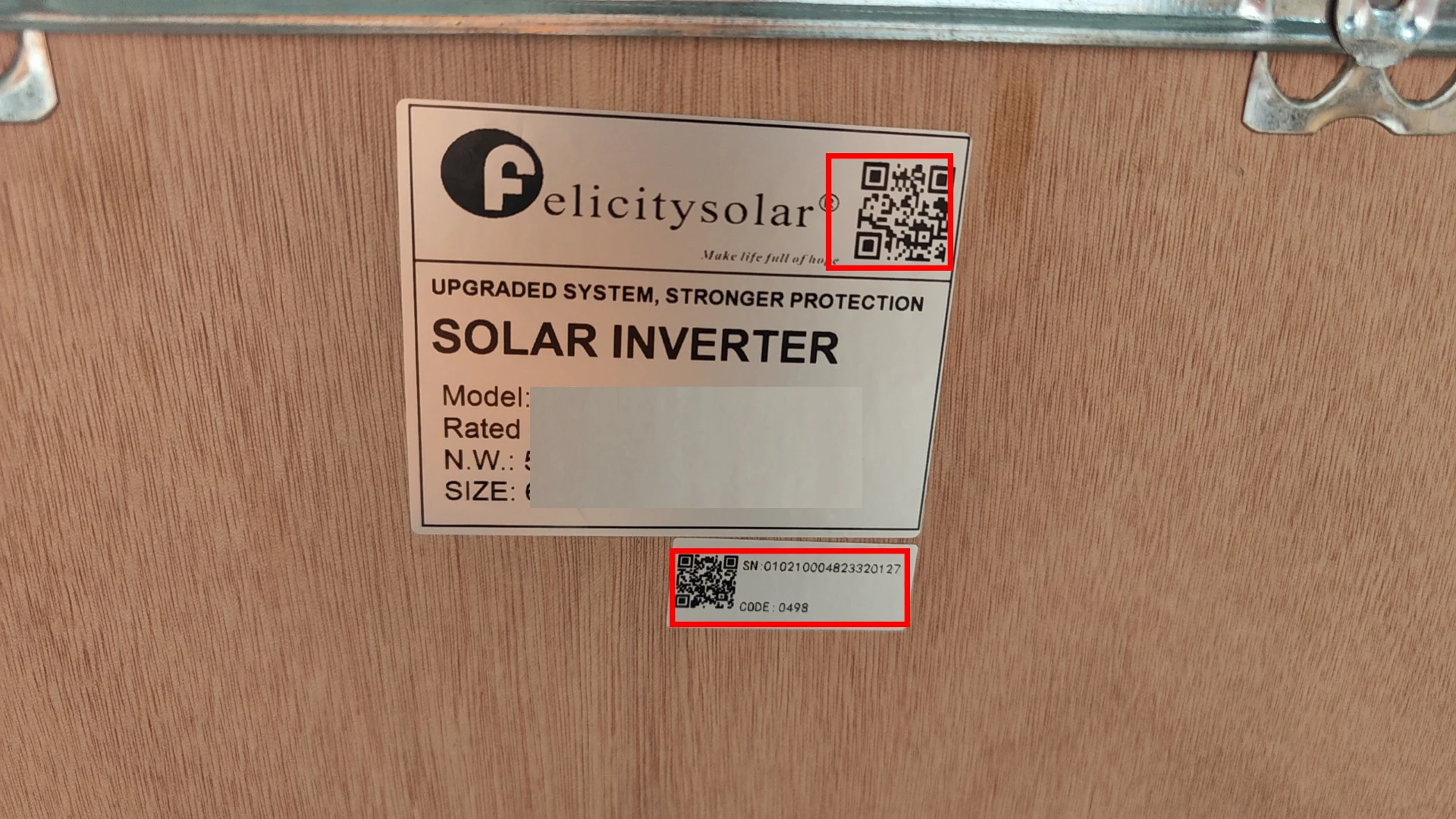

100% genuine high quality A-grade solar inverter with factory QR code on it. Not fake or used or bad quality inverter!!!
Felicity solar is the best supplier for you:
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.
*OEM/ODM services are acceptable. We can customize products according to your requirements, ensuring 100% of the quality you expect.
*Provide fast transportation services. There are 30+ oversea branches in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.
*High quality local after-sales service. If there is a problem with the product, we have professional after-sales technical engineers in 30+ countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.
*Alibaba TUV Verified Supplier. Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009
If you are interested in our products or services, please come to contact us immediately！
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.
*OEM/ODM services are acceptable. We can customize products according to your requirements, ensuring 100% of the quality you expect.
*Provide fast transportation services. There are 30+ oversea branches in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.
*High quality local after-sales service. If there is a problem with the product, we have professional after-sales technical engineers in 30+ countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.
*Alibaba TUV Verified Supplier. Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009
If you are interested in our products or services, please come to contact us immediately！
