High Quality mining drilling rig equipment machine integrated Rotary Drilling Rig in Stock
- Category: >>>
- Supplier: JJEM TRADINGJJEM TRADING
Share on (1601161940524):
Product Overview
Description
Product Description

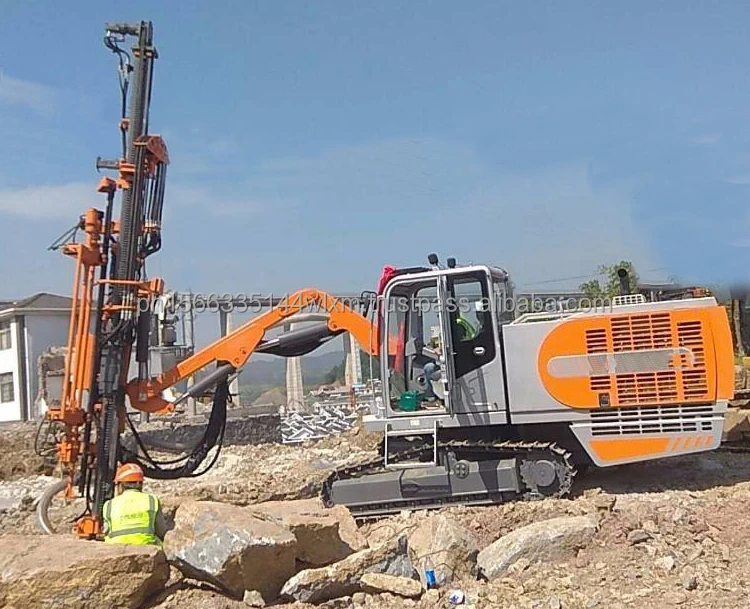

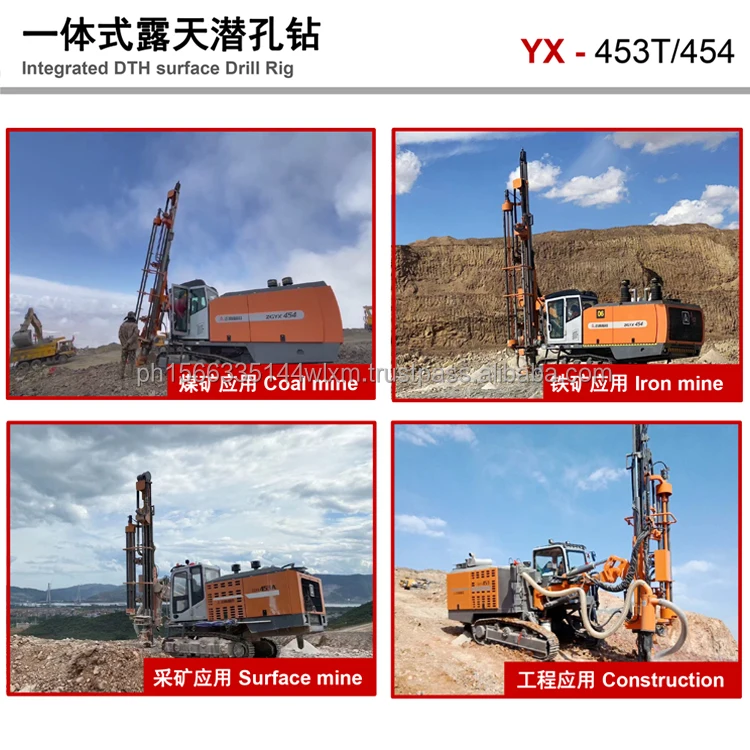

The blasthole drill rig is a kind of heavy drill equipment with air compressor built-in. Its diesel engine is Yuchai brand 59kw very powerful for 20m hole with diameter 90-130mm. The DTH surface drilling rig is used at front-line sites such as lime mines, metal mines, quarries, for civil engineering work and construction.
Specification
ZEGA D480A | ZEGA D460A | |||
DieselEngine | ||||
Model | QSZ13 | QSL8.9 | ||
Brand | Cummins(DCEC) | Cummins(DCEC) | ||
Rated Power | 410kW | 264 kW | ||
Rotation Speed | 1.800rpm | 1,900 rpm | ||
Capacity of Fuel Tank | 750L | 750 L | ||
Screw Compressor | ||||
Air End Manufacturer | DG | JIUE | ||
Model | DGH200G1 | GE825 | ||
F.A.D | 30m3/min | 19 m/min | ||
Working Pressure(Max.) | 25bar | 21 bar | ||
Functional Specifications | ||||
Hole Range | 152-230mm | 115-152 mm | ||
Hole Depth | 35m | 35 m | ||
Drill Pipe Diameter | 114mm(可选102mm) | 102 mm | ||
Drill Pipe Handling System | 4+1 | 6+1 | ||
Hammer | 6"/8" | 4/5/inch | ||
Rotation Speed | 0-80rpm | 0 -105 rpm | ||
Rotation Torque | 5,600N.m | 4,435 N.M | ||
Drill Pipe Length | 7m | 5 m | ||
Chassis | ||||
Tramming Speed | 3km/h | High:3 km/h,Low: 1.5 km/h | ||
Traction force | 156.2kN | 67.6 kN | ||
Climbing Ability(Max.) | 25° | 25° | ||
Track Oscillation | ±10° | ±10° | ||
Ground Clearance | 420mm | 420mm | ||
Weight&Dimensions | ||||
Weight (kg) | 25,000 | 22,000 | ||
Size (mm) | 11560x2700x3560 | 2700x11550x3560 | ||
Installation Instructions

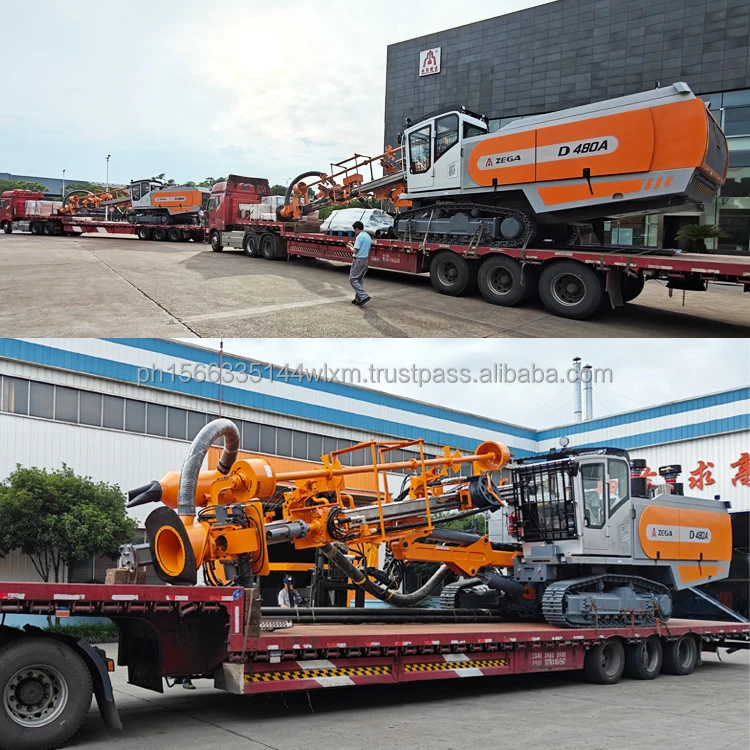

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

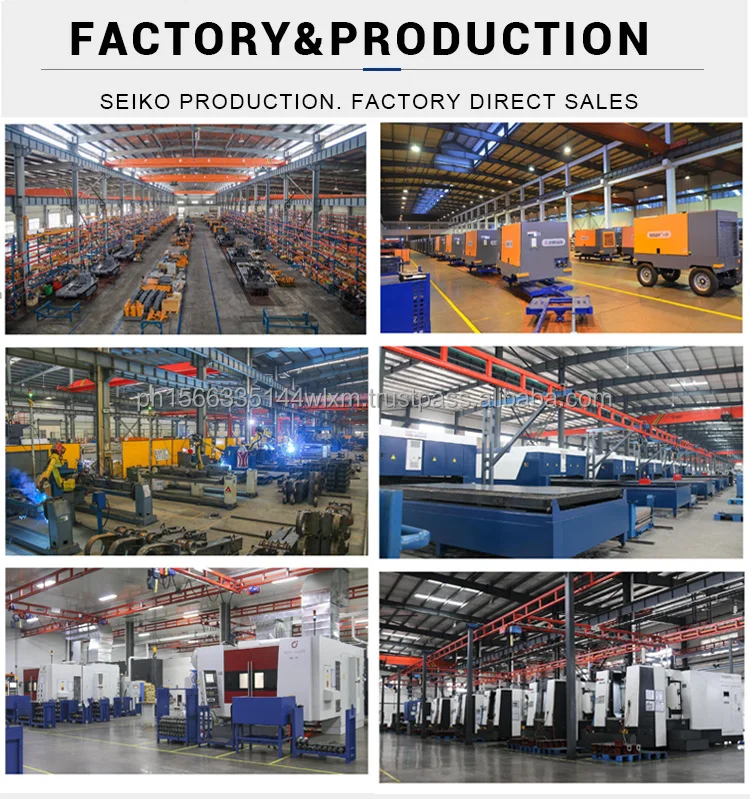

Company Profile
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Construction Machinery in China. Our main products are : water well drilling rig, Concrete Mixers, Concrete Mixing Plants, Mobile Concrete Batching Plants, Tower Cranes, Building Hoists, Concrete Mixer Truck, Concrete Pumps and Block Making Machines and etc…
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
UNIQUE Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates.
UNIQUE Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!
Customer Photos
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufature product with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: How long could your air compressor be used?
A: Generally, more than 5 years.
A: We are factory. We can design and manufature product with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: How long could your air compressor be used?
A: Generally, more than 5 years.
