24V 36V 48V 350W 8 inch brushless hub motor wheel kit for dual drive electric scooter cart
- Category: >>>
- Supplier: Yongkang Erwei Vehicle Co. Ltd.Yongkang Ltd.
Share on (1601161944009):
Product Overview
Description
Product Description

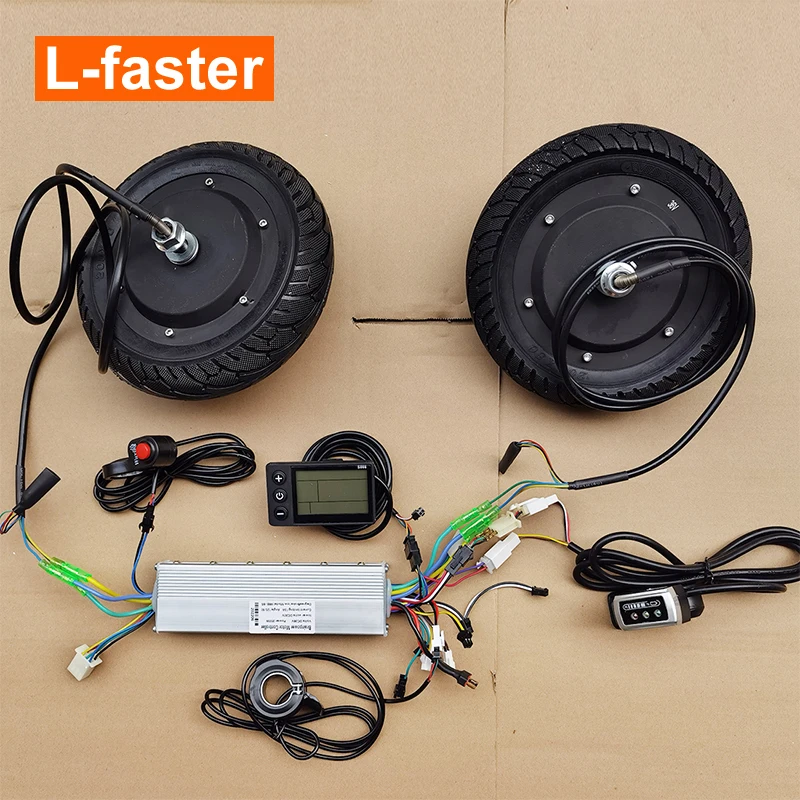

8 Inch Brushless Hub Motor dual drive Kit

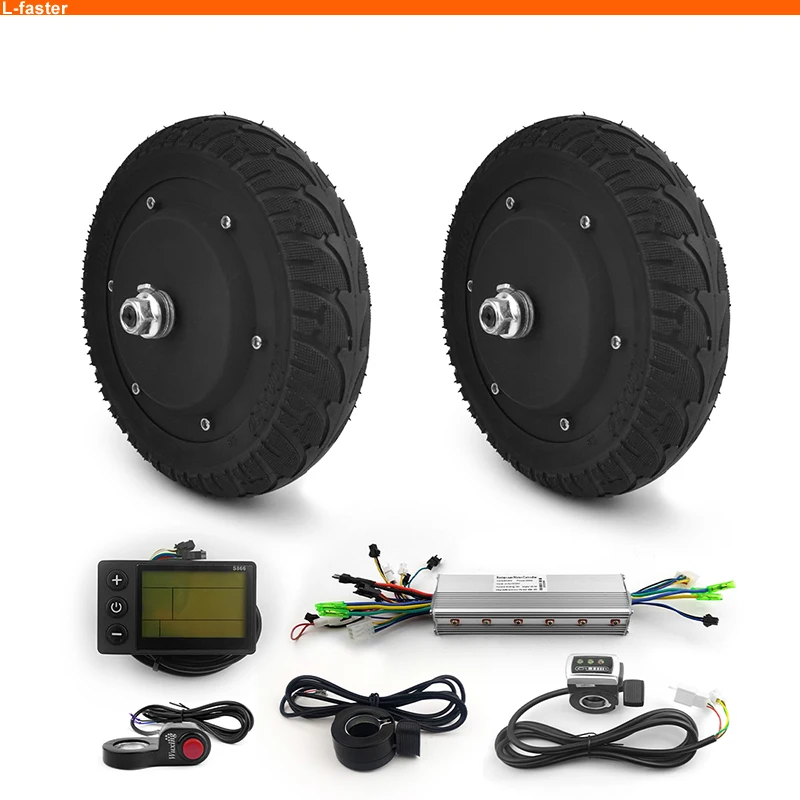

The kit includes:
1). 2x 8 inch 350W motor wheel

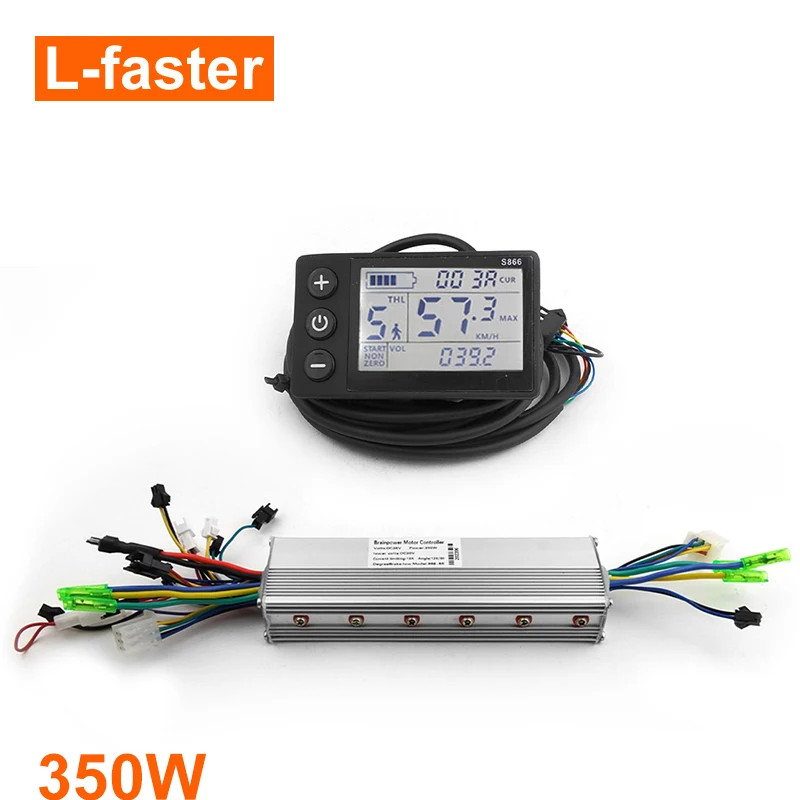

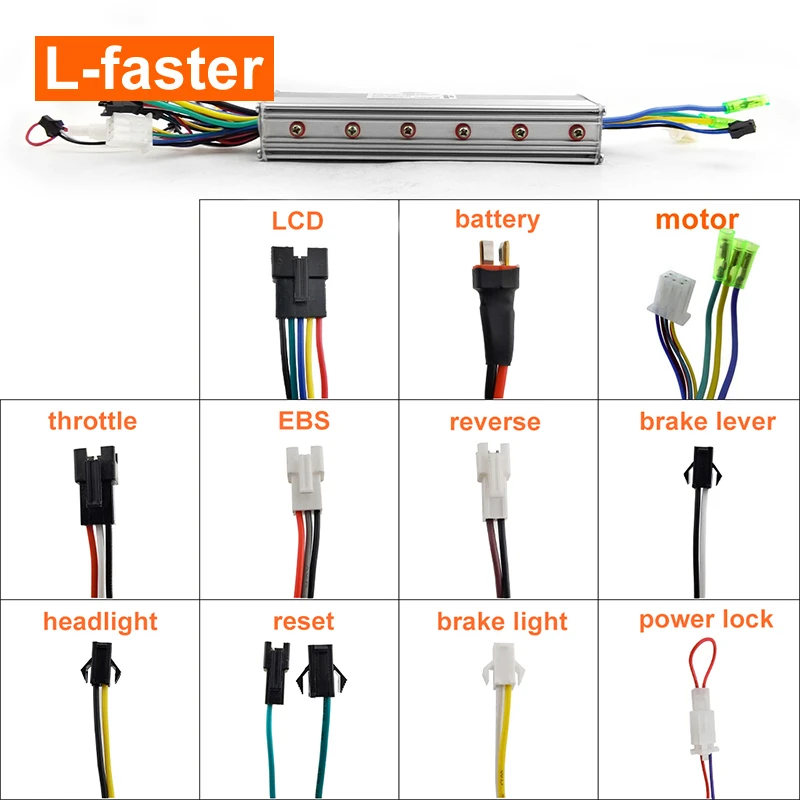

2). 1x dual drive Controller
3). 1x Accelerator thumb throttle (with button switch & battery indicator lights)
4). 1x Thumb brake

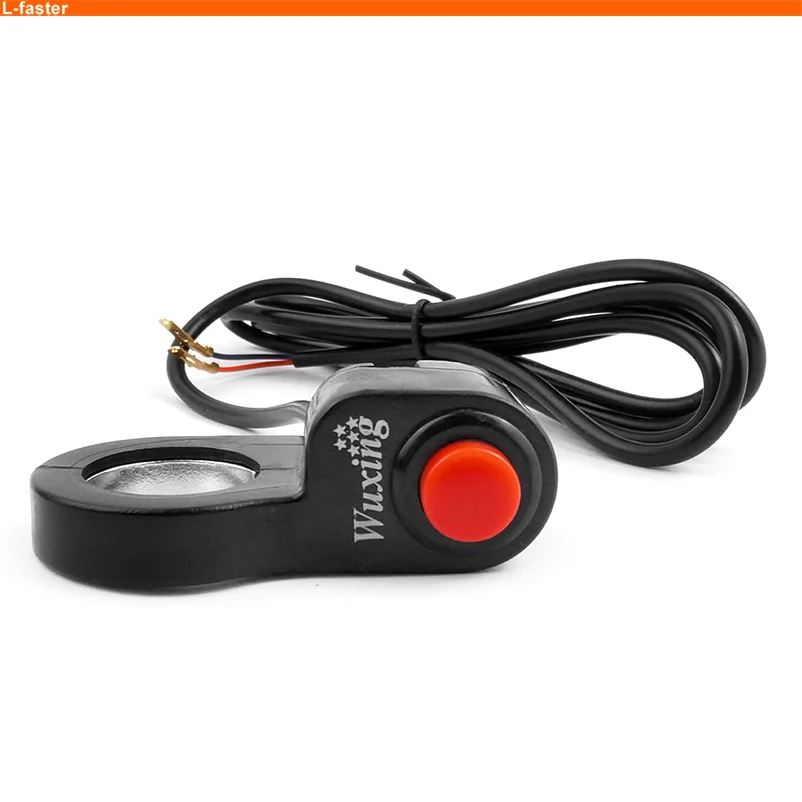

5). 1x Thumb button

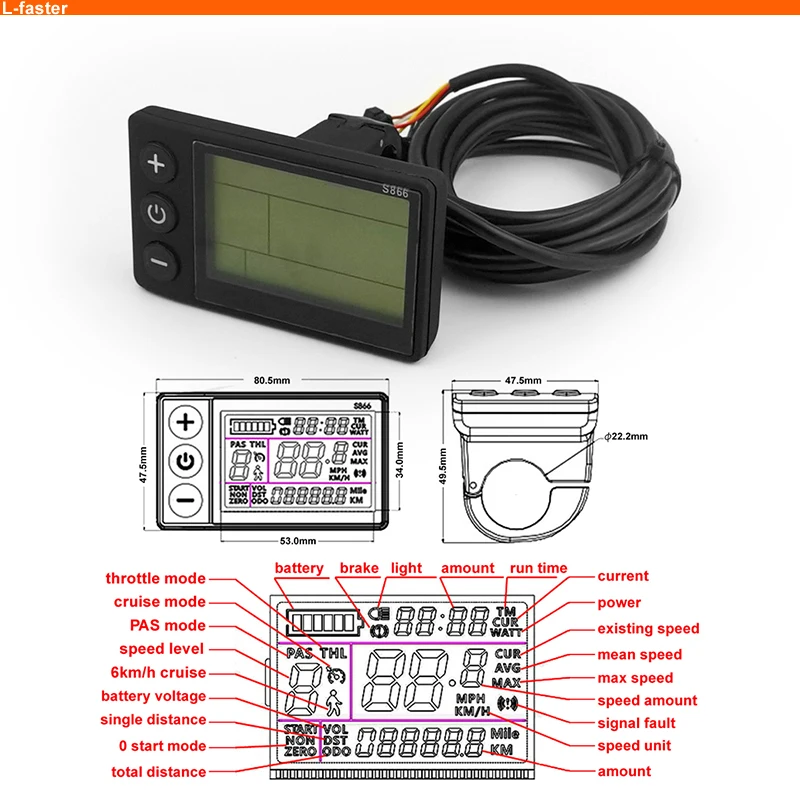

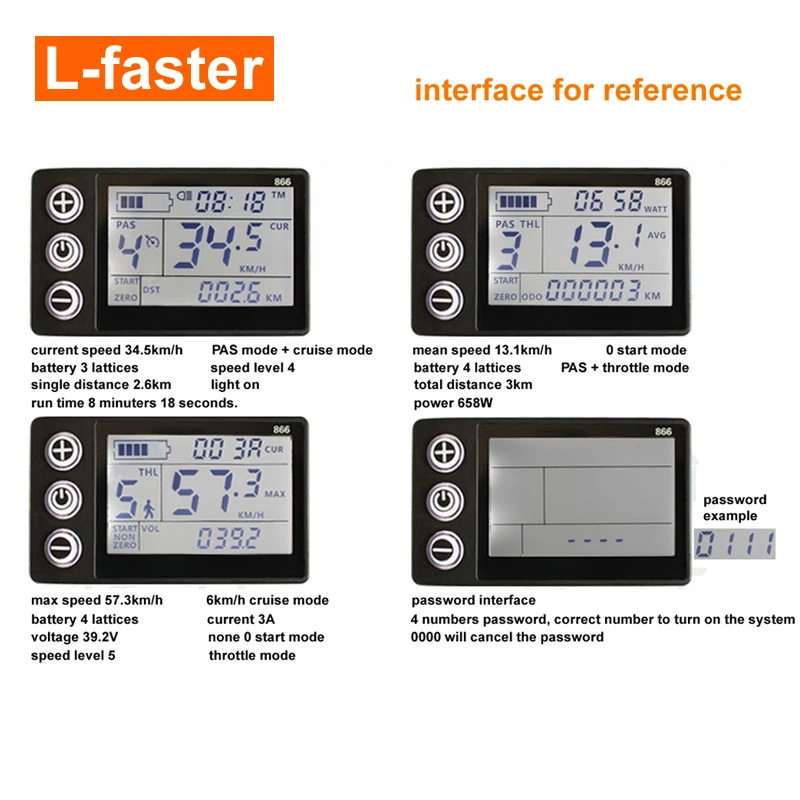

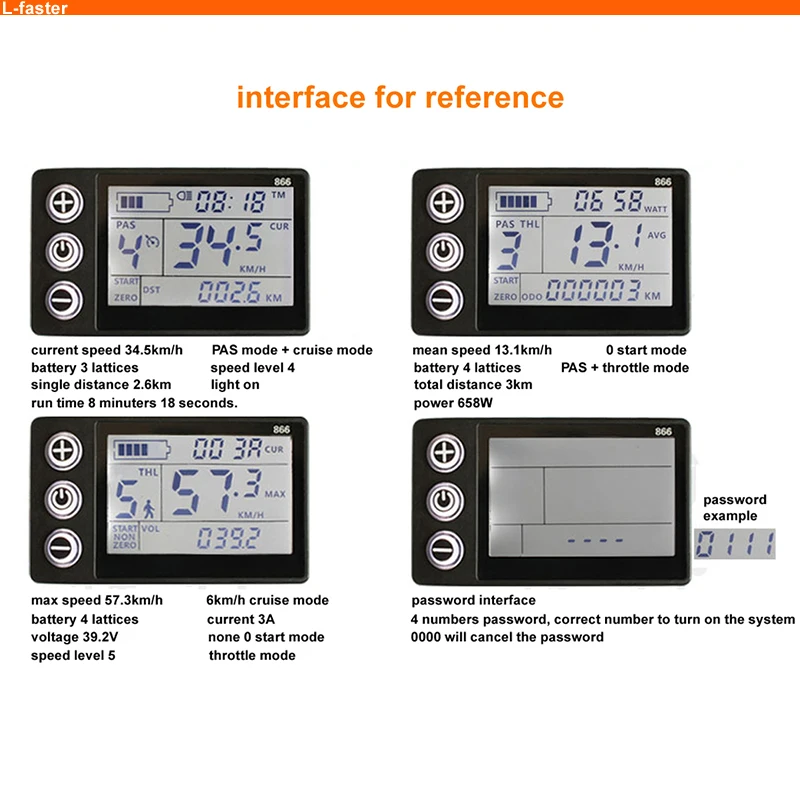

6). 1x LCD display
1). 2x 8 inch 350W motor wheel
2). 1x dual drive Controller
3). 1x Accelerator thumb throttle (with button switch & battery indicator lights)
4). 1x Thumb brake
5). 1x Thumb button
6). 1x LCD display
Note: this kit without battery and battery charger .
1). This kit is for the high speed vehicle, the motor speed is fast but its torque is small, so it does not good for low speed
project. If you do not know what motor you need to use, please feel free to ask me.

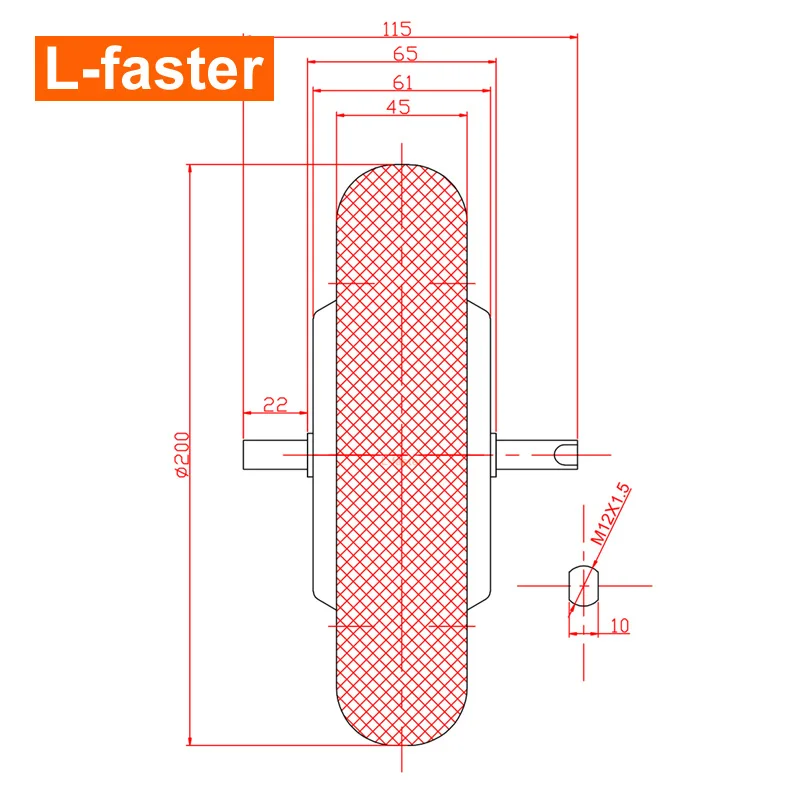

2). The motor hub width is about 65mm, so your vehicle fork inside width should more than 65mm, please confirm this.
3). This motor can run fastest (about 35km/h) if the loading weight less than 75kg, and if the weight more than 75kg, the speed
will slower.
4). The difference between 24V, 36V, and 48V is the working current, if you want to ride longer, I recommend 36V and 48V kit.
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are
all ok, and the battery capacity I recommend 24V 15Ah, 36V 12Ah, and 48V
6). For installing this motor wheel to your scooter, maybe you need to expand the scooter fork and drill the axle hole of the
fork, please confirm you can do this.
project. If you do not know what motor you need to use, please feel free to ask me.
2). The motor hub width is about 65mm, so your vehicle fork inside width should more than 65mm, please confirm this.
3). This motor can run fastest (about 35km/h) if the loading weight less than 75kg, and if the weight more than 75kg, the speed
will slower.
4). The difference between 24V, 36V, and 48V is the working current, if you want to ride longer, I recommend 36V and 48V kit.
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are
all ok, and the battery capacity I recommend 24V 15Ah, 36V 12Ah, and 48V
6). For installing this motor wheel to your scooter, maybe you need to expand the scooter fork and drill the axle hole of the
fork, please confirm you can do this.
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | L-faster |
Model Number | fld8 |
Battery Capacity | 7 Ah |
Power Supply | Lithium Battery |
Wheel Size | 8" |
Display | LCD |
Motor Type | Brushless Non-gear Hub Motor |
Battery Position | Rear Carrier |
Bike Throttle | Twist |
Product Name | dual drive kit |
Motor | Brushless Non-gear Hub Motor |
Power | 350w |
Voltage | 24V /36V/ 48V |
Wheel size | 8 inch |
Weight | 8.5kg |
