Chinese Best Brand Drilling Machine 100m 150m 300m 500m water drilling machine for sale
- Category: >>>
- Supplier: Shandong Chengda Machinery Co. Ltd.
Share on (1601162008879):
Product Overview
Description
Product Description

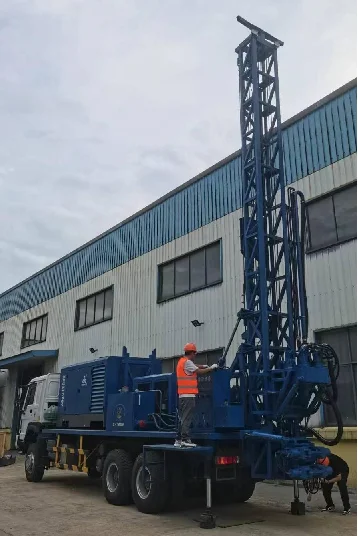

Chinese Best Brand Drilling Machine 100m 150m 300m 500m water drilling machine for sale
Specification

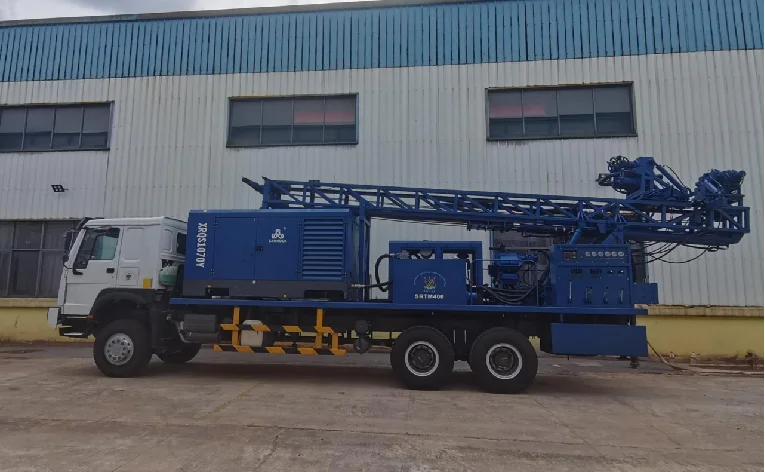

water well drilling rig | unit | Model: SRTM300 Depth: 300m Aperture: 130-325mm Boom length: 6.6m Engine: Yuchai 85kw Torque: 8000-8500N.m Speed: 45-70 rpm Equipped with winch, electric welding machine and foam pump (flow rate 40L/min) |
combining valve（quick valve） | ||
Hydraulic wrench | pieces | Hydraulic wrench installed on drilling rig |
Drill pipe bushing | pieces | Installed on drilling rig |
Transition joint-1 | pieces | Rotary head connected to 89mm drill pipe |
Transition joint-2 | pieces | Rotary head connected to 89mm drill pipe |
rod wrench | pieces | 89mm drill pipe wrench |
Fork wrench | pieces | Fork wrench |
Dust cap | pieces | 89mm drill pipe cap |
Lifter | pieces | 89mm drill pipe lifter |
air filter | pieces | air filter |
Hydraulic oil filter | pieces | Hydraulic oil filter |
Grease gun | pieces | Grease gun |
wrench | pieces | wrench |
Allen wrench | pieces | Allen wrench |
Grease nipple removal tool | pieces | Grease nipple removal tool |
Clean air hose | pieces | 9m |
Connector | pieces | Connect air compressor and lubricator |
Air compressor exhaust valve | pieces | Air compressor exhaust valve 2" |
O-ring | set | O-ring |
Oil seal | set | Oil seal |
slider | set | slider |

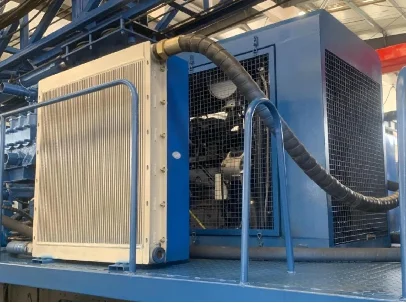

Screw Air Compressor | unit | Model: QSDS1100Y Exhaust volume m3/min: 29 Pressure bar: 23 Two-stage compression Engine: Yuchai 295kw |
Machine filter | pieces | Machine filter |
Engine air filter | pieces | Engine air filter |
Engine Diesel Filter | pieces | Engine Diesel Filter |
Host air filter | pieces | Host air filter |
temperature sensor | pieces | temperature sensor |
Pressure sensor (screw machine) | pieces | Pressure sensor (screw machine) |
Packing & Delivery

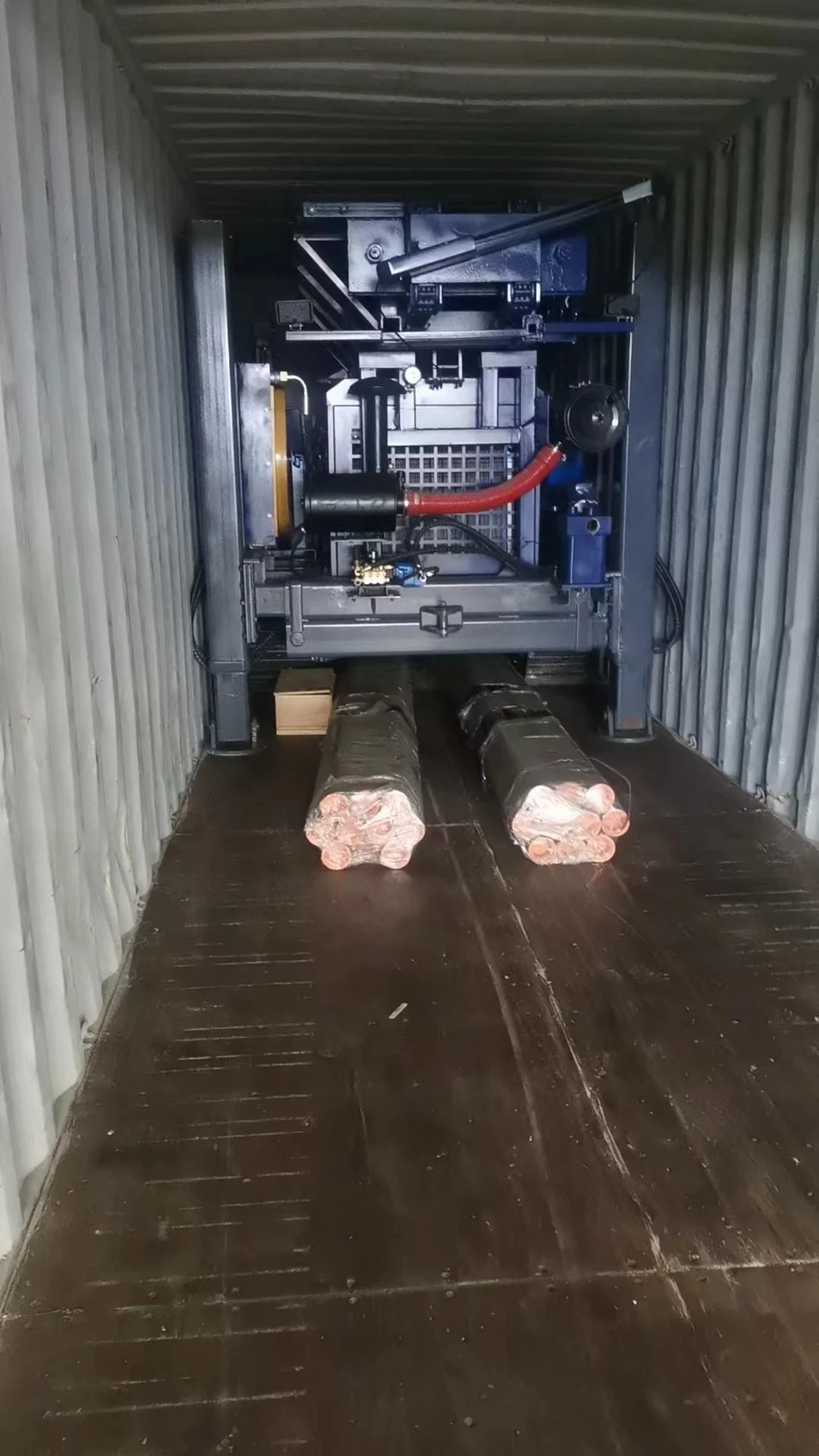

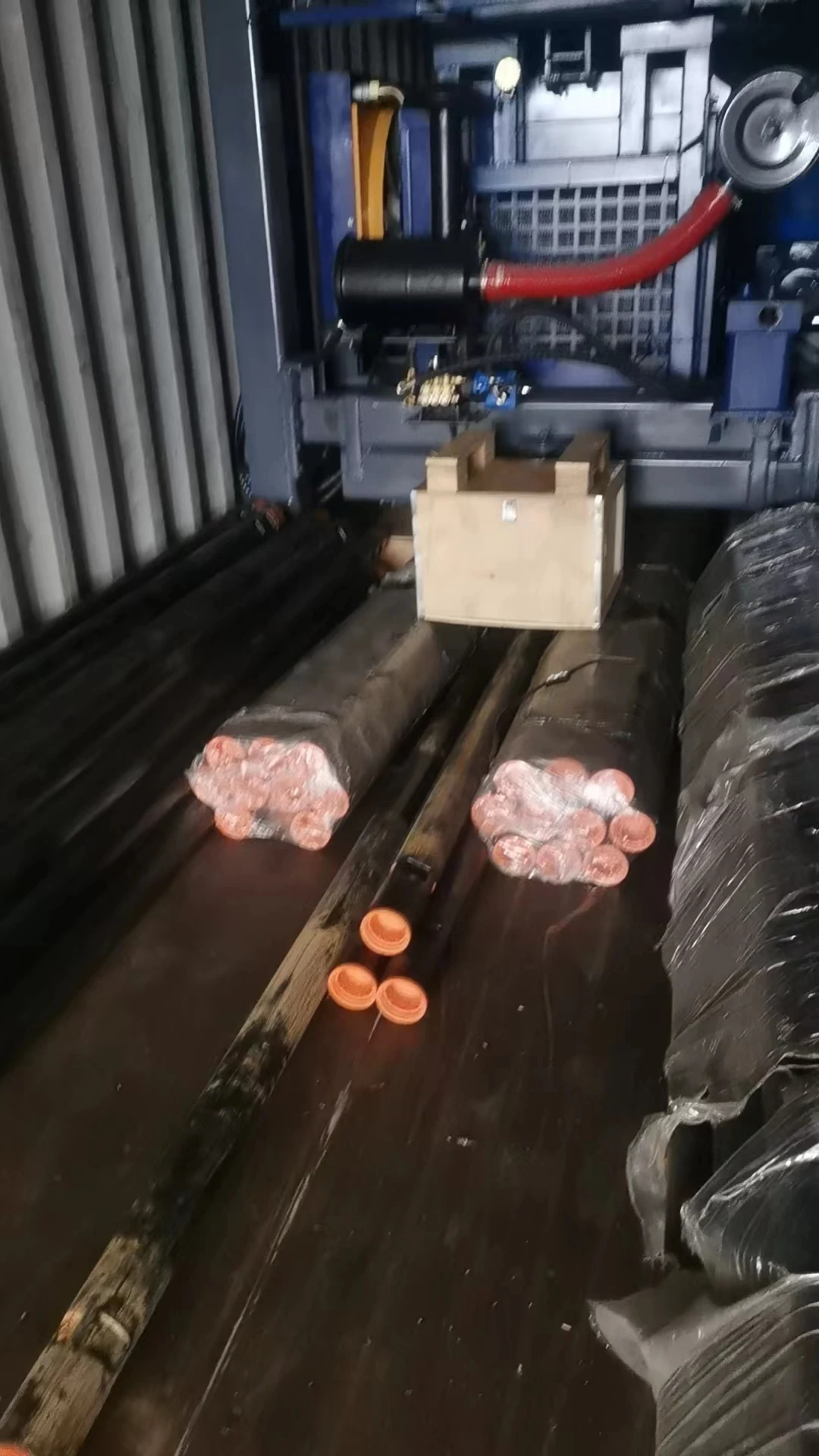

This truck and machine can be shipped by container or Roro shipping and Bulk shipping
Products Dispaly
Chinese Best brand Engine
Big engine power
Easy maintenance and spare parts
Low diesel consumption
We supply
The drilling rig can realize automatic pressurized drilling during drilling, adjust different pressures when drilling into different hard layers, and visually see the drilling pressure through the pressure gauge, while also being able to adjust the drilling speed; a. The drilling rig is equipped with a large-lifting hydraulic main winch, the drilling tool lifting and lowering can achieve stepless speed regulation, and the rope can be freely released at fast or slow speeds.
The hydraulic tool winch equipped with the drilling rig has the characteristics of large lifting force and fast lifting speed, which is convenient for loading and transporting tools, drill rods, accessories, etc., and can slide up and down with the help of ground anchors during drilling, providing convenience for loading and unloading drill rods during drilling operations.
The drilling rig realizes the integrated control of electromechanical, hydraulic and gas, and remote pneumatic control of BWG50/2 mud pump clutch, with high degree of automation, easy and labor-saving operation; the hydraulic cylinder controls the wellhead card to advance and retreat, so that the insurance card is closed to achieve the jamming or release of the drill pipe joint.
