Hutchinson Elastomer rings and bushings Rings and bushings Elastomer mount rubber

Product Overview

Description

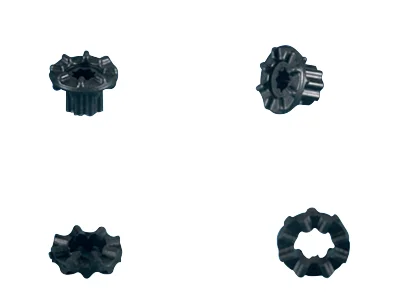

Elastomer rings and bushings.

These all elastomer parts are compatible with the majority of the industrial environments and have an operating temperature range of - 40°C to + 83°C.

Avantages
- Highly efficient noise reduction
- Absorb schock and vibrations
- Simple and economic

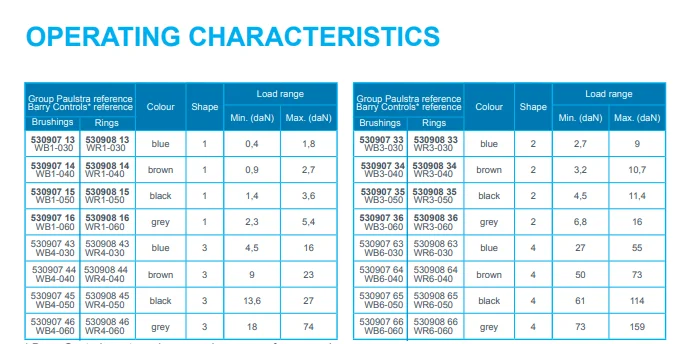

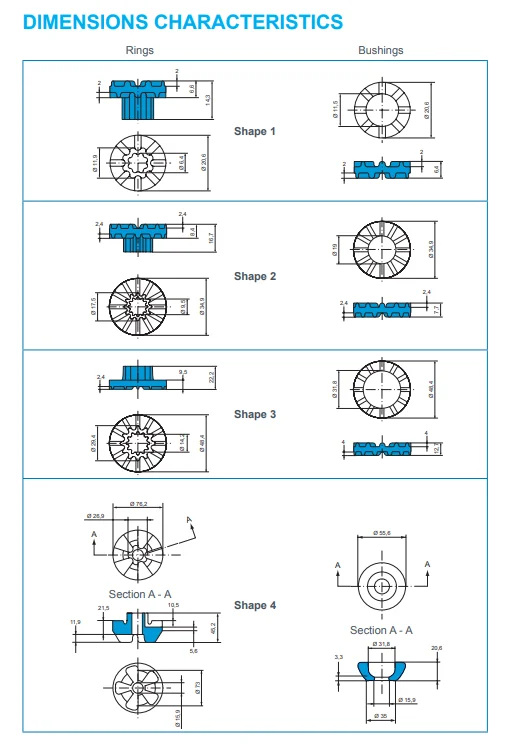

- Four models in four stifnesses for load capacities going from 0.5 to 160 kg per isolator



Specifications

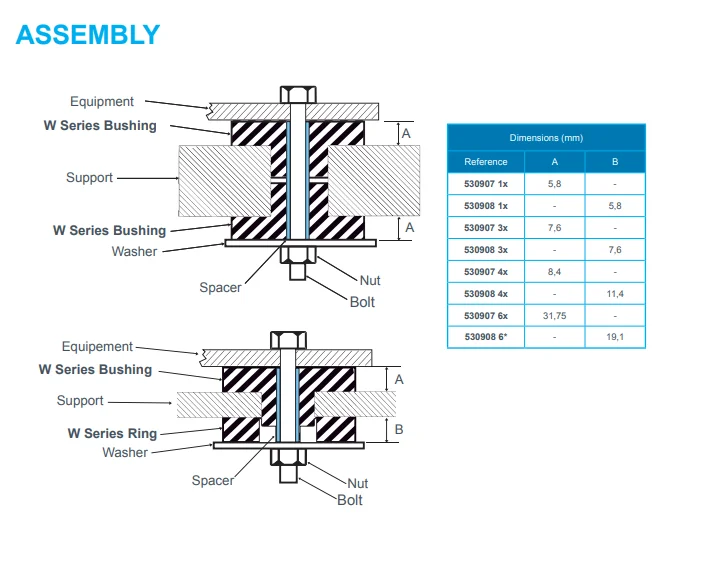

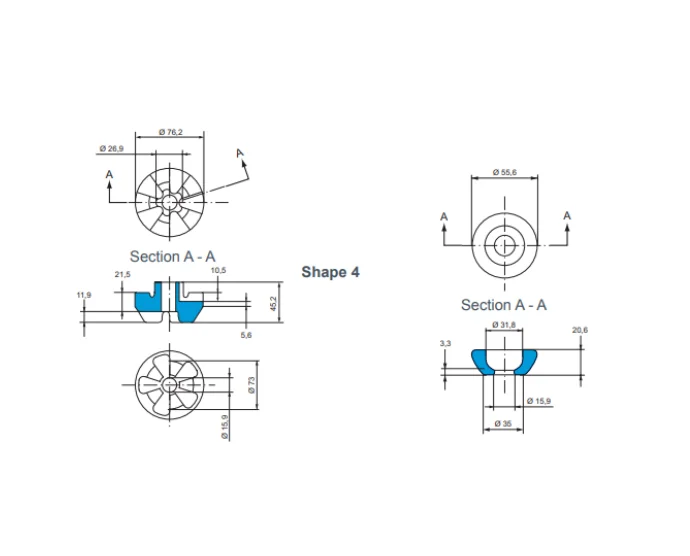

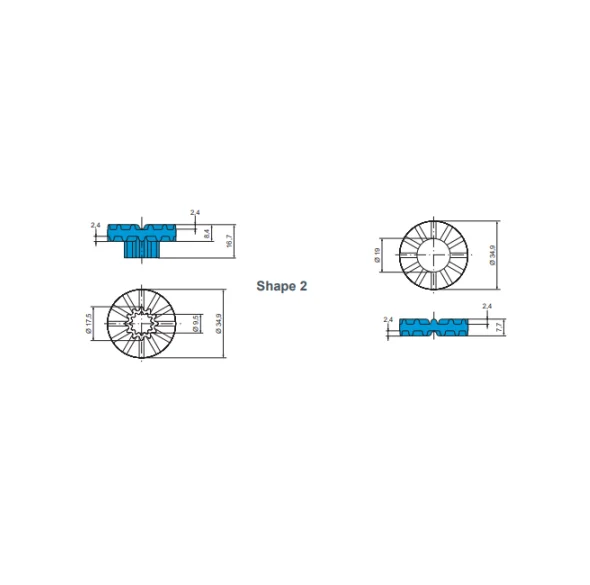

A ring assembled with the associated bushing constitutes a flexible interface and a simple solution to decrease noise and vibrations.
These supports can be installed in parallel for a greater load capacity and may also be stacked in series when greater deflection capacity is required.
Bushings can be used in pairs, bushing end to bushing end, without rings for a more robust installation or where the structure thickness does not allow for a standard ring and bushing assembly.
