Clamping System Platform 3d Welding Table Sets With Clamping Pins Clamps Device
- Category: >>>
- Supplier: Hebei Walter Intelligent Equipment Co. Ltd.
Share on (1601162046380):
Product Overview
Description
3D Welding Table
● Customized production/OEM
● High precision machining
● Strict quality inspect
● Real manufacturer
● D28&D16 series
● Low general tolerance
● One-stop solution
● Quickly delivery
● High precision machining
● Strict quality inspect
● Real manufacturer
● D28&D16 series
● Low general tolerance
● One-stop solution
● Quickly delivery
Products Description
3D welding table — D16 series
● Made by Q355 steel
● 5 precision machined working surfaces
● Hole diameter: 16mm
● Grid lines: 50mm*50mm
● Hole pitch: 50mm
● Material thickness: approx12mm
● Sidesurfaces height: 100mm
● Be reinforced on the underneath side by ribs
3D welding table —— D28 series
● Made by Q355 steel
● 5 precision machined working surfaces
● Hole diameter: 28 mm
● Grid lines: 100 mm*100 mm
● Hole pitch: 100 mm
● Material thickness:approx.25 mm
● Side surfaces height: 200 mm
● Be reinforced on the underneath side by ribs
Welding Table Size mm | Dimension | Hole Diameter | Material |
4000*2000 | 3D/2D | D28/D16 | Cast Iron /Steel Q355 |
3000*2000 | |||
3000*1500 | |||
2400*1200 | |||
2000*1000 | |||
1500*1000 | |||
1000*1000 |
Production process details Picture
Each plate of the table is made from a low alloy tool steel that’s tough enough for use in the mold-making industry. After surface grinding and machining, each plate is further enhanced with a QPQ nitriding process that improves hardness, corrosion resistance, and resistance to weld spatter.
Plates on the table can be repositioned, or removed as applications dictate; a patented plate locating system means the spacing of the holes are always within tolerance without the need for special re-calibration.
Plates on the table can be repositioned, or removed as applications dictate; a patented plate locating system means the spacing of the holes are always within tolerance without the need for special re-calibration.

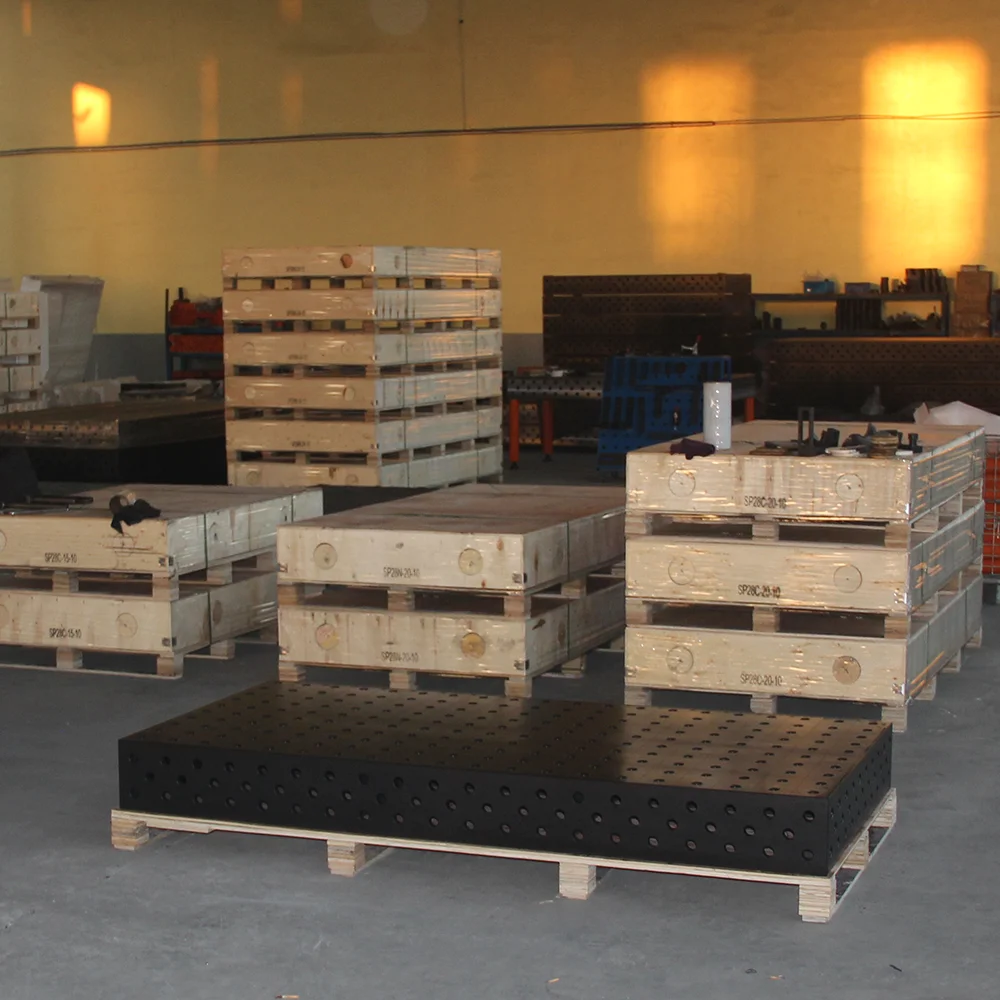

Product packaging
Prior to shipment, the quality control department will obtain shipment approval based on your request.
Tightly packed in wooden crates + wrap-around film so that the goods will not be bumped and rusted during transportation.
If you find any transportation quality problems, please contact us at the first time after receiving the goods. We will trace the responsibility to the specific QC department.
Tightly packed in wooden crates + wrap-around film so that the goods will not be bumped and rusted during transportation.
If you find any transportation quality problems, please contact us at the first time after receiving the goods. We will trace the responsibility to the specific QC department.

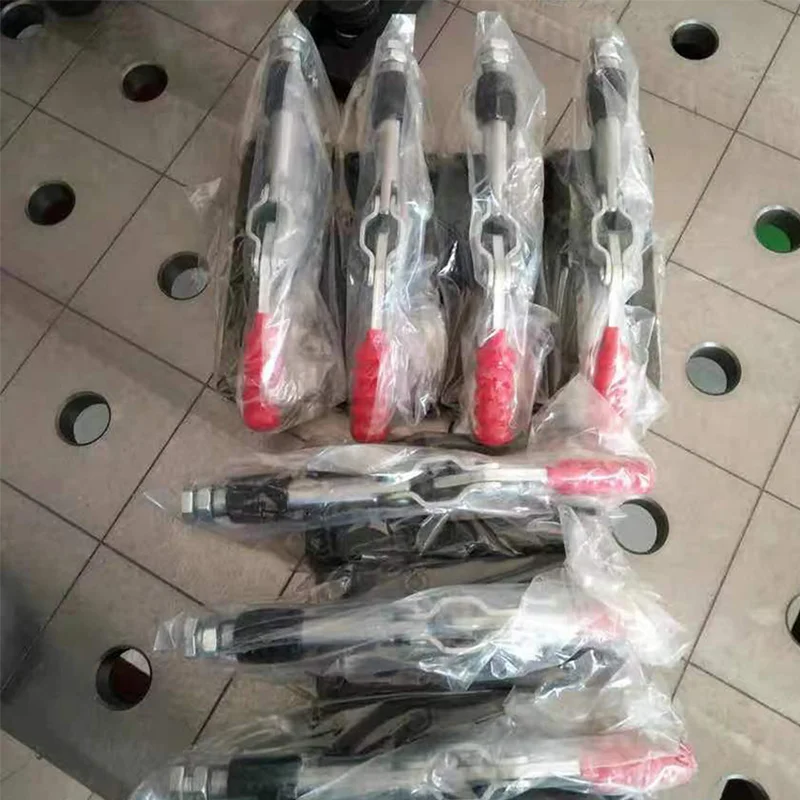

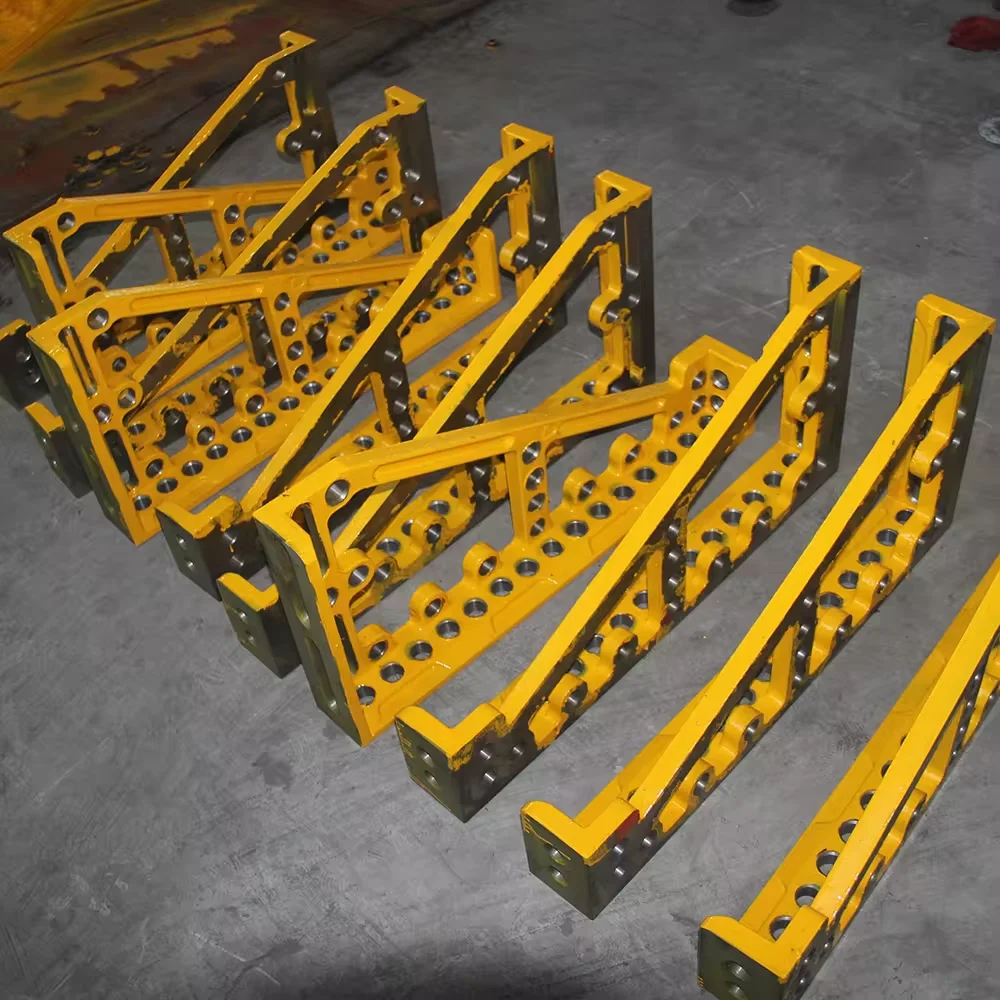

Recommended Accessories
A wide variety of combination accessories are available for you to choose from and are in stock. Discounted prices, definitely your first choice.
Our Company
Manufacturing workshop.
Contact details
Services provided:
Inquiry for various products (Free)
Transportation service help (Free)
Discussion of welding techniques (with pleasure)
Or whenever you want to talk to me (Gladly)
