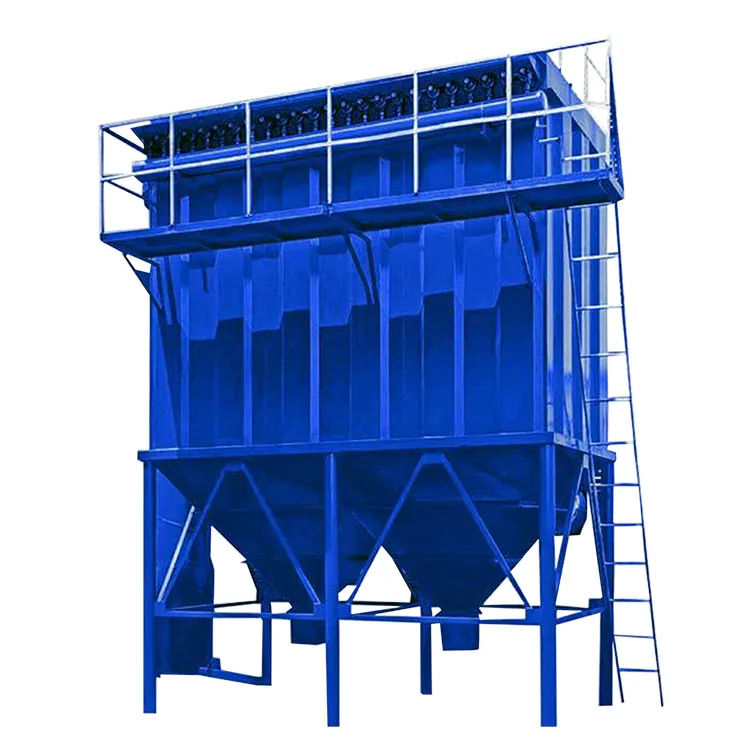

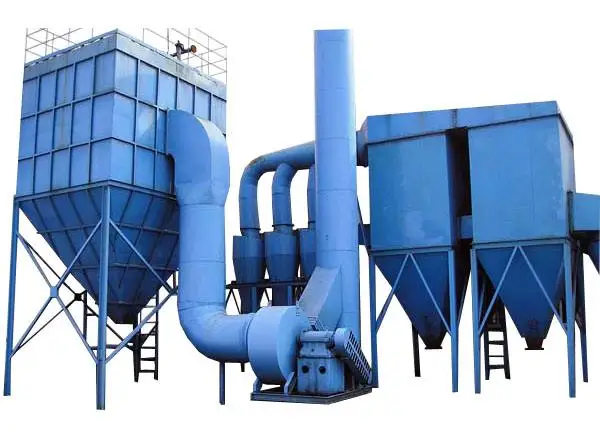

YKMC-200 37KW Dedusting system dust collector bag pulse filters fume extractor
YKMC bag house dust collector is a new type of dust collector with high efficiency at international levels. It combines the advantages of sub-room reverse flow and jet pulse bag house together, which over-comes the weakness of low strength of dedusting, the defects of cleaning dust and filtering which causes dust absorption twice for expanding the application range of bag filter.
The collector adopts efficient offline cleaning, which leads to high effectiveness, long service life of filter bag, low resistance, and so on. It is widely used in building materials, metallurgy, chemical industry for purifying dust.
This collector is outdoor type formed by different chambers and filter bag in several kinds of types, which are 32, 64, 96 and 128. The diameter of filter bag is Φ130mm and length 2450mm or 3060mm. Discharging concentration could be less than 20mg/Nm³ if concentration of collecting dust is less than 1000g/Nm³. When outside temperature is less than or equal to 5-25 , the heating device should be installed.
The collector adopts efficient offline cleaning, which leads to high effectiveness, long service life of filter bag, low resistance, and so on. It is widely used in building materials, metallurgy, chemical industry for purifying dust.
This collector is outdoor type formed by different chambers and filter bag in several kinds of types, which are 32, 64, 96 and 128. The diameter of filter bag is Φ130mm and length 2450mm or 3060mm. Discharging concentration could be less than 20mg/Nm³ if concentration of collecting dust is less than 1000g/Nm³. When outside temperature is less than or equal to 5-25 , the heating device should be installed.
Product Paramenters
YORK Filter bag dust collector | YORK Filter bag dust collector | |||||||||
Model | Power | Air volume | Filter bag Qty. | Bag size | dimensions | |||||
YKMC-64 | 11KW | 12000m3/h | 64 | φ133mmX2000mm | 2mX1.5mX4m | |||||
YKMC-80 | 15KW | 15000m3/h | 80 | φ133mmX2000mm | 3mX2.1mX4m | |||||
YKMC-96 | 18.5KW | 20000m3/h | 96 | φ133mmX2000mm | 3.6mX2.1mX4m | |||||
YKMC-120 | 22KW | 26000m3/h | 120 | φ133mmX2000mm | 4mX2.1mX6m | |||||
YKMC-160 | 37KW | 36000m3/h | 160 | φ133mmX2000mm | 5mX2.1mX4.5m | |||||
YKMC-200 | 37KW | 37000m3/h | 200 | φ133mmX2000mm | 5mX2.1mX4.5m | |||||
YKMC-400 | 45KW | 42000m3/h | 400 | φ133mmX2000mm | 7mX2.1mX4.5m | |||||
YKMC-600 | 110KW | 120000m3/h | 600 | φ133mmX3000mm | 12mX3mX7.5m | |||||
Details Images
Main features
1.Cleaning dust offline and effectiveness is about to 99.9%. The dust collector has no secondary absorption, specially good when used for handling high concentrated gas.
2.Use reverse blowing in high temperature to prevent condensation effectively.
3.Use new materials for cleaning dust. It can adapt to various conditions.
4.Because of automatic control, the machine is easy to be operated with good reliability.
5.The dust collector is with air box, which avoids partial damage inconvenient installation.
2.Use reverse blowing in high temperature to prevent condensation effectively.
3.Use new materials for cleaning dust. It can adapt to various conditions.
4.Because of automatic control, the machine is easy to be operated with good reliability.
5.The dust collector is with air box, which avoids partial damage inconvenient installation.
Industrial dust filter bag
Different premium material for choice
Laser cutting of high quality steel
Selected premium quality carbon steel 201/301 stainless steel
Pure copper high quality centrifugal fan
Pulse valve dust cleaning device

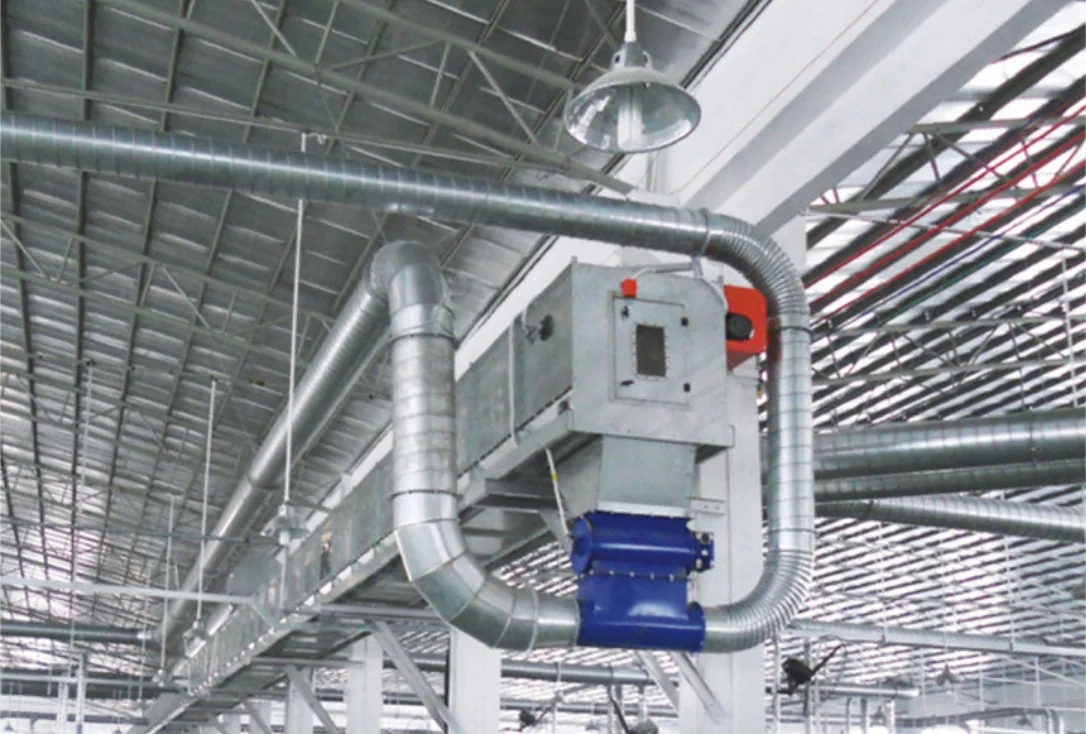

Indoor dust duct laid out
Customized design according to customer site conditions
