PE Agricultural Irrigation Equipment Water Emitting Pipe Production Line
- Category: >>>
- Supplier: Zhangjiagang Friend Machinery Co. Ltd.
Share on (1601162115698):
Product Overview
Description
Product Overview

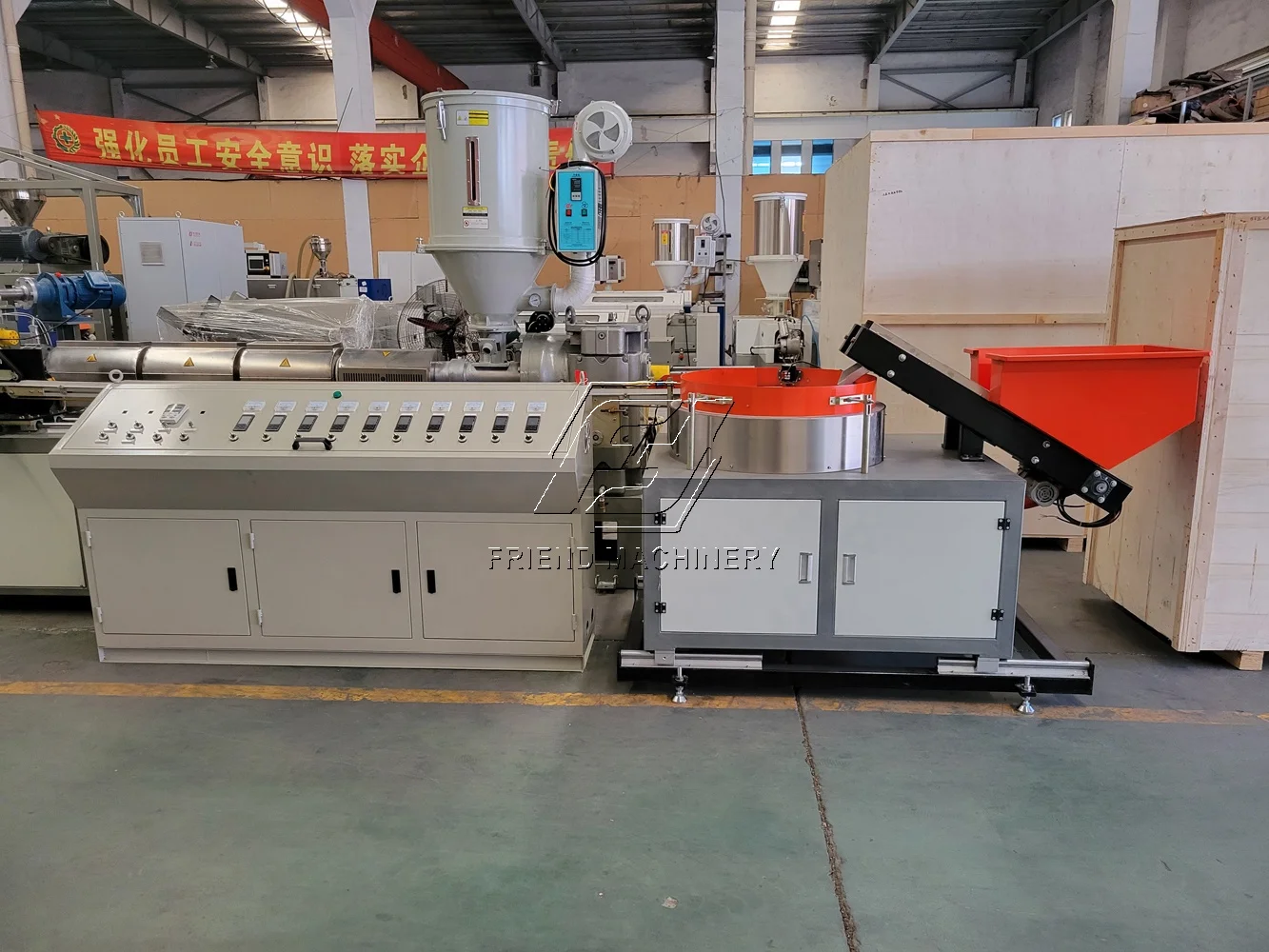

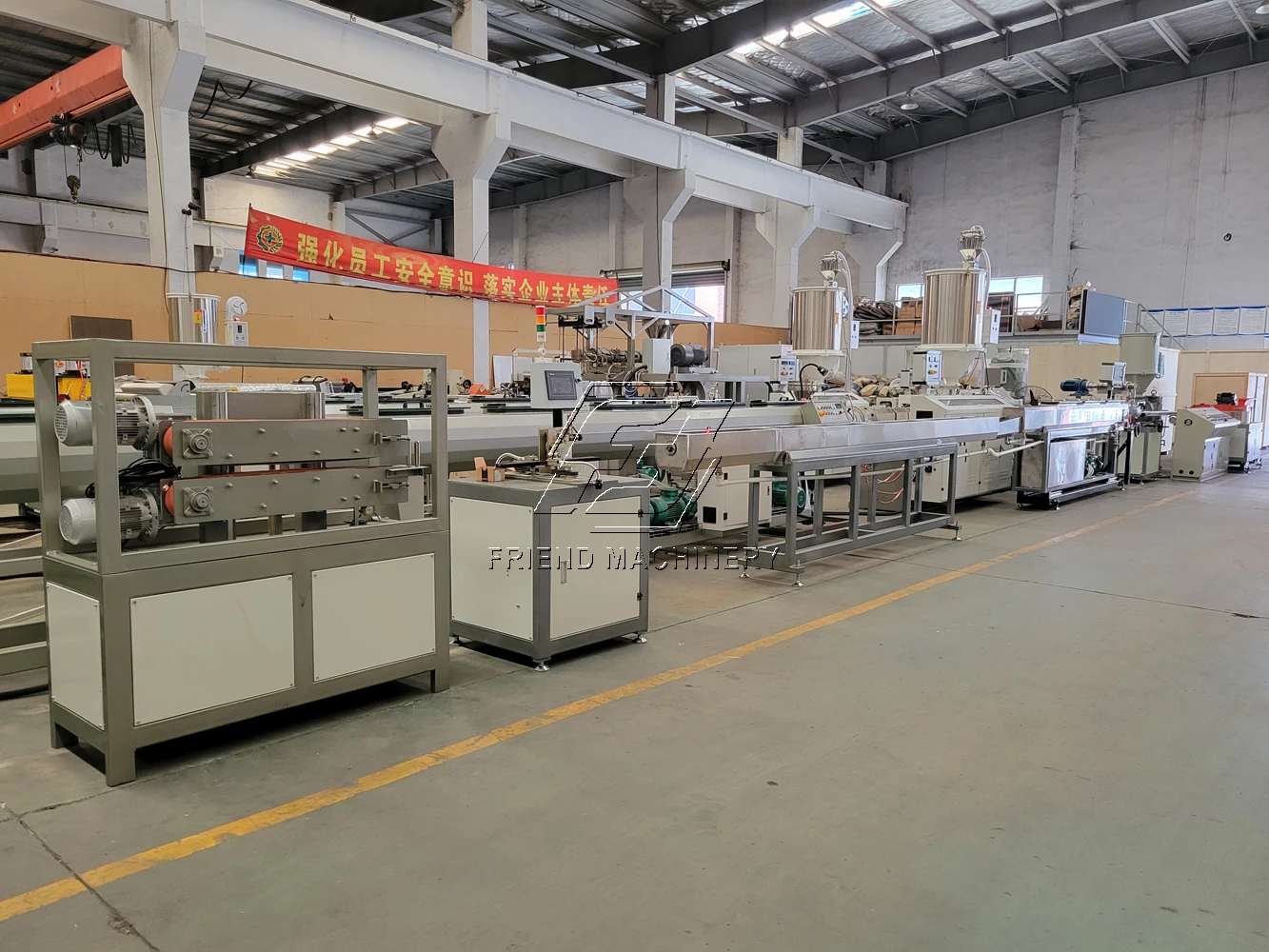

PE Irrigation Hose Making Machine
The irrigation pipe production line is a unit that produces internally embedded cylindrical drip irrigation pipes. It has the characteristics of beautiful appearance, high degree of automation, convenient operation, and high safety performance. Used for producing internally embedded cylindrical drip irrigation pipes. The embedded cylindrical drip irrigation pipe is widely used in many water-saving irrigation fields such as greenhouse, field planting, and greening engineering.

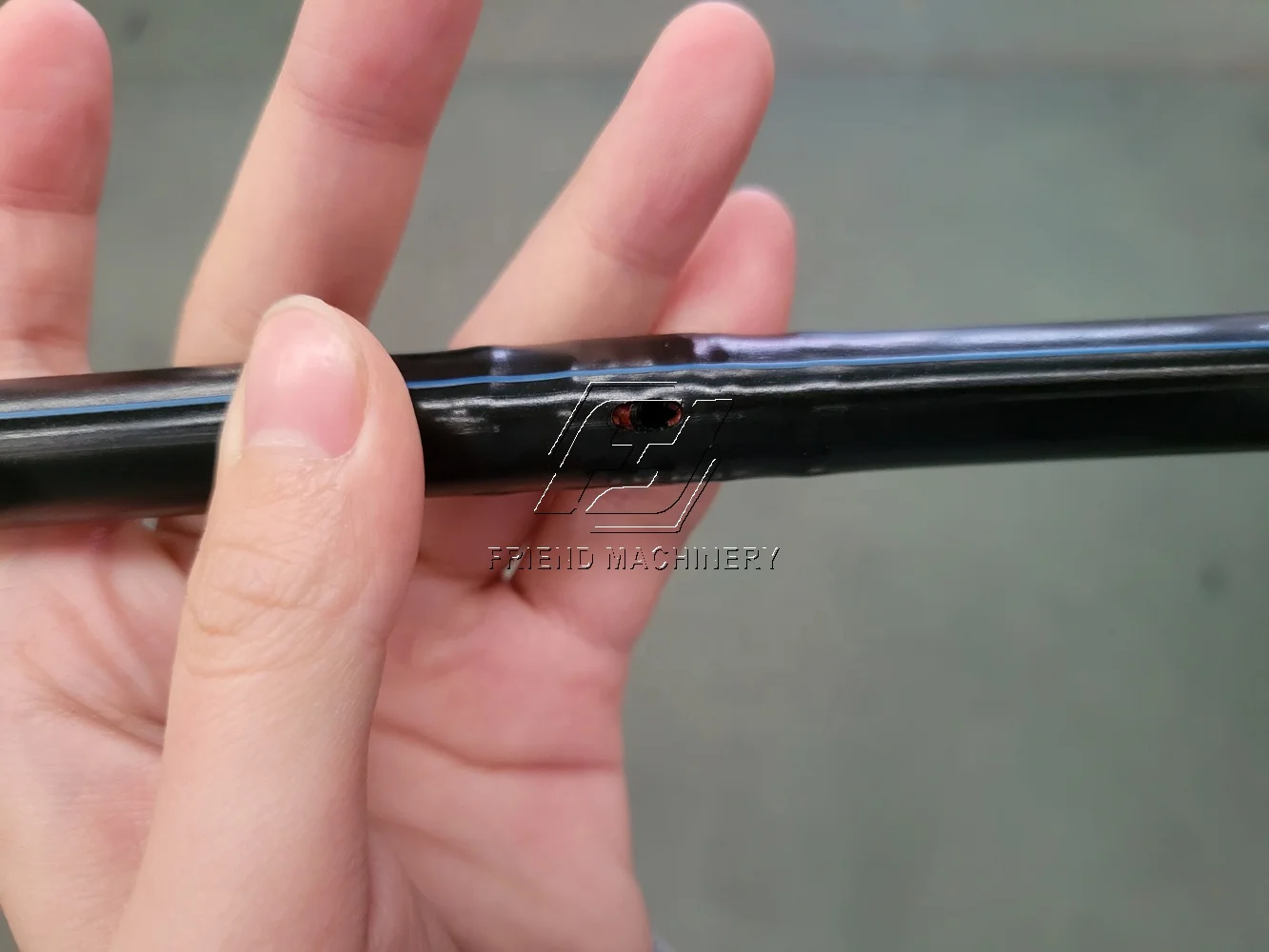

The characteristics of the embedded cylindrical drip irrigation pipe:
1. The spacing between drip heads can be adjusted according to the needs of different crops, which can be either equidistant or non equidistant.
2. The drip head adopts a unique design of a wide circular flow channel, which is fully turbulent, self flushing, and has strong anti blocking ability. The laying length is long, up to 100 meters.
3. It can be used on both plains and hills and slopes.
4. One drip head with one or two water outlets or four water outlets has strong anti clogging ability.
5. The wall thickness can reach 1.2 millimeters, with a long service life.
Equipment features:
1. Adopting computer system control and touch screen operation, the production process is stable, easy to operate, and energy-saving and efficient.

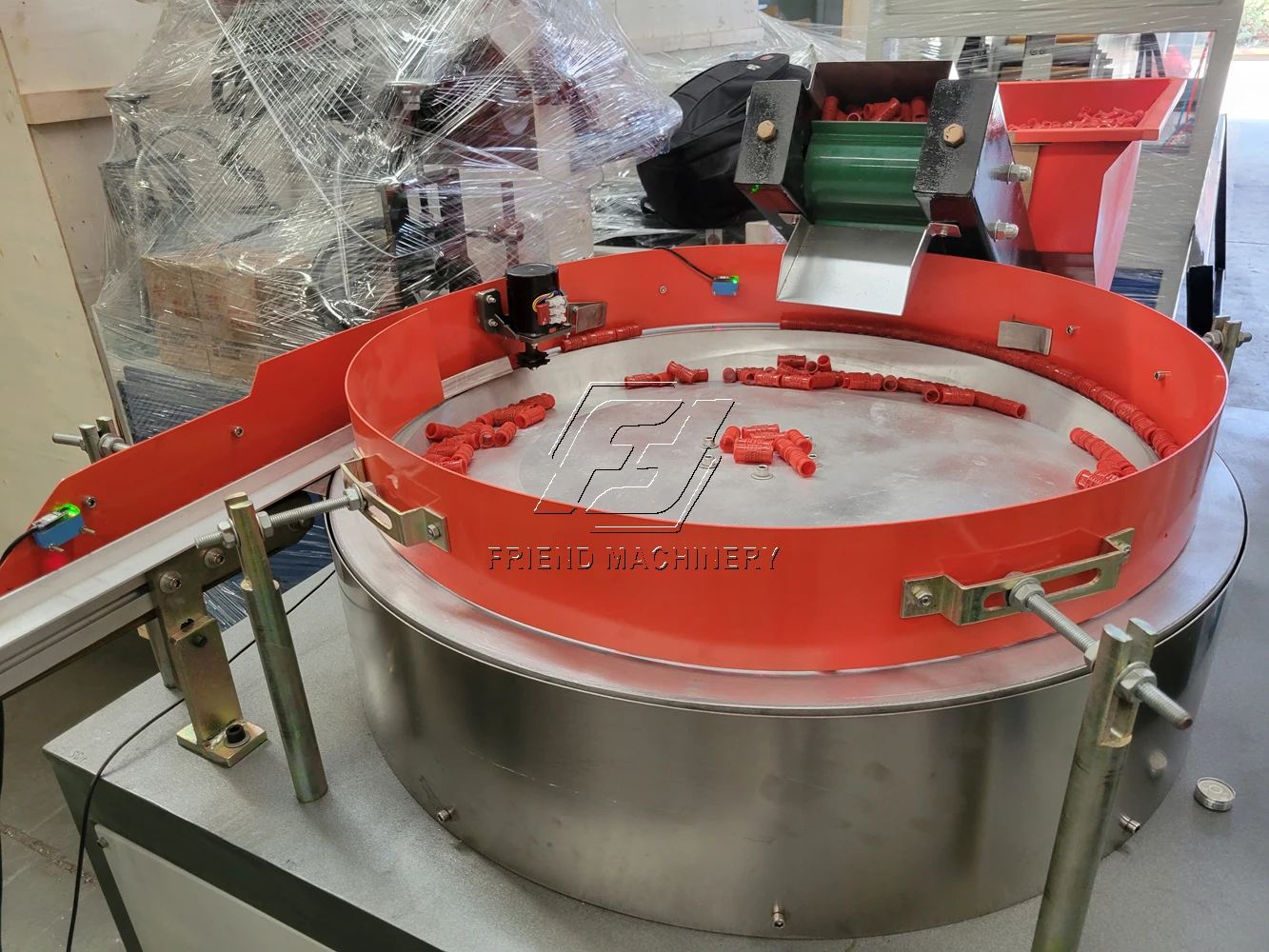

2. The dripper loading, screening and sorting, conveying and embedding, pipe discharge, punching, and winding are completed synchronously, with a high degree of automation.
3. The screw and barrel of the extruder are made of high-quality 38CrMoAlA nitriding alloy, which has undergone ion nitriding treatment and a surface hardness of HV850-1000. The screw has been optimized and designed to achieve uniform plasticization of the extruded material and smooth surface of the pipe.

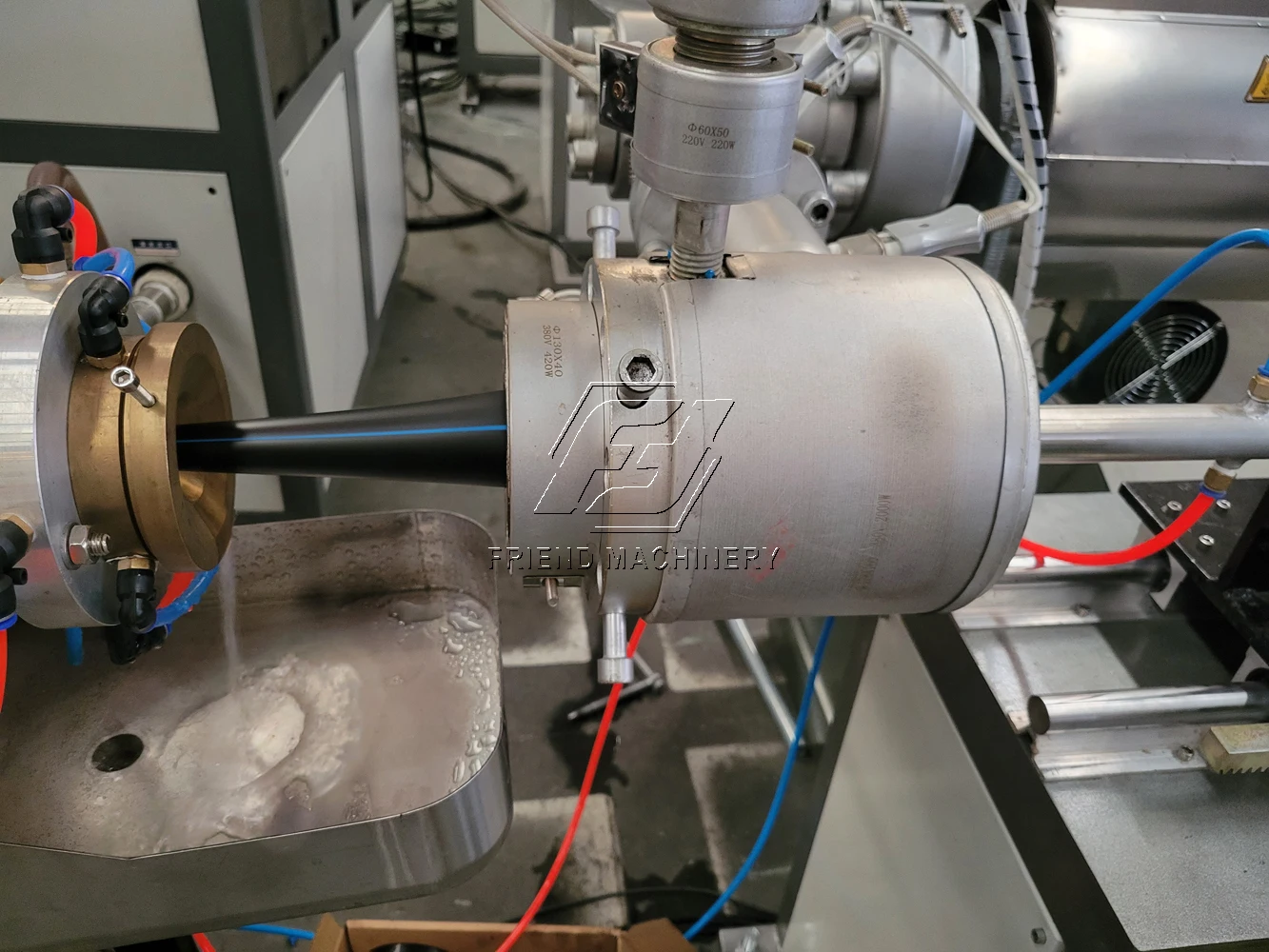

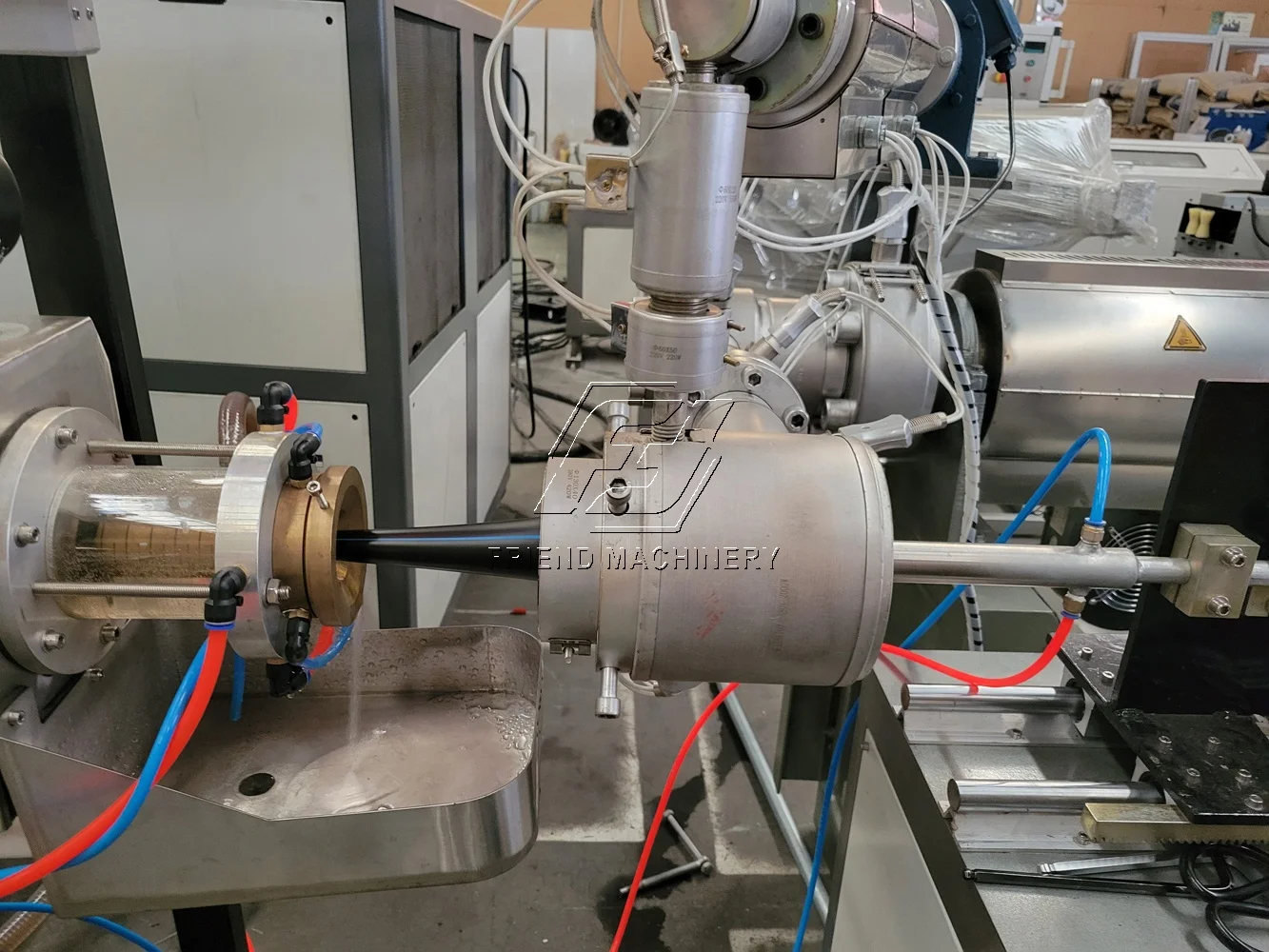

4. The extrusion mold and shaping cooling device have a unique structure and are made of special materials, with accurate sizing.
5. The traction machine adopts variable frequency speed regulation, which can meet various process speed requirements. The track surface has a rubber protective layer, effectively preventing the drip irrigation pipe from being deformed by the traction machine.
6. The punching machine is a mechanical punching machine with fast punching speed and stable operation.
7. Adopting a duplex winding machine, the winding length can be adjusted as needed.
The characteristics of the embedded cylindrical drip irrigation pipe:
1. The spacing between drip heads can be adjusted according to the needs of different crops, which can be either equidistant or non equidistant.
2. The drip head adopts a unique design of a wide circular flow channel, which is fully turbulent, self flushing, and has strong anti blocking ability. The laying length is long, up to 100 meters.
3. It can be used on both plains and hills and slopes.
4. One drip head with one or two water outlets or four water outlets has strong anti clogging ability.
5. The wall thickness can reach 1.2 millimeters, with a long service life.
Equipment features:
1. Adopting computer system control and touch screen operation, the production process is stable, easy to operate, and energy-saving and efficient.
2. The dripper loading, screening and sorting, conveying and embedding, pipe discharge, punching, and winding are completed synchronously, with a high degree of automation.
3. The screw and barrel of the extruder are made of high-quality 38CrMoAlA nitriding alloy, which has undergone ion nitriding treatment and a surface hardness of HV850-1000. The screw has been optimized and designed to achieve uniform plasticization of the extruded material and smooth surface of the pipe.
4. The extrusion mold and shaping cooling device have a unique structure and are made of special materials, with accurate sizing.
5. The traction machine adopts variable frequency speed regulation, which can meet various process speed requirements. The track surface has a rubber protective layer, effectively preventing the drip irrigation pipe from being deformed by the traction machine.
6. The punching machine is a mechanical punching machine with fast punching speed and stable operation.
7. Adopting a duplex winding machine, the winding length can be adjusted as needed.

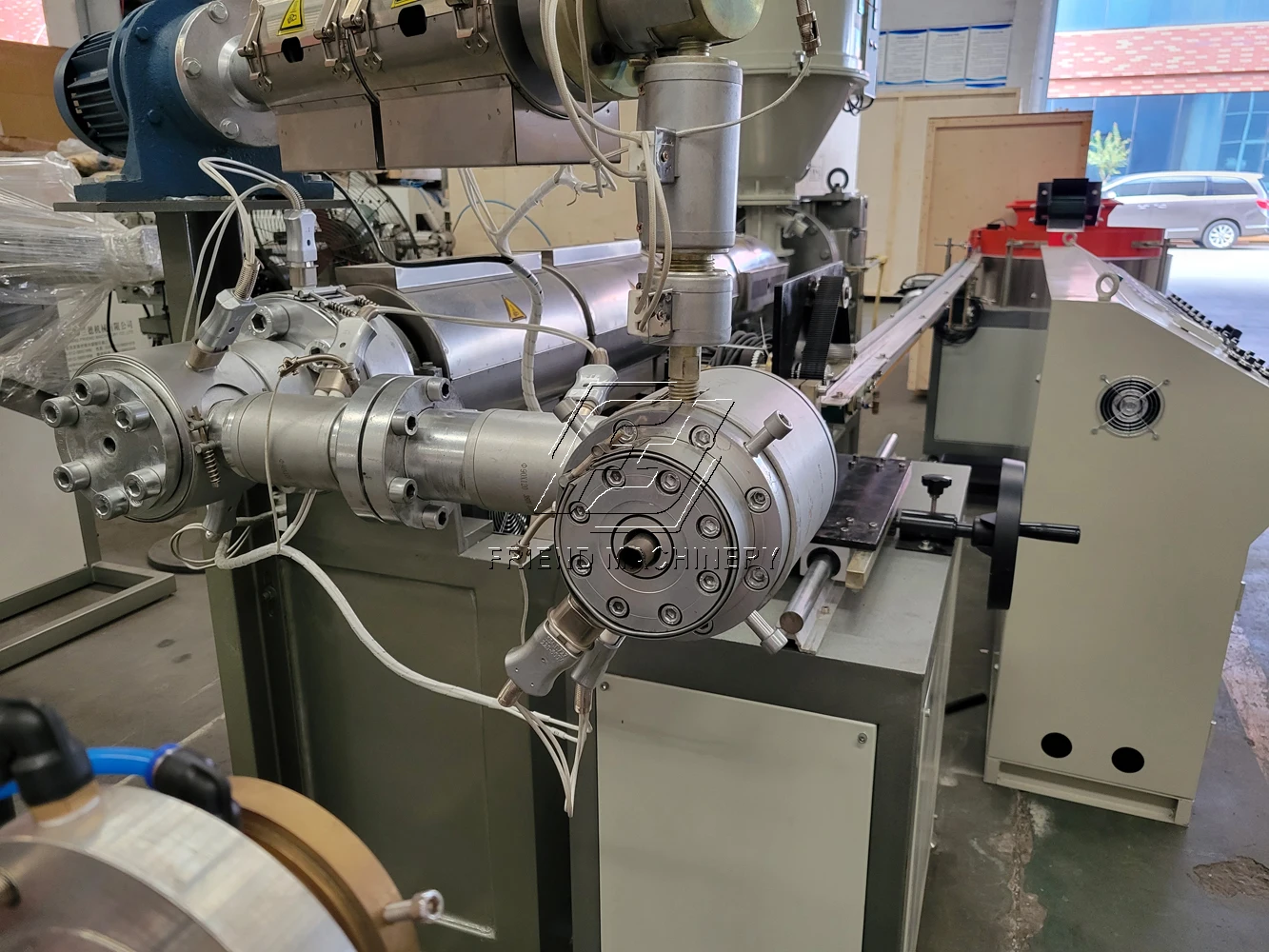

Detailed Photos
Product Description

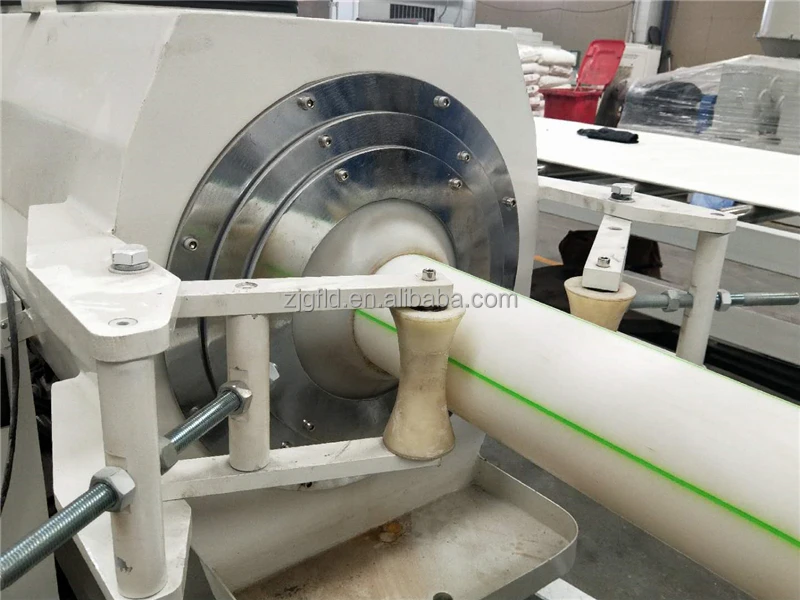

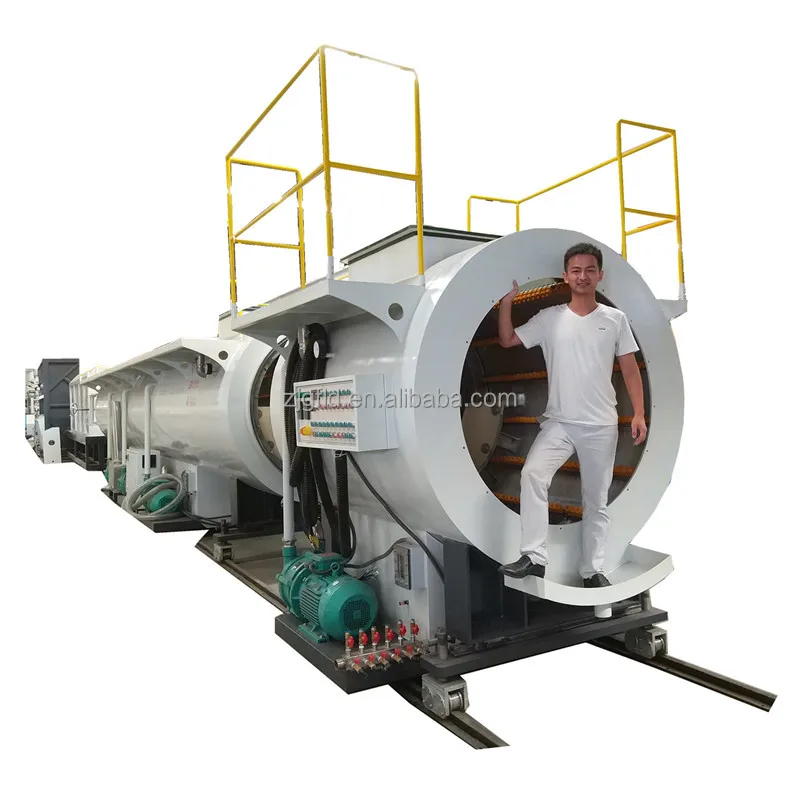

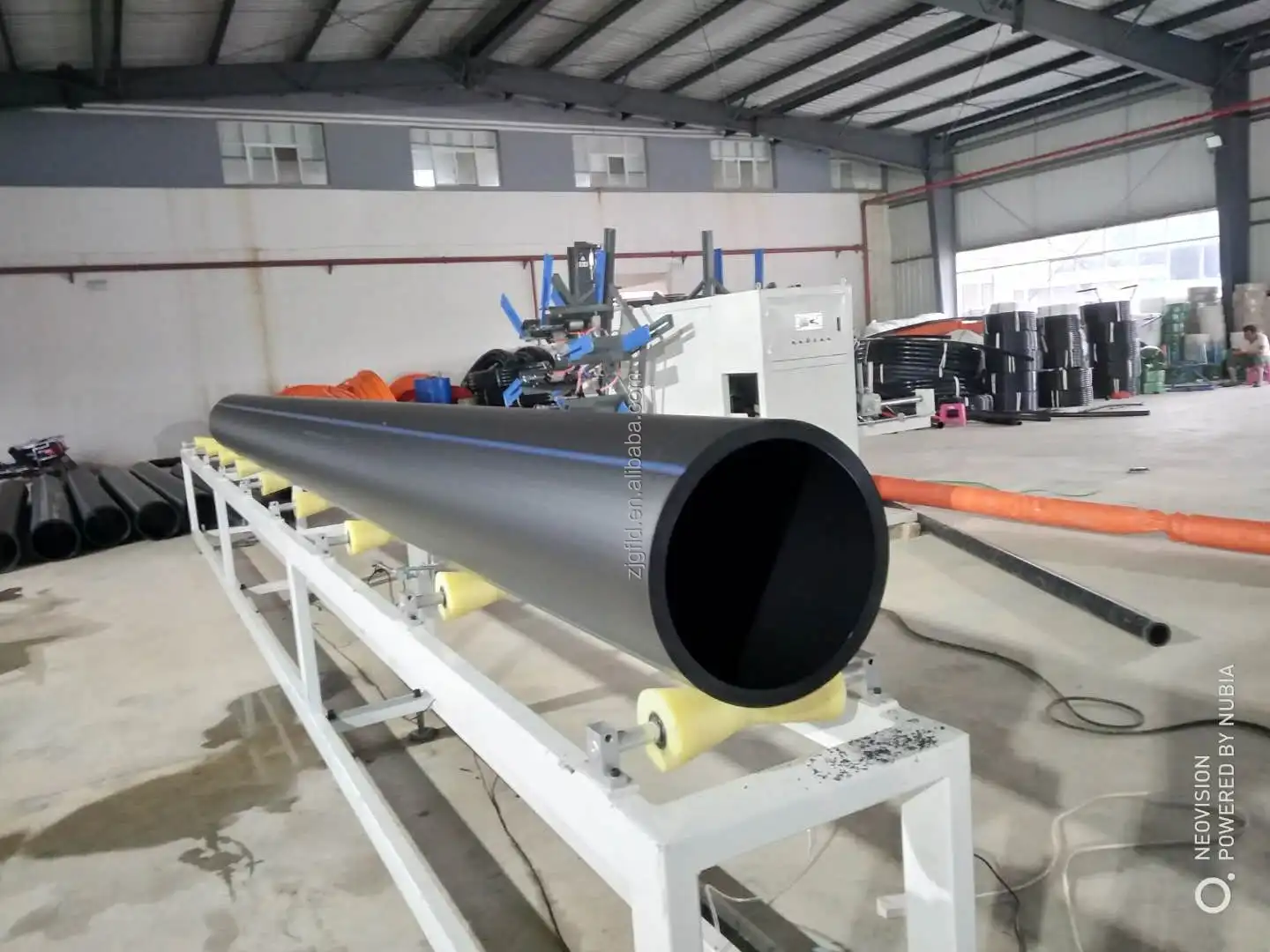

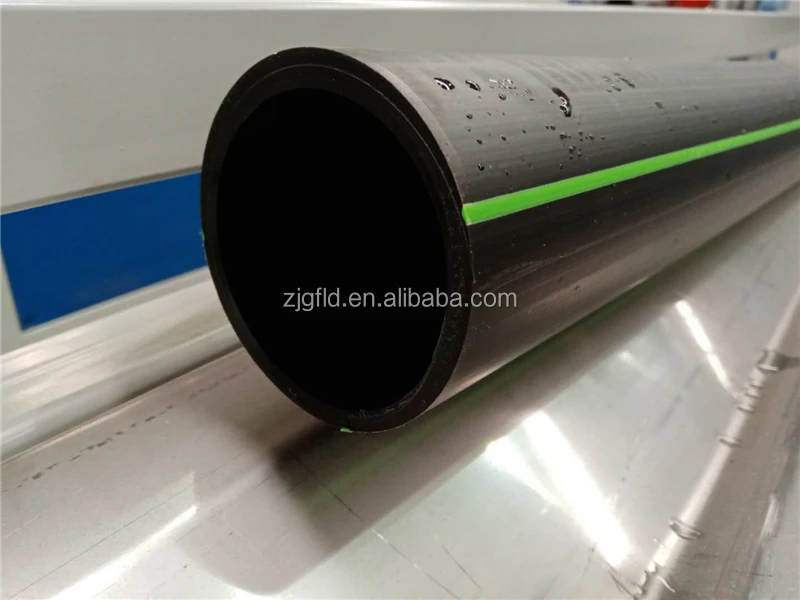

PE Pipe Production Line
Our company produces 16-1200mm full-size PE water supply, gas, single-layer and multi-layer composite pipe equipment. This
production line is mainly designed and manufactured for the processing of polyolefin pipes, and the auxiliary machine can also be
used for the processing of other plastic products. The production line adopts high-efficiency single-screw extruder, equipped with
high-quality extrusion die, vacuum sizing, spray cooling, crawler traction, planetary cutting, and PLC microcomputer control
system.
production line is mainly designed and manufactured for the processing of polyolefin pipes, and the auxiliary machine can also be
used for the processing of other plastic products. The production line adopts high-efficiency single-screw extruder, equipped with
high-quality extrusion die, vacuum sizing, spray cooling, crawler traction, planetary cutting, and PLC microcomputer control
system.
Model | Length | Capacity | Power |
16-32 | 40m | 180kg/h | 90kw |
16-63 | 42m | 260kg/h | 110kw |
50-160 | 45m | 400kg/h | 180kw |
110-450 | 60m | 650kg/h | 320kw |
400-1000 | 78m | 1100kg/h | 720kw |
500-1200 | 80m | 1300kg/h | 800kw |
Our Service
1. We not only provide machines but also offer technical support and market evaluate.
2. We will provide all the machines for the complete production line according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except for the one year warranty, we will provide after-sales service for all the time.
6. For long-term cooperation, we always provide good quality, good price and offer good service to customers.
Our Company
ZHANGJIAGANG FRIEND MACHINERY CO.,LTD
Our company covers an area of 7000 square meters and has 60 employees. We are specialized in producing plastic machine and have an annual production capacity of 400 million US dollars. Our company has rich experience in the plastic machinery making industry. Our main products include 3D filament production line, plastic pelletizing machine, waster plastic recycling and washing machine, plastic pipe/board/profile production line, plastic extruder, mixer, crusher and other kinds of auxiliary plastic machine. Besides, we are making great efforts to develop new productions to meet different requirements. Our company has CE, and SGS certificate control the product quality.
FAQ
Q: Are you trading company or manufactory ?
A: both. Which means we can strictly guarantee product quality and lead time.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will be charged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts as deduction of machine cost.
Q: How am I suppose to trust you the machine I received matches your description?
A:Appearance of Final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
A: both. Which means we can strictly guarantee product quality and lead time.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will be charged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts as deduction of machine cost.
Q: How am I suppose to trust you the machine I received matches your description?
A:Appearance of Final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems.(notice: return flight and $80 per day salary will be on customer）
