ATOMSTACK A70 X70 Pro 70W laser Engraver With F3 Matrix Table 60L/min Automatic Air F60 400*500 mm With AC2 Lightburn Camera
- Category: >>>
- Supplier: Shenzhen Ssjy Tech Co. Ltd.
Share on (1601162136576):
Product Overview
Description
Product Description
Strong cutting force: can cut 25mm black acrylic, 12mm MDF board, 30mm pine board and 0.3mm stainless steel sheet

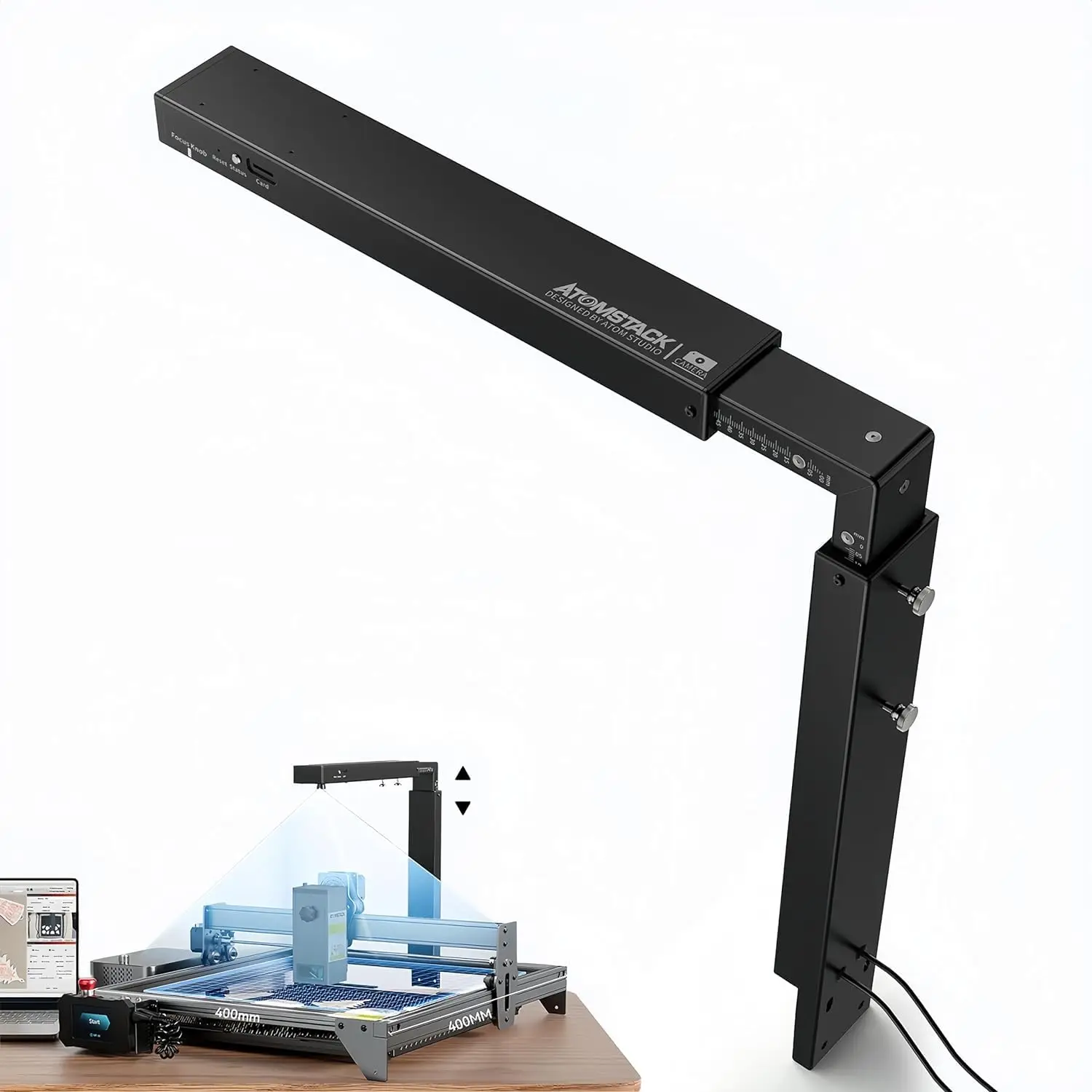

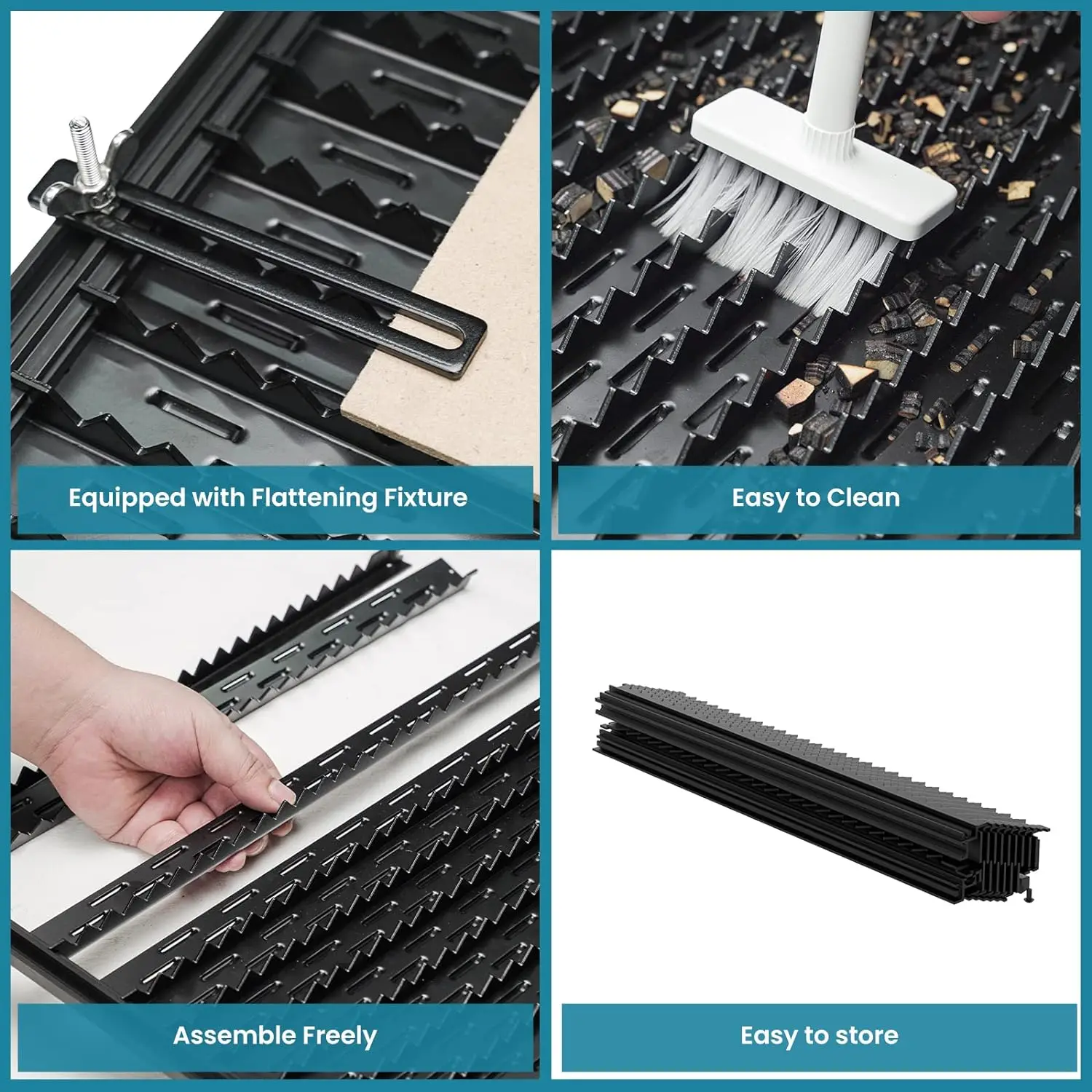

Larger working area: As a professional processing tool, the standard 400*500mm large working area with a frame that can accommodate materials up to 645*600mm, equipped with AC2's newly developed precision positioning light burner camera for real-time monitoring, F3 matrix table

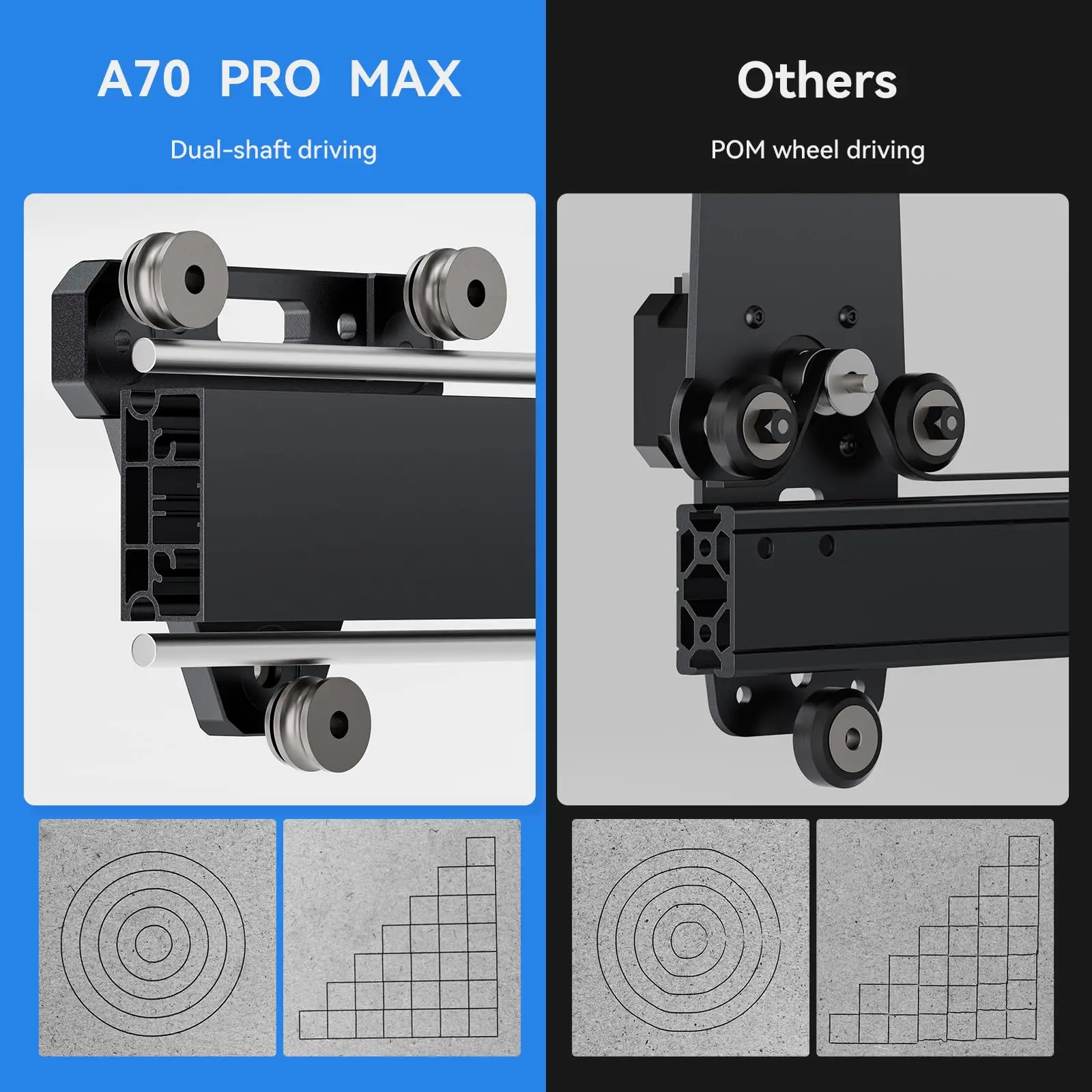

New motion structure: In order to ensure stable high-speed operation, the three axes of the machine adopt a new two-axis guide rail structure with a low center of gravity, which enables stable operation at high speed, is quiet and suitable for heavy-duty engraving and cutting work
Offline work: The product is equipped with a second-generation smart board and a control screen and can work offline without a computer or phone.
Standard large flow air support: maximum 60L/min air support ensures flawless cutting work, surface of cut lines does not turn yellow, extends the life of the laser
Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, posters, metal marking, clothing design

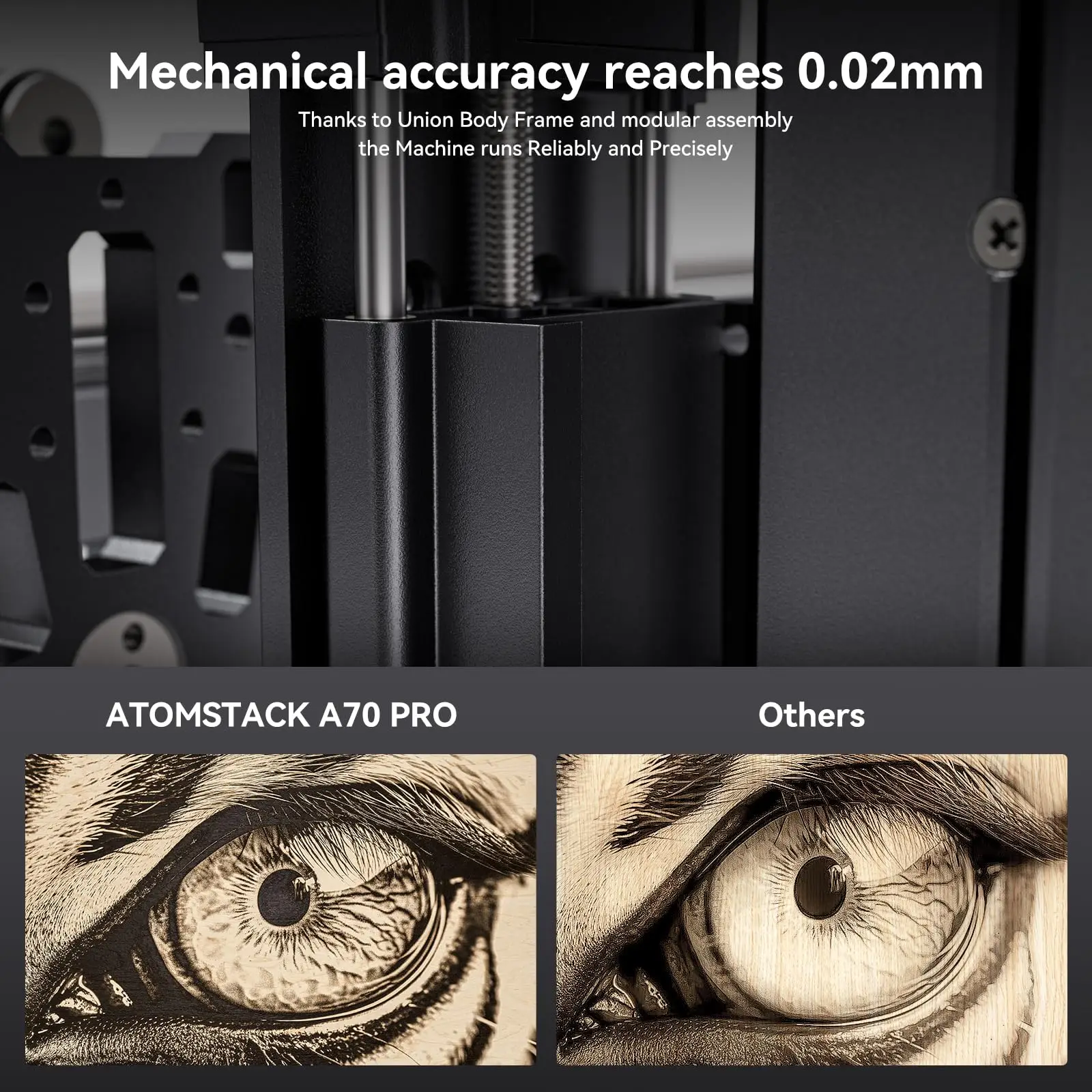

Fast accuracy maintenance: at a high-speed operation of 400mm / s, the accuracy can maintain 0.01mm

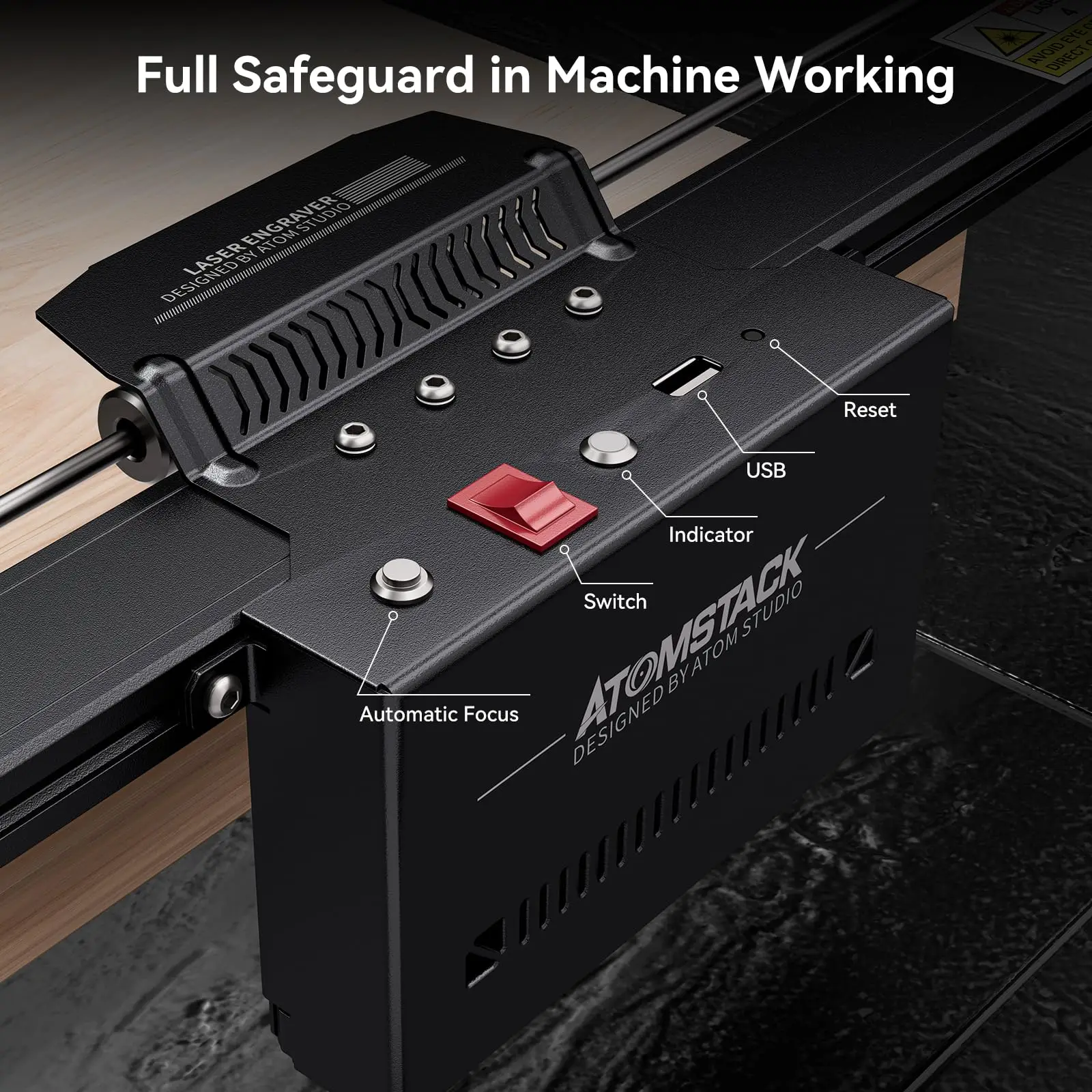

Dual-mode focus adjustment: supports manual and automatic focus adjustment, completes the focus adjustment within 8 seconds

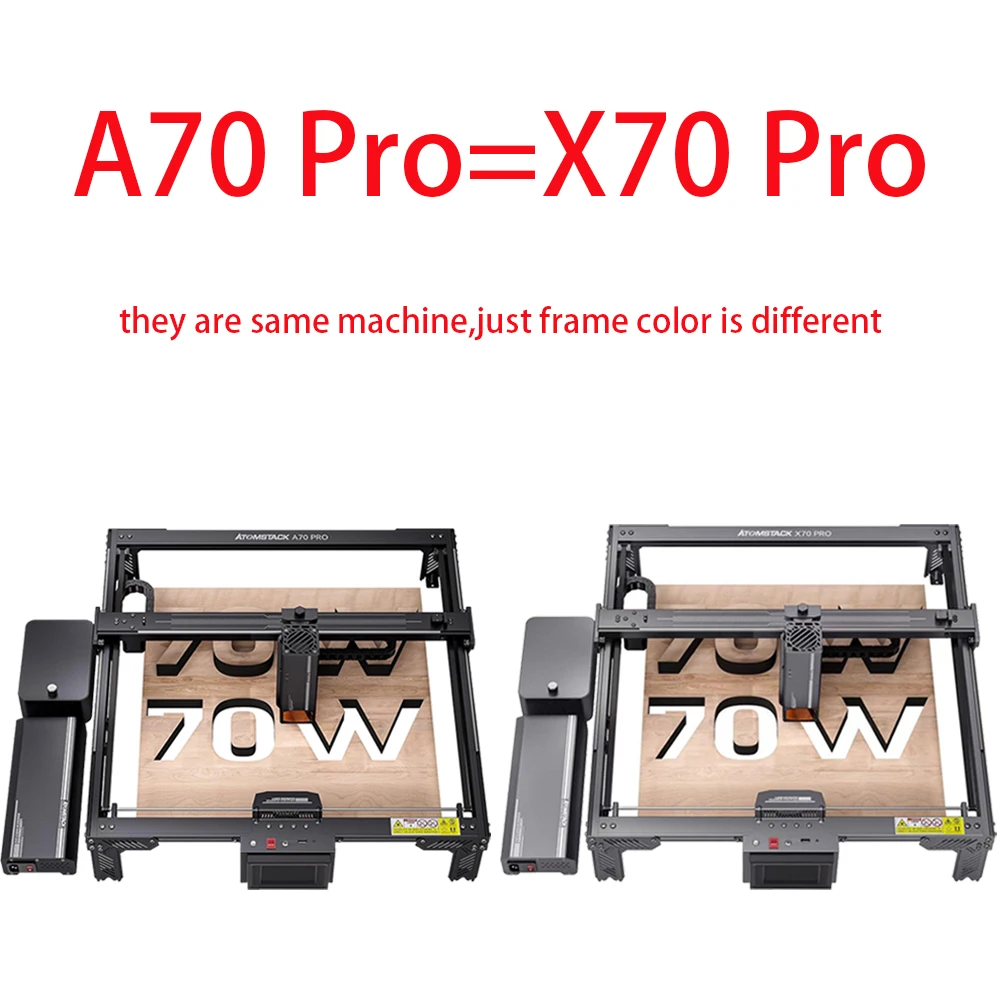

Kindly Note : A70 PRO X70 PRO is the same machine, only the frame color is different, We will ship randomly based on available stock, thank you for your order !
Specification
Brand | Atomstack |
Model | A70 PRO/X70 PRO With F3 Honeycomb worktable With AC2 Camera |
Device Size | 705*776*292mm |
Engraving Size | 500*400mm |
Working Principle | Engraving / Cutting |
Engraving Materials | Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate; |
Cutting Materials | Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge; |
Input Power | 360W |
Output Power | 70-77W, 35-39W |
Maximum Speed | 400mm/s (24000mm/min) |
Laser Wavelength | 455±5nm |
Engraving Accuracy | 0.01mm |
Repetition Accuracy | 0.1mm |
Spot Size | 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W) |
Transmission Method | USB transmission |
Focus Adjustment Method | Automatic focus + manual focus |
Screen Control | 4.3 inches |
Connection Support | Type-C, mobile WiFi, touch screen |
Support Systems | IOS, Android, Windows, Mac |
Operating Software | LaserGRBL, LightBurn, AtomStack Studio |
Air Flow Rate | 0-60 L/min infinitely adjustable |
Power Supply | Input 100-240V AC, 50/60HZ, output 12V 5A |
Quality Certification | CE, FCC, RoHS, FDA, PSE |
Available Materials | Cut | Sculpture |
Card board | ✔ | ✔ |
Wood | ✔ | ✔ |
Bam boo | ✔ | ✔ |
Leather | ✔ | ✔ |
Fabric | ✔ | ✔ |
Acrylic | ✔ | ✔ |
Black Acrylic | ✔ | ✔ |
Glass | × | ✔ |
Stone material | × | ✔ |
Aluminum (anodized) | × | ✔ |
Stainless | × | ✔ |
Rubber | × | ✔ |
Certification
Company Profile
Packing & Delivery
German Warehouse
America Warehouse
Payment and Transport
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country.
DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
For medium and urgent orders, bulk air shipping is available. You can have your forwarder to help you collect the goods at your airport. The price caused by air shipment is much better than by express and the delivery time is usually around 4 days to your local airport.
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
FAQ
1. who are we?
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like!
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like!
We are always available to provide the spare parts you need with your laser engraving machine;
You could reply on us for the consistent quality and service!
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
CE FCC ROHS PSE Certifications;
3.What can you buy from us?
Laser Engraving Machines, Laser Marking Machine , Laser Engraving Accessories , Laser Roller, Laser Module, Air-assit,Laser Cutting Working Panel,Extension Kit For Engraving, Laser pretection Glasses, Scanning Camera etc.
4. Why should you buy from us not from other suppliers?
our company specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products etc and has mature sales channels, supply chains and core key technologies.Factory direct sales.Meanwhile, Atomstack has applied many certifications like ce,fcc,fda,rohs and so on, strictly in quality control
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
13 Months warranty;
You could reply on us for the consistent quality and service!
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
CE FCC ROHS PSE Certifications;
3.What can you buy from us?
Laser Engraving Machines, Laser Marking Machine , Laser Engraving Accessories , Laser Roller, Laser Module, Air-assit,Laser Cutting Working Panel,Extension Kit For Engraving, Laser pretection Glasses, Scanning Camera etc.
4. Why should you buy from us not from other suppliers?
our company specializing in the production of laser engraving machines, 3D printers, PLA consumables, washing resins and other printer peripheral products etc and has mature sales channels, supply chains and core key technologies.Factory direct sales.Meanwhile, Atomstack has applied many certifications like ce,fcc,fda,rohs and so on, strictly in quality control
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
13 Months warranty;
