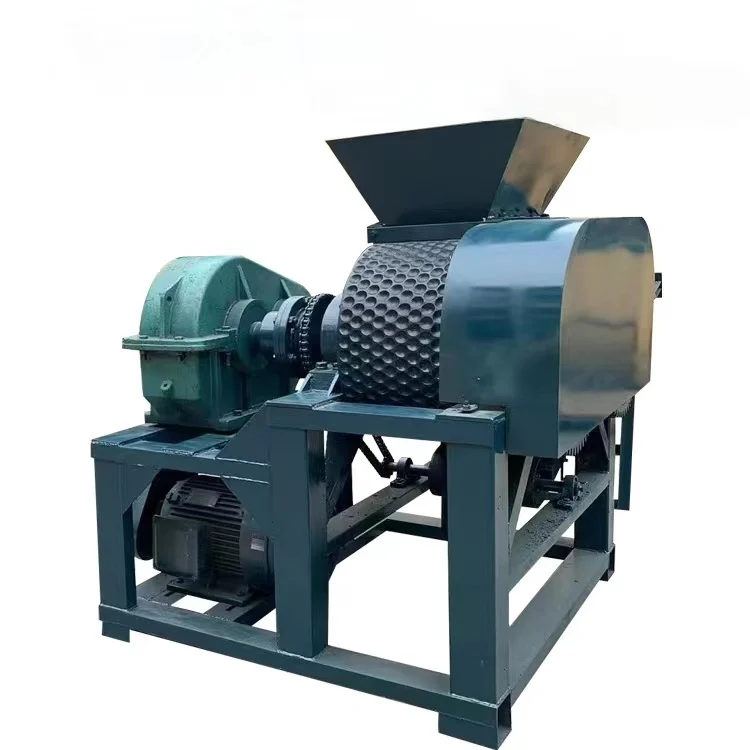

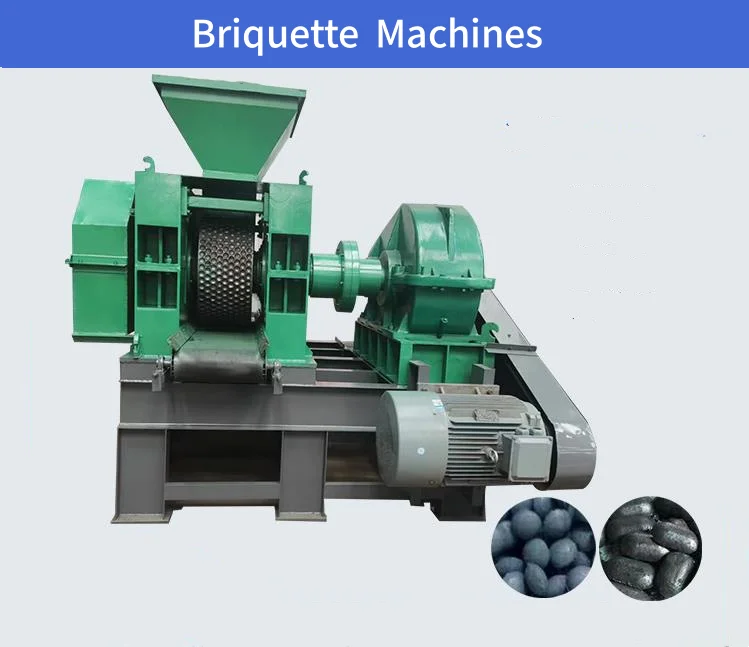

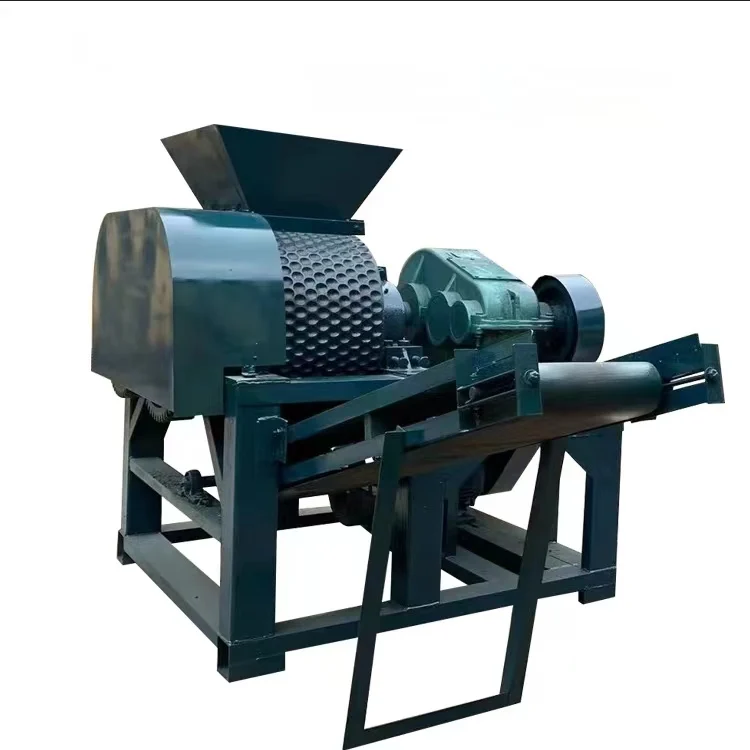

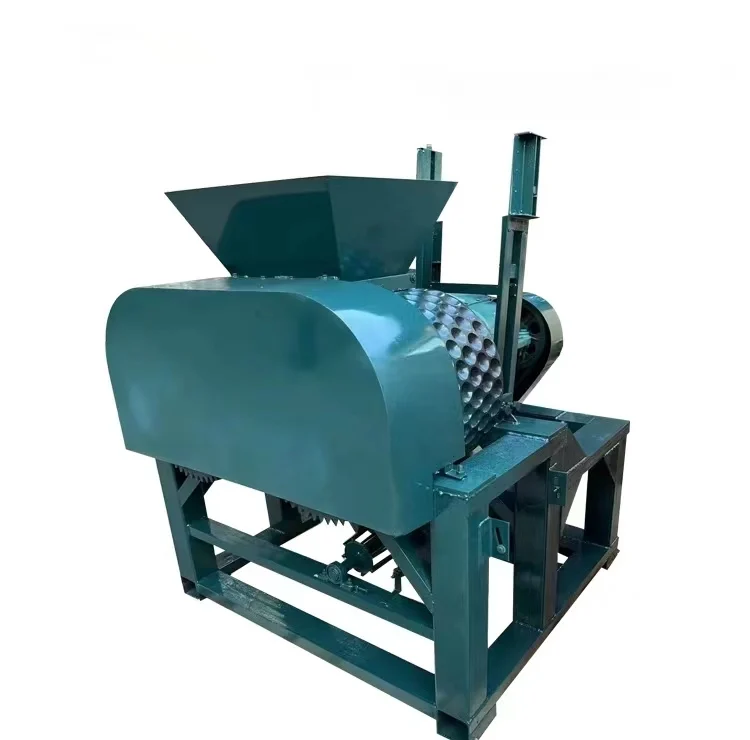

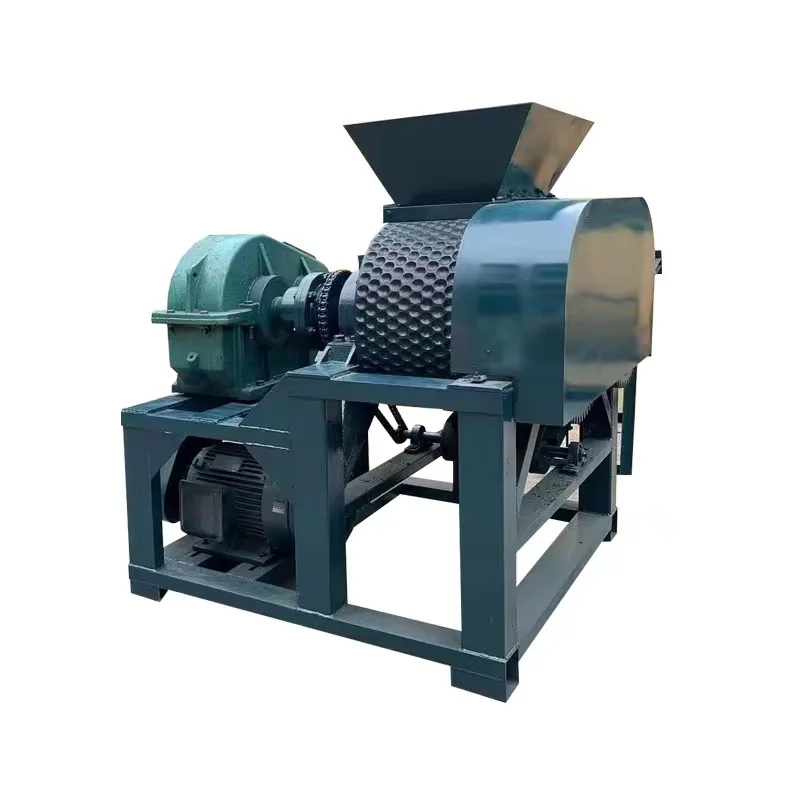

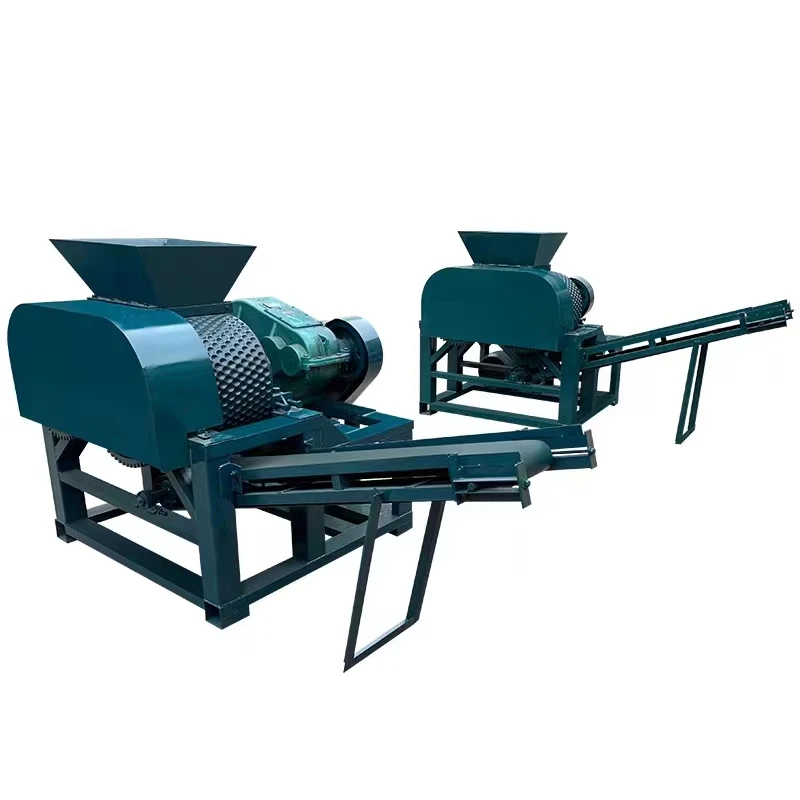

Charcoal coal briquette machines, also called charcoal briquette granulator,  is used to process the charcoal powder into charcoal briquettes. Mature technology, stable performance and easy operation, our charcoal powder briquette machine enjoys extensive popularity among clients. With high Calorific value and density, the charcoal briquettes produced by our charcoal powder briquette machine are most suitable for industrial boilers, home heating, barbecue, etc.

Working principle of charcoal ball briquitte machine:

From the storage silo, the material is fed into the molding machine hopper evenly by the quantitative device. Then the regulation board on the hopper make the materal evenly enter into the middle of the roller; the reverse operating roller compress the material and the forming pressure increases gradually, at the centerline of the roll the forming pressure reaches its maximum value, once the material through the line, the molding pressure rapidly decrease so that the material forms into ball shape and smoothly discharge the ball.

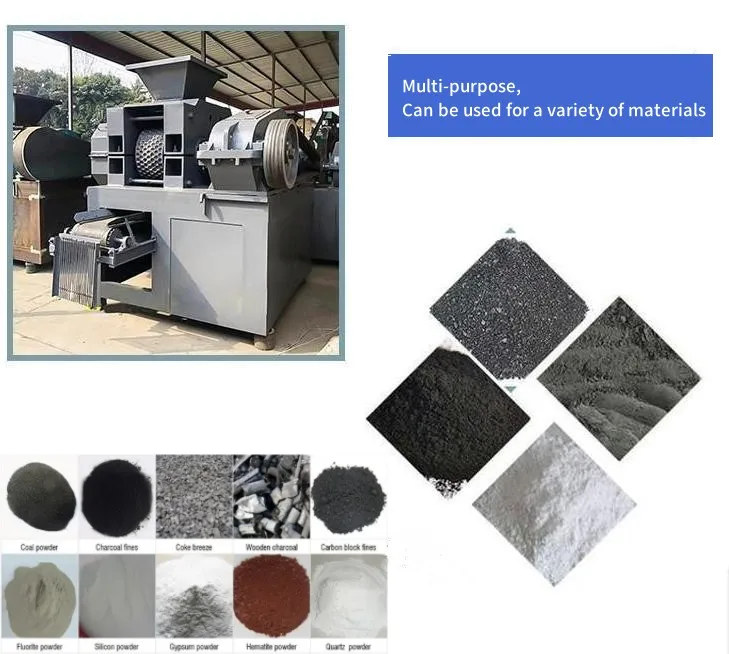

Application:Coal Charcoal ball press briquetting machines and coal briquette machines are widely used in refractory, powder plant, metallurgical, chemical engineering, energy, transportation, heating and other industries.

Product Flow: Raw materials---crushing---feeding---mixing---briquetting---drying---finished products

Technical parameters of charcoal ball briquitte machine:

Model	Power	Capacity	Diameter of roller	Width of roller	Size	Weight
GYBF-290	5.5 kw	1-3 t/h	290 mm	200 mm	1.24x1.07x1.44 m	900 kg
GYBF-360	7.5 kw	4-6 t/h	360 mm	250 mm	1.3x1.15x2.05 m	1250 kg
GYBF-400	11 kw	6-7 t/h	400 mm	300 mm	1.65x1.50x2.40 m	4000 kg
GYBF-450	15 kw	8 t/h	450 mm	300 mm	1.65x1.50x2.40 m	4200 kg
GYBF-500	18.5 kw	8-10 t/h	500 mm	350 mm	1.75x1.60x2.60 m	4500 kg
GYBF-650	30 kw	10-15 t/h	650 mm	380 mm	2.2x2.2x2.8 m	5000 kg
GYBF-850	55 kw	15-20 t/h	850 mm	650 mm	3.5x3.5x3 m	10000 kg
GYBF-1000	75 kw	20-30 t/h	1000 mm	850 mm	4.5x4.5x3 m	15000 kg
Remarks	The above parameters are for reference only, and there may be slight differences in the actual situation. Please refer to the actual situation



Q:How to know the details of the machine?
A:We can provide detailed machine pictures, videos and parameters

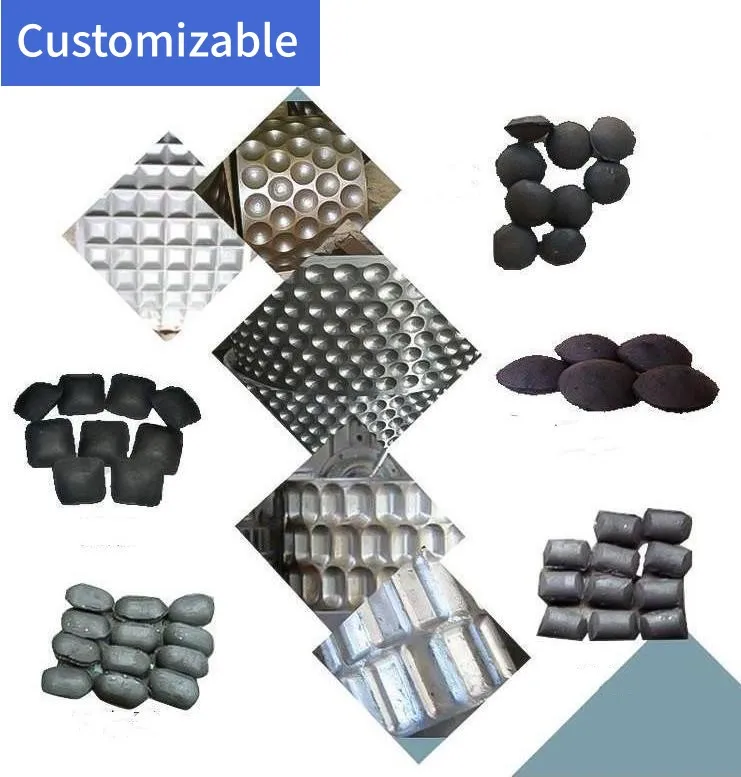

Q:Can you customize the machine?
A:We can customize according to customer's requirements.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you help chose suitable products?
A: Yes. We have many experts who have worked in this field for many years. They can help you select the most suitable products according to your actual condition. And they can design proper process flow based on your special situation. If necessary, we can even send professionals to your local place for site planning and work-flow design.

Q:When do you arrange delivery?
A:We usually arrange delivery within 10 days after payment.

Q:Do you provide the after-sale service?
A:Yes,We have professional technicians to solve any problems for you on-line at any time, if necessary, can provide on-site maintenance services.
