Jinling Concrete Blanket Roll With High Quality
- Category: >>>
- Supplier: Shandong Jinling New Materials Co. Ltd.
Share on (1601162437324):
Product Overview
Description
Products Description
The concrete blanket is a special engineering composite material with three- dimensional structure. It is made of special cement, aggregate and other cementious materials and three- -dimensional fabrics. It can be widely used in water conservancy, railway, highway, environmental management, slope protection, structural slope protection and other fields. The main functions are anti-seepage, lining emergency, etc.
Product Paramenters
Item | Test Method | Unit | Typical Value |
GCCM Classification | ASTM D8364 | - | I |
Thickness | ASTM C1185 | mm | 5 |
Mass | kg/m2 | 6.5 | |
Roll size | m | 2.0 * 50 | |
Area | m2 | 100 | |
Compressive strength | ASTM D8329 | Mpa | > 40 |
Bending Strength MD | ASTM D8058 | Mpa | > 5 |
Bending Strength CMD | ASTM D8058 | Mpa | > 5 |
*The thickness are subject to actual production. The tolerances are typically +10%.
*The listed length and width dimensions are typical values and tolerances are typically +5%/-2.5%. The roll size can be customized according to the request of projects. *Information is provided based on current test data and may be subject to change as new information becomes available.
Features
1. Easy construction.

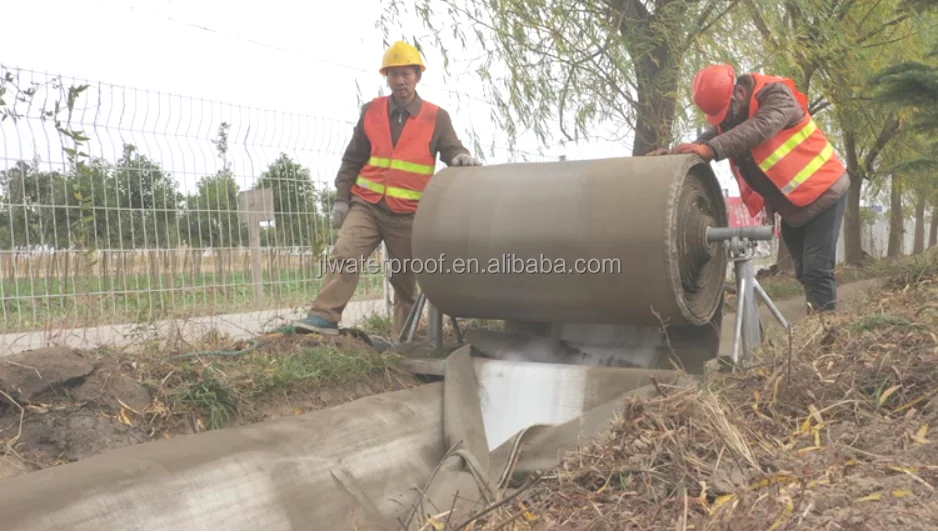

Completed in only 4 steps: Cutting, laying, lapping, hydrating. No need for large machinery. Available in rolls or in bulk easy
for transportation, handling and installation.
for transportation, handling and installation.
2. Fireproof and UV resistant.
Classification of combustion properties of building materials and products: Class A.
UV aging resistance: 500 hours>95% strength retention
3. Eco-friendly and low carbon.
Compared with traditional methods, the amount of gravel is greatly reduced, and the CO2 is reduced by more than 90%.
4. Eco-friendly.
No need to deal with the foundation, adapt to deformation.
5. Labor and time saving.
The efficiency can reach 400 m2 /day, work can be done by only 2 people, the tools are simple, no professional technology is needed. Rapid prototyping in any shape without multiple curing.
6. Strong and sturdy.
Compressive/reflex strength > C 30 concrete. Durable for 50 years.
7. Low cost.
Reduce labor costs and appliance costs. No cracking, settlement and dislocation.

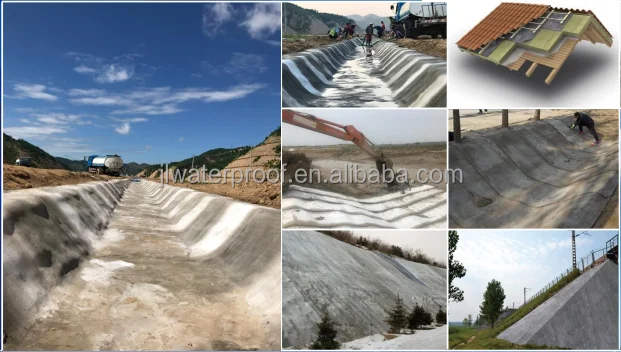

Application

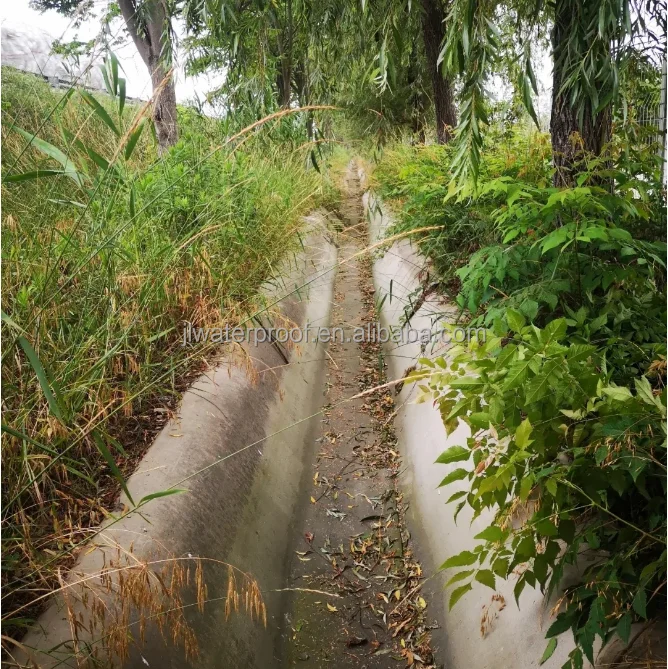

1. Ditch laying
2. Slope protection. Building foundation pit protection
3. Dam reinforcement
4. Reservoir, pond
5. Marine engineering tidal land
6. Sewage black and foul water cofferdam and river treatment
7. Sewage industry sewage related anti-corrosion and anti- erosion landfill leachate pool
8. Sandbag reinforcement, explosion-proof wall reinforcement
9. Light load path
10. Temporary diversion canal
11. Mine roadway support
12. Pipeline protection
13. Roof material
14. Low temperature and construction work
15. Flood control, dam reinforcement
2. Slope protection. Building foundation pit protection
3. Dam reinforcement
4. Reservoir, pond
5. Marine engineering tidal land
6. Sewage black and foul water cofferdam and river treatment
7. Sewage industry sewage related anti-corrosion and anti- erosion landfill leachate pool
8. Sandbag reinforcement, explosion-proof wall reinforcement
9. Light load path
10. Temporary diversion canal
11. Mine roadway support
12. Pipeline protection
13. Roof material
14. Low temperature and construction work
15. Flood control, dam reinforcement
FAQ
1. Thickness
Concrete blanket available in 3 thicknesses: CB6, CB8 and CB15, which are 6mm, 10mm and 15mm thick respectively.
2. Roll size
Standard roll sizes are 1.25*42 m , 1.6*25 m, 2.0*25 m for option. Customize acceptable.
3. Color
The color can paint according to the requirements of projects.
4. Is it OK to install concrete blanket in water?
Concrete blanket is workable in water. Please kindly advise the hydrological conditions. We can provide professional solution on
request.
request.
