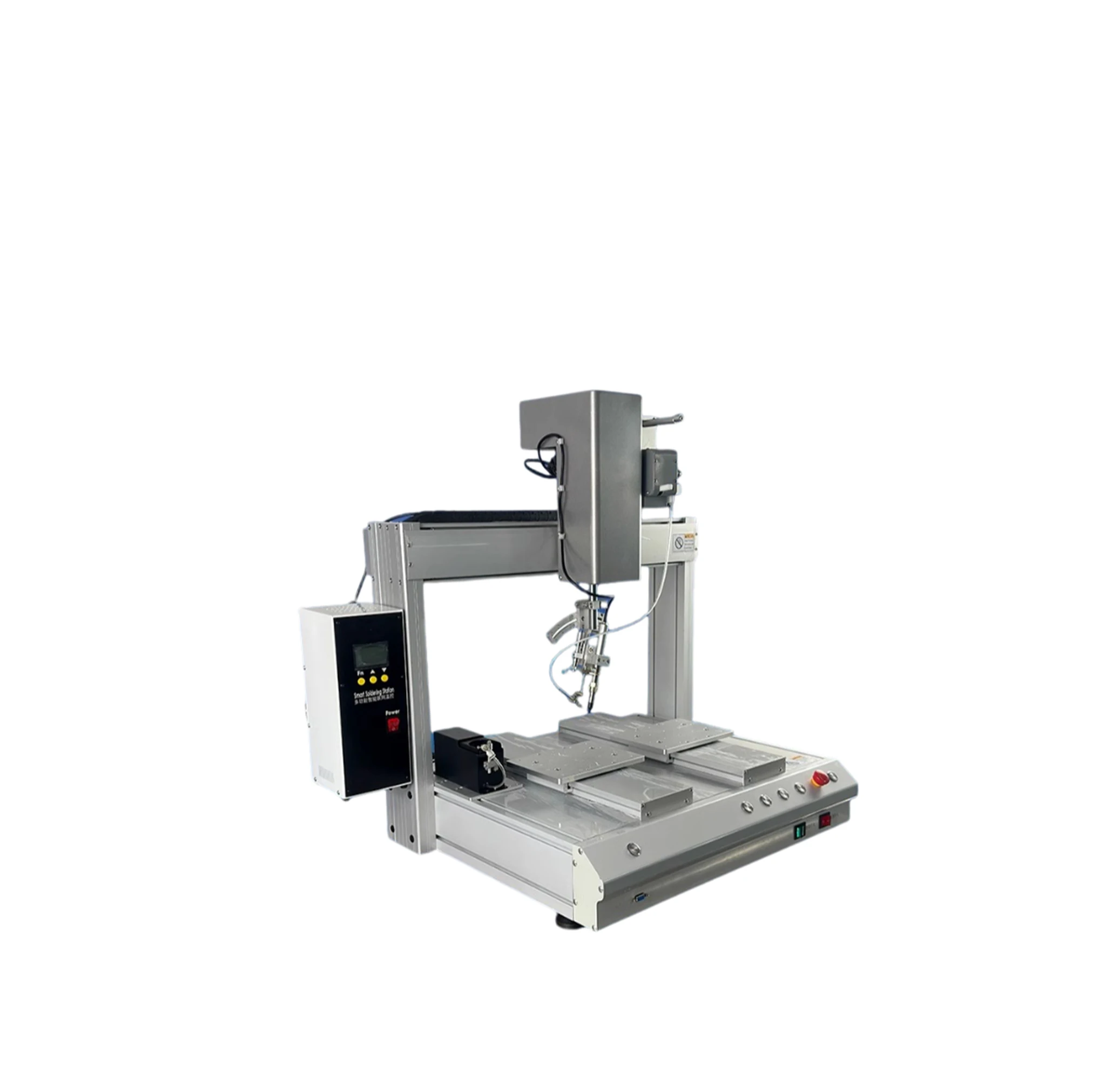

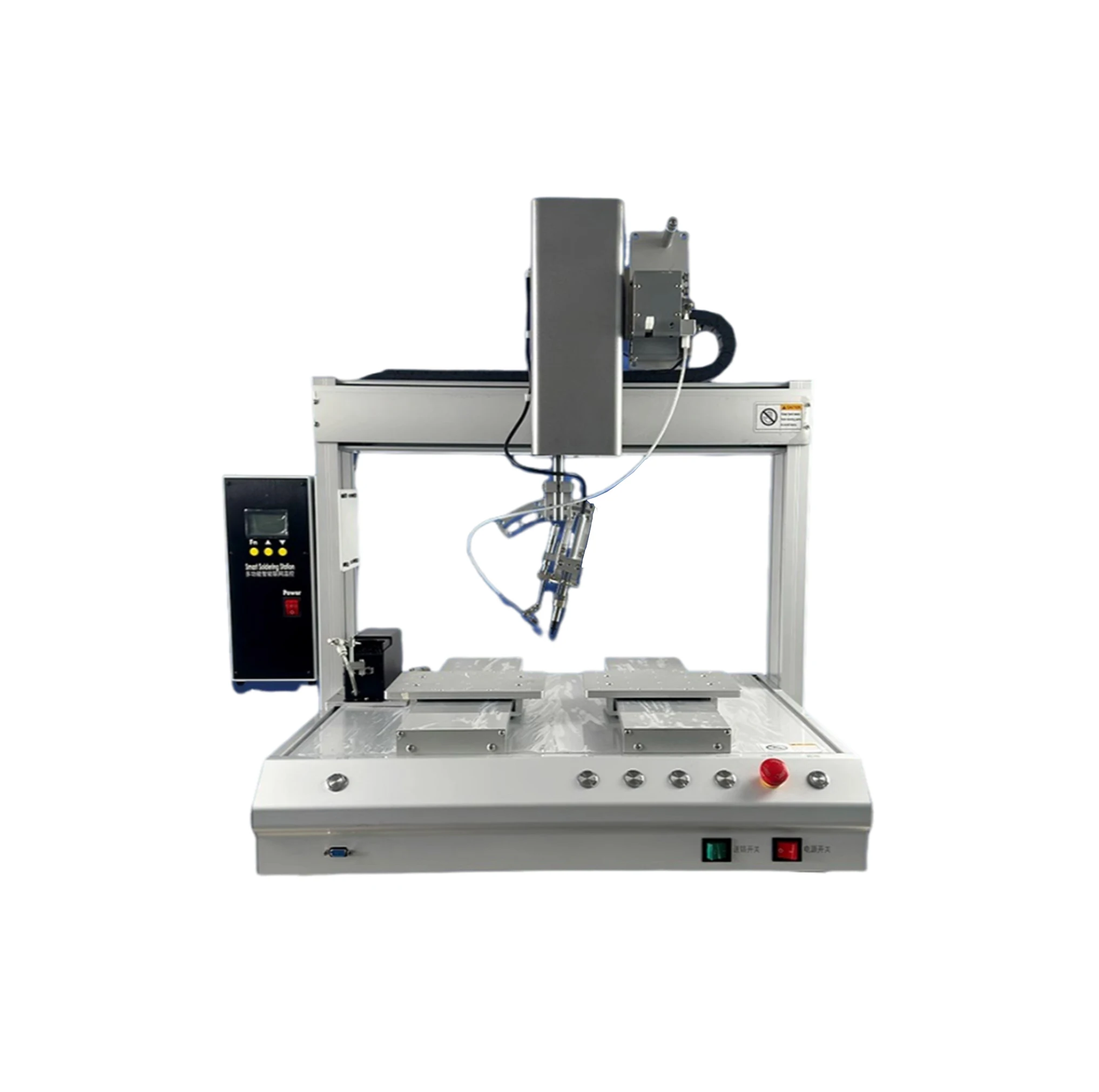

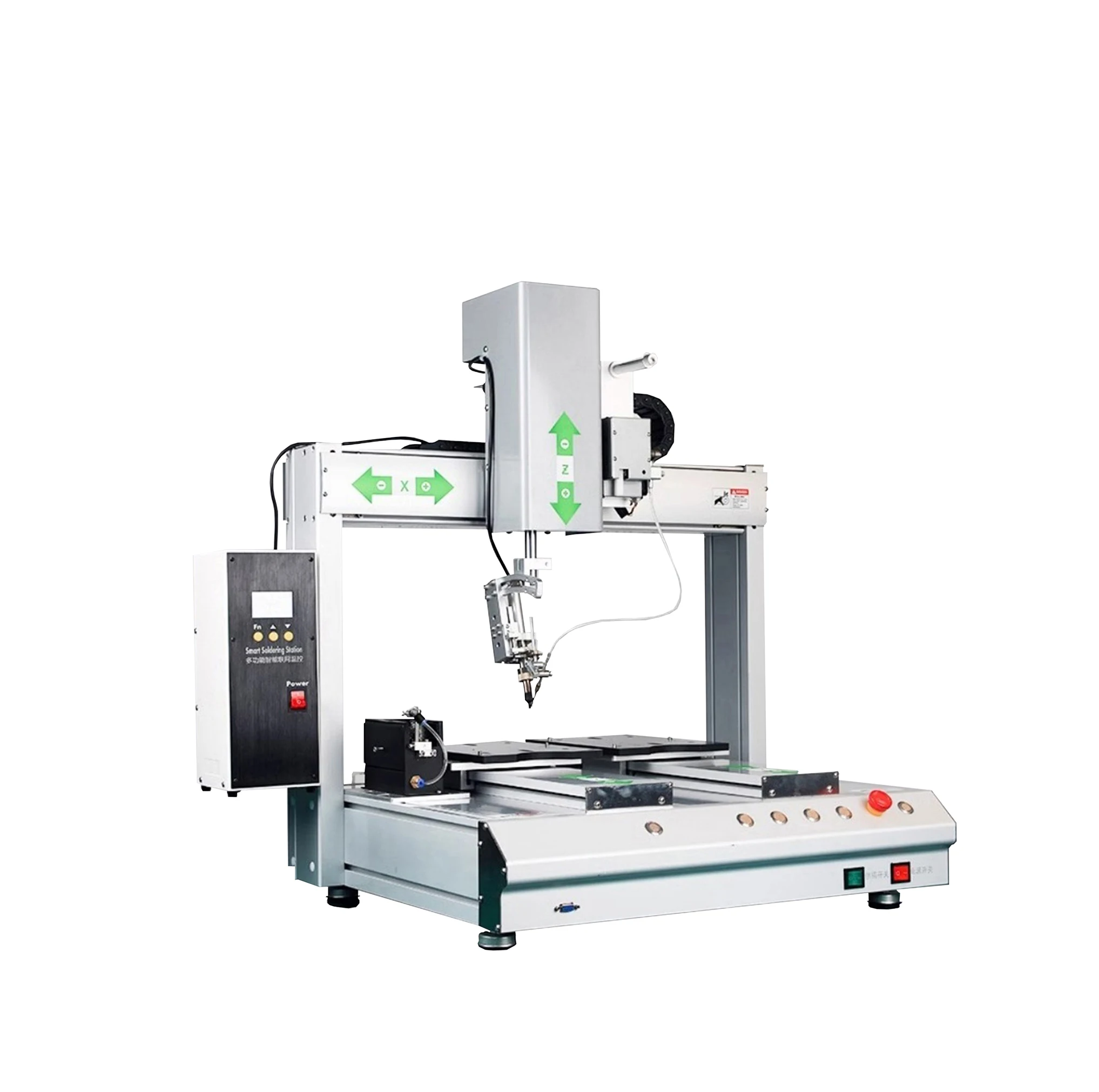

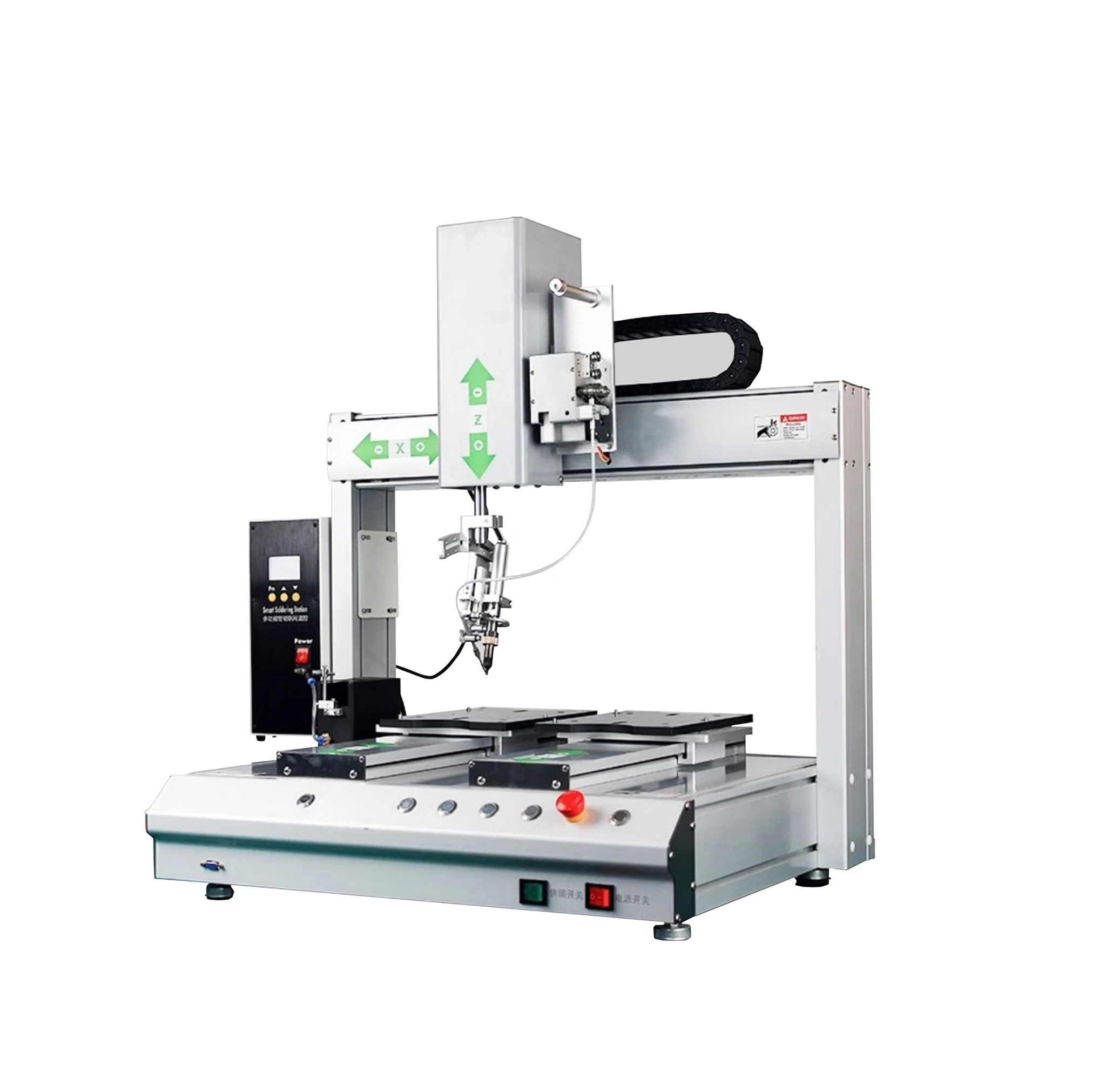

HX431 dip soldering mini cnc pcb solder pot copper pipe brazing machine
- Category: >>>
- Supplier: Suzhou Yudeyi Electronic Co. Ltd.
Share on (1601162683303):
Product Overview
Description
Product introduction
it displays the welding position coordinates for easy reference. Secondly, the multi-axis linkage robot motion control algorithm ensures precise auto-tinning, significantly enhancing the overall welding quality. Thirdly, the device incorporates a multi-dimensional welding method, offering spot welding and drag capabilities. All process parameters can be customized by the user, enabling the completion of a wide range of difficult and micro-welding tasks that would otherwise be challenging for humans.
Lastly, the device allows for manual control of all actions, providing users with flexibility and versatility.

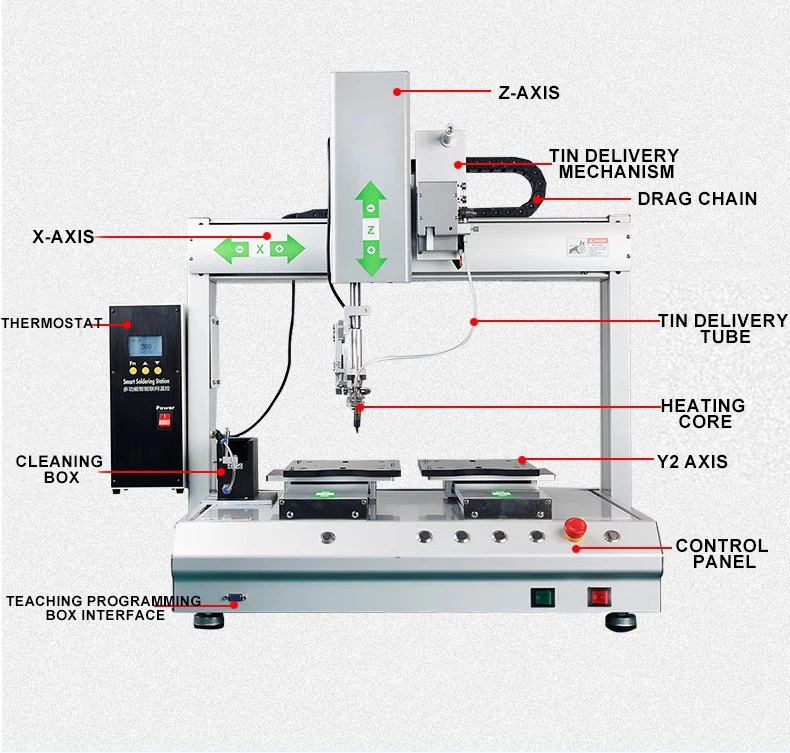

Product Description

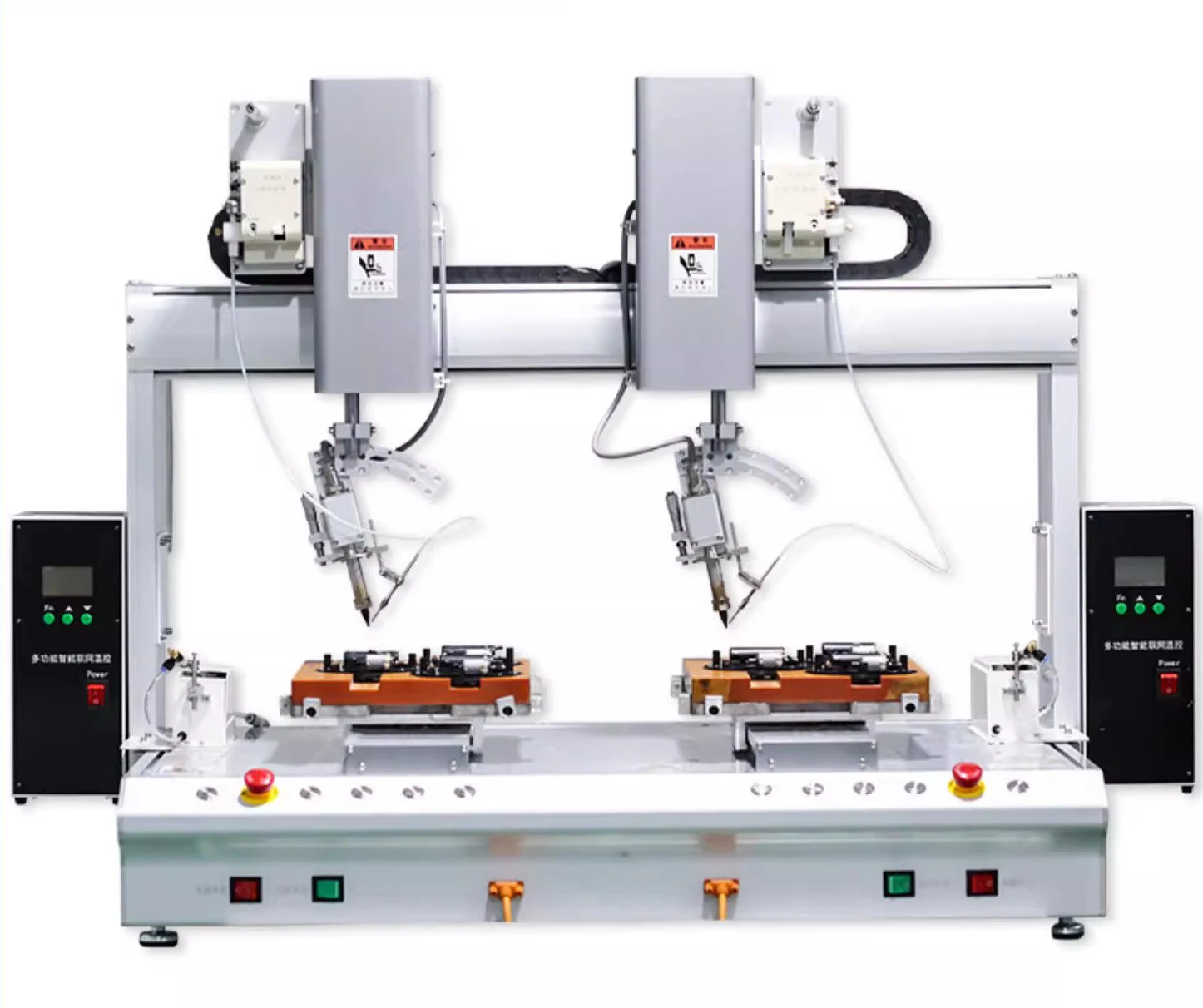

Model | YD-HX331 | YD-HX431 | YD-HX531 | YD-HX4331 | YD-HX5331 | ||||||
Effective travel axis | X | 300mm | 400mm | 500mm | 400mm | 300mm | |||||
Y1 | 300mm | 300mm | 300mm | 300mm | 300mm | ||||||
Y2 | / | / | / | 300mm | 300mm | ||||||
Z | 100mm | 100mm | 100mm | 100mm | 100mm | ||||||
R | 359° | 359° | 359° | 359° | 359° | ||||||
Size | L | 650mm | 750mm | 850mm | 740mm | 840mm | |||||
W | 660mm | 660mm | 660mm | 660mm | 660mm | ||||||
H | 850mm | 850mm | 850mm | 850mm | 850mm | ||||||
Transmission Mode | Double-track timing belt | ||||||||||
Power Source | X Y 500mm/sec , Z 300mm/sec | ||||||||||
Repeat accuracy | ±0.05 | ||||||||||
Maximum Load | X 5Kg , Y 5Kg , Z 3Kg | ||||||||||
Control System | Hand held control system | ||||||||||
File storage space | 400sets of processing files,up to 9999 points in a single file. | ||||||||||
Heating power | 150W-800W | ||||||||||
Temperature range | 50-500 degree | ||||||||||

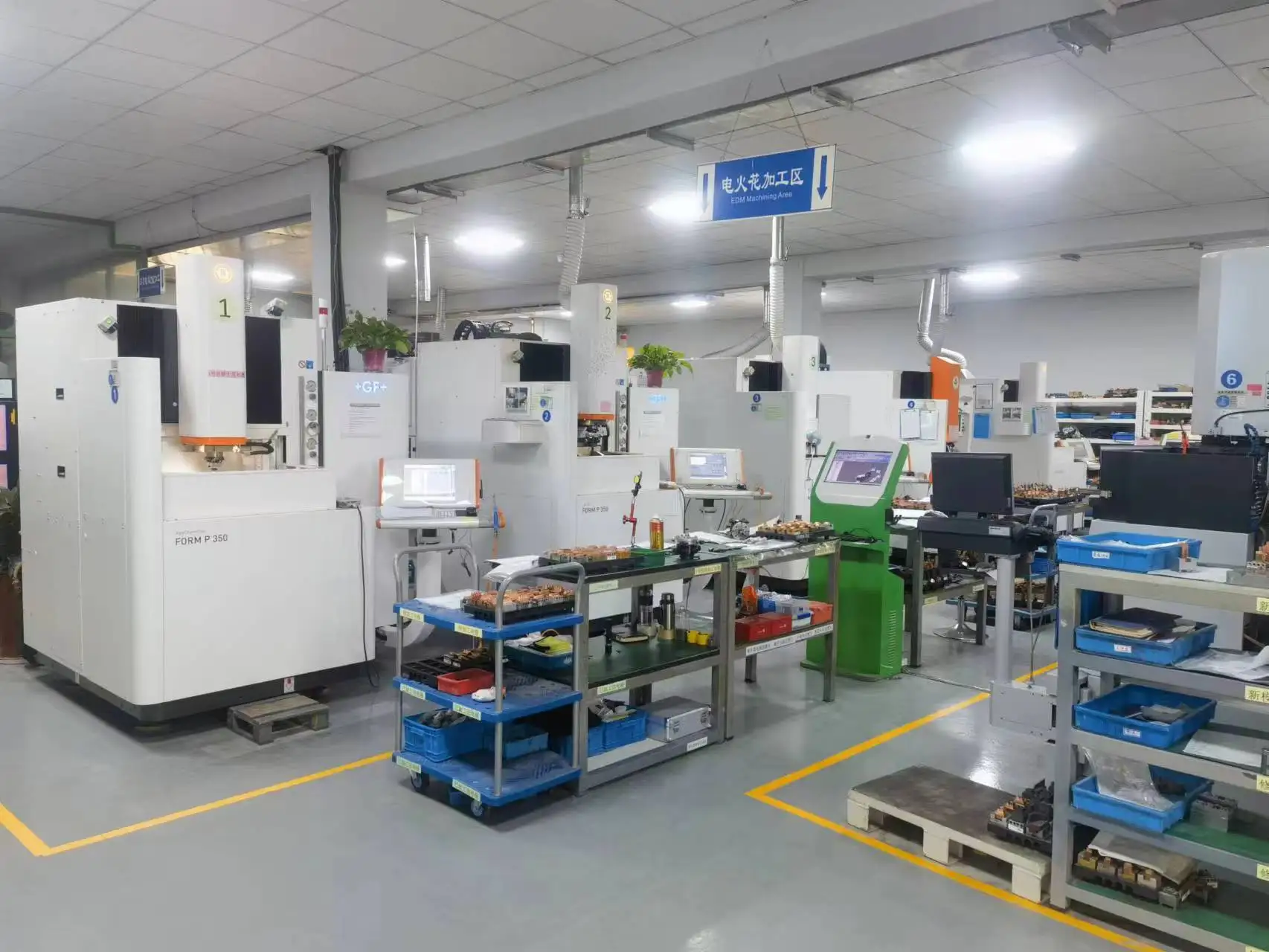

Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. The product I need is a little different from yours. Can you complete the personalized service?
A: Yes,We can make non-standard design according to your needs, and can also provide other related ancillary equipment production.
Q3. What about the lead time?
A: Samples arrived often need 7-15 days.
Q4. Do you have any MOQ limit?
A: We have no quantity limit, the minimum order is one.
Q5. How do you ship the goods take to the destination?
A: Depending on the region, we can use express, sea, land, air and other ways according to your requirements.
Q6. How to proceed an order?
A: First of all, we need to know your needs and application scenarios, and then we will select the equipment and quote according to your situation. If necessary, we can make samples for your confirmation. Finally, if there is no problem, we will arrange production and delivery.
Q7. Is it acceptable to print my logo on the product?
A: Yes.
Q8: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q9: How to deal with the flaw?
A: Our product production process has strict quality control measures, before shipment to go through all performance inspection and testing, our pass rate is more than 99.8.
