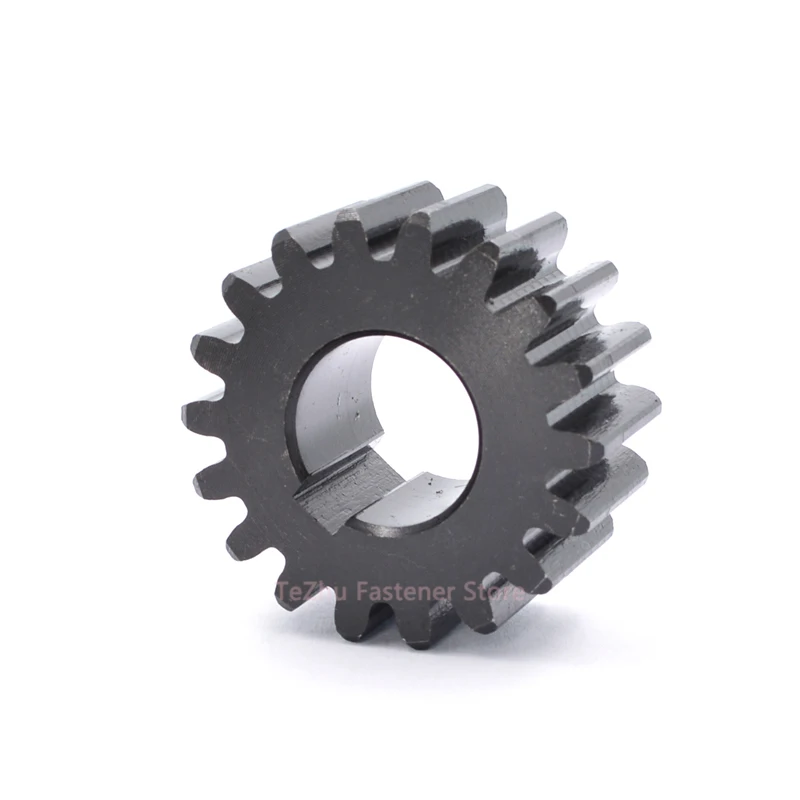

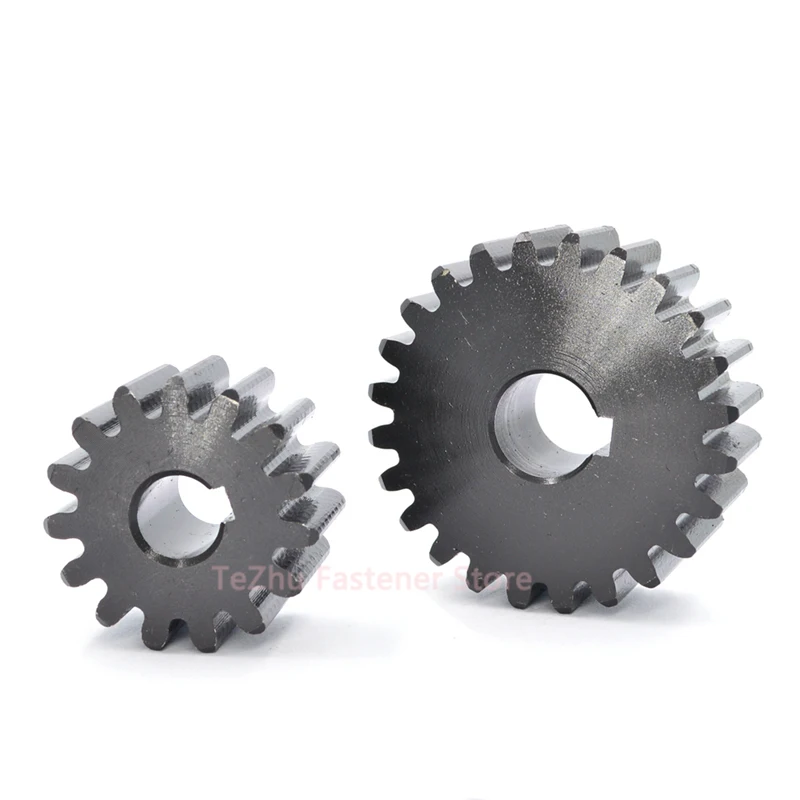

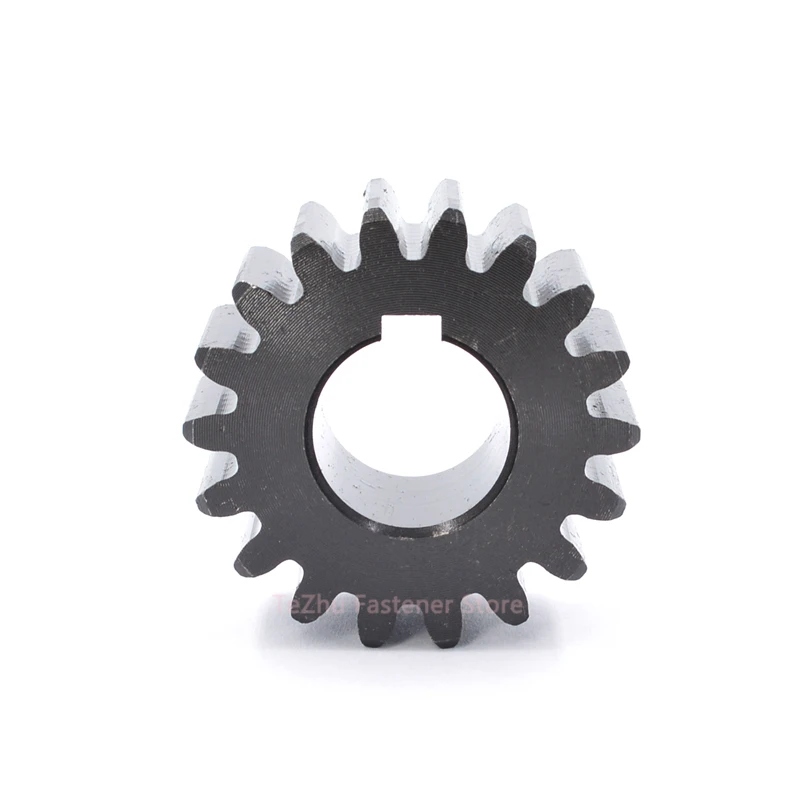

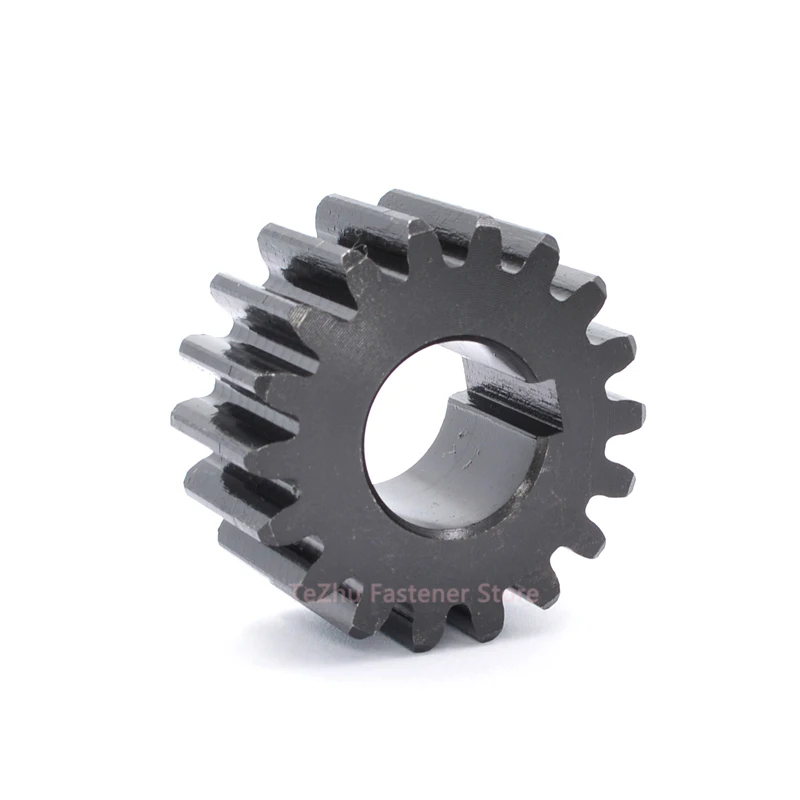

1pc 22T 30T 2M Spur Gear 45# Steel 23 24 25 26 27 28 Teeth Drive Flat Keyway Bore 12/14/15/16/17/18/19/20// 32mm

Specification:

Name: Spur Gear

Material: 45# Steel

Surface Treatment: Blackened

Module: 2M

Pitch: 6.28mm

Thickness: 20mm

Number of Teeth: 22 23 24 25 26 27 28 30 Teeth

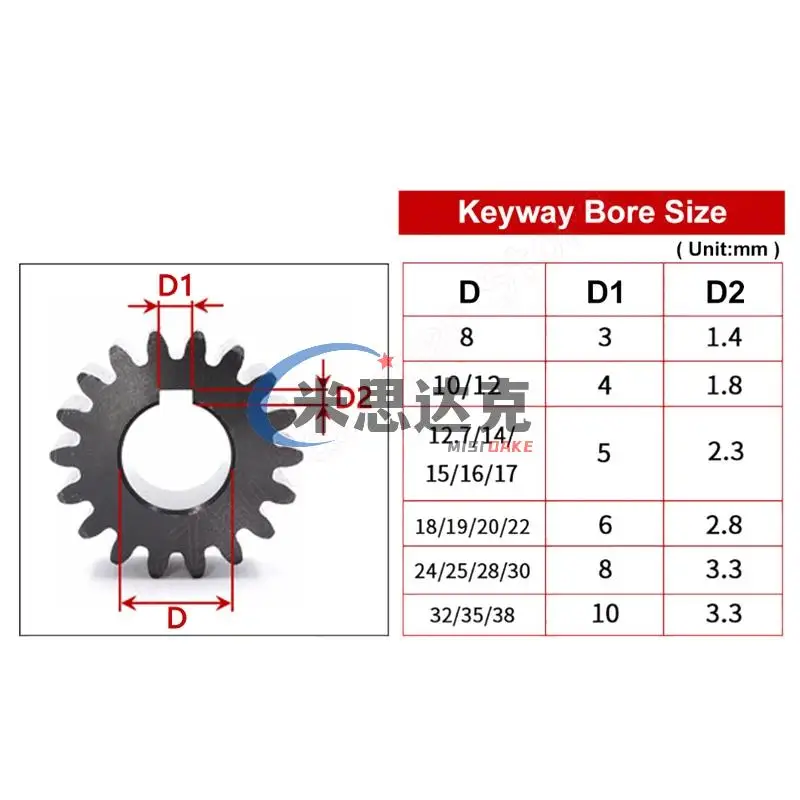

Keyway Bore:

12mm-keyway 4x1.8mm

14mm-keyway 5x2.3mm

15mm-keyway 5x2.3mm

16mm-keyway 5x2.3mm

17mm-keyway 5x2.3mm

18mm-keyway 6x2.8mm

19mm-keyway 6x2.8mm

20mm-keyway 6x2.8mm

22mm-keyway 6x2.8mm

24mm-keyway 8x3.3mm

25mm-keyway 8x3.3mm

28mm-keyway 8x3.3mm

30mm-keyway 8x3.3mm

32mm-keyway 10x3.3mm

Tooth Surface Hardness: Hardened Tooth Surface

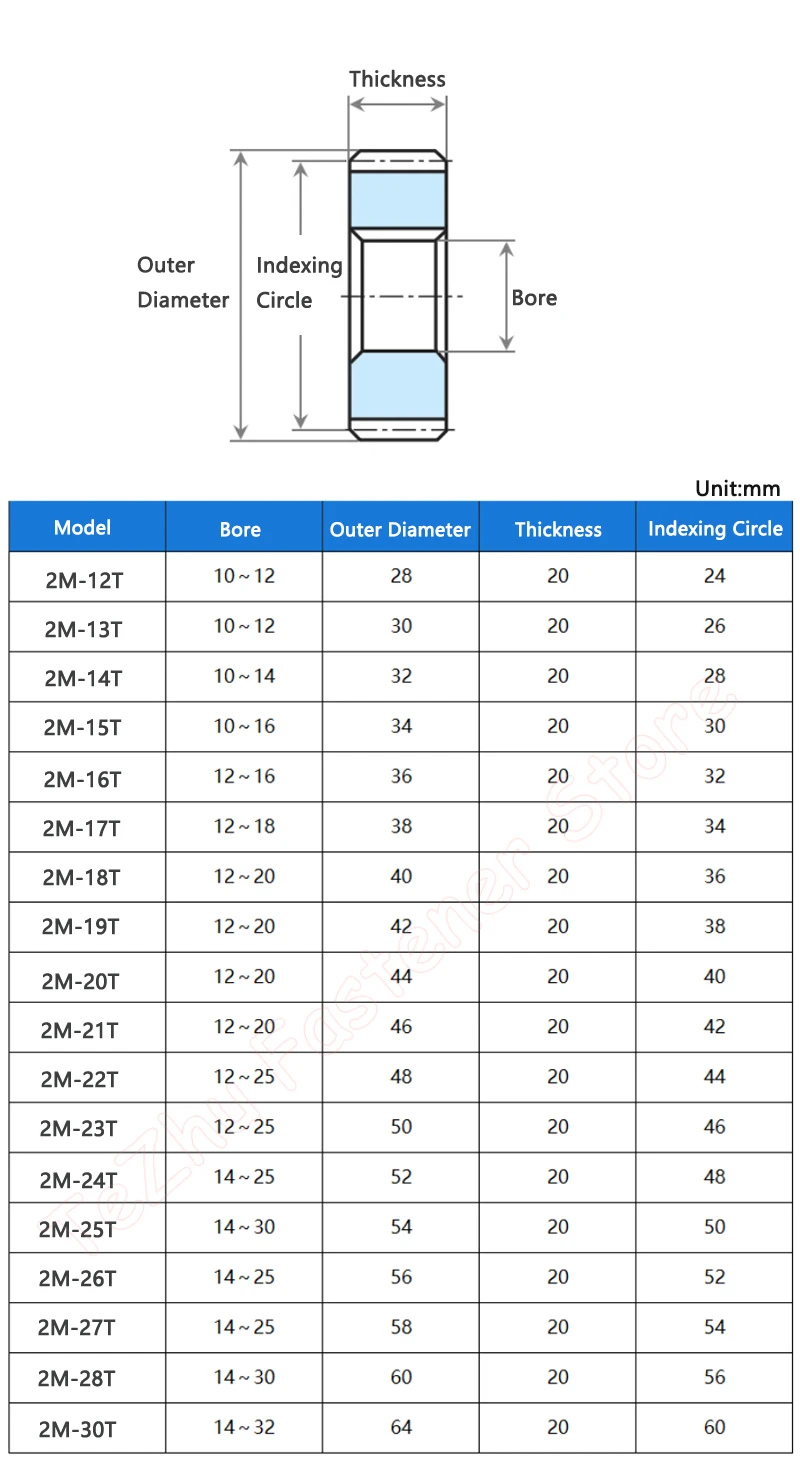

E.g.: 22 Teeth (OD 48mm) (OD=Outer Diameter)

Note:

1. The link in the gear is a single price, please choose to buy according to their needs.


2.The modulus represents the size of the tooth, the greater the modulus, the larger the tooth, the greater the corresponding bearing capacity.


3.Gear in the production and transportation will inevitably cause bumps and scratches, mind, please buy carefully.

Package :

Packing : Plastic bag / Carton box.

Quantity : According to your Choose!
