Professional Factory best price Modular Air Cooled Chiller low temperature air sources heat pump for Heating cooling how water
- Category: >>>
- Supplier: Beijing Holtop Les Air Conditioning Co. Ltd.
Share on (1601163529914):
Product Overview
Description
Product Description

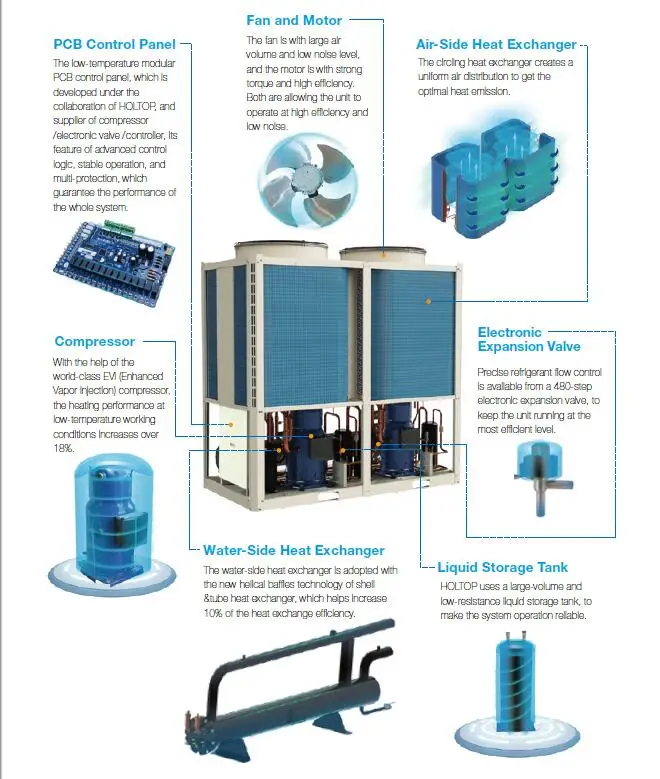

Product Features

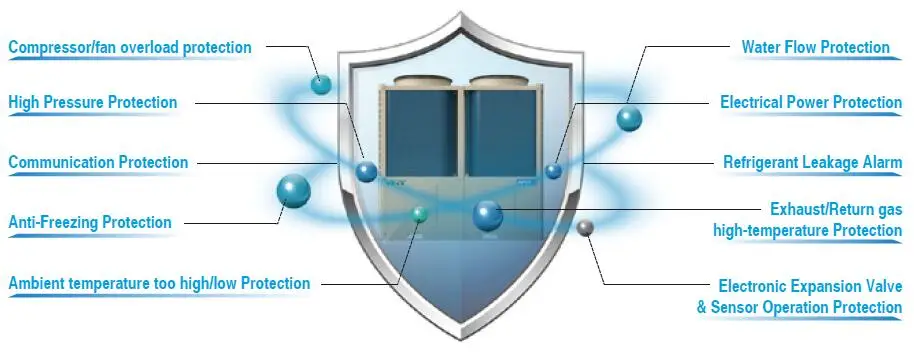

Integrated Protectio

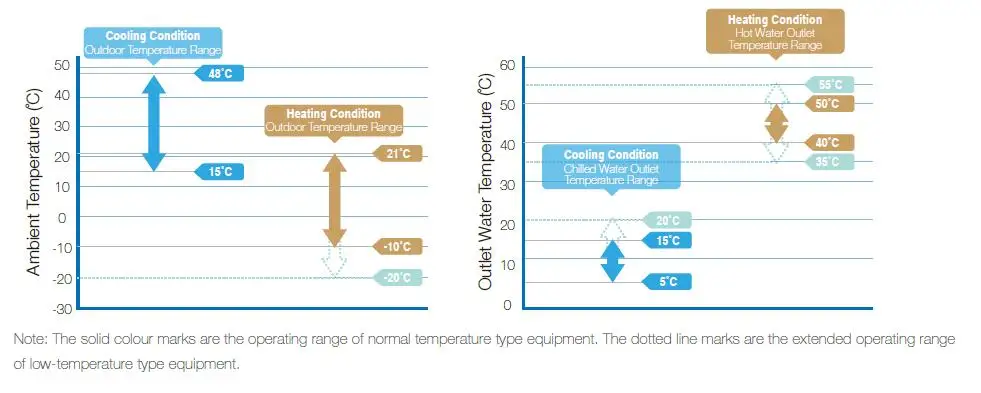

Wide Temperature Range of Application, Worry-free of Operation
Chiller Unit Operation When Has Fault

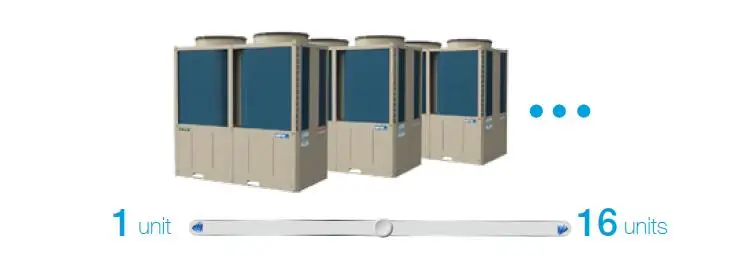

Modular Combination
Step Starting
Flexible Application
Holtop Modular Air Cooled Chiller can widely used in hotels, hospitals, shopping malls, office buildings, cinemas, metal industry, oil & chemical industry, manufacturing industry, electronics industry, electric power stations etc.

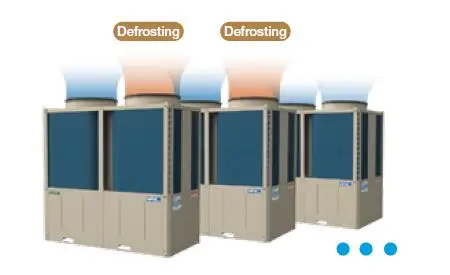

Smart Defrosting System
Intelligent PLC Control System

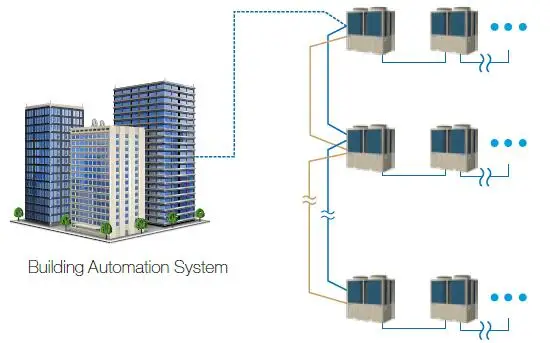

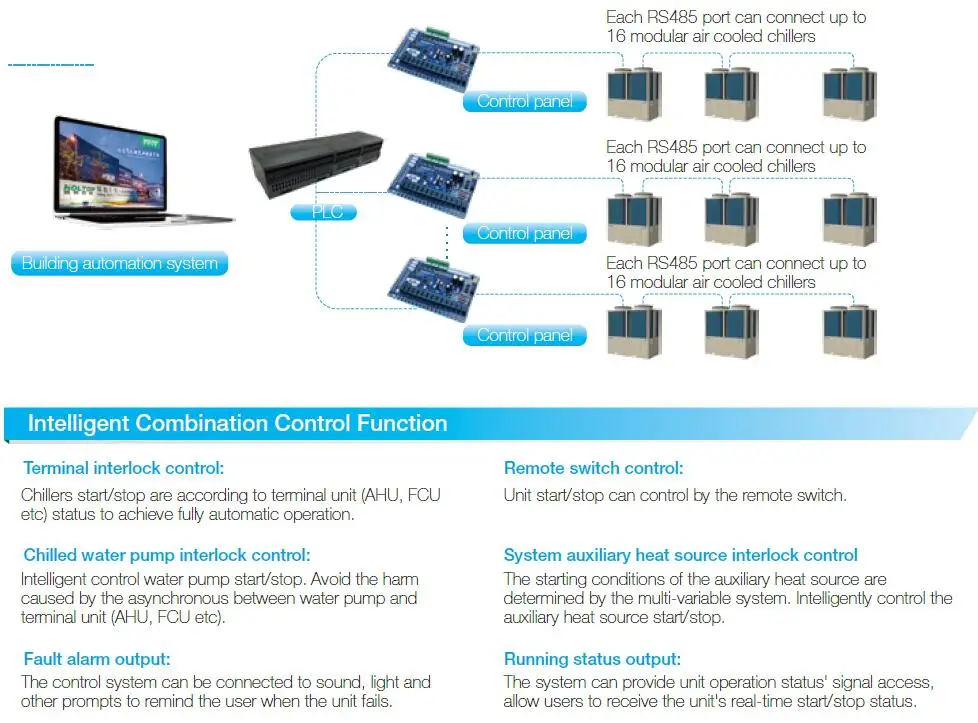

Free Access to Building Automation System
Holtop Modular Air Cooled Chiller Parameters:
PRODUCT PARAMETER | |||||
| Model/Specification | HFW-65HA1 | HFW-65HA1-L | HFW-130HA1 | HFW-130HA1-L | |
| Normal temperature type | Low-temperature type | Normal temperature type | Low-temperature type | ||
| Nominal cooling capacity(KW) | 65 | 63 | 130 | 130 | |
| Nominal heating capacity(KW) | 71 | 71 | 142 | 141 | |
| Cooling | Rated total input power(KW) | 19.5 | 18.7 | 39 | 37.7 |
| Heating | Rated total input power(KW) | 21 | 19.5 | 42 | 38.8 |
| Nominal low-temperature cooling capacity(KW) | / | 52 | / | 100 | |
| Total nominal low-temperature heating input power(KW) | / | 18.6 | / | 37 | |
| Voltage | 380V/3N~/50Hz | ||||
| Refrigerant | R410A | ||||
| Throttle parts | Electronic expansion valve | ||||
| Compressor | Type | Hermetic scroll | |||
| Qty | 2 | ||||
| Fan | Type | Axial low noise fan | |||
| Power(kw) | 0.9*2 | 1.5*2 | |||
| Airside heat exchanger | Airflow(m³/h) | 14000*2 | 19500*2 | ||
| Type | High-efficient finned heat exchanger | ||||
| Waterside heat exchanger | Nominal water flow(m³/h) | 11.5 | 11.5 | 22.5 | 22.5 |
| Type | High-efficient shell&tube heat exchanger | ||||
| Water pressure drop(kPa) | 30 | 40 | |||
| Water inlet/outlet connection pipe | DN50 | DN65 | |||
| Dimension(W*H*D) | 1810*960*2350 | 2011*1100*2300 | |||
| Net weight(kg) | 580 | 600 | 1000 | 1050 | |
