Product Overview
Description
FFD POWER
Industrial and commercial energy storage container solutions
Industrial and commercial energy storage container solutions
Energy storage systems contribute to more effective energy utilization and management, reducing electricity expenses. They find application in various scenarios, including peak-valley arbitrage for power consumers, grid frequency regulation and peak shaving,enhancing the integration of renewable energy sources, and improving grid power supply stability.
In summary, energy storage stations play a significant role in three key grid scenarios:
Generation Side: Energy storage stations are primarily utilized to smooth the output of renewable energy generation or for
combined frequency regulation with conventional power generation units, thereby improving power quality.
Grid Side: Energy storage stations are employed in transmission and distribution grids to fulfill functions such as peak shaving,frequency regulation, emergency backup, and black start capabilities.
Consumer Side: Energy storage stations serve the purpose of lowering user energy costs through peak shaving strategies based on time-of-use pricing.
In summary, energy storage stations play a significant role in three key grid scenarios:
Generation Side: Energy storage stations are primarily utilized to smooth the output of renewable energy generation or for
combined frequency regulation with conventional power generation units, thereby improving power quality.
Grid Side: Energy storage stations are employed in transmission and distribution grids to fulfill functions such as peak shaving,frequency regulation, emergency backup, and black start capabilities.
Consumer Side: Energy storage stations serve the purpose of lowering user energy costs through peak shaving strategies based on time-of-use pricing.
Key Features of the Galaxy 3420 Energy Storage Container
* The energy storage system employs independently developed and manufactured lithium iron phosphate batteries from
First-line brand, featuring high safety, an exceptionally long cycle life, superior rate capability, and eco-friendly, pollution-free characteristics. It stands as the preferred choice for both electric vehicle power and energy storage applications.
* Large storage capacity and high conversion efficiency of the battery.
* Utilizes First-line brand independently developed Battery Management System (BMS), which can real-time monitor parameters such as single-cell voltage, temperature, total current, total voltage, and ambient temperature. The BMS incorporates multiple protection functions, including overcharging and over discharging prevention, ensuring system flexibility, reliability, and scalability for upgrades.
* CAN interface design reduces the complexity of advanced energy storage system application development.High modularity of container installation with a simple structure, facilitating easy installation and maintenance.
* Comprehensive and multi-level battery protection strategies to guarantee the safe operation of the energy storage
system.Equipped with an intelligent liquid cooling temperature control system, achieving approximately 30% improvement in energy consumption efficiency compared to traditional air cooling. The maximum temperature difference for megawatt-scale battery systems is around 3-5°C.
* The container is configured with an automatic fire alarm and firefighting system, featuring audio-visual alarm functionality.
* Includes fire hydrant connection and corresponding water firefighting pipelines, explosion-proof lighting system, and access control system.
* Remote monitoring system for real-time monitoring of the battery pack's operation inside the combiner box.
* Outdoor application design with an IP54 protection rating.

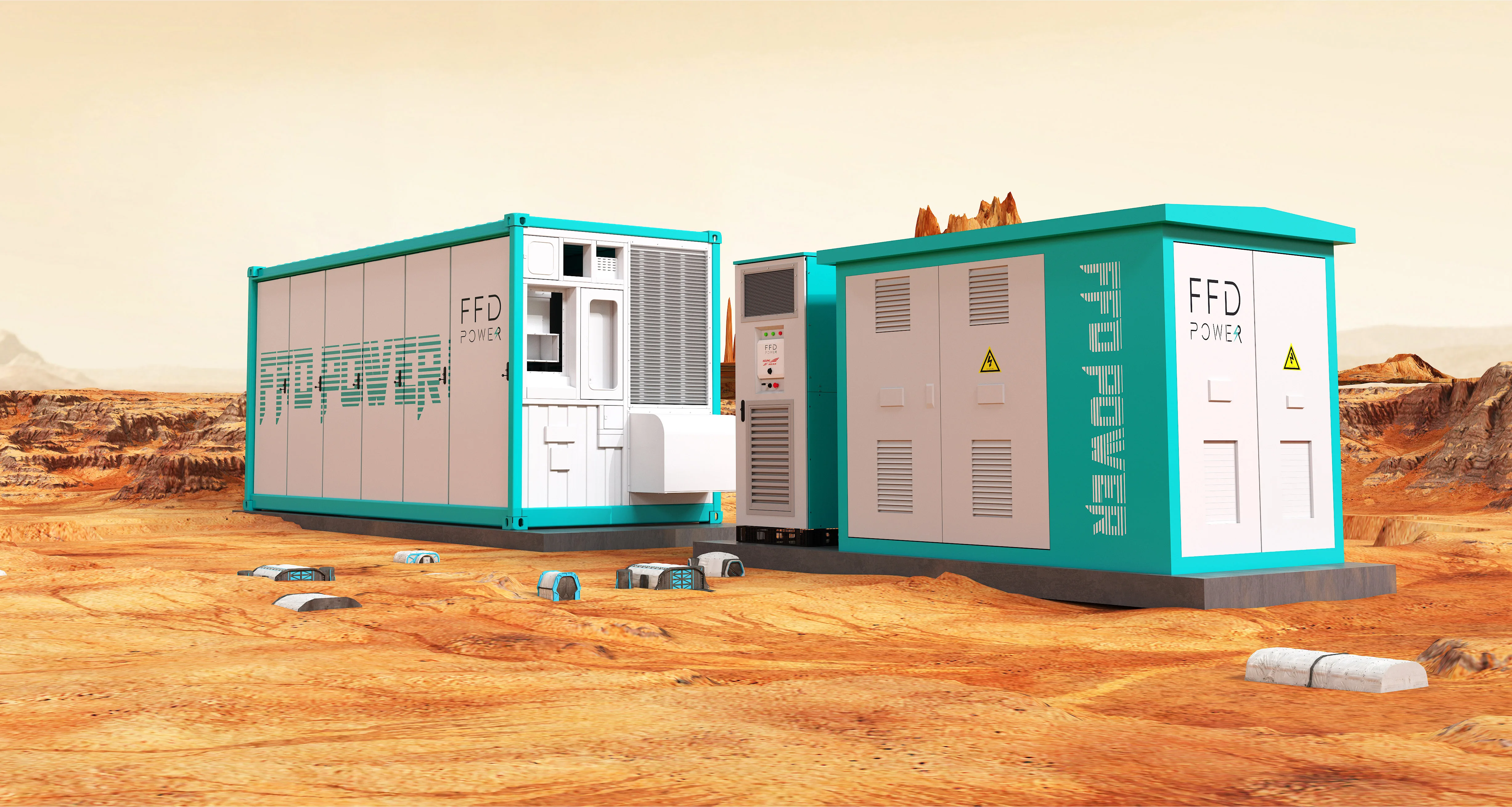

Galaxy3420- 3.4MWH Energy Storage Container Internal Composition
The 3.42MWh battery container consists of a battery container body, including distribution and uninterruptible power supply (UPS) systems, an automatic fire suppression system, video surveillance system, liquid cooling temperature control system, and submerged fire extinguishing system. Additionally, it encompasses the battery energy storage system, comprising battery racks, battery modules, DC combiner box, and control cabinet, as well as lightning protection and grounding systems.

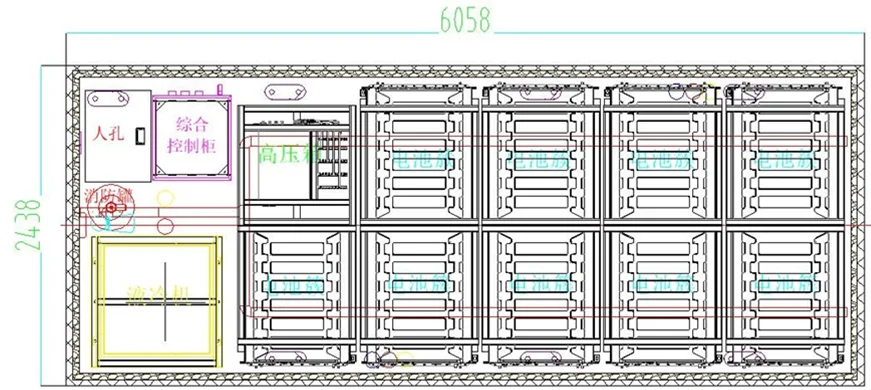

The structural layout diagram of the battery container is depicted in the figure below.
The structural layout diagram of the battery container is depicted in the figure below.
Battery Container:
It includes the cabinet and internal auxiliary functions. This encompasses an overall internal rack load
design, heat dissipation design, lighting functionality, thermal insulation, dustproof, waterproof, and insect-proof features compliant with IP54 protection level, meeting the energy storage system's application requirements in various complex environments.
design, heat dissipation design, lighting functionality, thermal insulation, dustproof, waterproof, and insect-proof features compliant with IP54 protection level, meeting the energy storage system's application requirements in various complex environments.
Automatic Fire Suppression System:
Utilizing a fire extinguishing system primarily composed of heptafluoropropane（C3HF7）, it is equipped with an automatic alarm device. Upon detecting a fire, the container can promptly disconnect electrical connections with external devices, activate the fire suppression system, and upload alarm information to the backend monitoring system, featuring interlocking capabilities.
Intelligent Liquid Cooling Temperature Control and Fire Safety System:
The battery system is equipped with an intelligent liquid cooling system and a battery pack-level submerged fire extinguishing system. This system achieves precise temperature control and temperature field balance for each battery pack through an intelligent liquid cooling unit. It ensures a 5°C temperature difference control for megawatt-scale battery systems and real-time monitoring, accurate positioning, early suppression, and submerged fire extinguishing for each battery pack, guaranteeing the safe and reliable operation of the battery system.
Battery Energy Storage System:
Each battery container consists of 9 clusters, with each cluster composed of 9 battery modules. Each module consists of 44 cells in series with 300Ah each, making the rated energy for each battery cluster 380.16kWh. The rated energy for the battery container is 3.42MWh (9 clusters). From cells to battery pack arrays, a modular and standardized integrated design is employed. The battery system adopts a three-level BMS control architecture, providing reliable battery balancing, safety management, thermal management, and comprehensive monitoring.
DC Combiner Box:
It connects the high-voltage control line and the intermediate unit of the Power Conversion System (PCS). The cabinet is equipped with battery system busbar isolators, fuses, a three-level BMS, power supplies, etc. The combiner control cabinet is designed to consider the electrical characteristics, heat dissipation, safety, and operability and maintainability of various components. It has CAN, RS-485, RJ45 Ethernet communication interfaces, enabling communication functions with high-voltage control boxes and PCS for data communication, control, and protection of the energy storage system.
Say goodbye to long wait times for warranty services. Our local partner provides quick and efficient service, giving you peace of mind. Choose us for seamless support and a worry-free experience.
We offer more than just batteries, we provide a full suite of products including inverters, solar panels, and peripheral components. Partner with us and take advantage of our strategic partnerships with leading industry players. Experience a seamless solar installation with FFD.
Where FFD POWER Is Located?
We are located in Guangdong , China
What Certificates Do You Have For Selling In Eu ?

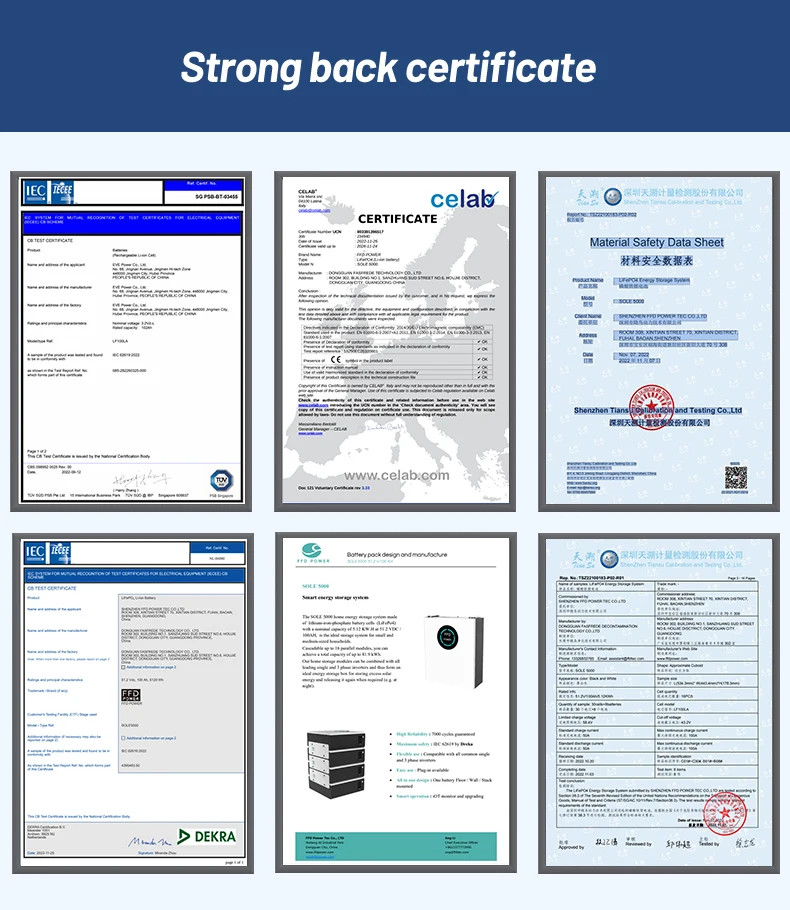

Basically we have CE-EMC certificated released by EU notified body CELAB , tested according EN IEC 61000 , UN 38.3 and MSDS for transport
