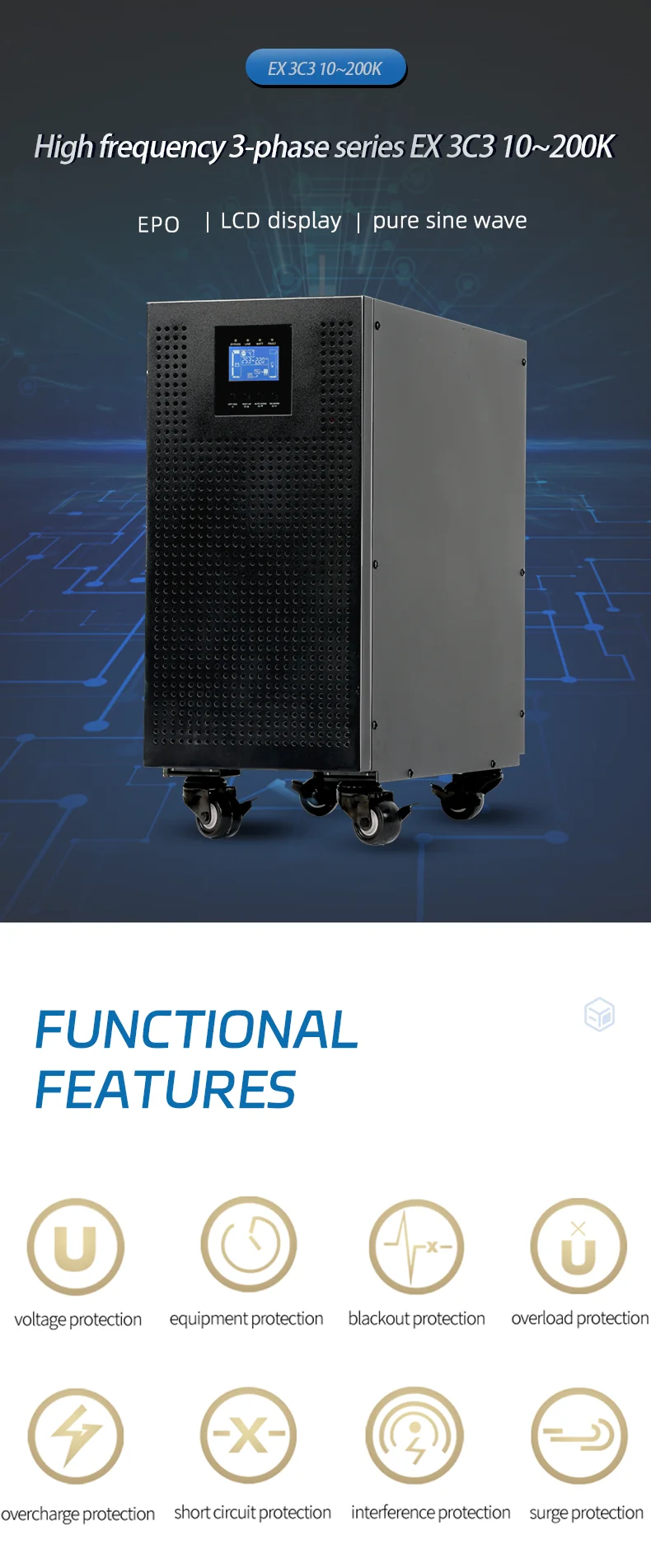

120kva 120kw on line High frequency 3 phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer
120kva 120kw on-line High frequency 3-phase series UPS with blackout protection in Networking computer

120kva 120kw on line High frequency 3 phase series UPS with blackout protection in Networking computer

Share on (1601163824310):


Price:$3,402.00-3,528.00

Quantity:


Product Overview

Description











MODEL
EX3C3-120K
Phase position
3 phase
Capacity
120KVA/ 120KW
Parallel quantity
6
INPUT
Input voltage
3x380/400/415VAC(3PH+N)
Voltage range
110-300VAC,50%load;176-276VAC,100%load
Frequency range/power factor
40～70Hz/≥0.99 @100%load
Input current harmonic component(THDI)
Full linear load
Output
Output voltage
3x360*/380/400/415VAC(3PH+N)
Voltage regulation accuracy (battery mode)
±1%
Frequency range (synchronization range)
46～54Hz or 56～64Hz
Frequency range (battery mode)
50/60 Hz±1%
Output current peak coefficient
3:1(max.)
Output waveform distortion degree
≤1%THD(linear load);≤3%THD(nonlinear load)
AC to battery mode
0
Inverter to Bypass
0
Output waveform (battery mode)
pure sine wave
Overload capacity
100-110%60min，111-125%10min，126%-150%1min；>150%400ms
Bypass
Voltage system/voltage range
3x380/400/415VAC(3PH+N)/-30%~+20%(adjustable)
Frequency range (synchronization range)
46～54Hz or 56～64Hz
Overload capacity
>130%1min(default);Continuous operation until circuit breaker protection (optional)
Switchover time from inverter to bypass
synchronous mode：0ms ,Asynchronous mode：10ms
Overload capacity
150%~180%1h~30s;180%~>200%30s~200ms;200ms for>200%
AC/ECO /Battery Mode
96.0%
Battery
Model/Number
Depends on external battery (32-40 knots adjustable)/3×400V(3 phase +N）
Charge current (Max)
2A~40A,adjustable
Charging voltage
+/-13.65V*N(N=16～20)
Display function
 LCD
UPS status, load level, battery level, input/output voltage, discharge timer and fault conditions
Physics
Dimension，DxWxH(mm)
1000mm×430mm×1200mm
Net weight (kg)
200kg
Environment
Humidity
0-40°℃/＜95%（Non-condensing)
Operating altitude
full load0～1500m
Noise Level
Less than 70dB @ 1 Meter
Management
smart RS-232 / USB
Supports Windows°2000/2003/XP/Vista/2008,Windows07/8,Linux and MAC


Why Choose Us

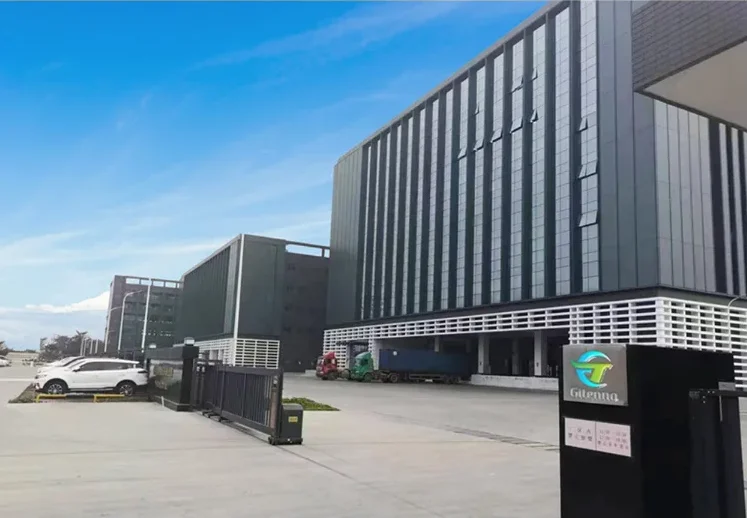

Shenzhen Gitenno Technology Co., Ltd.


Shenzhen Gitenno Technology Co., Ltd. is a comprehensive company dedicated to the research and development, design, production and sales in UPS uninterruptible power supplies and new energy products such as photovoltaic inverters, batteries, energy storage and other products.Shenzhen Gitenno is based in Shenzhen, the core area of the Zhu River Delta Economic Zone and the center of China's R&D and manufacturing as well.

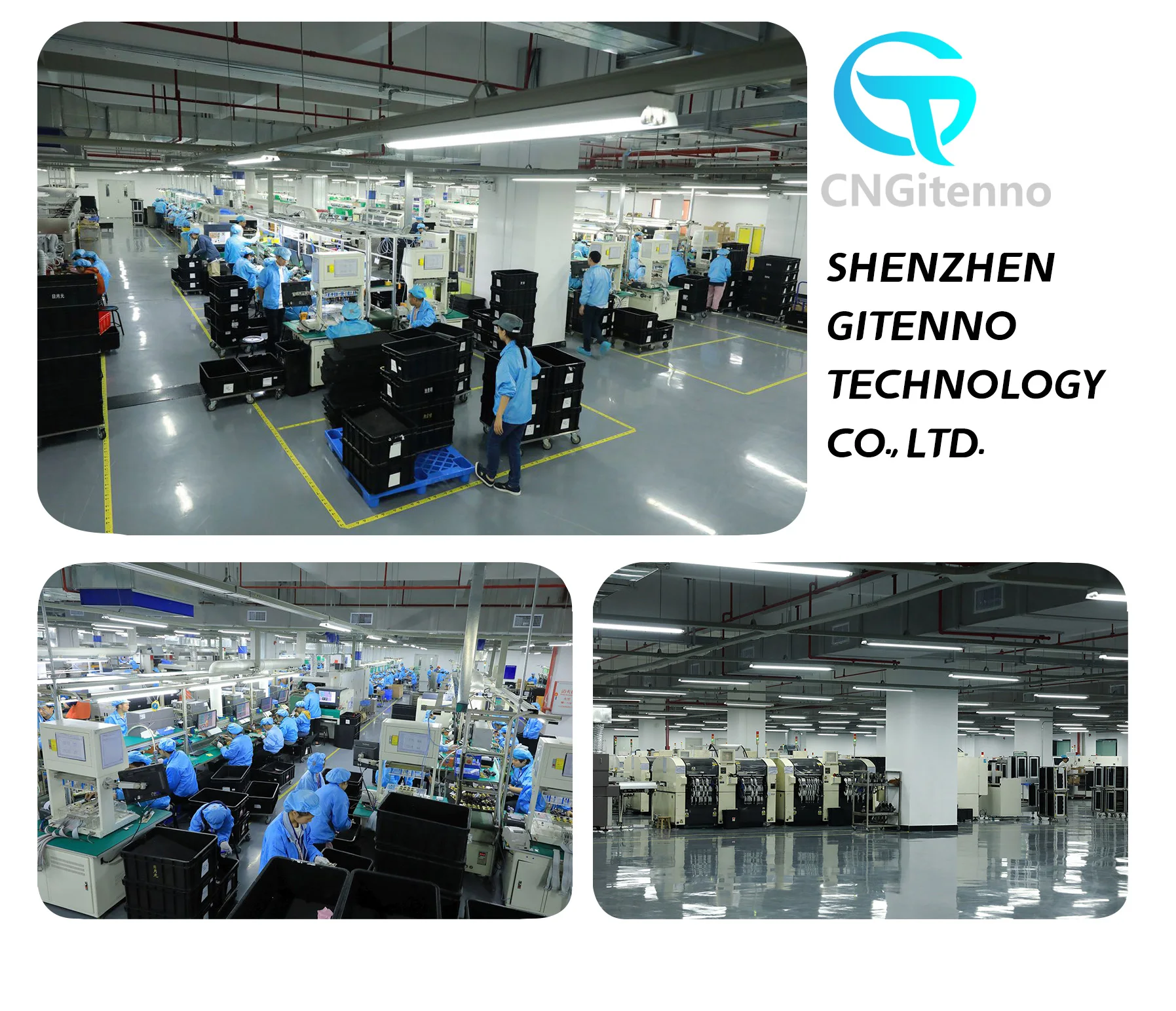

Manufacturing




We have a large-scale R&D team in the industry, with more than 60 R&D personnel, more than 95% of whom have bachelor's and master's degrees or above.




Each worker has more than five years of foreign trade experience. They are well versed in foreign trade processes and familiar with the cultures of various countries. We respect and understand every customer and do our best to satisfy our business partners from all over the world. All of Gitenno people promise that you will receive the most professional and considerate services when cooperating with us.


Appliance








Product packaging






Delivering






Certifications






FAQ


Q: Are you a manufacturer of a trading company?
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A:Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
