NUZHUO Scientific Design Oxygen Generator Efficient O2 Production Line High Productivity O2 Gas Unit
- Category: >>>
- Supplier: Hangzhou Nuzhuo Technology Group Co. Ltd.
Share on (1601163968705):
Product Overview
Description
Product Description
Video Description
Product Name | Industrial PSA Oxygen Gas Generator | ||||||
Model No. | NZO- 3/5/10/20/30/40/50/60/80/CUSTOMIZE | ||||||
Oxygen Production | 3-200Nm3/h | ||||||
Oxygen Purity | 90~95% | ||||||
Oxygen Pressure | 0.3~20Mpa(adjustable and customize) | ||||||
Dew Point | ≤-40 degree C | ||||||
Specification | Output (Nm3/h) | Effective gas consumption ( Nm3/h ) | Air cleaning system |
NZO-5 | 5 | 1.3 | CJ-2 |
NZO-10 | 10 | 2.5 | CJ-3 |
NZO-20 | 20 | 5 | CJ-6 |
NZO-40 | 40 | 9.5 | CJ-10 |
NZO-60 | 60 | 14 | CJ-20 |
NZO-80 | 80 | 19 | CJ-20 |
NZO-100 | 100 | 22 | CJ-30 |
NZO-150 | 150 | 32 | CJ-40 |
NZO-200 | 200 | 46 | CJ-50 |

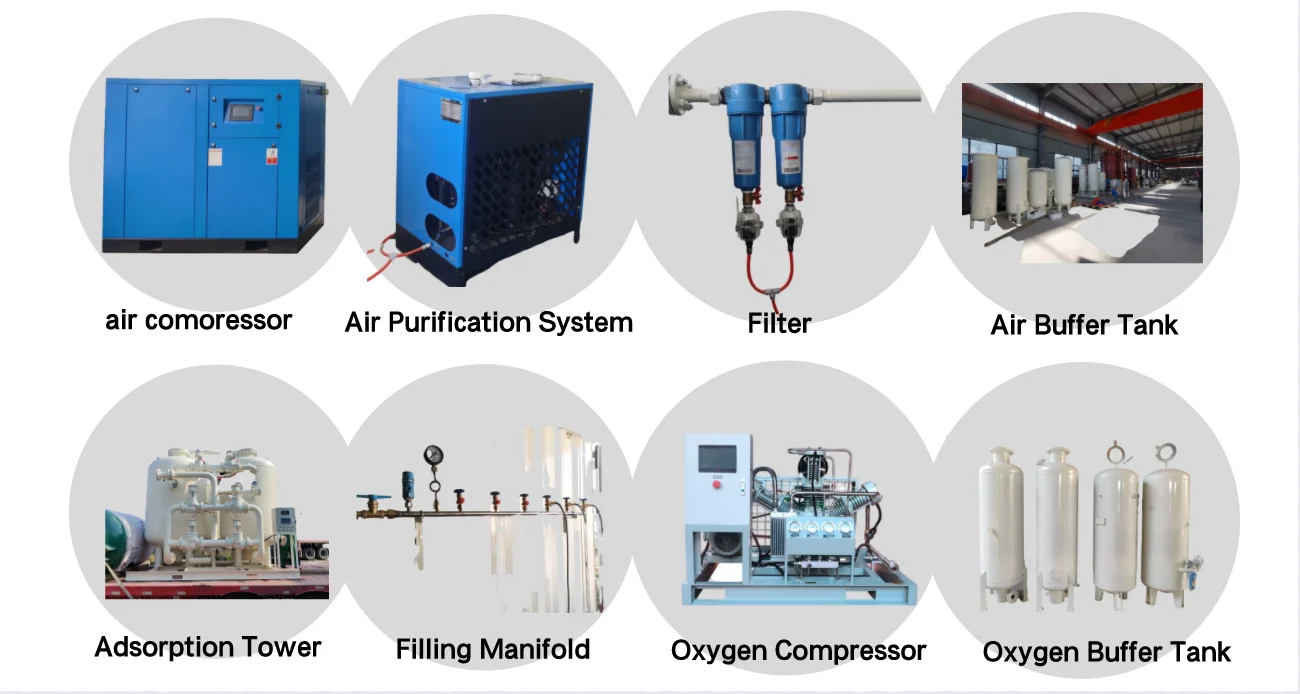

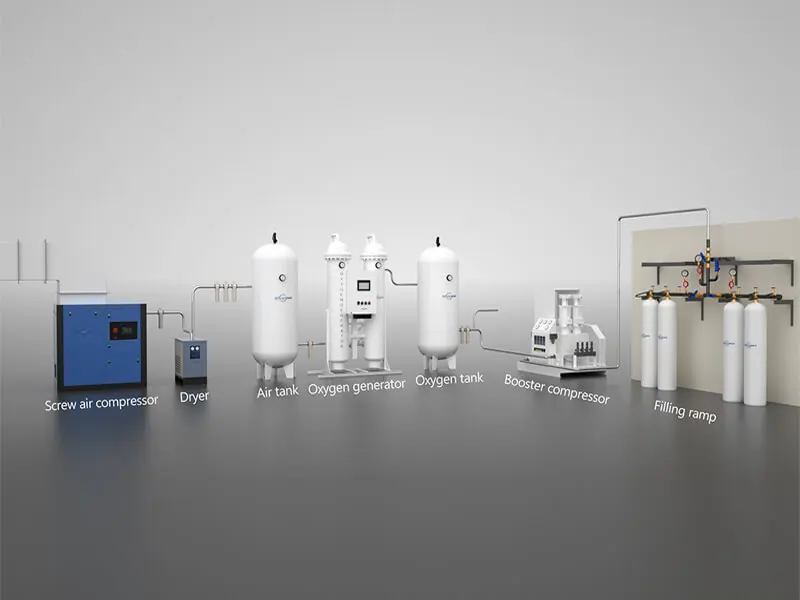

Main Configuration
1. Air Compressor (Screw type): Air is used as raw material to collect & compress air to 8 bar.
2. Refrigerated Dryer: The standard configuration removes moisture and impurities in the air, so that the air dew point reaches -20°C (the intermediate configuration uses an adsorption dryer, and the dew point reaches -40°C; the advanced configuration uses a combined dryer, and the dew point reaches- 60ºC).
3. Precision Filter: A/T/C three-stage filter to remove oil, dust and impurities.
4. Air buffer Tank: store pure and dry air for subsequent adsorption and separation of oxygen as raw material storage.
5. Adsorption Tower: A&B adsorption tower can work alternately, regenerating adsorption, filling sodium molecular sieve to filter out oxygen molecules.
6. Oxygen Analyzer: real-time monitoring and analysis of oxygen purity, indicating that the equipment is working normally and alarming.
7. Valves & Pipelines: Intelligent control valves realize automatic operation of equipment, PLC control, SUS304 pipelines.
8. Oxygen Buffer Tank: Store oxygen with qualified purity, which can be directly piped or used for bottle filling.
9. Oxygen Booster: Gas booster, pressurize the oxygen to the filling pressure, generally 150bar or 200bar.
10. Filling Manifold: split high-pressure oxygen & nitrogen into each gas cylinder.
2. Refrigerated Dryer: The standard configuration removes moisture and impurities in the air, so that the air dew point reaches -20°C (the intermediate configuration uses an adsorption dryer, and the dew point reaches -40°C; the advanced configuration uses a combined dryer, and the dew point reaches- 60ºC).
3. Precision Filter: A/T/C three-stage filter to remove oil, dust and impurities.
4. Air buffer Tank: store pure and dry air for subsequent adsorption and separation of oxygen as raw material storage.
5. Adsorption Tower: A&B adsorption tower can work alternately, regenerating adsorption, filling sodium molecular sieve to filter out oxygen molecules.
6. Oxygen Analyzer: real-time monitoring and analysis of oxygen purity, indicating that the equipment is working normally and alarming.
7. Valves & Pipelines: Intelligent control valves realize automatic operation of equipment, PLC control, SUS304 pipelines.
8. Oxygen Buffer Tank: Store oxygen with qualified purity, which can be directly piped or used for bottle filling.
9. Oxygen Booster: Gas booster, pressurize the oxygen to the filling pressure, generally 150bar or 200bar.
10. Filling Manifold: split high-pressure oxygen & nitrogen into each gas cylinder.

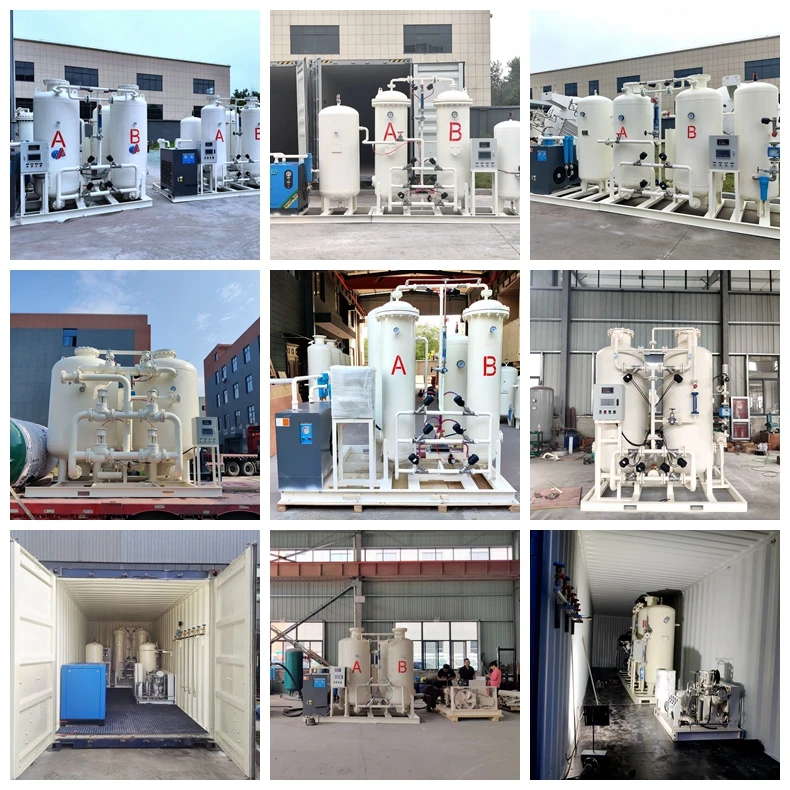

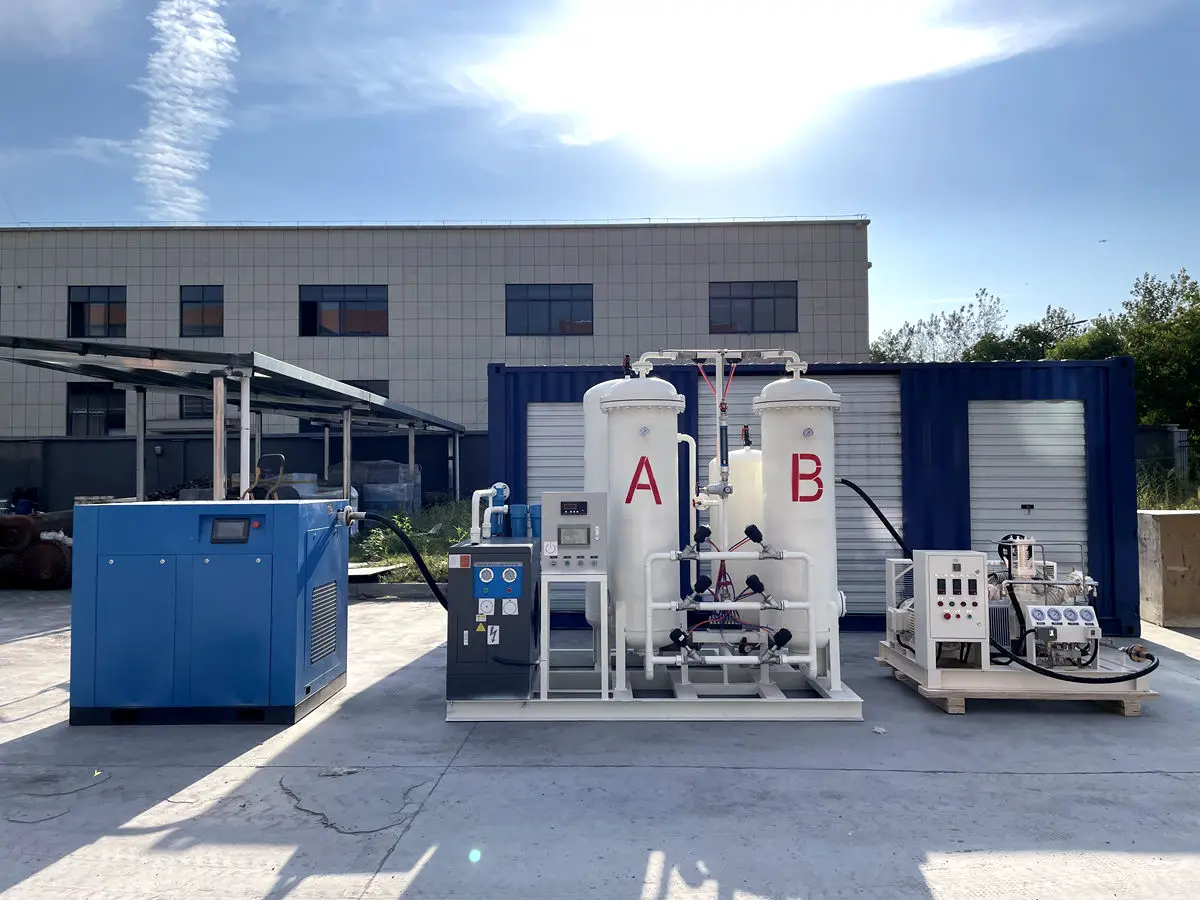

Product Display
Salient features of PSA oxygen generator plant:
1.Fully automated- systems are designed to work unattended.
2.PSA plants are compact taking little space, assembly on skids, prefabricated and supplied from factory.
1.Fully automated- systems are designed to work unattended.
2.PSA plants are compact taking little space, assembly on skids, prefabricated and supplied from factory.
3.Quick start-up time taking only 5 minutes to generate oxygen with desired purity.
4.Reliable for getting continuous and steady supply of oxygen.
5.Durable molecular sieves that last around 12 years.
5.Durable molecular sieves that last around 12 years.
1.Simple installation and maintenance thanks to modular design and construction.
2.Fully automated system for simple and reliable operation.
3.Guaranteed availability of high-purity industrial gases.
4.Guaranteed by the availability of product in liquid phase to be stored for use during any maintenance operations.
5.Low energy consumption.
6.Short time delivery.
Application

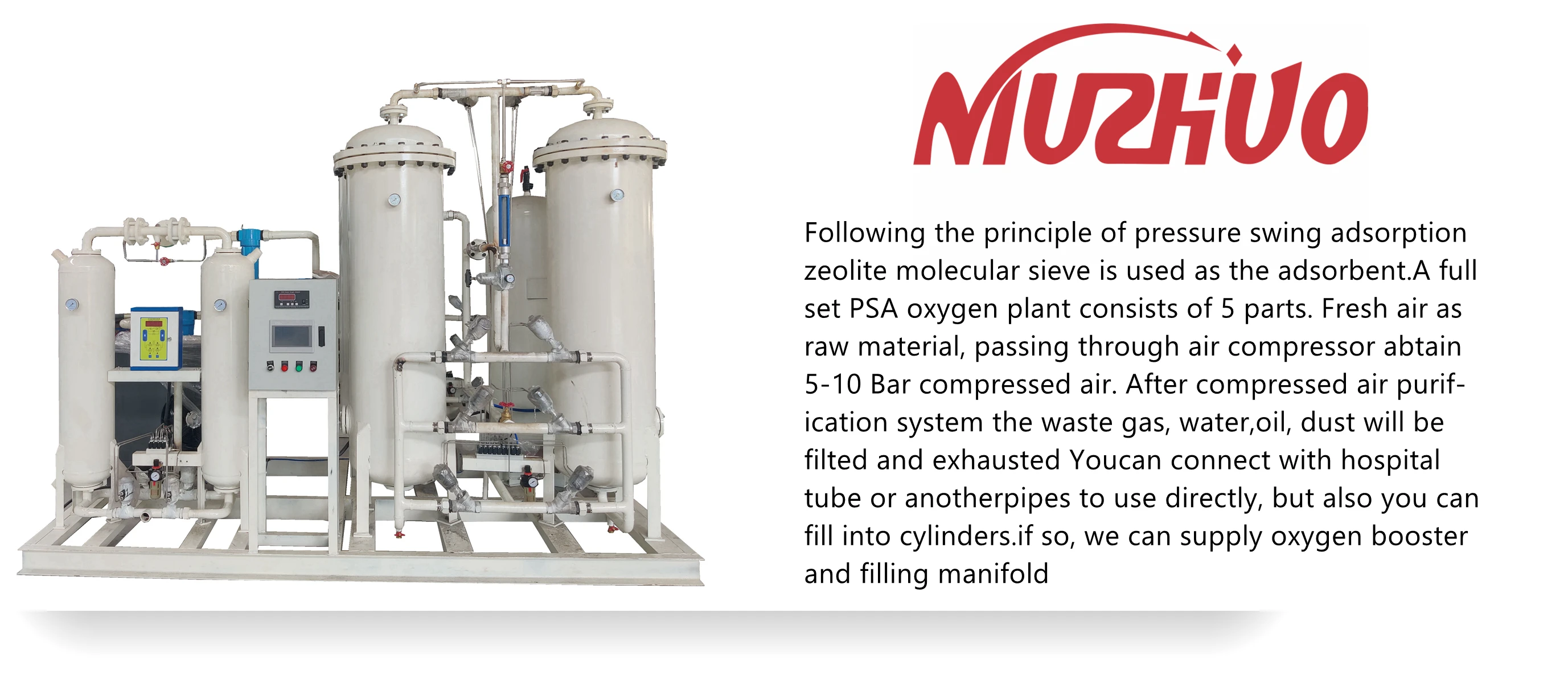

We manufacture PSA oxygen plant using the latest PSA (Pressure Swing Adsorption) technology. Being the leading PSA oxygen plant manufacturer, it is our motto to deliver oxygen machinery to our customers that is at par with international standards and yet is very competitively priced. We use premium quality materials bought from the best suppliers in the industry.Oxygen generated in our PSA oxygen generator meets the requirements of industrial as well as medical applications. Numerous companies from around the globe are using our PSA oxygen plant and are generating oxygen on-site for running their operations.
Our oxygen generator is also used in hospitals because the installation of oxygen gas generator on-site helps the hospitals to produce their own oxygen and stop their dependency on oxygen cylinders bought from the market. With our oxygen generators, the industries and medical institutions are able to get uninterrupted supply of oxygen. Our company uses cutting-edge technology in the making of the oxygen machinery.
Recommend Products
Packing & Delivery
FAQ
Q1: Are you a trading company or manufacturer?
A: Firstly. we are a manufacturer, we have our own factory and engineers.
Secondly, we have our own international trade teams to provide services for you.
Thirdly, we provide the lifetime technology support and the best after-sale service.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
B. 30% T/T in advance and Irrevocable L/C at Sight.
C. Accept negotiation.
Q3: How long is your delivery time?
A: Depending on what type of machine you are purchased.
PSA series, Gas compressor, the delivery time is 10-15 days.
Cryogenic ASU, the delivery time is at least 3 months.
Cryogenic liquid plant, the delivery time is at least 5 months.
Q4: What is your product quality assurance policy?
A: We offer a warranty period of 1 year, free lifetime technology support.
B. Supporting third-part to have a inspection, also provide SGS, TUV certificated.
C. Accept negotiation.
Q5: Do you offer OEM/ODM service?
A: Yes.
Q6: Does your product used or new? RTS product or customized product?
A: Firstly. we are a manufacturer, we have our own factory and engineers.
Secondly, we have our own international trade teams to provide services for you.
Thirdly, we provide the lifetime technology support and the best after-sale service.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
B. 30% T/T in advance and Irrevocable L/C at Sight.
C. Accept negotiation.
Q3: How long is your delivery time?
A: Depending on what type of machine you are purchased.
PSA series, Gas compressor, the delivery time is 10-15 days.
Cryogenic ASU, the delivery time is at least 3 months.
Cryogenic liquid plant, the delivery time is at least 5 months.
Q4: What is your product quality assurance policy?
A: We offer a warranty period of 1 year, free lifetime technology support.
B. Supporting third-part to have a inspection, also provide SGS, TUV certificated.
C. Accept negotiation.
Q5: Do you offer OEM/ODM service?
A: Yes.
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
