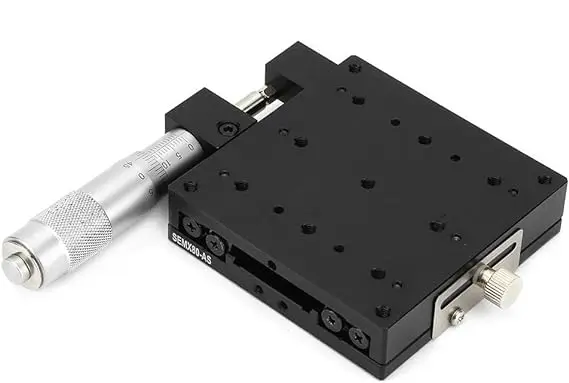

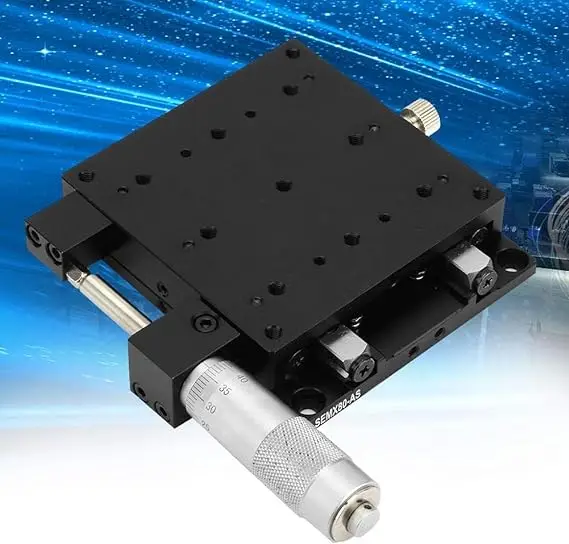

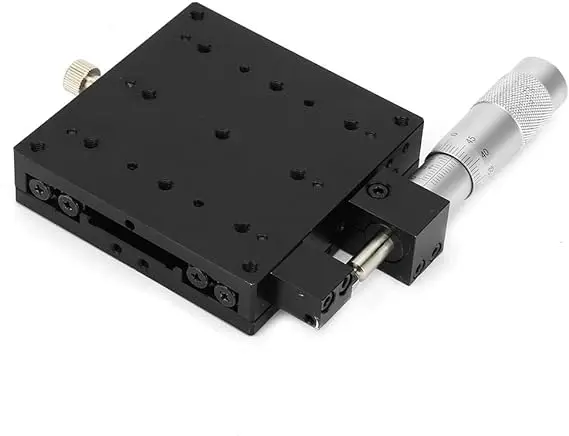

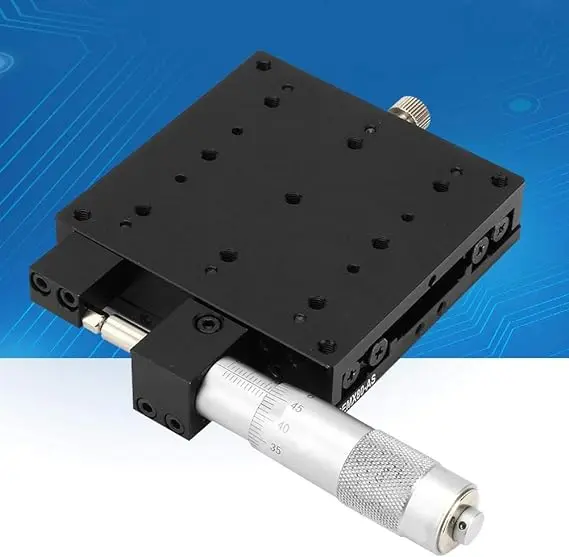

X Linear Stage, Micrometer Manual Precision Linear Translation Stage Displacement Trimming Bearing Sliding Table X Axis 80x80mm
- Category: >>>
- Supplier: Shenzhen E-18th Technology Co. Ltd.
Share on (1601164012011):
Product Overview
Description
Product Description

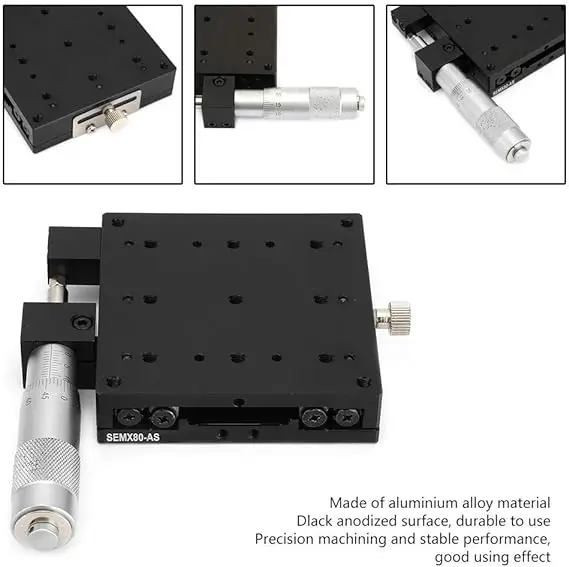

- [ Aluminium Alloy & Black Anodized Surface ]-- This X linear stage is made of aluminium alloy material with black anodized surface, high strength, wear resistance and good resistant, bright and texture senior
- [ Single X Linear Stage ]-- manual precision linear stage, a single X for linear guide sliding track, used for capacitive touch screen production equipment, fixtures, optical instruments, etc
- [ Wide Application ]-- The linear stage is suitable for laboratory precision inspection, mechanical equipment positioning and movement
- [ High Performance ]-- 100% brand new and high quality trimming bearing sliding table, 80x80mm platform size, precision machining and stable performance, good using effect
Specification
| Condition | 100% Brand New |
| Item Type | Linear Stages |
| Model | 80*80mm |
| Material | Aluminum Alloy (Black Anodized) |
| Moving Distance Adjustment | Micrometer Differential Head |
| Sliding Track | Linear Guide |
| Rail Type | Cross Roller Type |
| Table Size | Approx. 80 * 80mm / 3.1 * 3.1in |
| Load Resistance | 98.0N |
| Stroke | ±12.5mm |
| Centimeter Card Accuracy | 0.01mm |
| Parallelism | 30μm |
| Moving Parallelism | 10μm |
| True Straightness | 3μm |
| Product Size | Approx. 111 * 113.5 * 20mm / 4.4 * 4.5 * 0.8in |
| Package list | 1 * Linear Stage |
