Product Overview
Description
Product Overview

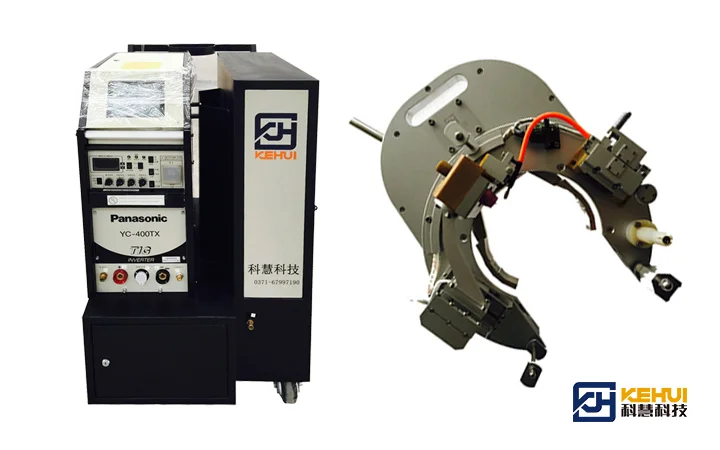

Orbital Welding Equipment
Specification
Control system | aw400/aw200 Programmable Welding Power Source System Software V1.0 | ||
Movement | Domestic self-developed movement | ||

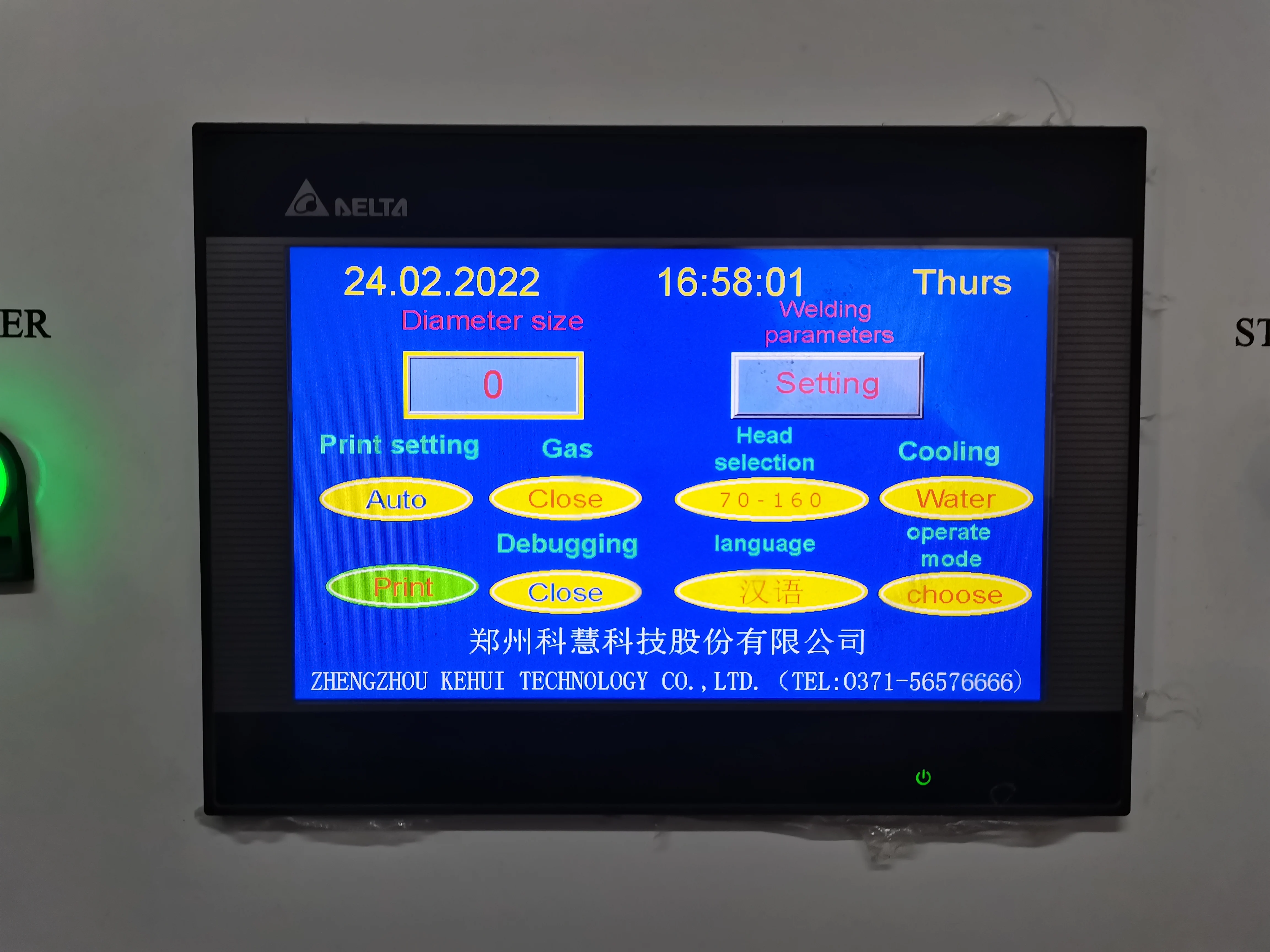

Touch screen | Taiwan WE! NVIEW | ||
PLC control module | SIEMENS SIEMENS, Germany | ||
Control relay | OMRON, Japan | ||
Power switch | TAYEE Shanghai | ||
Water pump | Italy CEME | ||
Drive motor | MAXON, Switzerland | ||
Water-air quick fitting joint | LEGRIS, Germany | ||
Control wire-sheath | HELUKABEL, Germany |
Technical information
Model | aw400 |
Power Supply Type | Inversion |
Welding current | 5 ~ 400A |
Temporary load rate (20 ℃) | 400A 60%/310A 100% |
No-load voltage | 73V |
Input voltage | 380V ± 10% 50/60 Hz |
Power | 13.2 KVA |
Insulation/protection class | F/IP 21 |
Memorable program | 100 |
Separable interval | 10 |
Weight | 90kg |
Overall dimension | 1081 × 445 × 990mm |
Performance
Model | at80 |
Torch speed | 0.37 ~ 7.39 rpm |
Protective gas | Argon gas |
Cooling mode | Water cooling |
Welding material | Stainless steel, carbon steel, titanium alloy, etc |
Welding angle | 0 °-30 ° |
Weldable pipe diameter | Φ16 ~ Φ60mm |
Maximum wire feeding speed | 3000mm/min |
Overall dimension | 402x203x303mm |

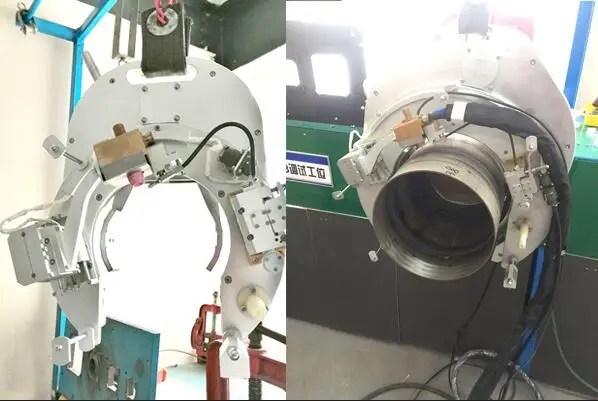

At80 series automatic pipe welding head

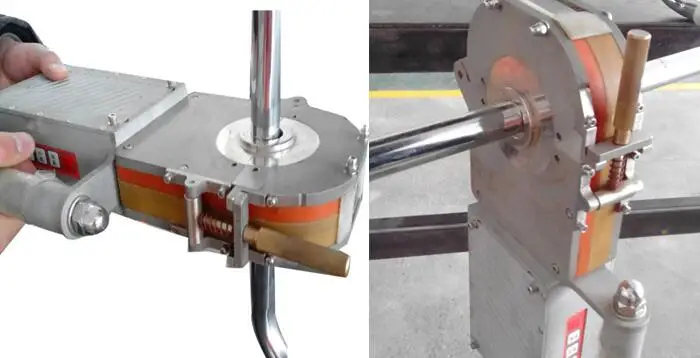

The product is mainly used for pipe and tube sheet welding, in the form of pipe flat head/pipe protrusion;
Mainly used in chemical industry, food, heat exchanger, air conditioner, boiler and other industries;
The positioning method is divided into aeroelastic collet positioning or operating frame positioning. Generally, pipes below 19 are positioned with operating frames, and pipes above 19 are positioned with balancers;
The equipment has the functions of water control, gas control, current output, rotation control, wire feeding control, etc.;
The equipment can save 70 sets of process parameters;
The main parts of the equipment are imported, and the stability is guaranteed;
Mainly used in chemical industry, food, heat exchanger, air conditioner, boiler and other industries;
The positioning method is divided into aeroelastic collet positioning or operating frame positioning. Generally, pipes below 19 are positioned with operating frames, and pipes above 19 are positioned with balancers;
The equipment has the functions of water control, gas control, current output, rotation control, wire feeding control, etc.;
The equipment can save 70 sets of process parameters;
The main parts of the equipment are imported, and the stability is guaranteed;
Equipment Advantages
Wide Application | Aluminum, Stainless Steel, Carbon Steel, Copper，Silver, Titanium and Tin can be welded by fiber laser. |
Excellent welding seam & Reliable Quality | beautiful weld and no blackening, no spatter , Evenly no or very tiny deformation. vey Chinese Laser reactor quality has been improved in Chinese Market. The theoretical workstation life of laser reactor is about 100 thousand hours. |
Flexible installation | With a payload capacity of 4 kilograms and a reach of 1.5 meters, the highly compact ARC Welding Robot can be mounted in both floor and inverted position. This positioning flexibility offers short cycle times and a wide range of production possibilities. |
High reliability of equipment | 24 hours of continuous stable processing, to meet theneeds ofindustrialmass production and processing |
Lower labor costs | A general worker with zero welding experience can get started and complete professional welding work after just one day of simple training. Can save 2 welders, 1 ordinary worker and 2 professional welders |
Company Profile
KING SHINE is a manufacturer of automated welding, cutting, and handling robots, specializing in the production technology and equipment of automated welding and cutting for 20 years
We provide portable welding machines, automatic robot welding machines, automatic robot 3D cutting machines, pressure vessel specific welding machines, and special truck carriage specific welding machines. We have helped many factories with his welding process. Such as boiler/pressure vessel factories, truck factories H-beam factory and gate factory. We sincerely hope that our technology and experience can bring value to your business. We are ready for further discussion at any time.
We provide portable welding machines, automatic robot welding machines, automatic robot 3D cutting machines, pressure vessel specific welding machines, and special truck carriage specific welding machines. We have helped many factories with his welding process. Such as boiler/pressure vessel factories, truck factories H-beam factory and gate factory. We sincerely hope that our technology and experience can bring value to your business. We are ready for further discussion at any time.
