Price:$198.00-230.00

Quantity:


Product Overview

Description



Product Overview




Multiple specifications can be customized with high-quality factory price welding positioner

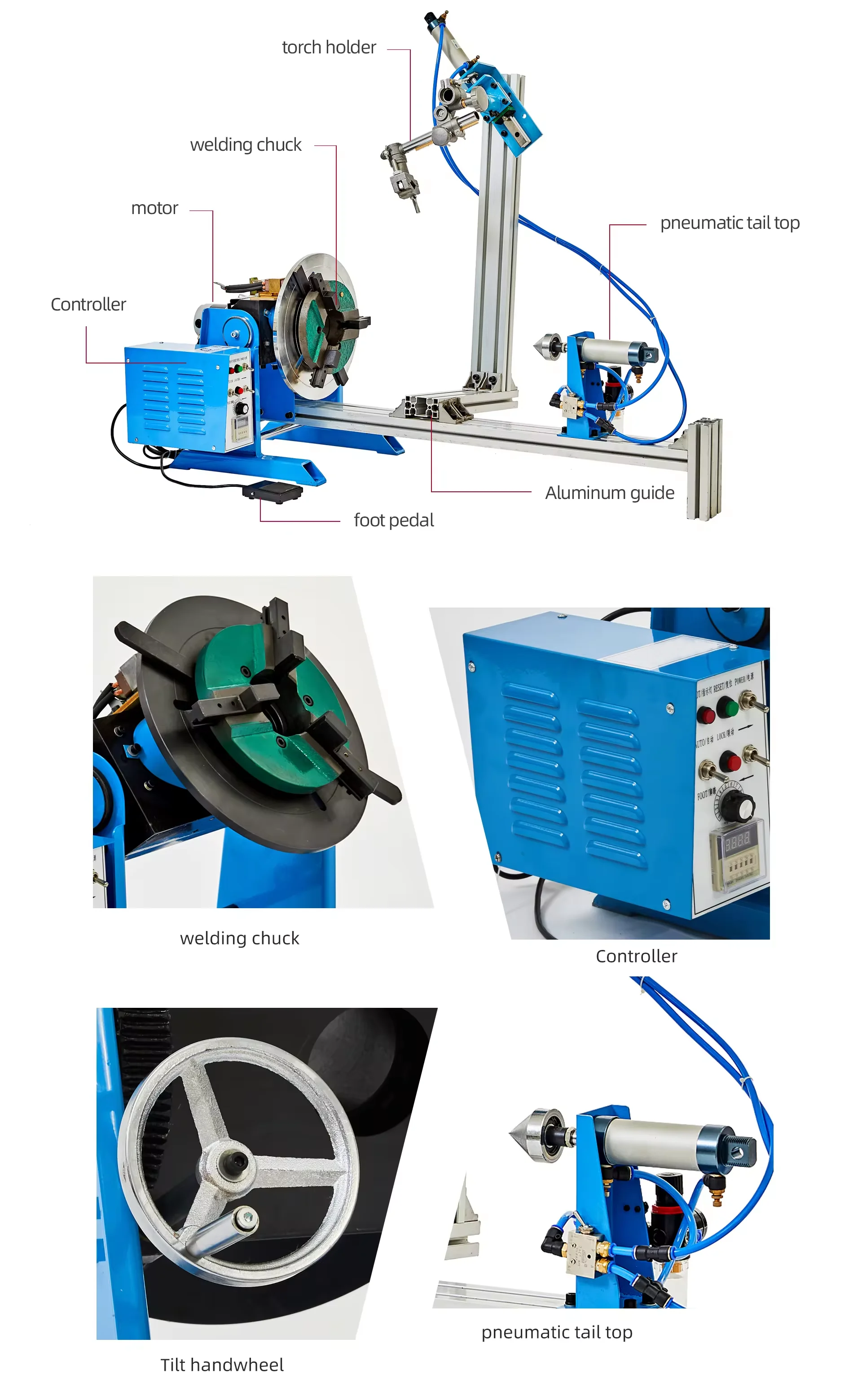

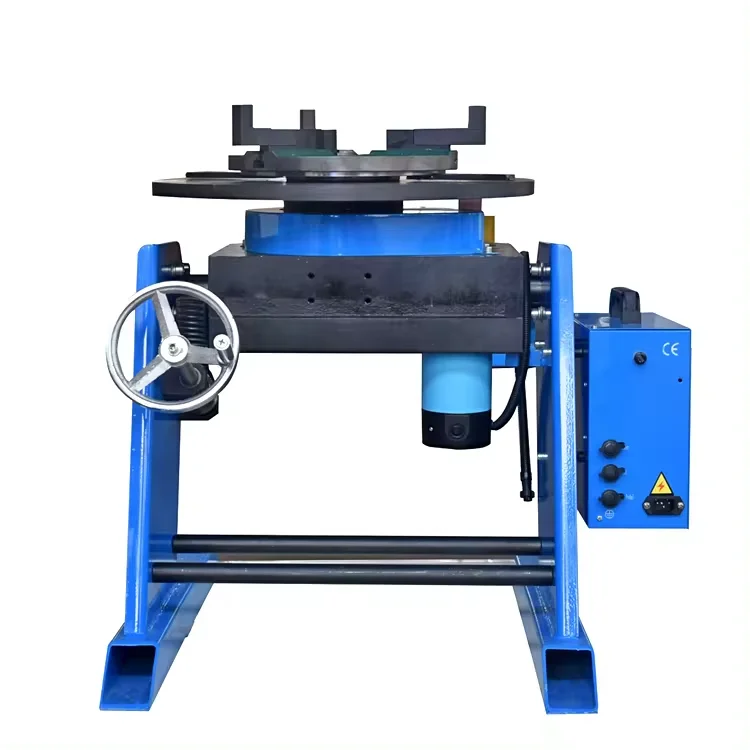

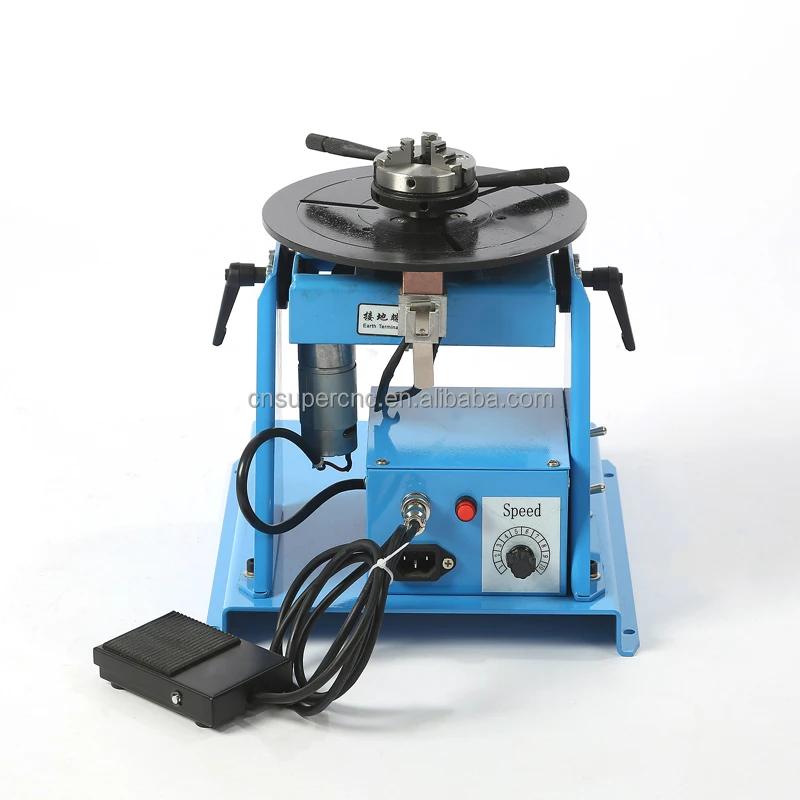

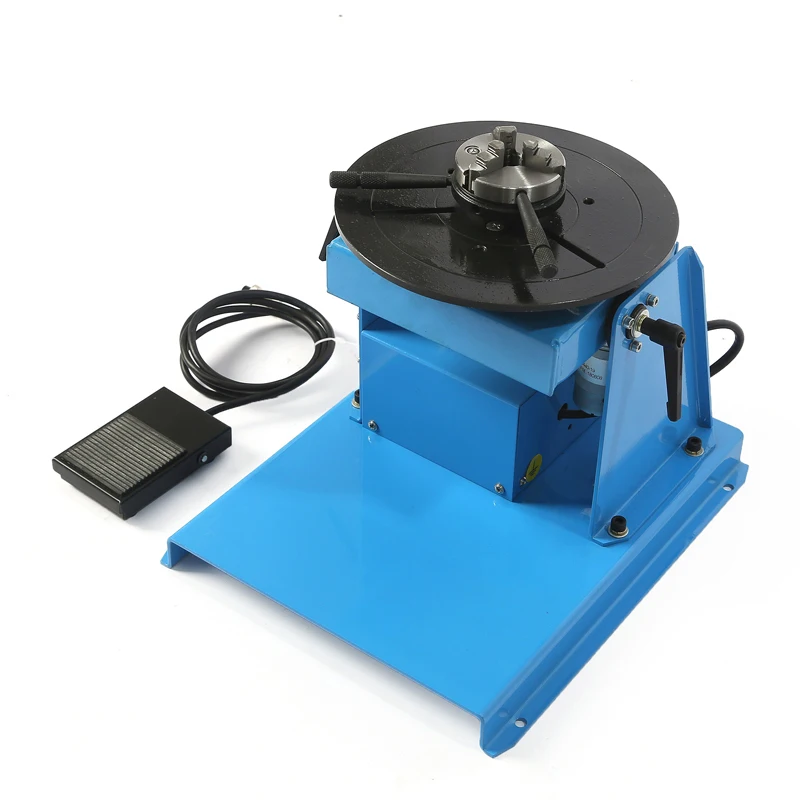

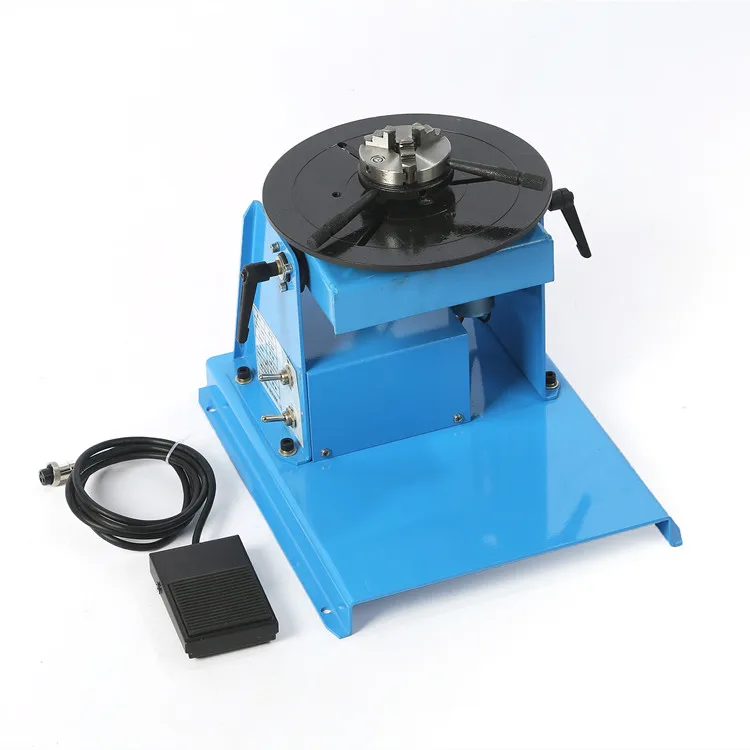

Welding positioner normally composed by worktable slewing mechanism and turnover mechanism, which let the work piece that fixed on the worktable in the desired welding or fitting angle by worktable's lifting, turnover and slewing. And the worktable's slewing is frequency inverter stepless speed regulation to achieve the satisfactory welding speed. The welding positioner series are side tipping type, head and tail rotation type, head and tail lifting rotation type, head and tail inclined type and double rotation type, etc. It's can match with welding manipulator to form into automatic special welding machine, and it's also match with robot peripheral equipment and robot to realize welding automation. And we also can make customized welding positioner according to clients' different work piece and technological requirements.


PRODUCT SPECIFICATIONS


MODEL
SC-10
SC-30
SC-50
Horizontal Capacity
10Kg
30Kg
50Kg
Vertical Capacity
5Kg
15Kg
25Kg
Rotation Speed
2-16r/min
1-15r/min
0.5-5r/min

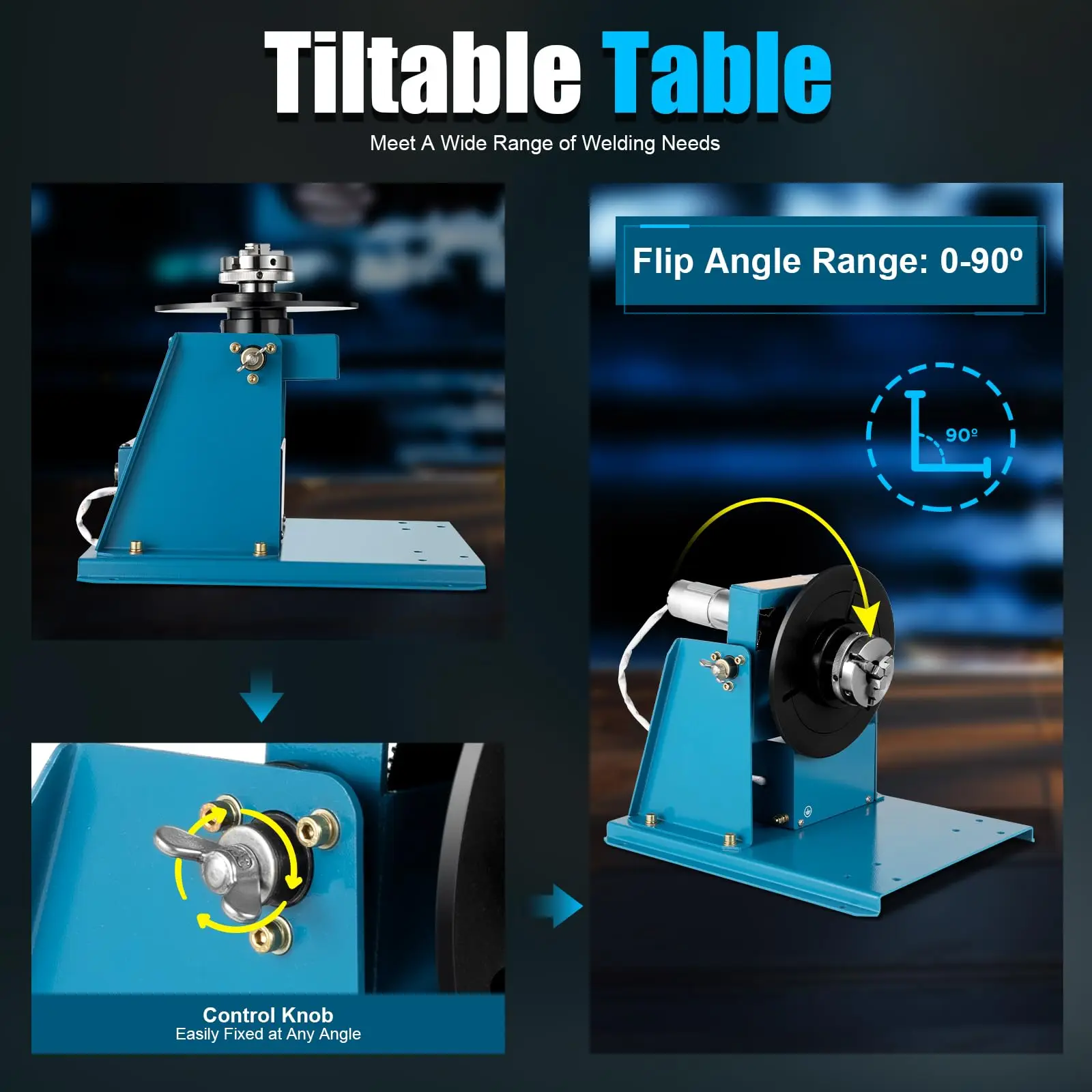

Tilt Angle Range
0~90°/manual reverse
0~90°/manual reverse
0~90°/manual reverse
Table Diameter
180mm
315mm
315mm
Height Of Table
232mm
340mm
340mm
Motor Power
20W
90W
120W
Weight
10kg
28kg
32kg
Input Voltage
1PH 220V 50~60Hz
1PH 220V 50~60Hz
1PH 220V 50~60Hz
Application Chuck
KC-65/KC-80
KD-125/200/300
KD-125/200/300


MODEL
SC-100
SC-200
SC-300
Horizontal Capacity Loading
100kg
200kg
300kg
Vertical Capacity Loading
50kg
100kg
150kg
Rotating Speed
0.5-5r/min
0.5-5r/min
0.2-2.5r/min
Tilt Range
0~90°/manual reverse
0~90°/manual reverse
0~90°/manual reverse
Table Dimension
400mm
400mm
500mm
Table Height
500mm
500mm
600mm
Center through hole
45mm
45mm
90mm
Motor Power
120w
140w
200w
Weight
75kg
80kg
110kg
Power Input
1PH 220V 50~60Hz
1PH 220V 50~60Hz
1PH 220V 50~60Hz
Adapter chuck
KD-200/300/400
KD-200/300/400
KD-300/400/500




























Certifications




Company Profile








FAQ


Q1: How can I get the training after I order the machine?
A1:
A)Machine manual and operation CD will be supplied with you for each machine
B)We have processional engineer team to supply 24 hours service online
C)Engineer available to service machine oversea
D)Welcome come to our factory to get training in any time

Q2:Do you arrange shipment for the machine?
A2:Under CFR or CIF terms, we are responsible for shipping from China port to the destination port. Under FOB/EXW terms, clients
shall arrange shipment by themselves or their agent.

Q3:How is the packing?
A3:Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Q4:Are you a factory or trading company?
A4:We are professional manufacturer specialized in all kinds of cnc laser and welding machine with 15 years production experience.

Q5:Where is your factory located? How can I visit there?

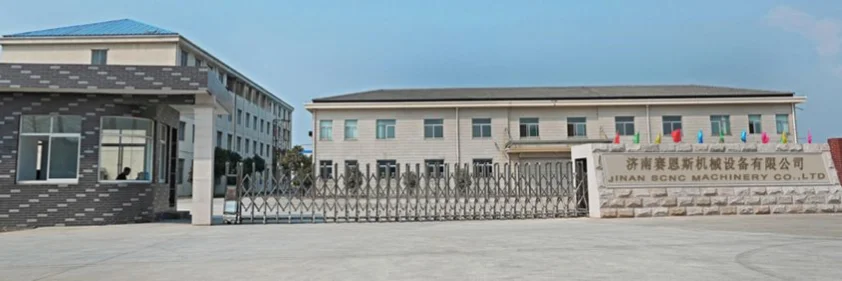

A5:Our factory is located in Jinan City, Shandong Province. It will take 20 mins from jinan international airport; 2 hours from Beijing, 4 hours from Shanghai.

Q6:Can you do OEM?
A6: Yes, we can do OEM products. It's no problem.
