Manufacturer For Mall Railway Deformed Steel Rebars Truss
- Category: >>>
- Supplier: Hebei Fulangsi Metal Wire Mesh Product Co. Ltd.
Share on (1601164125949):
Product Overview
Description
Products Description

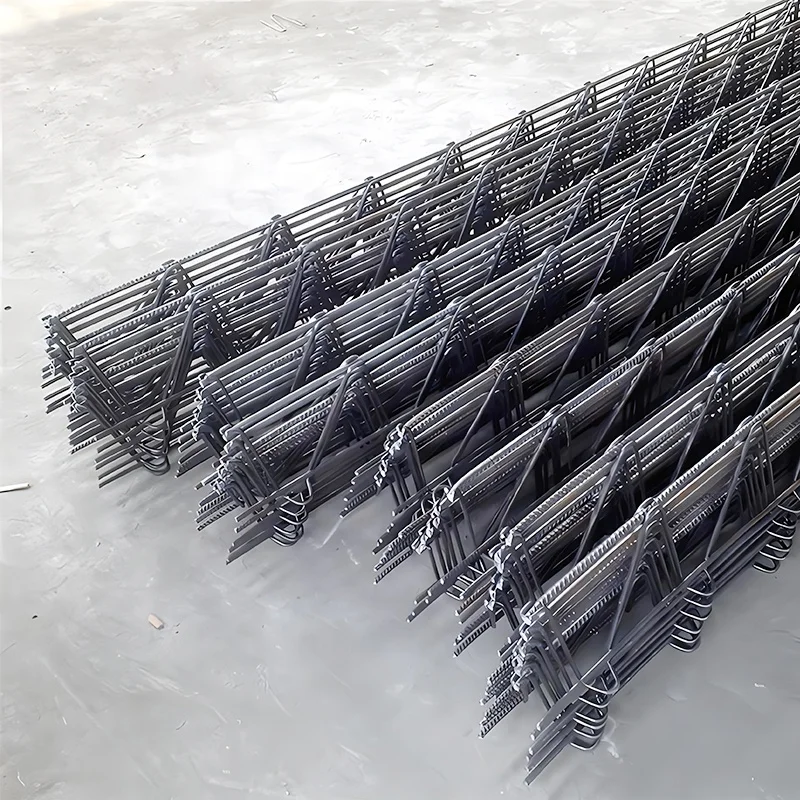

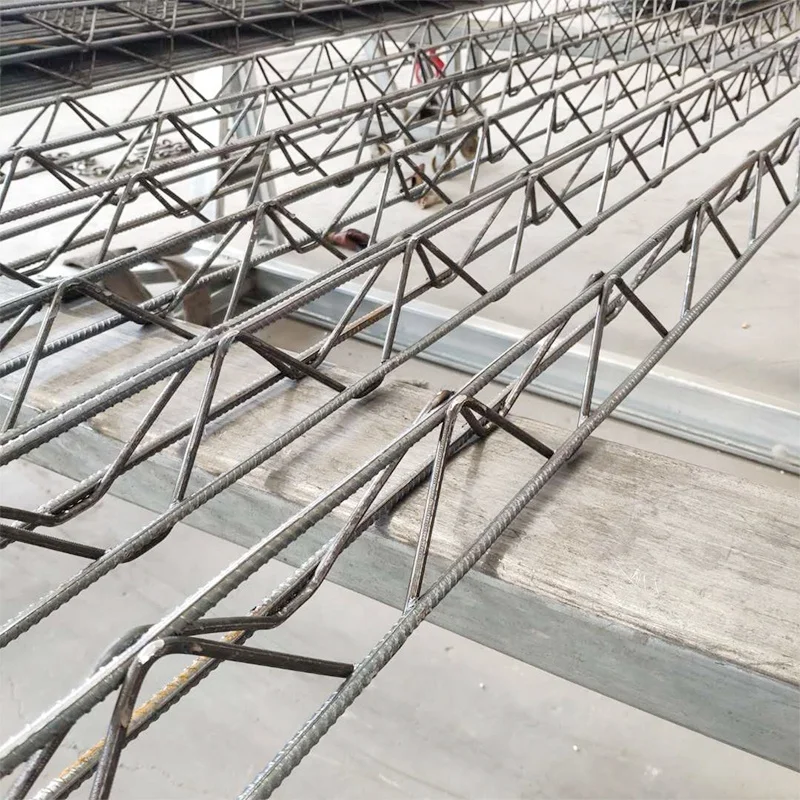

Lattice girders are three-dimensional, industrially prefabricated reinforcing elements. They consist of an upper chord, two lower chords, and continuous diagonal truss wires or a combination of diagonal and vertical wires. Truss wires are connected to the chords by means of electric resistance welding.
The bottom chords are usually made of ribbed reinforcing steel, and the top chords and diagonals of smooth or ribbed reinforcing steel. Depending on the requirements, reinforcing steels of strength classes B500 or B550 are used.
The bottom chords are usually made of ribbed reinforcing steel, and the top chords and diagonals of smooth or ribbed reinforcing steel. Depending on the requirements, reinforcing steels of strength classes B500 or B550 are used.
The Lattice Girders are produced with 2 longitudinal wires in the bottom flange and 1 wire on the top,
welded together in regular distances using a smaller diameter secondary wire.
The top and bottom reinforcing wires are produced with wire rod that after cold rolling
obtains the mechanical characteristics of the required reinforcing steel
The Lattice Girders are used mainly as reinforcement of prefabricated slabs and beams, where
concreting is performed in two stages, offering the advantage of avoiding scaffolding and formwork
needed in traditional construction.
Therefore Lattice Girders are best suited when slab reinforcement is generally light, while at the same
time fast and no-formwork construction is needed.
welded together in regular distances using a smaller diameter secondary wire.
The top and bottom reinforcing wires are produced with wire rod that after cold rolling
obtains the mechanical characteristics of the required reinforcing steel
The Lattice Girders are used mainly as reinforcement of prefabricated slabs and beams, where
concreting is performed in two stages, offering the advantage of avoiding scaffolding and formwork
needed in traditional construction.
Therefore Lattice Girders are best suited when slab reinforcement is generally light, while at the same
time fast and no-formwork construction is needed.

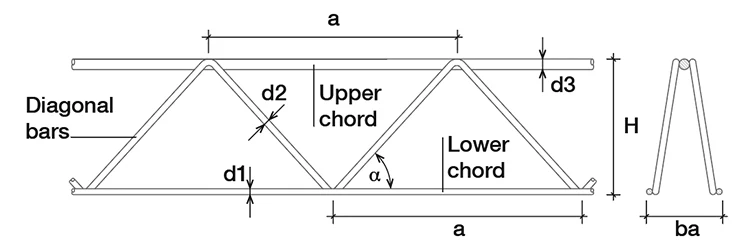

Detail parameters
Girder height H: 70–300 mm Step of diagonals a: 200 mm
Upper chord d3: 4–14 mm Width of lower chord ba: approx100 mm
Lower chord d1: 3-14 mm Delivery lengths: Standard lengths 2–6 m
Diagonals d2: 3-10 mm
Material Specifications | Width (mm) | Height (mm) | Upper Chord Rebar | Diagonal Bars | Lower chord |
4-3-3 | 60~80 | 70~300 | 4 mm | 3 mm | 3 mm |
6-4-4 | 80 | 70~300 | 6 mm | 4 mm | 4 mm |
6-4-6 | 80 | 70~300 | 6 mm | 4 mm | 6 mm |
Advantages Economv: The mode of truss s reasonable with low price and has an obvious advantage in this area: Can be designed as double-sides deck
Convenient: Shorten the project construction time; Reduce temporaty support
Security: Good performance of cracking resistance and fire resistance.
Reliability: good property to prevent earthquake.
(1)Light in weight ,high intensity, huge loading capacity as well as good anti-earthquake capacity
(2)Simple in construction operation, easy to install.
(3)Can act as a part of the structure of weight bearing, to reduce the cost of material
(4)Put the panel above the welded wire net fill cement between them.
(5)This type of steel truss floor decking sheet has the strong friction between the concrete and floor slab, being fire resistant.
(6)The steel truss is connected with steel bar ,making it have the higher strength.
Security: Good performance of cracking resistance and fire resistance.
Reliability: good property to prevent earthquake.
(1)Light in weight ,high intensity, huge loading capacity as well as good anti-earthquake capacity
(2)Simple in construction operation, easy to install.
(3)Can act as a part of the structure of weight bearing, to reduce the cost of material
(4)Put the panel above the welded wire net fill cement between them.
(5)This type of steel truss floor decking sheet has the strong friction between the concrete and floor slab, being fire resistant.
(6)The steel truss is connected with steel bar ,making it have the higher strength.
1)Applied to precast slabs, pre-high-speed railway sleeper
2)Used in many high-rise, ultra- high-rise steel buildings
3)Used for steel building, mezzanine floor of“LOFT”
4)The force applied to the complex, special-shaped structure, building
5)Used in-situ concrete structure(RC) buildings
6)Used in the construction of slope roof structure
Company Profile
Hebei Fu lang si Metal Wire Mesh Product Co.,LTD is located in Matun Industrial Zone nearby Anping Wire Mesh Town and is specialized in manufacturing Expanded Metal Lath, Rib Lath, Brick Lath and Decorative Wire Mesh .
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Certifications
FAQ
1、What is the material of your products ?
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
>>>Please send an inquiry to Contact us
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
